Canon 1D versus Canon R

The Canon EOS-1D and the Canon EOS R are two digital cameras that were revealed to the public, respectively, in September 2001 and September 2018. The 1D is a DSLR, while the Canon R is a mirrorless interchangeable lens camera. The cameras are based on an APS-H (1D) and a full frame (Canon R) sensor. The 1D has a resolution of 4.1 megapixel, whereas the Canon R provides 30.1 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Canon 1D vs Canon R

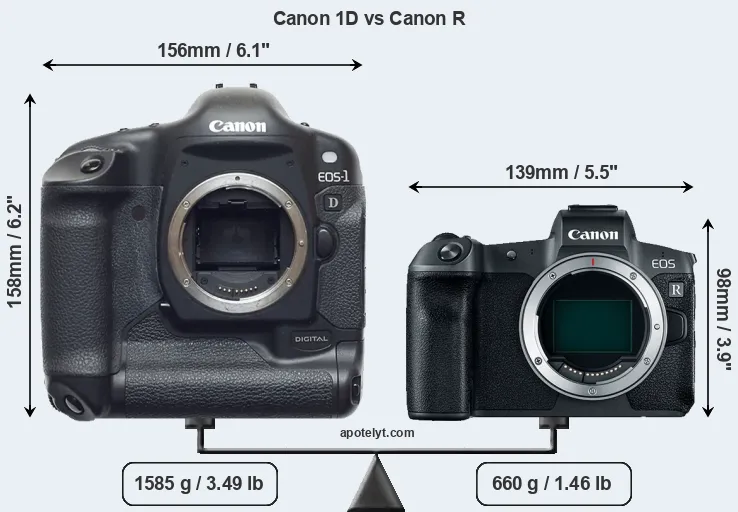

An illustration of the physical size and weight of the Canon 1D and the Canon R is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left – the 1D – represents 100 percent across all the size and weight measures).

Compare Canon 1D vs Canon R
Compare 1D versus Canon R top

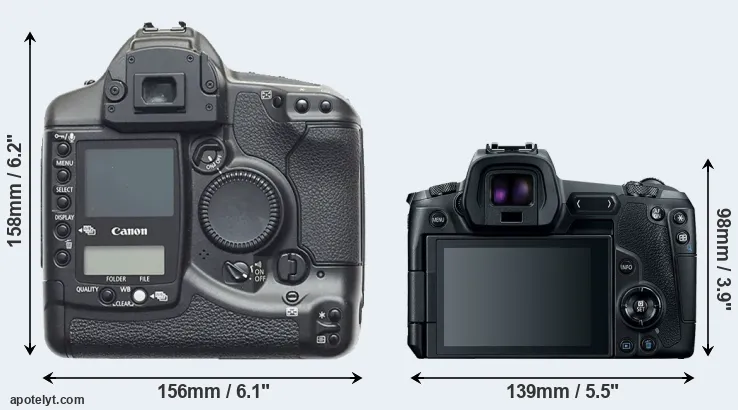

Compare 1D and Canon R rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R is considerably smaller (45 percent) than the Canon 1D. Moreover, the Canon R is substantially lighter (58 percent) than the 1D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the 1D gets 500 shots out of its NP-E3 battery, while the Canon R can take 370 images on a single charge of its LP-E6N power pack. As can be seen in the images above, the 1D has a battery grip build in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the Canon R, Canon provides the BG-E22 vertical grip as an optional accessory (see here on eBay).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D» 6.1 in 6.2 in 3.1 in 55.9 oz 500 Y Sep 2001 6,499- i Canon 1D
Canon R« 5.5 in 3.9 in 3.3 in 23.3 oz 370 Y Sep 2018 2,299 i i Canon R
Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« » 6.2 in 6.6 in 3.3 in 54.0 oz 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« » 5.9 in 4.6 in 3.0 in 31.4 oz 900 Y Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1D C« » 6.2 in 6.5 in 3.3 in 54.5 oz 1120 Y Apr 2012 14,999- i Canon 1D C
Canon 1D X« » 6.2 in 6.6 in 3.3 in 54.7 oz 1120 Y Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« » 6.1 in 6.2 in 3.1 in 43.4 oz 1500 Y Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« » 6.1 in 6.2 in 3.1 in 40.7 oz 2200 Y Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« » 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« » 6.1 in 6.2 in 3.1 in 55.2 oz 1200 Y Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« » 6.1 in 6.2 in 3.1 in 54.1 oz 1200 Y Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« » 6.1 in 6.2 in 3.1 in 44.6 oz 600 Y Sep 2002 8,999- i Canon 1Ds
Nikon D750« » 5.6 in 4.4 in 3.1 in 26.5 oz 1230 Y Sep 2014 2,299 i i Nikon D750
Nikon Df« » 5.7 in 4.3 in 2.6 in 26.8 oz 1400 Y Nov 2013 2,749 i i Nikon Df
Sony A7R« » 5.0 in 3.7 in 1.9 in 16.4 oz 340 Y Oct 2013 2,299- i Sony A7R

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon R was launched at a markedly lower price (by 65 percent) than the 1D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Canon 1D vs Canon R

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 1D features an APS-H sensor and the Canon R a full frame sensor. The sensor area in the Canon R is 58 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the Canon R uses a more advanced image processing engine (DIGIC 8) than the 1D (DIGIC), with benefits for noise reduction, color accuracy, and processing speed.

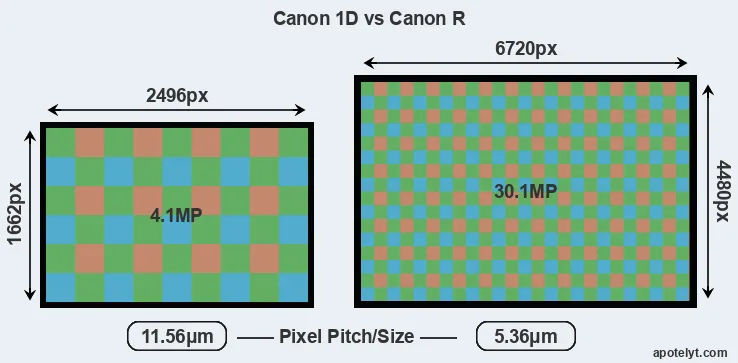

Canon 1D and Canon R sensor measures

With 30.1MP, the Canon R offers a higher resolution than the 1D (4.1MP), but the Canon R has smaller individual pixels (pixel pitch of 5.36μm versus 11.56μm for the 1D). Yet, the Canon R is a much more recent model (by 16 years and 11 months) than the 1D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The Canon R has on-sensor phase detect pixels, which results in relatively fast and reliable autofocus acquisition during video recording.

1D versus Canon R MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D» APS-H 4.1 2496 1662-----Canon 1D
Canon R« Full Frame 30.1 6720 44804K/30p----Canon R
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 5D Mark IV« » Full Frame 30.1 6720 44804K/30p24.813.6299591Canon 5D Mark IV
Canon 1D C« » Full Frame 17.9 5184 34564K/24p----Canon 1D C
Canon 1D X« » Full Frame 17.9 5184 34561080/30p23.811.8278682Canon 1D X
Canon 1D Mark IV« » APS-H 16.0 4896 32641080/30p22.812.0132074Canon 1D Mark IV
Canon 1D Mark III« » APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 1D Mark II N« » APS-H 8.2 3504 2336-22.311.297566Canon 1D Mark II N
Canon 1D Mark II« » APS-H 8.2 3504 2336-22.311.1100366Canon 1D Mark II
Canon 1Ds« » Full Frame 11.0 4064 2704-21.811.095463Canon 1Ds
Nikon D750« » Full Frame 24.2 6016 40161080/60p24.814.5295693Nikon D750
Nikon Df« » Full Frame 16.2 4928 3280-24.613.1327989Nikon Df
Sony A7R« » Full Frame 36.2 7360 49121080/60p25.614.1274695Sony A7R

Many modern cameras cannot only take still pictures, but also record videos. The Canon R indeed provides for movie recording, while the 1D does not. The highest resolution format that the Canon R can use is 4K/30p.



Feature comparison: Canon 1D vs Canon R

Apart from body and sensor, cameras can and do differ across a range of features. For example, the Canon R has an electronic viewfinder (3690k dots), while the 1D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon 1D, the Canon R, and comparable cameras. The full specs-sheets can be found in the camera manual or in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Canon 1D»optical Y 2.0 120 fixed n 16000 8.0 n n Canon 1D
Canon R«3690 n 3.2 2100 swivel Y 8000 8.0 n n Canon R
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 5D Mark IV« »optical Y 3.2 1620 fixed Y 8000 7.0 n n Canon 5D Mark IV
Canon 1D C« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D C
Canon 1D X« »optical Y 3.2 1040 fixed n 8000 14.0 n n Canon 1D X
Canon 1D Mark IV« »optical Y 3.0 920 fixed n 8000 10.0 n n Canon 1D Mark IV
Canon 1D Mark III« »optical Y 3.0 230 fixed n 8000 10.0 n n Canon 1D Mark III
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 1D Mark II N« »optical Y 2.5 230 fixed n 8000 8.5 n n Canon 1D Mark II N
Canon 1D Mark II« »optical Y 2.0 230 fixed n 8000 8.3 n n Canon 1D Mark II
Canon 1Ds« »optical Y 2.0 120 fixed n 8000 3.0 n n Canon 1Ds
Nikon D750« »optical Y 3.2 1229 tilting n 4000 6.0 Y n Nikon D750
Nikon Df« »optical Y 3.2 921 fixed n 4000 5.5 n n Nikon Df
Sony A7R« »2400 n 3.0 1230 tilting n 8000 4.0 n n Sony A7R

One feature that is present on the 1D, but is missing on the Canon R is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed and shutter burst refer to the use of the mechanical shutter. In addition, the Canon R features an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (rolling shutter) or shooting under artificial light sources (flickering).

The 1D writes its imaging data to Compact Flash cards, while the Canon R uses SDXC cards. The 1D features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon R only has one slot.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D»Y-----FW---Canon 1D
Canon R«YstereomonoY-mini3.1Y-YCanon R
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 5D Mark IV« »YmonomonoYYmini3.0YY-Canon 5D Mark IV
Canon 1D C« »YmonomonoYYmini2.0---Canon 1D C
Canon 1D X« »Ymono-Y-mini2.0---Canon 1D X
Canon 1D Mark IV« »Ystereo-Y-mini2.0---Canon 1D Mark IV
Canon 1D Mark III« »Y-----2.0---Canon 1D Mark III
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 1D Mark II N« »Y-----1.1---Canon 1D Mark II N
Canon 1D Mark II« »Y-----1.1---Canon 1D Mark II
Canon 1Ds« »Y-----FW---Canon 1Ds
Nikon D750« »YstereomonoYYmini2.0Y--Nikon D750
Nikon Df« »Y----mini2.0---Nikon Df
Sony A7R« »YstereomonoYYmicro2.0YY-Sony A7R

The Canon R is a recent model that features in the current product line-up of Canon. In contrast, the 1D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D was succeeded by the Canon 1D Mark II.

Review summary: Canon 1D vs Canon R

So what is the bottom line? Is there a clear favorite between the Canon 1D and the Canon R? The listing below highlights the relative strengths of the two models.


Arguments in favor of the Canon EOS-1D:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (16000/sec vs 8000/sec) to freeze action.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • Longer lasting: Can take more shots (500 versus 370) on a single battery charge.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been available for much longer (launched in September 2001).


Reasons to prefer the Canon EOS R:

  • More detail: Has more megapixels (30.1 vs 4.1MP), which boosts linear resolution by 169%.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: Larger sensor generates images with better, more accurate colors.
  • More dynamic range: Capable of capturing a wider spectrum of light and dark details.
  • Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
  • Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC).
  • Broader imaging potential: Can capture not only stills but also 4K/30p video.
  • Better video autofocus: Features on-sensor phase-detection for more confident movie autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 120k dots).
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (139x98mm vs 156x158mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 925g or 58 percent) and is thus easier to take along.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi build in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
  • More modern: Reflects 16 years and 11 months of technical progress since the 1D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the Canon R is the clear winner of the contest (21 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

1D 07:21 Canon R

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 1D or the Canon R handle or perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The detailed reviews can be accessed by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D»-HiRec--- Sep 2001 6,499- i Canon 1D
Canon R«rev-4.5/5-4/5 Sep 2018 2,299 i i Canon R
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5D Mark IV« »HiRec87/1004.5/55/54.5/5 Aug 2016 3,499 i i Canon 5D Mark IV
Canon 1D C« »----- Apr 2012 14,999- i Canon 1D C
Canon 1D X« »--4.5/54.5/54.5/5 Oct 2011 6,799- i Canon 1D X
Canon 1D Mark IV« »-89/100-5/5- Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« »---rev- Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« »----- Aug 2005 3,999- i Canon 1D Mark II N
Canon 1D Mark II« »-HiRec-rev- Jan 2004 4,499- i Canon 1D Mark II
Canon 1Ds« »-HiRec--- Sep 2002 8,999- i Canon 1Ds
Nikon D750« »HiRec90/1004.5/55/54.5/5 Sep 2014 2,299 i i Nikon D750
Nikon Df« »-81/1004/54/54/5 Nov 2013 2,749 i i Nikon Df
Sony A7R« »HiRec82/1004.5/55/55/5 Oct 2013 2,299- i Sony A7R

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.



Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored. If you do not see the camera that you are looking for, please contact me, and I will try to update the database with the necessary infos.

~
