Canon 1D Mark II N vs SX420
The Canon EOS-1D Mark II N and the Canon PowerShot SX420 IS are two digital cameras that were officially introduced, respectively, in August 2005 and January 2016. The 1D Mark II N is a DSLR, while the SX420 is a fixed lens compact. The cameras are based on an APS-H (1D Mark II N) and a 1/2.3-inch (SX420) sensor. The 1D Mark II N has a resolution of 8.2 megapixels, whereas the SX420 provides 19.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1D Mark II N||Canon SX420|
|Digital single lens reflex||Fixed lens compact camera|
|Canon EF mount lenses||24-1008mm f/3.5-6.6|
|8.2 MP, APS-H Sensor||19.9 MP, 1/2.3" Sensor|
|no Video||720/25p Video|
|ISO 100-1,600 (50 - 3,200)||ISO 100-1,600|
|Optical viewfinder||No viewfinder, LCD framing|
|2.5 LCD, 230k dots||3.0 LCD, 230k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|8.5 shutter flaps per second||0.5 shutter flaps per second|
|Weathersealed body||not weather sealed|
|1200 shots per battery charge||195 shots per battery charge|
|156 x 158 x 80 mm, 1565 g||104 x 69 x 85 mm, 325 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II N and the Canon PowerShot SX420 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

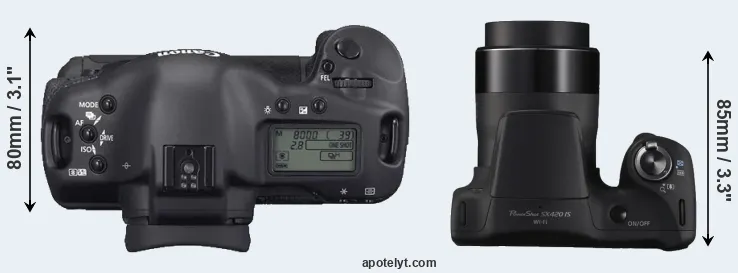

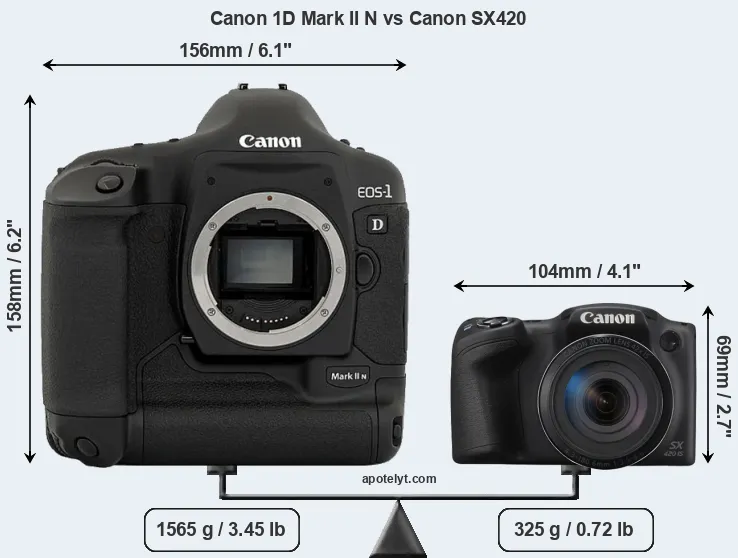

The side-by-side display below illustrates the physical size and weight of the Canon 1D Mark II N and the Canon SX420. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The SX420 can be obtained in two different colors (black, red), while the 1D Mark II N is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX420 is considerably smaller (71 percent) than the Canon 1D Mark II N. It is worth mentioning in this context that the 1D Mark II N is splash and dust resistant, while the SX420 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX420 has a lens built in, whereas the 1D Mark II N is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 1D Mark II N and their specifications in the Canon EF Lens Catalog.
As can be seen in the images above, the 1D Mark II N has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 1D Mark II N||156 mm||158 mm||80 mm||1565 g||1200||Y||Aug 2005||3,999|
|Canon SX420||104 mm||69 mm||85 mm||325 g||195||n||Jan 2016||299|
|Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|Canon SX410||104 mm||69 mm||85 mm||325 g||185||n||Feb 2015||279|
|Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349|
|Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|Canon 1D Mark III||156 mm||157 mm||80 mm||1155 g||2200||Y||Feb 2007||4,499|
|Canon 1Ds Mark III||150 mm||160 mm||80 mm||1385 g||1800||Y||Aug 2007||7,999|
|Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|Canon 1D Mark II||156 mm||158 mm||80 mm||1535 g||1200||Y||Jan 2004||4,499|
|Canon 1Ds Mark II||156 mm||158 mm||80 mm||1215 g||1200||Y||Sep 2004||7,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX420 was launched at a lower price than the 1D Mark II N, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 1D Mark II N features an APS-H sensor and the Canon SX420 a 1/2.3-inch sensor. The sensor area in the SX420 is 95 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 5.6. The sensor in the 1D Mark II N has a native 3:2 aspect ratio, while the one in the SX420 offers a 4:3 aspect.
Technology-wise, the SX420 uses a more advanced image processing engine (DIGIC 4+) than the 1D Mark II N (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.

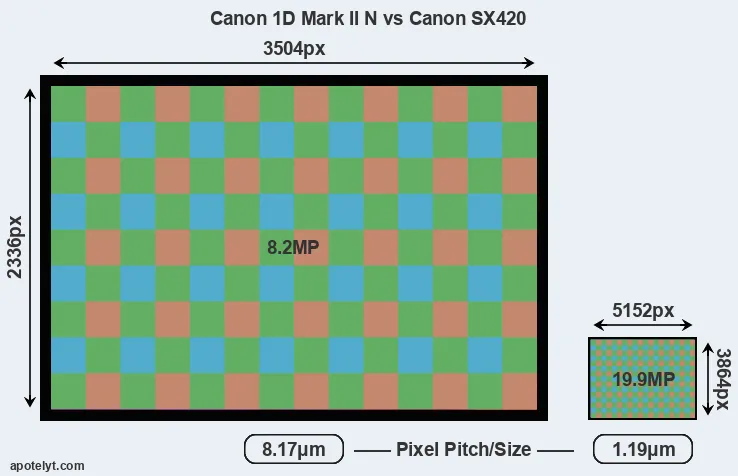

Despite having a smaller sensor, the SX420 offers a higher resolution of 19.9 megapixels, compared with 8.2 MP of the 1D Mark II N. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 8.17μm for the 1D Mark II N). However, it should be noted that the SX420 is much more recent (by 10 years and 4 months) than the 1D Mark II N, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX420 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX420 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX420 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Canon 1D Mark II N are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.
The Canon EOS-1D Mark II N has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon PowerShot SX420 IS are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 1D Mark II N||APS-H||8.2||3504||2336||none||22.3||11.2||975||66|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Canon 1D Mark III||APS-H||10.1||3888||2592||none||22.7||11.7||1078||71|
|Canon 1Ds Mark III||Full Frame||21.0||5616||3744||none||24.0||12.0||1663||80|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Canon 1D Mark II||APS-H||8.2||3504||2336||none||22.3||11.1||1003||66|
|Canon 1Ds Mark II||Full Frame||16.6||4992||3328||none||23.3||11.3||1480||74|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The SX420 indeed provides for movie recording, while the 1D Mark II N does not. The highest resolution format that the SX420 can use is 720/25p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1D Mark II N has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX420 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 1D Mark II N, the Canon SX420, and comparable cameras.
|Canon 1D Mark II N||optical||Y||2.5||230||fixed||n||1/8000s||8.5||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Canon 1D Mark III||optical||Y||3.0||230||fixed||n||1/8000s||10.0||n||n|
|Canon 1Ds Mark III||optical||Y||3.0||230||fixed||n||1/8000s||5.0||n||n|
|Canon 1D Mark II||optical||Y||2.0||230||fixed||n||1/8000s||8.3||n||n|
|Canon 1Ds Mark II||optical||Y||2.0||230||fixed||n||1/8000s||4.0||n||n|
One feature that is present on the 1D Mark II N, but is missing on the SX420 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The 1D Mark II N writes its imaging data to Compact Flash or SD cards, while the SX420 uses SDXC cards. The 1D Mark II N features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX420 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II N and Canon PowerShot SX420 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D Mark II N||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Canon 1D Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1Ds Mark III||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D Mark II||Y||-||-||-||-||-||1.1||-||-||-|
|Canon 1Ds Mark II||Y||-||-||-||-||-||2.0||-||-||-|
It is notable that the 1D Mark II N has a hotshoe, while the SX420 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Canon 1D Mark II N (unlike the SX420) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The SX420 is a recent model that features in the current product line-up of Canon. In contrast, the 1D Mark II N has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D Mark II N was succeeded by the Canon 1D Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what conclusions can be drawn? Which of the two cameras – the Canon 1D Mark II N or the Canon SX420 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS-1D Mark II N:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (8.5 vs 0.5 flaps/sec) to capture the decisive moment.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (1200 versus 195) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in August 2005).
Arguments in favor of the Canon PowerShot SX420 IS:
- More detail: Has more megapixels (19.9 vs 8.2MP), which boosts linear resolution by 53%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC II).
- Broader imaging potential: Can capture not only stills but also 720/25p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- Ready to shoot: Comes with an integrated lens, while the 1D Mark II N requires a separate lens.
- More compact: Is smaller (104x69mm vs 156x158mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 1D Mark II N).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 10 years and 4 months of technical progress since the 1D Mark II N launch.
If the number of relative strengths (bullet points above) is taken as a guide, the 1D Mark II N emerges as the winner of the contest (17 : 15 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1D Mark II N and the Canon SX420 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1D Mark II N or the SX420. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1D Mark II N||..||..||..||..||..||Aug 2005||3,999|
|Canon SX420||..||..||..||..||3/5||Jan 2016||299|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon G7 X Mark II||+ +||81/100||4.5/5||4/5||4.5/5||Feb 2016||699|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon 5DS R||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699|
|Canon G5 X||+ +||78/100||4.5/5||4/5||4.5/5||Oct 2015||799|
|Canon SX410||o||..||..||..||..||Feb 2015||279|
|Canon SX710||+||..||4/5||..||3.5/5||Jan 2015||349|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Canon 1D Mark III||..||..||..||o||..||Feb 2007||4,499|
|Canon 1Ds Mark III||..||+ +||4.5/5||..||..||Aug 2007||7,999|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Canon 1D Mark II||..||+ +||..||o||..||Jan 2004||4,499|
|Canon 1Ds Mark II||..||+ +||..||..||..||Sep 2004||7,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1D Mark II N vs Fujifilm GFX 50S
- Canon 1D Mark II N vs Nikon D70s
- Canon 1D Mark II N vs Olympus E-PL1
- Canon 1D Mark II N vs Olympus E-PL9
- Canon 1D Mark II N vs Sony NEX-7
- Canon SX420 vs Fujifilm X-T2
- Canon SX420 vs Fujifilm X-T30
- Canon SX420 vs Nikon P7800
- Canon SX420 vs Olympus E-500
- Canon SX420 vs Panasonic G85
- Canon SX420 vs Sony H300
- Canon SX420 vs Sony RX0
Specifications: Canon 1D Mark II N vs Canon SX420
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1D Mark II N||Canon SX420|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-1008mm f/3.5-6.6|
|Launch Date||August 2005||January 2016|
|Launch Price||USD 3,999||USD 299|
|Sensor Specs||Canon 1D Mark II N||Canon SX420|
|Sensor Format||APS-H Sensor||1/2.3" Sensor|
|Sensor Size||28.7 x 19.1 mm||6.17 x 4.55 mm|
|Sensor Area||548.17 mm2||28.0735 mm2|
|Sensor Diagonal||34.5 mm||7.7 mm|
|Sensor Resolution||8.2 Megapixels||19.9 Megapixels|
|Image Resolution||3504 x 2336 pixels||5152 x 3864 pixels|
|Pixel Pitch||8.17 μm||1.19 μm|
|Pixel Density||1.49 MP/cm2||70.91 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||720/25p Video|
|ISO Setting||100 - 1,600 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC II||DIGIC 4+|
|DXO Sensor Quality (score)||66||..|
|DXO Color Depth (bits)||22.3||..|
|DXO Dynamic Range (EV)||11.2||..|
|DXO Low Light (ISO)||975||..|
|Screen Specs||Canon 1D Mark II N||Canon SX420|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 1D Mark II N||Canon SX420|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||8.5 shutter flaps/s||0.5 shutter flaps/s|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||CF or SD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Canon 1D Mark II N||Canon SX420|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon 1D Mark II N||Canon SX420|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1200 shots per charge||195 shots per charge|
156 x 158 x 80 mm
(6.1 x 6.2 x 3.1 in)
104 x 69 x 85 mm
(4.1 x 2.7 x 3.3 in)
|Camera Weight||1565 g (55.2 oz)||325 g (11.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
