Pentax K-5 vs Sony NEX-3N

The Pentax K-5 and the Sony Alpha NEX-3N are two digital cameras that were officially introduced, respectively, in September 2010 and February 2013. The K-5 is a DSLR, while the NEX-3N is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Pentax has a resolution of 16.1 megapixels, whereas the Sony provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax K-5		Sony NEX-3N
Digital single lens reflex		Mirrorless system camera
Pentax K mount lenses		Sony E mount lenses
16.1 MP – APS-C sensor		16 MP – APS-C sensor
1080/25p Video		1080/60i Video
ISO 100-12,800 (80 - 51,200)		ISO 200-16,000
Optical viewfinder		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
7 shutter flaps per second		4 shutter flaps per second
In-body stabilization		Lens stabilization only
Weathersealed body		not weather sealed
740 shots per battery charge		480 shots per battery charge
131 x 97 x 73 mm, 760 g		110 x 62 x 35 mm, 269 g

Check K-5 offers at
ebay.com
Check NEX-3N offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-5 and the Sony Alpha NEX-3N? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

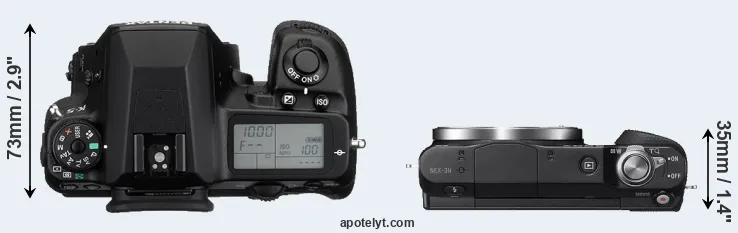

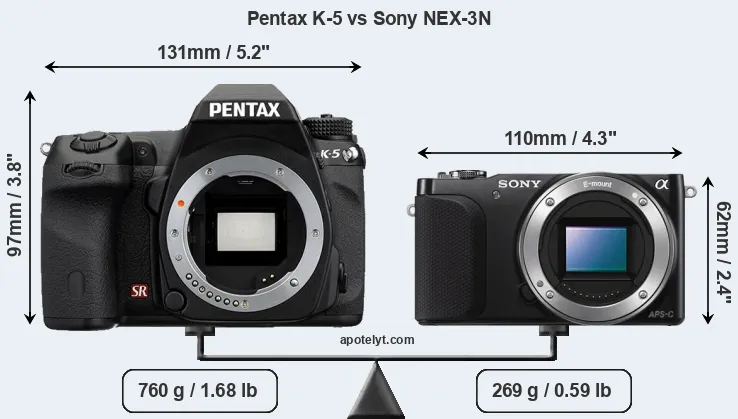

The side-by-side display below illustrates the physical size and weight of the Pentax K-5 and the Sony NEX-3N. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The NEX-3N can be obtained in two different colors (black, white), while the K-5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-3N is considerably smaller (46 percent) than the Pentax K-5. Moreover, the NEX-3N is substantially lighter (65 percent) than the K-5. It is worth mentioning in this context that the K-5 is splash and dust resistant, while the NEX-3N does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the K-5 gets 740 shots out of its Pentax D-LI90 battery, while the NEX-3N can take 480 images on a single charge of its Sony NP-FW50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
2.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	US$ 499	ebay.com
3.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	US$ 1 499	ebay.com
4.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
5.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
6.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
7.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
8.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
9.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	US$ 649	ebay.com
10.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
11.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	US$ 1 099	ebay.com
12.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	US$ 1 399	ebay.com
13.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
14.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
15.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	US$ 599	ebay.com
16.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	US$ 699	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The NEX-3N was launched at a markedly lower price (by 55 percent) than the K-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

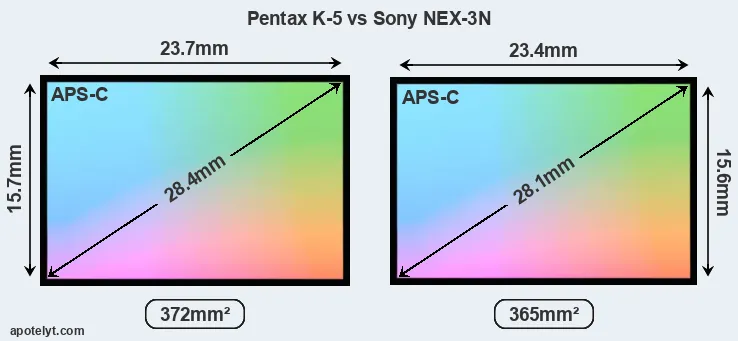

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-3N is 2 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 16.1MP, the K-5 offers a slightly higher resolution than the NEX-3N (16MP), but the K-5 nevertheless has marginally larger individual pixels (pixel pitch of 4.81μm versus 4.78μm for the NEX-3N) due to its larger sensor. However, the NEX-3N is a much more recent model (by 2 years and 5 months) than the K-5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The Pentax K-5 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Sony Alpha NEX-3N are ISO 200 to ISO 16000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the K-5 has a notably higher overall DXO score than the NEX-3N (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.9 bits higher color depth, 1.6 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
2.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
3.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
4.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
5.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
6.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
7.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
8.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
9.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
10.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
11.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
12.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78
13.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
14.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
15.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
16.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the NEX-3N provides a faster frame rate than the K-5. It can shoot movie footage at 1080/60i, while the Pentax is limited to 1080/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the K-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-3N relies on live view and the rear LCD for framing. That said, the NEX-3N can be equipped with an optional viewfinder – the FDA-SV1. The table below summarizes some of the other core capabilities of the Pentax K-5 and Sony NEX-3N in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
2.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
3.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
4.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
5.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
6.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
7.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
8.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
9.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
10.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
11.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
12.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
13.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
14.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
15.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
16.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the K-5, but is missing on the NEX-3N is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Pentax K-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The K-5 writes its imaging data to SDXC cards, while the NEX-3N uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-5 and Sony Alpha NEX-3N and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-
3.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
5.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
6.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
8.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
9.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
10.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
11.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
12.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the K-5 has a hotshoe, while the NEX-3N does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Pentax K-5 (unlike the NEX-3N) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the K-5 and the NEX-3N have been discontinued, but can regularly be found used on ebay. The K-5 was replaced by the Pentax K-5 II, while the NEX-3N was followed by the Sony A5000. Further information on the features and operation of the K-5 and NEX-3N can be found, respectively, in the Pentax K-5 Manual (free pdf) or the online Sony NEX-3N Manual.

Review summary

So how do things add up? Is there a clear favorite between the Pentax K-5 and the Sony NEX-3N? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Pentax K-5:

• Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (1.6 EV of extra DR).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 4 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (740 versus 480) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2010).

Arguments in favor of the Sony Alpha NEX-3N:

• Better video: Provides higher movie framerates (1080/60i versus 1080/25p).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (110x62mm vs 131x97mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 491g or 65 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (55 percent cheaper at launch).
• More modern: Reflects 2 years and 5 months of technical progress since the K-5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the K-5 is the clear winner of the match-up (15 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax K-5 and the Sony NEX-3N place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the K-5 and the NEX-3N in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
2.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	US$ 499	ebay.com
3.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	US$ 1 499	ebay.com
4.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
5.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
6.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
7.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
8.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
9.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	US$ 649	ebay.com
10.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
11.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	US$ 1 099	ebay.com
12.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	US$ 1 399	ebay.com
13.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
14.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
15.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	US$ 599	ebay.com
16.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	US$ 699	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
