Pentax K-5 vs Ricoh GR

The Pentax K-5 and the Ricoh GR are two digital cameras that were announced, respectively, in September 2010 and April 2013. The K-5 is a DSLR, while the GR is a fixed lens compact. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 16.1 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax K-5		Ricoh GR
Digital single lens reflex		Fixed lens compact camera
Pentax K mount lenses		28mm f/2.8
16.1 MP – APS-C sensor		16.1 MP – APS-C sensor
1080/25p Video		1080/30p Video
ISO 100-12,800 (80 - 51,200)		ISO 100-25,600
Optical viewfinder		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 1230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
7 shutter flaps per second		4 shutter flaps per second
In-body stabilization		no shake reduction
Weathersealed body		not weather sealed
740 shots per battery charge		290 shots per battery charge
131 x 97 x 73 mm, 760 g		117 x 61 x 35 mm, 245 g

Check K-5 offers at
ebay.com
Check GR offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-5 and the Ricoh GR? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

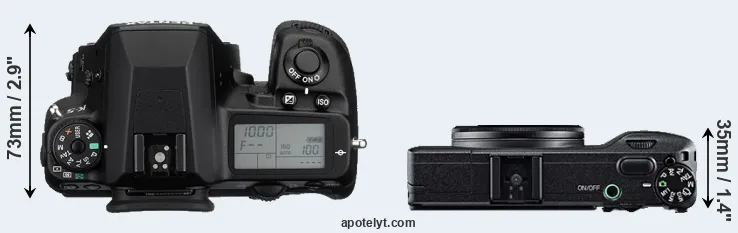

An illustration of the physical size and weight of the Pentax K-5 and the Ricoh GR is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh GR is considerably smaller (44 percent) than the Pentax K-5. It is worth mentioning in this context that the K-5 is splash and dust resistant, while the GR does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the GR has a lens built in, whereas the K-5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the K-5 gets 740 shots out of its Pentax D-LI90 battery, while the GR can take 290 images on a single charge of its Ricoh DB-65 power pack. The power pack in the GR can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
2.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	US$ 799	ebay.com
3.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	US$ 1 299	ebay.com
4.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
5.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
6.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
7.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
8.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
9.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
10.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
11.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
12.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
13.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	US$ 1 099	ebay.com
14.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
15.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	US$ 1 399	ebay.com
16.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	US$ 749	ebay.com
17.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GR was launched at a lower price than the K-5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

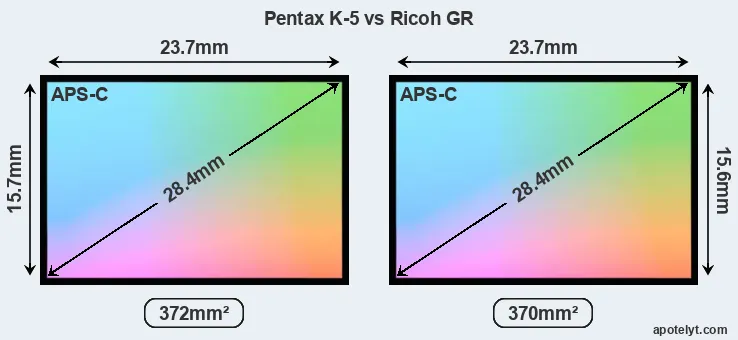

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the GR is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the K-5 has a slightly larger sensor, both cameras offer the same resolution of 16.1 megapixels. This implies that the K-5 has a lower pixel density and larger individual pixels (with a pixel pitch of 4.81μm versus 4.79μm for the GR), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the GR is much more recent (by 2 years and 6 months) than the K-5, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the GR has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Pentax K-5 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Ricoh GR are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the K-5 has a notably higher overall DXO score than the GR (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.099999999999998 bits higher color depth, 0.6 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
2.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
3.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
4.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
5.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
6.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
7.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
8.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
9.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
10.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
11.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
12.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
13.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
14.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
15.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78
16.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
17.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GR provides a faster frame rate than the K-5. It can shoot movie footage at 1080/30p, while the Pentax is limited to 1080/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the K-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GR relies on live view and the rear LCD for framing. That said, the GR can be equipped with an optional viewfinder – the GV-1. The following table reports on some other key feature differences and similarities of the Pentax K-5, the Ricoh GR, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
2.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
3.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
4.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
5.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
6.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
7.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
8.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
9.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
10.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
11.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
12.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
13.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
14.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
15.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
16.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the K-5, but is missing on the GR is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Pentax K-5 and the Ricoh GR both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the K-5 and the GR write their files to SDXC cards. The GR supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the K-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-5 and Ricoh GR and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
3.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
8.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
9.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
11.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
12.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
13.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
14.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the K-5 has a microphone port, which is missing on the GR. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Pentax K-5 (unlike the GR) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the K-5 and the GR have been discontinued, but can regularly be found used on ebay. The K-5 was replaced by the Pentax K-5 II, while the GR was followed by the Ricoh GR II. Further information on the features and operation of the K-5 and GR can be found, respectively, in the Pentax K-5 Manual (free pdf) or the online Ricoh GR Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Pentax K-5 and the Ricoh GR? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Pentax K-5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (0.6 EV of extra DR).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 4 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (740 versus 290) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2010).

Arguments in favor of the Ricoh GR:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/30p versus 1080/25p).
• More detailed LCD: Has a higher resolution rear screen (1230k vs 921k dots).
• Ready to shoot: Comes with an integrated lens, while the K-5 requires a separate lens.
• More compact: Is smaller (117x61mm vs 131x97mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the K-5).
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years and 6 months of technical progress since the K-5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the K-5 is the clear winner of the match-up (14 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax K-5 and the Ricoh GR place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the K-5 or the GR. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
2.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	US$ 799	ebay.com
3.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	US$ 1 299	ebay.com
4.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
5.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
6.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
7.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
8.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
9.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
10.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
11.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
12.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
13.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	US$ 1 099	ebay.com
14.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
15.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	US$ 1 399	ebay.com
16.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	US$ 749	ebay.com
17.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
