OM System OM-1 II vs Panasonic S5
The OM System OM-1 II and the Panasonic Lumix DC-S5 are two enthusiast cameras that were announced, respectively, in January 2024 and September 2020. Both the OM-1 II and the S5 are mirrorless interchangeable lens cameras that are based on a Four Thirds (OM-1 II) and a full frame (S5) sensor. The OM System has a resolution of 20.2 megapixels, whereas the Panasonic provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the OM System OM-1 II and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

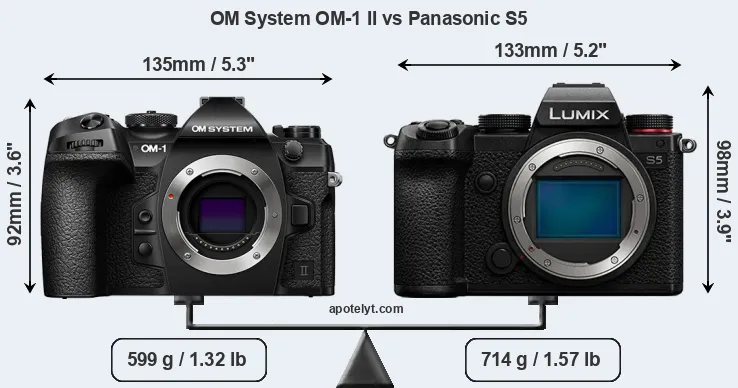

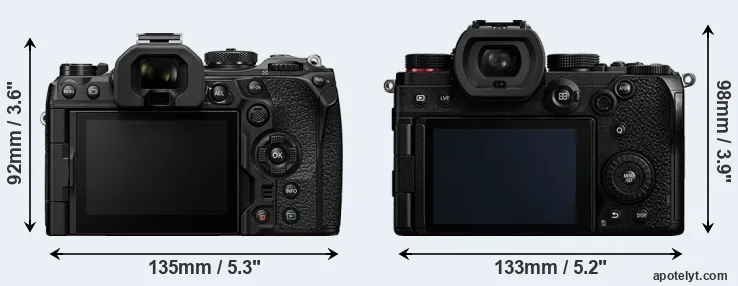

The side-by-side display below illustrates the physical size and weight of the OM System OM-1 II and the Panasonic S5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is somewhat larger (5 percent) than the OM System OM-1 II. Moreover, the S5 is markedly heavier (19 percent) than the OM-1 II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the OM-1 II gets 500 shots out of its OM System BLX-1 battery, while the S5 can take 440 images on a single charge of its Panasonic DMW-BLK22 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 II | 135 mm | 92 mm | 73 mm | 599 g | 500 | Y | Jan 2024 | US$ 2 399 | amazon.com | |
2. | Panasonic S5 | 133 mm | 98 mm | 82 mm | 714 g | 440 | Y | Sep 2020 | US$ 1 999 | amazon.com | |
3. | Nikon Z6 II | 134 mm | 101 mm | 70 mm | 705 g | 410 | Y | Oct 2020 | US$ 1 999 | amazon.com | |
4. | Nikon Zf | 144 mm | 103 mm | 49 mm | 710 g | 380 | Y | Sep 2023 | US$ 1 999 | amazon.com | |
5. | Olympus E-M1 II | 134 mm | 91 mm | 67 mm | 574 g | 440 | Y | Sep 2016 | US$ 1 999 | ebay.com | |
6. | Olympus E-M1 III | 134 mm | 91 mm | 69 mm | 580 g | 420 | Y | Feb 2020 | US$ 1 799 | ebay.com | |
7. | OM System OM-1 | 135 mm | 92 mm | 73 mm | 599 g | 520 | Y | Feb 2022 | US$ 2 199 | ebay.com | |
8. | OM System OM-5 | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Oct 2022 | US$ 1 199 | amazon.com | |
9. | Panasonic G9 | 137 mm | 97 mm | 92 mm | 658 g | 400 | Y | Nov 2017 | US$ 1 699 | ebay.com | |
10. | Panasonic G9 II | 134 mm | 102 mm | 90 mm | 658 g | 390 | Y | Sep 2023 | US$ 1 899 | amazon.com | |
11. | Panasonic G95 | 130 mm | 94 mm | 77 mm | 536 g | 290 | Y | Apr 2019 | US$ 999 | ebay.com | |
12. | Panasonic GH5 | 139 mm | 98 mm | 87 mm | 725 g | 410 | Y | Jan 2017 | US$ 1 999 | ebay.com | |
13. | Panasonic GH5 II | 139 mm | 98 mm | 87 mm | 727 g | 400 | Y | May 2021 | US$ 1 699 | amazon.com | |
14. | Panasonic S5 II | 134 mm | 102 mm | 90 mm | 740 g | 370 | Y | Jan 2023 | US$ 1 999 | amazon.com | |
15. | Sony A7 II | 127 mm | 96 mm | 60 mm | 599 g | 350 | Y | Nov 2014 | US$ 1 999 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The S5 was launched at a somewhat lower price (by 17 percent) than the OM-1 II, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison

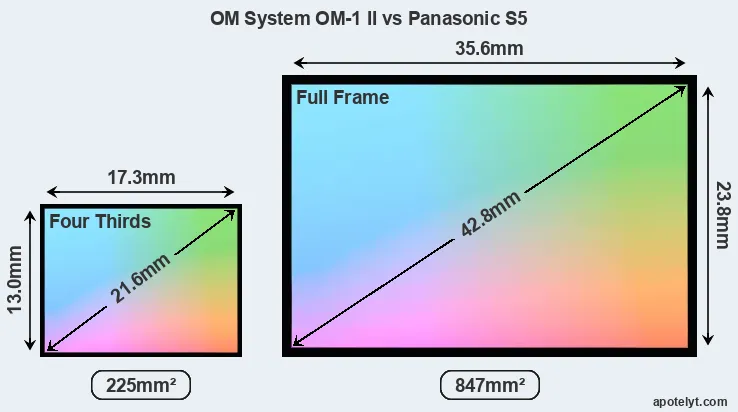

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the OM System OM-1 II features a Four Thirds sensor and the Panasonic S5 a full frame sensor. The sensor area in the S5 is 276 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the OM-1 II has a native 4:3 aspect ratio, while the one in the S5 offers a 3:2 aspect.
With 24MP, the S5 offers a higher resolution than the OM-1 II (20.2MP), but the S5 nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 3.34μm for the OM-1 II) due to its larger sensor. However, the OM-1 II is a much more recent model (by 3 years and 4 months) than the S5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Panasonic S5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the OM System OM-1 II are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The OM-1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The OM System OM-1 II has a native sensitivity range from ISO 80 to ISO 25600, which can be extended to ISO 80-102400. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.
In terms of underlying technology, the OM-1 II is build around a Stacked BSI-CMOS sensor, while the S5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.6 | 1749 | 78 | |
2. | Panasonic S5 | Full Frame | 24.0 | 6000 | 4000 | 4K/60p | 25.1 | 14.5 | 2697 | 94 | |
3. | Nikon Z6 II | Full Frame | 24.3 | 6048 | 4024 | 4K/60p | 25.0 | 14.4 | 3303 | 94 | |
4. | Nikon Zf | Full Frame | 24.3 | 6048 | 4024 | 4K/60p | 25.4 | 14.7 | 3243 | 96 | |
5. | Olympus E-M1 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.7 | 12.8 | 1312 | 80 | |
6. | Olympus E-M1 III | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.1 | 1356 | 76 | |
7. | OM System OM-1 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.4 | 1553 | 77 | |
8. | OM System OM-5 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.4 | 13.4 | 1622 | 78 | |
9. | Panasonic G9 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.1 | 12.8 | 1138 | 74 | |
10. | Panasonic G9 II | Four Thirds | 25.0 | 5776 | 4336 | 5.7K/60p | 23.4 | 13.5 | 1710 | 78 | |
11. | Panasonic G95 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.2 | 13.0 | 1273 | 75 | |
12. | Panasonic GH5 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.9 | 13.0 | 807 | 77 | |
13. | Panasonic GH5 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.7 | 13.1 | 1136 | 79 | |
14. | Panasonic S5 II | Full Frame | 24.0 | 6000 | 4000 | 6K/30p | 25.4 | 14.6 | 3158 | 96 | |
15. | Sony A7 II | Full Frame | 24.0 | 6000 | 4000 | 1080/60p | 24.9 | 13.6 | 2449 | 90 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/60p).
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the OM-1 II offers a substantially higher resolution than the one in the S5 (5760k vs 2360k dots). The following table reports on some other key feature differences and similarities of the OM System OM-1 II, the Panasonic S5, and comparable cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 II | 5760 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
2. | Panasonic S5 | 2360 | n | 3.0 / 1840 | swivel | Y | 1/8000s | 7.0/s | n | Y | |
3. | Nikon Z6 II | 3690 | Y | 3.2 / 2100 | tilting | Y | 1/8000s | 14.0/s | n | Y | |
4. | Nikon Zf | 3690 | n | 3.2 / 2100 | swivel | Y | 1/8000s | 14.0/s | n | Y | |
5. | Olympus E-M1 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
6. | Olympus E-M1 III | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 18.0/s | n | Y | |
7. | OM System OM-1 | 5760 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
8. | OM System OM-5 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
9. | Panasonic G9 | 3680 | Y | 3.0 / 1040 | swivel | Y | 1/8000s | 20.0/s | n | Y | |
10. | Panasonic G9 II | 3680 | n | 3.0 / 1840 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
11. | Panasonic G95 | 2360 | n | 3.0 / 1240 | swivel | Y | 1/4000s | 9.0/s | Y | Y | |
12. | Panasonic GH5 | 3680 | n | 3.2 / 1620 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
13. | Panasonic GH5 II | 3680 | n | 3.0 / 1840 | swivel | Y | 1/8000s | 12.0/s | n | Y | |
14. | Panasonic S5 II | 3680 | n | 3.0 / 1840 | swivel | Y | 1/8000s | 9.0/s | n | Y | |
15. | Sony A7 II | 2400 | n | 3.0 / 1230 | tilting | n | 1/8000s | 5.0/s | n | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The OM System OM-1 II and the Panasonic S5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the OM-1 II and the S5 write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. However, while the OM-1 II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s) on both slots, the S5 supports UHS-II only on its first slot and UHS-I (data transfer speed up to 104 MB/s) on the second one.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the OM System OM-1 II and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 II | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
2. | Panasonic S5 | Y | stereo / mono | Y | Y | micro | 3.2 | Y | - | Y | |
3. | Nikon Z6 II | Y | stereo / mono | Y | Y | micro | 3.2 | Y | - | Y | |
4. | Nikon Zf | Y | stereo / mono | Y | Y | micro | 3.2 | Y | - | Y | |
5. | Olympus E-M1 II | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | - | |
6. | Olympus E-M1 III | Y | stereo / mono | Y | Y | micro | 3.1 | Y | - | Y | |
7. | OM System OM-1 | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
8. | OM System OM-5 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
9. | Panasonic G9 | Y | stereo / mono | Y | Y | full | 3.0 | Y | - | Y | |
10. | Panasonic G9 II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
11. | Panasonic G95 | Y | stereo / mono | Y | Y | micro | 2.0 | Y | - | Y | |
12. | Panasonic GH5 | Y | stereo / mono | Y | Y | full | 3.1 | Y | - | Y | |
13. | Panasonic GH5 II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
14. | Panasonic S5 II | Y | stereo / mono | Y | Y | full | 3.2 | Y | - | Y | |
15. | Sony A7 II | Y | stereo / mono | Y | Y | micro | 2.0 | Y | Y | - |
Studio photographers will appreciate that the OM System OM-1 II (unlike the S5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the OM-1 II and the S5 are recent models that are part of the current product line-up. The OM-1 II replaced the earlier OM System OM-1, while the S5 does not have a direct predecessor. Further information on the features and operation of the OM-1 II and S5 can be found, respectively, in the OM System OM-1 II Manual (free pdf) or the online Panasonic S5 Manual.
Review summary
So what is the bottom line? Is there a clear favorite between the OM System OM-1 II and the Panasonic S5? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the OM System OM-1 II:
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.82x vs 0.74x).
- Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
- Less heavy: Is lighter (by 115g or 16 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (500 versus 440) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 3 years and 4 months of technical progress since the S5 launch.
Reasons to prefer the Panasonic Lumix DC-S5:
- More detail: Has more megapixels (24 vs 20.2MP), which boosts linear resolution by 11%.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More detailed LCD: Has a higher resolution rear screen (1840k vs 1640k dots).
- More affordable: Was released into a lower priced segment (17 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in September 2020).
If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (8 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the OM System OM-1 II and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the OM-1 II or the S5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | OM System OM-1 II | .. | .. | .. | .. | .. | .. | Jan 2024 | US$ 2 399 | amazon.com | |
2. | Panasonic S5 | 4.5/5 | + + | 4.5/5 | 88/100 | 4.5/5 | 4.5/5 | Sep 2020 | US$ 1 999 | amazon.com | |
3. | Nikon Z6 II | 4.5/5 | .. | 4/5 | 89/100 | 4.5/5 | 4.5/5 | Oct 2020 | US$ 1 999 | amazon.com | |
4. | Nikon Zf | 4.5/5 | .. | 4.5/5 | 90/100 | 4.5/5 | 5/5 | Sep 2023 | US$ 1 999 | amazon.com | |
5. | Olympus E-M1 II | 5/5 | + + | 5/5 | 85/100 | 4.5/5 | 4.5/5 | Sep 2016 | US$ 1 999 | ebay.com | |
6. | Olympus E-M1 III | 5/5 | .. | 5/5 | 83/100 | 4.5/5 | 4/5 | Feb 2020 | US$ 1 799 | ebay.com | |
7. | OM System OM-1 | 5/5 | .. | .. | 87/100 | 5/5 | 4.5/5 | Feb 2022 | US$ 2 199 | ebay.com | |
8. | OM System OM-5 | 5/5 | .. | 4.5/5 | 83/100 | 5/5 | 4.5/5 | Oct 2022 | US$ 1 199 | amazon.com | |
9. | Panasonic G9 | .. | + + | 5/5 | 85/100 | 5/5 | 5/5 | Nov 2017 | US$ 1 699 | ebay.com | |
10. | Panasonic G9 II | 5/5 | .. | 4.5/5 | 87/100 | .. | 4.5/5 | Sep 2023 | US$ 1 899 | amazon.com | |
11. | Panasonic G95 | 4.5/5 | + | 4.5/5 | 83/100 | 4.5/5 | 4.5/5 | Apr 2019 | US$ 999 | ebay.com | |
12. | Panasonic GH5 | 4.5/5 | + + | .. | 85/100 | 4.5/5 | 5/5 | Jan 2017 | US$ 1 999 | ebay.com | |
13. | Panasonic GH5 II | 4.5/5 | .. | 4.5/5 | 85/100 | 4.5/5 | 5/5 | May 2021 | US$ 1 699 | amazon.com | |
14. | Panasonic S5 II | 4.5/5 | + + | 5/5 | 90/100 | 4.5/5 | 5/5 | Jan 2023 | US$ 1 999 | amazon.com | |
15. | Sony A7 II | 5/5 | + | 4/5 | 82/100 | 4.5/5 | 5/5 | Nov 2014 | US$ 1 999 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 850D vs Panasonic S5
- Fujifilm X-M1 vs Panasonic S5
- Fujifilm X-T5 vs OM System OM-1 II
- Fujifilm X100T vs Panasonic S5
- Leica M10-R vs OM System OM-1 II
- Nikon D800E vs Panasonic S5
- OM System OM-1 II vs Panasonic GH5
- OM System OM-1 II vs Sony A6100
- OM System OM-1 II vs Sony A7S III
- Olympus E-M1 III vs OM System OM-1 II
- Olympus E-M10 II vs Panasonic S5
- Panasonic S5 vs Sony A6100
Specifications: OM System OM-1 II vs Panasonic S5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | OM System OM-1 II | Panasonic S5 |
---|---|---|
Camera Type | Mirrorless system camera | Mirrorless system camera |
Camera Lens | Micro Four Thirds lenses | Leica L mount lenses |
Launch Date | January 2024 | September 2020 |
Launch Price | USD 2,399 | USD 1,999 |
Sensor Specs | OM System OM-1 II | Panasonic S5 |
Sensor Technology | Stacked BSI-CMOS | CMOS |
Sensor Format | Four Thirds Sensor | Full Frame Sensor |
Sensor Size | 17.3 x 13.0 mm | 35.6 x 23.8 mm |
Sensor Area | 224.9 mm2 | 847.28 mm2 |
Sensor Diagonal | 21.6 mm | 42.8 mm |
Crop Factor | 2.0x | 1.0x |
Sensor Resolution | 20.2 Megapixels | 24 Megapixels |
Image Resolution | 5184 x 3888 pixels | 6000 x 4000 pixels |
Pixel Pitch | 3.34 μm | 5.94 μm |
Pixel Density | 8.96 MP/cm2 | 2.83 MP/cm2 |
Moiré control | no AA filter | no AA filter |
Movie Capability | 4K/60p Video | 4K/60p Video |
ISO Setting | 80 - 25,600 ISO | 100 - 51,200 ISO |
ISO Boost | 80 - 102,400 ISO | 50 - 204,800 ISO |
Image Processor | TruePic X | Venus |
DXO Sensor Quality (score) | .. | 94 |
DXO Color Depth (bits) | .. | 25.1 |
DXO Dynamic Range (EV) | .. | 14.5 |
DXO Low Light (ISO) | .. | 2697 |
Screen Specs | OM System OM-1 II | Panasonic S5 |
Viewfinder Type | Electronic viewfinder | Electronic viewfinder |
Viewfinder Field of View | 100% | 100% |
Viewfinder Magnification | 0.82x | 0.74x |
Viewfinder Resolution | 5760k dots | 2360k dots |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 1640k dots | 1840k dots |
LCD Attachment | Swivel screen | Swivel screen |
Touch Input | Touchscreen | Touchscreen |
Shooting Specs | OM System OM-1 II | Panasonic S5 |
Focus System | On-Sensor Phase-detect | Contrast-detect AF |
Manual Focusing Aid | Focus Peaking | Focus Peaking |
Max Shutter Speed (mechanical) | 1/8000s | 1/8000s |
Continuous Shooting | 10 shutter flaps/s | 7 shutter flaps/s |
Shutter Life Expectancy | 400 000 actuations | 200 000 actuations |
Electronic Shutter | up to 1/32000s | up to 1/8000s |
Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
Image Stabilization | In-body stabilization | In-body stabilization |
Fill Flash | no On-Board Flash | no On-Board Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Dual card slots | Dual card slots |
UHS card support | Dual UHS-II | Single UHS-II |
Connectivity Specs | OM System OM-1 II | Panasonic S5 |
External Flash | Hotshoe | Hotshoe |
Studio Flash | PC Sync socket | no PC Sync |
USB Connector | USB 3.0 | USB 3.2 |
HDMI Port | micro HDMI | micro HDMI |
Microphone Port | External MIC port | External MIC port |
Headphone Socket | Headphone port | Headphone port |
Wifi Support | Wifi built-in | Wifi built-in |
Bluetooth Support | Bluetooth built-in | Bluetooth built-in |
Body Specs | OM System OM-1 II | Panasonic S5 |
Environmental Sealing | Weathersealed body | Weathersealed body |
Battery Type | OM System BLX-1 | Panasonic DMW-BLK22 |
Battery Life (CIPA) | 500 shots per charge | 440 shots per charge |
In-Camera Charging | USB charging | USB charging |
Body Dimensions |
135 x 92 x 73 mm (5.3 x 3.6 x 2.9 in) |
133 x 98 x 82 mm (5.2 x 3.9 x 3.2 in) |
Camera Weight | 599 g (21.1 oz) | 714 g (25.2 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
