Olympus E-PL5 vs Panasonic S1H

The Olympus PEN E-PL5 and the Panasonic Lumix DC-S1H are two digital cameras that were revealed to the public, respectively, in September 2012 and May 2019. Both the E-PL5 and the S1H are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-PL5) and a full frame (S1H) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-PL5
versus
Panasonic S1H
Olympus E-PL5   Panasonic S1H
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Leica L mount lenses
15.9 MP – Four Thirds sensor 24 MP – Full Frame sensor
1080/30p Video 6K/30p Video
ISO 200-25,600 ISO 100-51,200 (50 - 204,800)
Viewfinder optional Electronic viewfinder (5760k dots)
3.0" LCD – 460k dots 3.2" LCD – 2330k dots
Tilting touchscreen Swivel touchscreen
8 shutter flaps per second 9 shutter flaps per second
In-body stabilizationIn-body stabilization
not weather sealedWeathersealed body
360 shots per battery charge400 shots per battery charge
111 x 64 x 38 mm, 325 g 151 x 114 x 110 mm, 1052 g
logo
Check E-PL5 offers at
ebay.com
logo
Check S1H price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL5 and the Panasonic Lumix DC-S1H? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Olympus E-PL5 and the Panasonic S1H are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL5 can be obtained in three different colors (black, silver, white), while the S1H is only available in black.

Size Olympus E-PL5 vs Panasonic S1H
Compare E-PL5 versus S1H top
Comparison E-PL5 or S1H rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S1H is considerably larger (142 percent) than the Olympus E-PL5. Moreover, the S1H is substantially heavier (224 percent) than the E-PL5. It is noteworthy in this context that the S1H is splash and dust-proof, while the E-PL5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the E-PL5 gets 360 shots out of its Olympus BLS-5 battery, while the S1H can take 400 images on a single charge of its Panasonic DMW-BLJ31 power pack. The power pack in the S1H can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-PL5 111 mm 64 mm 38 mm 325 g 360 i Sep 2012 US$ 599ebay.com
2.

Panasonic S1H 151 mm 114 mm 110 mm 1052 g 400 i May 2019 US$ 3 999 amazon.com
3.

Leica SL2-S 146 mm 107 mm 83 mm 931 g 510 i Dec 2020 US$ 4 899 amazon.com
4.

Olympus E-M10 119 mm 82 mm 46 mm 396 g 320 i Jan 2014 US$ 699ebay.com
5.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 i Aug 2015 US$ 649ebay.com
6.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 i May 2013 US$ 999ebay.com
7.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 i Jun 2011 US$ 599ebay.com
8.

Olympus E-PL6 111 mm 64 mm 38 mm 325 g 360 i May 2013 US$ 599ebay.com
9.

Olympus E-PL7 115 mm 67 mm 38 mm 357 g 350 i Aug 2014 US$ 599ebay.com
10.

Olympus E-PL8 115 mm 67 mm 38 mm 357 g 350 i Sep 2016 US$ 549ebay.com
11.

Olympus E-PL9 117 mm 68 mm 39 mm 380 g 350 i Feb 2018 US$ 599ebay.com
12.

Olympus E-PM2 110 mm 64 mm 34 mm 269 g 360 i Sep 2012 US$ 499ebay.com
13.

Panasonic G6 122 mm 85 mm 71 mm 390 g 340 i Apr 2013 US$ 599ebay.com
14.

Panasonic S1 149 mm 110 mm 97 mm 1017 g 400 i Feb 2019 US$ 2 499ebay.com
15.

Panasonic S1R 149 mm 110 mm 97 mm 1016 g 380 i Feb 2019 US$ 3 699ebay.com
16.

Panasonic S5 133 mm 98 mm 82 mm 714 g 440 i Sep 2020 US$ 1 999 amazon.com
17.

Sigma fp 113 mm 70 mm 45 mm 422 g 280 i Jul 2019 US$ 1 899 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
  empty Camera
Model

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL5 was launched at a markedly lower price (by 85 percent) than the S1H, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus E-PL5 features a Four Thirds sensor and the Panasonic S1H a full frame sensor. The sensor area in the S1H is 276 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the E-PL5 has a native 4:3 aspect ratio, while the one in the S1H offers a 3:2 aspect.

Olympus E-PL5 and Panasonic S1H sensor measures

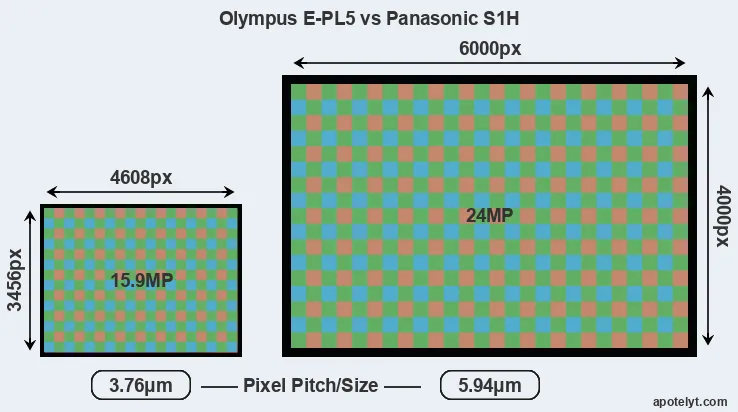

With 24MP, the S1H offers a higher resolution than the E-PL5 (15.9MP), but the S1H nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 3.76μm for the E-PL5) due to its larger sensor. Moreover, the S1H is a much more recent model (by 6 years and 8 months) than the E-PL5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Panasonic S1H implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S1H for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

Unlike the E-PL5, the S1H has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus PEN E-PL5 has a native sensitivity range from ISO 200 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DC-S1H are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-PL5 versus S1H MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-PL5 Four Thirds 15.9 4608 34561080/30p22.812.388972
2.

Panasonic S1H Full Frame 24.0 6000 40006K/30p25.214.2280594
3.

Leica SL2-S Full Frame 24.0 6000 40004K/60p25.214.1350495
4.

Olympus E-M10 Four Thirds 15.9 4608 34561080/30p22.812.388472
5.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
6.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
7.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.349952
8.

Olympus E-PL6 Four Thirds 15.9 4608 34561080/30p22.512.071768
9.

Olympus E-PL7 Four Thirds 15.9 4608 34561080/30p22.712.487372
10.

Olympus E-PL8 Four Thirds 15.9 4608 34561080/30p23.012.6103073
11.

Olympus E-PL9 Four Thirds 15.9 4608 34564K/30p23.112.8116274
12.

Olympus E-PM2 Four Thirds 15.9 4608 34561080/30p22.712.293272
13.

Panasonic G6 Four Thirds 15.9 4608 34561080/60p21.311.563961
14.

Panasonic S1 Full Frame 24.0 6000 40004K/60p25.214.5333395
15.

Panasonic S1R Full Frame 46.7 8368 55844K/60p26.414.13525100
16.

Panasonic S5 Full Frame 24.0 6000 40004K/60p25.114.5269794
17.

Sigma fp Full Frame 24.0 6000 40004K/30p25.214.2282994
Note: DXO values in italics represent estimates based on sensor size and age.
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
  empty Camera
Model

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the S1H provides a better video resolution than the E-PL5. It can shoot movie footage at 6K/30p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the S1H has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL5 relies on live view and the rear LCD for framing. That said, the E-PL5 can be equipped with an optional viewfinder – the VF-3. The table below summarizes some of the other core capabilities of the Olympus E-PL5 and Panasonic S1H in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-PL5optional i3.0 / 460 tilting i 1/4000s 8.0/s i i
2.

Panasonic S1H5760 i3.2 / 2330 swivel i 1/8000s 9.0/s i i
3.

Leica SL2-S5760 i3.2 / 2100 fixed i 1/8000s 20.0/s i i
4.

Olympus E-M101440 i3.0 / 1037 tilting i 1/4000s 8.0/s i i
5.

Olympus E-M10 II2360 i3.0 / 1040 tilting i 1/4000s 8.0/s i i
6.

Olympus E-P5optional i3.0 / 1037 tilting i 1/8000s 9.0/s i i
7.

Olympus E-PL3optional i3.0 / 460 tilting i 1/4000s 5.5/s i i
8.

Olympus E-PL6optional i3.0 / 460 tilting i 1/4000s 8.0/s i i
9.

Olympus E-PL7optional i3.0 / 1037 tilting i 1/4000s 8.0/s i i
10.

Olympus E-PL8optional i3.0 / 1037 tilting i 1/4000s 8.0/s i i
11.

Olympus E-PL9i i3.0 / 1040 tilting i 1/4000s 8.6/s i i
12.

Olympus E-PM2optional i3.0 / 460 fixed i 1/4000s 8.0/s i i
13.

Panasonic G61440 i3.0 / 1036 swivel i 1/4000s 7.0/s i i
14.

Panasonic S15760 i3.2 / 2100 full-flex i 1/8000s 9.0/s i i
15.

Panasonic S1R5760 i3.2 / 2100 full-flex i 1/8000s 9.0/s i i
16.

Panasonic S52360 i3.0 / 1840 swivel i 1/8000s 7.0/s i i
17.

Sigma fpoptional i3.2 / 2100 fixed i 1/8000s 12.0/s i i
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
  empty Camera
Model

One feature that is present on the S1H, but is missing on the E-PL5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S1H is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic S1H has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PL5 and the S1H write their files to SDXC cards. The S1H features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL5 only has one slot. The S1H supports UHS-II cards (on both slots), while the E-PL5 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL5 and Panasonic Lumix DC-S1H and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-PL5istereo / monoiimini2.0iii
2.

Panasonic S1Histereo / monoiifull3.1iii
3.

Leica SL2-Sistereo / monoiifull3.2iii
4.

Olympus E-M10istereo / monoiimicro2.0iii
5.

Olympus E-M10 IIistereo / monoiimicro2.0iii
6.

Olympus E-P5istereo / monoiimicro2.0iii
7.

Olympus E-PL3istereo / iiimini2.0iii
8.

Olympus E-PL6istereo / monoiimini2.0iii
9.

Olympus E-PL7istereo / monoiimicro2.0iii
10.

Olympus E-PL8istereo / monoiimicro2.0iii
11.

Olympus E-PL9istereo / monoiimicro2.0iii
12.

Olympus E-PM2istereo / monoiimini2.0iii
13.

Panasonic G6istereo / monoiimini2.0iii
14.

Panasonic S1istereo / monoiifull3.1iii
15.

Panasonic S1Ristereo / monoiifull3.1iii
16.

Panasonic S5istereo / monoiimicro3.2iii
17.

Sigma fpistereo / monoiimicro3.1iii
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
  empty Camera
Model

It is notable that the S1H offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-PL5 does not provide wifi capability.

Studio photographers will appreciate that the Panasonic S1H (unlike the E-PL5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The S1H is a recent model that features in the current product line-up of Panasonic. In contrast, the E-PL5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-PL5 was succeeded by the Olympus E-PL6. Further information on the features and operation of the E-PL5 and S1H can be found, respectively, in the Olympus E-PL5 Manual (free pdf) or the online Panasonic S1H Manual.

Review summary

So how do things add up? Is there a clear favorite between the Olympus E-PL5 and the Panasonic S1H? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Olympus PEN E-PL5:

  • More compact: Is smaller (111x64mm vs 151x114mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 727g or 69 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in September 2012).

ilogo

Reasons to prefer the Panasonic Lumix DC-S1H:

  • More detail: Has more megapixels (24 vs 15.9MP), which boosts linear resolution by 25%.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better video: Provides higher definition movie capture (6K/30p vs 1080/30p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2330k vs 460k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (9 vs 8 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (400 versus 360) out of a single battery charge.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 6 years and 8 months of technical progress since the E-PL5 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the S1H is the clear winner of the contest (29 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-PL5 04:29 S1H

How about other alternatives? Do the specifications of the Olympus E-PL5 and the Panasonic S1H place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL5 or the S1H. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-PL53/5+ +....4.5/54.5/5 Sep 2012 US$ 599ebay.com
2.

Panasonic S1H....4/590/100.... May 2019 US$ 3 999 amazon.com
3.

Leica SL2-S4/5..4/5..4.5/54.5/5 Dec 2020 US$ 4 899 amazon.com
4.

Olympus E-M104/5....80/1005/55/5 Jan 2014 US$ 699ebay.com
5.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 US$ 649ebay.com
6.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 US$ 999ebay.com
7.

Olympus E-PL33/5+ +..72/1004.5/54/5 Jun 2011 US$ 599ebay.com
8.

Olympus E-PL6............ May 2013 US$ 599ebay.com
9.

Olympus E-PL74/5+....5/54/5 Aug 2014 US$ 599ebay.com
10.

Olympus E-PL8........4.5/54/5 Sep 2016 US$ 549ebay.com
11.

Olympus E-PL9..+....4.5/54/5 Feb 2018 US$ 599ebay.com
12.

Olympus E-PM23/5....77/1005/54.5/5 Sep 2012 US$ 499ebay.com
13.

Panasonic G64/5+ +....5/54.5/5 Apr 2013 US$ 599ebay.com
14.

Panasonic S14.5/5+ +4.5/588/1004.5/54/5 Feb 2019 US$ 2 499ebay.com
15.

Panasonic S1R4.5/5..4.6/589/1004.5/54.5/5 Feb 2019 US$ 3 699ebay.com
16.

Panasonic S54.5/5+ +4.5/588/1004.5/54.5/5 Sep 2020 US$ 1 999 amazon.com
17.

Sigma fp4/5..4/5..4/54.5/5 Jul 2019 US$ 1 899 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
  empty  Camera
 Model

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check E-PL5 offers at
ebay.com
logo
Check S1H price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
  • Credit Card
  • Canon 1D
  • Canon 1D Mark II
  • Canon 1D Mark II N
  • Canon 1D Mark III
  • Canon 1D Mark IV
  • Canon 1Ds
  • Canon 1Ds Mark II
  • Canon 1Ds Mark III
  • Canon 1D C
  • Canon 1D X
  • Canon 1D X Mark II
  • Canon 1D X Mark III
  • Canon 5D
  • Canon 5D Mark II
  • Canon 5D Mark III
  • Canon 5D Mark IV
  • Canon 5DS
  • Canon 5DS R
  • Canon 6D
  • Canon 6D Mark II
  • Canon 7D
  • Canon 7D II
  • Canon 10D
  • Canon 20D
  • Canon 30D
  • Canon 40D
  • Canon 50D
  • Canon 60D
  • Canon 70D
  • Canon 77D
  • Canon 80D
  • Canon 90D
  • Canon D30
  • Canon D60
  • Canon G1 X
  • Canon G1 X Mark II
  • Canon G1 X Mark III
  • Canon G3 X
  • Canon G5 X
  • Canon G5 X Mark II
  • Canon G7 X
  • Canon G7 X Mark II
  • Canon G7 X Mark III
  • Canon G9 X
  • Canon G9 X Mark II
  • Canon G12
  • Canon G15
  • Canon G16
  • Canon M
  • Canon M3
  • Canon M5
  • Canon M6
  • Canon M6 Mark II
  • Canon M10
  • Canon M50
  • Canon M50 Mark II
  • Canon M100
  • Canon M200
  • Canon R
  • Canon R1
  • Canon R3
  • Canon R5
  • Canon R5 Mark II
  • Canon R5 C
  • Canon R6
  • Canon R6 Mark II
  • Canon R7
  • Canon R8
  • Canon R10
  • Canon R50
  • Canon R50 V
  • Canon R100
  • Canon RP
  • Canon S120
  • Canon SL1
  • Canon SL2
  • Canon SL3
  • Canon SX1
  • Canon SX10
  • Canon SX20
  • Canon SX30
  • Canon SX40
  • Canon SX50
  • Canon SX60
  • Canon SX70
  • Canon SX400
  • Canon SX410
  • Canon SX420
  • Canon SX430
  • Canon SX500
  • Canon SX510
  • Canon SX520
  • Canon SX530
  • Canon SX540
  • Canon SX600
  • Canon SX610
  • Canon SX620
  • Canon SX700
  • Canon SX710
  • Canon SX720
  • Canon SX730
  • Canon SX740
  • Canon Rebel
  • Canon T1i
  • Canon T2i
  • Canon T3
  • Canon T3i
  • Canon T4i
  • Canon T5
  • Canon T5i
  • Canon T6
  • Canon T6i
  • Canon T6s
  • Canon T7
  • Canon T7i
  • Canon T8i
  • Canon T100
  • Canon V1
  • Canon XC10
  • Canon XS
  • Canon XSi
  • Canon XT
  • Canon XTi
  • Contax N Digital
  • Epson R-D1
  • Fujifilm GFX 50R
  • Fujifilm GFX 50S
  • Fujifilm GFX 50S II
  • Fujifilm GFX 100
  • Fujifilm GFX 100 II
  • Fujifilm GFX 100RF
  • Fujifilm GFX 100S
  • Fujifilm GFX 100S II
  • Fujifilm X-A1
  • Fujifilm X-A2
  • Fujifilm X-A3
  • Fujifilm X-A5
  • Fujifilm X-A7
  • Fujifilm X-A10
  • Fujifilm X-E1
  • Fujifilm X-E2
  • Fujifilm X-E2S
  • Fujifilm X-E3
  • Fujifilm X-E4
  • Fujifilm X-E5
  • Fujifilm X-H1
  • Fujifilm X-H2
  • Fujifilm X-H2S
  • Fujifilm X-M1
  • Fujifilm X-M5
  • Fujifilm X-Pro1
  • Fujifilm X-Pro2
  • Fujifilm X-Pro3
  • Fujifilm X-S10
  • Fujifilm X-S20
  • Fujifilm X-T1
  • Fujifilm X-T2
  • Fujifilm X-T3
  • Fujifilm X-T4
  • Fujifilm X-T5
  • Fujifilm X-T10
  • Fujifilm X-T20
  • Fujifilm X-T30
  • Fujifilm X-T30 II
  • Fujifilm X-T50
  • Fujifilm X-T100
  • Fujifilm X-T200
  • Fujifilm X10
  • Fujifilm X20
  • Fujifilm X30
  • Fujifilm X70
  • Fujifilm X100
  • Fujifilm X100S
  • Fujifilm X100T
  • Fujifilm X100F
  • Fujifilm X100V
  • Fujifilm X100VI
  • Fujifilm XF10
  • Fujifilm XQ1
  • Fujifilm XQ2
  • Fujifilm XP120
  • Fujifilm XP130
  • Fujifilm XP140
  • Hasselblad X1D
  • Hasselblad X1D II
  • Hasselblad X2D 100C
  • Kodak AZ901
  • Kodak S-1
  • Leica C-LUX
  • Leica CL
  • Leica D-LUX Typ 109
  • Leica D-LUX 5
  • Leica D-LUX 6
  • Leica D-LUX 7
  • Leica D-LUX 8
  • Leica Digilux 3
  • Leica M Typ 240
  • Leica M-E Typ 240
  • Leica M Typ 262
  • Leica M8
  • Leica M9
  • Leica M10
  • Leica M10-P
  • Leica M10-R
  • Leica M11
  • Leica Q Typ 116
  • Leica Q2
  • Leica Q3
  • Leica S1
  • Leica S2
  • Leica S3
  • Leica S Typ 006
  • Leica S-E Typ 006
  • Leica S Typ 007
  • Leica SL
  • Leica SL2
  • Leica SL2-S
  • Leica SL3
  • Leica SL3-S
  • Leica T
  • Leica TL
  • Leica TL2
  • Leica V-LUX 1
  • Leica V-LUX 2
  • Leica V-LUX 3
  • Leica V-LUX 4
  • Leica V-LUX Typ 114
  • Leica V-LUX 5
  • Leica X1
  • Leica X2
  • Leica X Vario
  • Leica X Typ 113
  • Leica X-U Typ 113
  • Leitz Ur-Leica
  • Nikon 1 J4
  • Nikon 1 J5
  • Nikon 1 V1
  • Nikon 1 V2
  • Nikon 1 V3
  • Nikon Coolpix A
  • Nikon A1000
  • Nikon B500
  • Nikon B600
  • Nikon B700
  • Nikon D1
  • Nikon D1H
  • Nikon D1X
  • Nikon D2H
  • Nikon D2X
  • Nikon D2Xs
  • Nikon D3
  • Nikon D3S
  • Nikon D3X
  • Nikon D4
  • Nikon D4S
  • Nikon D5
  • Nikon D6
  • Nikon D40
  • Nikon D40X
  • Nikon D50
  • Nikon D60
  • Nikon D70
  • Nikon D70s
  • Nikon D80
  • Nikon D90
  • Nikon D100
  • Nikon D200
  • Nikon D300
  • Nikon D300S
  • Nikon D500
  • Nikon D600
  • Nikon D610
  • Nikon D700
  • Nikon D750
  • Nikon D780
  • Nikon D800
  • Nikon D800E
  • Nikon D810
  • Nikon D850
  • Nikon D3000
  • Nikon D3100
  • Nikon D3200
  • Nikon D3300
  • Nikon D3400
  • Nikon D3500
  • Nikon D5000
  • Nikon D5100
  • Nikon D5200
  • Nikon D5300
  • Nikon D5500
  • Nikon D5600
  • Nikon D7000
  • Nikon D7100
  • Nikon D7200
  • Nikon D7500
  • Nikon Df
  • Nikon L840
  • Nikon P900
  • Nikon P950
  • Nikon P1000
  • Nikon P1100
  • Nikon P7800
  • Nikon W150
  • Nikon W300
  • Nikon Z5
  • Nikon Z5 II
  • Nikon Z6
  • Nikon Z6 II
  • Nikon Z6 III
  • Nikon Z7
  • Nikon Z7 II
  • Nikon Z8
  • Nikon Z9
  • Nikon Z30
  • Nikon Z50
  • Nikon Z50 II
  • Nikon Zf
  • Nikon Z fc
  • Olympus E-1
  • Olympus E-3
  • Olympus E-5
  • Olympus E-30
  • Olympus E-300
  • Olympus E-330
  • Olympus E-400
  • Olympus E-410
  • Olympus E-420
  • Olympus E-450
  • Olympus E-500
  • Olympus E-510
  • Olympus E-520
  • Olympus E-600
  • Olympus E-620
  • Olympus E-M1
  • Olympus E-M1 II
  • Olympus E-M1 III
  • Olympus E-M1X
  • Olympus E-M5
  • Olympus E-M5 II
  • Olympus E-M5 III
  • Olympus E-M10
  • Olympus E-M10 II
  • Olympus E-M10 III
  • Olympus E-M10 IV
  • Olympus E-P1
  • Olympus E-P2
  • Olympus E-P3
  • Olympus E-P5
  • Olympus E-P7
  • Olympus E-PL1
  • Olympus E-PL2
  • Olympus E-PL3
  • Olympus E-PL5
  • Olympus E-PL6
  • Olympus E-PL7
  • Olympus E-PL8
  • Olympus E-PL9
  • Olympus E-PL10
  • Olympus E-PM1
  • Olympus E-PM2
  • Olympus PEN-F
  • Olympus Stylus 1
  • Olympus Stylus 1s
  • Olympus TG-4
  • Olympus TG-5
  • Olympus TG-6
  • Olympus XZ-1
  • Olympus XZ-2
  • OM System OM-1
  • OM System OM-1 II
  • OM System OM-3
  • OM System OM-5
  • OM System OM-5 II
  • OM System TG-7
  • Panasonic FZ80
  • Panasonic FZ80D
  • Panasonic FZ100
  • Panasonic FZ150
  • Panasonic FZ200
  • Panasonic FZ300
  • Panasonic FZ1000
  • Panasonic FZ1000 II
  • Panasonic FZ2500
  • Panasonic G1
  • Panasonic G2
  • Panasonic G3
  • Panasonic G5
  • Panasonic G6
  • Panasonic G7
  • Panasonic G9
  • Panasonic G9 II
  • Panasonic G10
  • Panasonic G85
  • Panasonic G97
  • Panasonic G95
  • Panasonic G100
  • Panasonic GF1
  • Panasonic GF2
  • Panasonic GF3
  • Panasonic GF5
  • Panasonic GF6
  • Panasonic GF7
  • Panasonic GH1
  • Panasonic GH2
  • Panasonic GH3
  • Panasonic GH4
  • Panasonic GH5
  • Panasonic GH5 II
  • Panasonic GH5s
  • Panasonic GH6
  • Panasonic GH7
  • Panasonic GM1
  • Panasonic GM5
  • Panasonic GX1
  • Panasonic GX7
  • Panasonic GX8
  • Panasonic GX9
  • Panasonic GX85
  • Panasonic GX850
  • Panasonic L1
  • Panasonic L10
  • Panasonic LF1
  • Panasonic LX5
  • Panasonic LX7
  • Panasonic LX10
  • Panasonic LX100
  • Panasonic LX100 II
  • Panasonic S1
  • Panasonic S1 II
  • Panasonic S1H
  • Panasonic S1R
  • Panasonic S1R II
  • Panasonic S5
  • Panasonic S5 II
  • Panasonic S9
  • Panasonic TS7
  • Panasonic ZS70
  • Panasonic ZS80
  • Panasonic ZS100
  • Panasonic ZS200
  • Pentax 645D
  • Pentax 645Z
  • Pentax K-1
  • Pentax K-1 II
  • Pentax K-3
  • Pentax K-3 II
  • Pentax K-3 III
  • Pentax K-5
  • Pentax K-5 II
  • Pentax K-30
  • Pentax K-50
  • Pentax K-70
  • Pentax K-500
  • Pentax KP
  • Pentax K-S1
  • Pentax K-S2
  • Pentax MX-1
  • Pentax Q
  • Pentax WG-8
  • Pentax WG-90
  • Pentax WG-1000
  • Ricoh GR
  • Ricoh GR II
  • Ricoh GR III
  • Ricoh GR IIIx
  • Ricoh WG-6
  • Ricoh WG-60
  • Samsung NX1
  • Samsung NX30
  • Samsung NX500
  • Sigma fp
  • Sigma fp L
  • Sony A1
  • Sony A1 II
  • Sony A7
  • Sony A7 II
  • Sony A7 III
  • Sony A7 IV
  • Sony A7C
  • Sony A7C II
  • Sony A7C R
  • Sony A7R
  • Sony A7R II
  • Sony A7R III
  • Sony A7R IIIA
  • Sony A7R IV
  • Sony A7R IVA
  • Sony A7R V
  • Sony A7S
  • Sony A7S II
  • Sony A7S III
  • Sony A9
  • Sony A9 II
  • Sony A9 III
  • Sony A58
  • Sony A68
  • Sony A77
  • Sony A77 II
  • Sony A99
  • Sony A99 II
  • Sony A850
  • Sony A900
  • Sony A3000
  • Sony A5000
  • Sony A5100
  • Sony A6000
  • Sony A6100
  • Sony A6300
  • Sony A6400
  • Sony A6500
  • Sony A6600
  • Sony A6700
  • Sony H200
  • Sony H300
  • Sony H400
  • Sony HX80
  • Sony HX90V
  • Sony HX95
  • Sony HX99
  • Sony HX350
  • Sony HX400V
  • Sony NEX-3
  • Sony NEX-3N
  • Sony NEX-5
  • Sony NEX-5N
  • Sony NEX-5R
  • Sony NEX-5T
  • Sony NEX-6
  • Sony NEX-7
  • Sony NEX-C3
  • Sony NEX-F3
  • Sony RX0
  • Sony RX0 II
  • Sony RX1
  • Sony RX1R
  • Sony RX1R II
  • Sony RX1R III
  • Sony RX10
  • Sony RX10 II
  • Sony RX10 III
  • Sony RX10 IV
  • Sony RX100
  • Sony RX100 II
  • Sony RX100 III
  • Sony RX100 IV
  • Sony RX100 V
  • Sony RX100 VI
  • Sony RX100 VII
  • Sony WX800
  • Sony ZV-1
  • Sony ZV-1 II
  • Sony ZV-1F
  • Sony ZV-E1
  • Sony ZV-E10
  • Sony ZV-E10 II
  • YI M1
  • Zeiss ZX1
loader
ad

Specifications: Olympus E-PL5 vs Panasonic S1H

Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

Camera Specifications
Camera Model Olympus E-PL5 Panasonic S1H
Camera Type Mirrorless system camera Mirrorless system camera
Camera Lens Micro Four Thirds lenses Leica L mount lenses
Launch Date September 2012 May 2019
Launch Price USD 599 USD 3,999
Sensor Specs Olympus E-PL5 Panasonic S1H
Sensor Technology CMOS CMOS
Sensor Format Four Thirds Sensor Full Frame Sensor
Sensor Size 17.3 x 13.0 mm 35.6 x 23.8 mm
Sensor Area 224.9 mm2 847.28 mm2
Sensor Diagonal 21.6 mm 42.8 mm
Crop Factor 2.0x 1.0x
Sensor Resolution 15.9 Megapixels 24 Megapixels
Image Resolution 4608 x 3456 pixels 6000 x 4000 pixels
Pixel Pitch 3.76 μm 5.94 μm
Pixel Density 7.08 MP/cm2 2.83 MP/cm2
Moiré control Anti-Alias filter Anti-Alias filter
Movie Capability 1080/30p Video 6K/30p Video
ISO Setting 200 - 25,600 ISO 100 - 51,200 ISO
ISO Boost no Enhancement 50 - 204,800 ISO
Image Processor TruePic VI Venus
DXO Sensor Quality (score) 72 ..
DXO Color Depth (bits) 22.8 ..
DXO Dynamic Range (EV) 12.3 ..
DXO Low Light (ISO) 889 ..
Screen Specs Olympus E-PL5 Panasonic S1H
Viewfinder Type Viewfinder optional Electronic viewfinder
Viewfinder Field of View 100%
Viewfinder Magnification 0.78x
Viewfinder Resolution 5760k dots
Top-Level Screen no Top Display Control Panel
LCD Framing Live View Live View
Rear LCD Size 3.0inch 3.2inch
LCD Resolution 460k dots 2330k dots
LCD Attachment Tilting screen Swivel screen
Touch Input Touchscreen Touchscreen
Shooting Specs Olympus E-PL5 Panasonic S1H
Focus System Contrast-detect AF Contrast-detect AF
Manual Focusing Aidno Peaking FeatureFocus Peaking
Max Shutter Speed (mechanical) 1/4000s 1/8000s
Continuous Shooting 8 shutter flaps/s 9 shutter flaps/s
Electronic Shutterno E-Shutterup to 1/8000s
Time-Lapse Photographyno IntervalometerIntervalometer built-in
Image StabilizationIn-body stabilizationIn-body stabilization
Fill Flash no On-Board Flash no On-Board Flash
Storage Medium SDXC cards SDXC cards
Single or Dual Card Slots Single card slot Dual card slots
UHS card support UHS-I Dual UHS-II
Connectivity Specs Olympus E-PL5 Panasonic S1H
External Flash Hotshoe Hotshoe
Studio Flash no PC Sync PC Sync socket
USB Connector USB 2.0 USB 3.1
HDMI Port mini HDMI full HDMI
Microphone Port no MIC socket External MIC port
Headphone Socket no Headphone port Headphone port
Wifi Support no Wifi Wifi built-in
Bluetooth Support no Bluetooth Bluetooth built-in
Body Specs Olympus E-PL5 Panasonic S1H
Environmental Sealingnot weather sealedWeathersealed body
Battery Type Olympus BLS-5 Panasonic DMW-BLJ31
Battery Life (CIPA)360 shots per charge400 shots per charge
In-Camera Charging no USB charging USB charging
Body Dimensions 111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
151 x 114 x 110 mm
(5.9 x 4.5 x 4.3 in)
Camera Weight 325 g (11.5 oz) 1052 g (37.1 oz)
logo
Check E-PL5 offers at
ebay.com
logo
Check S1H price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

You are here Home  »  CAM-parator  »  Olympus E-PL5 vs Panasonic S1H
