Olympus E-M1 II vs OM System OM-5

The Olympus OM-D E-M1 Mark II and the OM System OM-5 are two enthusiast cameras that were announced, respectively, in September 2016 and October 2022. Both the E-M1 II and the OM-5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 20.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-M1 II		OM System OM-5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
20.2 MP – Four Thirds sensor		20.2 MP – Four Thirds sensor
4K/30p Video		4K/30p Video
ISO 200-25,600		ISO 200-25,600
Electronic viewfinder (2360k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1037k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Swivel touchscreen
18 shutter flaps per second		10 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
440 shots per battery charge		310 shots per battery charge
134 x 91 x 67 mm, 574 g		125 x 85 x 50 mm, 414 g

Check E-M1 II offers at
ebay.com
Check OM-5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 Mark II and the OM System OM-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

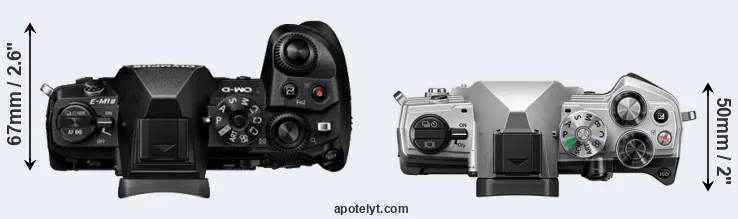

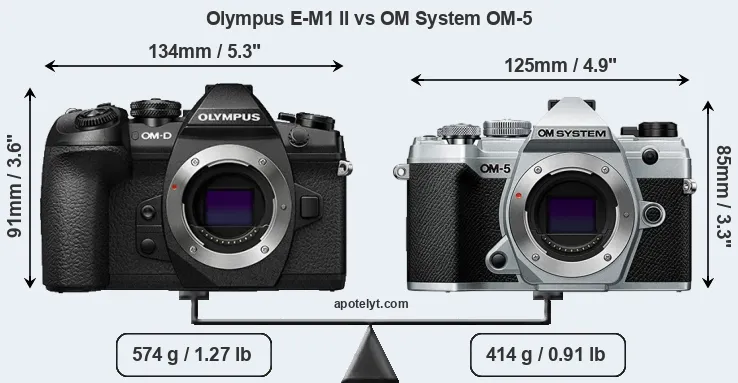

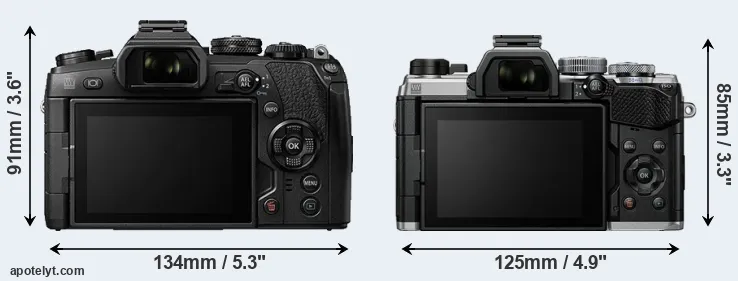

The side-by-side display below illustrates the physical size and weight of the Olympus E-M1 II and the OM System OM-5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The OM-5 can be obtained in two different colors (black, silver), while the E-M1 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the OM System OM-5 is notably smaller (13 percent) than the Olympus E-M1 II. Moreover, the OM-5 is markedly lighter (28 percent) than the E-M1 II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-M1 II gets 440 shots out of its Olympus BLH-1 battery, while the OM-5 can take 310 images on a single charge of its OM System BLS-50 power pack. The power pack in the OM-5 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
2.		OM System OM-5	125 mm	85 mm	50 mm	414 g	310	Y	Oct 2022	US$ 1 199	amazon.com
3.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
4.		Olympus E-M1 III	134 mm	91 mm	69 mm	580 g	420	Y	Feb 2020	US$ 1 799	ebay.com
5.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
6.		Olympus E-M5 III	125 mm	85 mm	50 mm	414 g	310	Y	Oct 2019	US$ 1 199	ebay.com
7.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	US$ 1 199	ebay.com
8.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
9.		OM System OM-1 II	135 mm	92 mm	73 mm	599 g	500	Y	Jan 2024	US$ 2 399	amazon.com
10.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	US$ 1 699	ebay.com
11.		Panasonic G85	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	US$ 899	ebay.com
12.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
13.		Panasonic GH5 II	139 mm	98 mm	87 mm	727 g	400	Y	May 2021	US$ 1 699	amazon.com
14.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The OM-5 was launched at a markedly lower price (by 40 percent) than the E-M1 II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

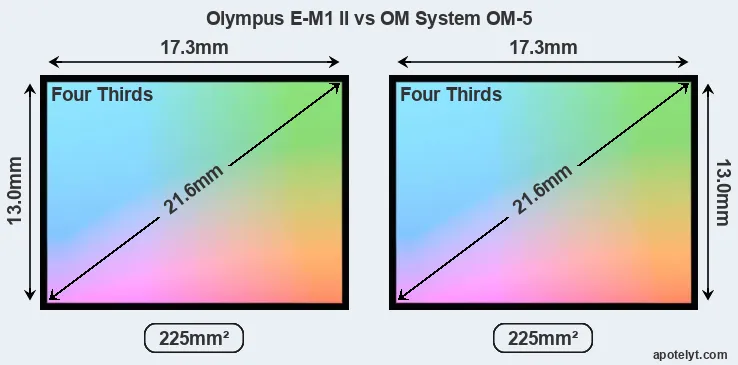

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the OM-5 uses a more advanced image processing engine (TruePic IX) than the E-M1 II (TruePic VIII), with benefits for noise reduction, color accuracy, and processing speed.

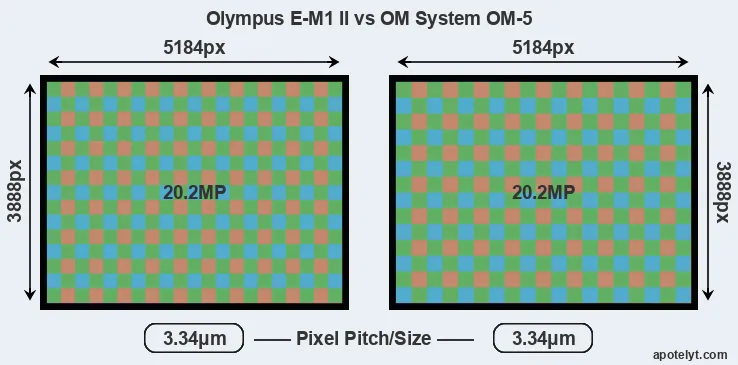

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.2 megapixels. This similarity in sensor specs implies that both the E-M1 II and the OM-5 have the same pixel density, as well as the same pixel size. It should, however, be noted that the OM-5 is much more recent (by 6 years and 1 month) than the E-M1 II, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus OM-D E-M1 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The OM System OM-5 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
2.		OM System OM-5	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.4	1622	78
3.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
4.		Olympus E-M1 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1356	76
5.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
6.		Olympus E-M5 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1324	76
7.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
8.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
9.		OM System OM-1 II	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.6	1749	78
10.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
11.		Panasonic G85	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
12.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
13.		Panasonic GH5 II	Four Thirds	20.2	5184	3888	4K/60p	23.7	13.1	1136	79
14.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The E-M1 II and the OM-5 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The table below summarizes some of the other core capabilities of the Olympus E-M1 II and OM System OM-5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
2.		OM System OM-5	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
3.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
4.		Olympus E-M1 III	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
5.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
6.		Olympus E-M5 III	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
7.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
8.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
9.		OM System OM-1 II	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
10.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
11.		Panasonic G85	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
12.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
13.		Panasonic GH5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	12.0/s	n	Y
14.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 II and the OM System OM-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-M1 II and the OM-5 write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the OM-5 only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s (the second slot of the E-M1 II supports only UHS-I, though).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 Mark II and OM System OM-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
2.		OM System OM-5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Olympus E-M1 III	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
5.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Olympus E-M5 III	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
9.		OM System OM-1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
10.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
11.		Panasonic G85	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
13.		Panasonic GH5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-

It is notable that the E-M1 II has a headphone jack, which is not present on the OM-5 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Studio photographers will appreciate that the Olympus E-M1 II (unlike the OM-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The OM-5 is a recent model that features in the current product line-up of OM System. In contrast, the E-M1 II has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-M1 II was succeeded by the Olympus E-M1 III. Further information on the features and operation of the E-M1 II and OM-5 can be found, respectively, in the Olympus E-M1 II Manual (free pdf) or the online OM System OM-5 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Olympus E-M1 II and the OM System OM-5? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Olympus OM-D E-M1 Mark II:

• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.68x).
• Faster burst: Shoots at higher frequency (18 vs 10 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (440 versus 310) on a single battery charge.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in September 2016).

Advantages of the OM System OM-5:

• Better jpgs: Has a more modern image processing engine (TruePic IX vs TruePic VIII).
• More compact: Is smaller (125x85mm vs 134x91mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 160g or 28 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
• More modern: Reflects 6 years and 1 month of technical progress since the E-M1 II launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 II comes out slightly ahead of the OM-5 (8 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-M1 II and the OM System OM-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-M1 II and the OM-5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
2.		OM System OM-5	5/5	..	4.5/5	83/100	5/5	4.5/5	Oct 2022	US$ 1 199	amazon.com
3.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
4.		Olympus E-M1 III	5/5	..	5/5	83/100	4.5/5	4/5	Feb 2020	US$ 1 799	ebay.com
5.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
6.		Olympus E-M5 III	5/5	+	5/5	82/100	4.5/5	4.5/5	Oct 2019	US$ 1 199	ebay.com
7.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	US$ 1 199	ebay.com
8.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
9.		OM System OM-1 II	..	..	..	..	..	..	Jan 2024	US$ 2 399	amazon.com
10.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	US$ 1 699	ebay.com
11.		Panasonic G85	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	US$ 899	ebay.com
12.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
13.		Panasonic GH5 II	4.5/5	..	4.5/5	85/100	4.5/5	5/5	May 2021	US$ 1 699	amazon.com
14.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
