Olympus E-510 vs Sony H200

The Olympus E-510 and the Sony Cyber-shot DSC-H200 are two digital cameras that were officially introduced, respectively, in March 2007 and January 2013. The E-510 is a DSLR, while the H200 is a fixed lens compact. The cameras are based on a Four Thirds (E-510) and a 1/2.3-inch (H200) sensor. The Olympus has a resolution of 10 megapixels, whereas the Sony provides 15.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-510		Sony H200
Digital single lens reflex		Fixed lens compact camera
Four Thirds lenses		24-633mm f/3.1-5.9
10 MP – Four Thirds sensor		15.2 MP – 1/2.3" sensor
no Video		720/30p Video
ISO 100-1,600		ISO 100-3,200
Optical viewfinder		No viewfinder, LCD framing
2.5" LCD – 215k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		0.8 shutter flaps per second
In-body stabilization		Lens-based stabilization
750 shots per battery charge		240 shots per battery charge
136 x 92 x 68 mm, 538 g		123 x 83 x 87 mm, 530 g

Check E-510 offers at
ebay.com
Check H200 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-510 and the Sony Cyber-shot DSC-H200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

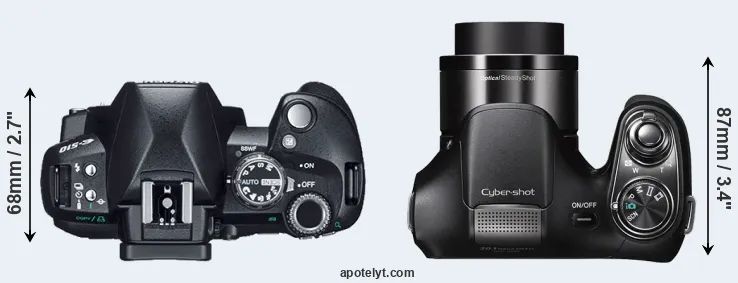

The side-by-side display below illustrates the physical size and weight of the Olympus E-510 and the Sony H200. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony H200 is notably smaller (18 percent) than the Olympus E-510. In this context, it is worth noting that neither the E-510 nor the H200 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the H200 has a lens built in, whereas the E-510 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-510 and their specifications in the Four Thirds Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
2.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
3.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
4.		Nikon B500	114 mm	78 mm	95 mm	541 g	600	n	Jan 2016	US$ 299	ebay.com
5.		Nikon L840	113 mm	78 mm	96 mm	538 g	590	n	Feb 2015	US$ 299	ebay.com
6.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
7.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	US$ 699	ebay.com
8.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
9.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	US$ 599	ebay.com
10.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
11.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
12.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
13.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
14.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
15.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	US$ 599	ebay.com
16.		Sony H300	128 mm	89 mm	92 mm	590 g	350	n	Feb 2014	US$ 219	ebay.com
17.		Sony H400	130 mm	95 mm	122 mm	628 g	300	n	Feb 2014	US$ 319	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The H200 was launched at a lower price than the E-510, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

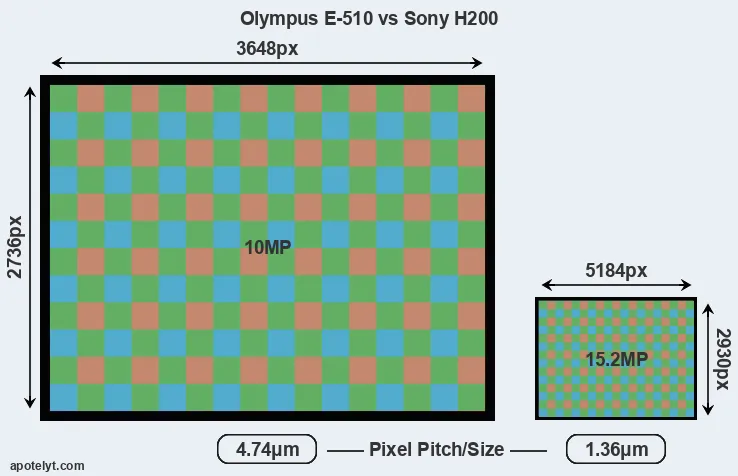

Of the two cameras under consideration, the Olympus E-510 features a Four Thirds sensor and the Sony H200 a 1/2.3-inch sensor. The sensor area in the H200 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the H200 offers a higher resolution of 15.2 megapixels, compared with 10 MP of the E-510. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.36μm versus 4.74μm for the E-510). However, it should be noted that the H200 is much more recent (by 5 years and 10 months) than the E-510, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the H200 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony H200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the H200 for good quality output (200 dots per inch) amounts to 25.9 x 14.7 inches or 65.8 x 37.2 cm, for very good quality (250 dpi) 20.7 x 11.7 inches or 52.7 x 29.8 cm, and for excellent quality (300 dpi) 17.3 x 9.8 inches or 43.9 x 24.8 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-510 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Sony Cyber-shot DSC-H200 are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the E-510 is build around a CMOS sensor, while the H200 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
2.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
3.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
4.		Nikon B500	1/2.3	15.9	4608	3456	1080/60i	20.3	11.7	810	48
5.		Nikon L840	1/2.3	15.9	4608	3456	1080/60i	20.2	11.6	721	47
6.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
7.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
8.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
9.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
10.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
11.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
12.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
13.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
14.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
15.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
16.		Sony H300	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
17.		Sony H400	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The H200 indeed provides for movie recording, while the E-510 does not. The highest resolution format that the H200 can use is 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-510 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the H200 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Olympus E-510, the Sony H200, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
2.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
3.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
4.		Nikon B500	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
5.		Nikon L840	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
6.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
7.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
8.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
9.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
10.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
11.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
12.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
13.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
14.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
15.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
16.		Sony H300	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
17.		Sony H400	210	n	3.0 / 460	fixed	n	1/2000s	0.7/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The E-510 writes its imaging data to Compact Flash or xD Picture cards, while the H200 uses SDXC or Memory Stick PRO Duo cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the H200 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-510 and Sony Cyber-shot DSC-H200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
2.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
3.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
4.		Nikon B500	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Nikon L840	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-
16.		Sony H300	-	mono / mono	-	-	micro	2.0	Y	-	-
17.		Sony H400	-	mono / mono	-	-	micro	2.0	Y	-	-

It is notable that the E-510 has a hotshoe, while the H200 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the E-510 and the H200 have been discontinued, but can regularly be found used on ebay. The E-510 was replaced by the Olympus E-520, while the H200 does not have a direct successor. Further information on the features and operation of the E-510 and H200 can be found, respectively, in the Olympus E-510 Manual (free pdf) or the online Sony H200 Manual.

Review summary

So how do things add up? Which of the two cameras – the Olympus E-510 or the Sony H200 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Olympus E-510:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1500s) to freeze action.
• Faster burst: Shoots at higher frequency (3 vs 0.8 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (750 versus 240) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in March 2007).

Arguments in favor of the Sony Cyber-shot DSC-H200:

• More detail: Has more megapixels (15.2 vs 10MP), which boosts linear resolution by 31%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can capture not only stills but also 720/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 215k dots).
• Ready to shoot: Comes with an integrated lens, while the E-510 requires a separate lens.
• More compact: Is smaller (123x83mm vs 136x92mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-510).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 10 months of technical progress since the E-510 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-510 emerges as the winner of the contest (13 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-510 and the Sony H200 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-510 and the H200 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
2.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
3.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
4.		Nikon B500	..	+	..	..	4/5	3.5/5	Jan 2016	US$ 299	ebay.com
5.		Nikon L840	..	+ +	..	..	3.5/5	4/5	Feb 2015	US$ 299	ebay.com
6.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
7.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	US$ 699	ebay.com
8.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
9.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	US$ 599	ebay.com
10.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
11.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
12.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
13.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
14.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
15.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	US$ 599	ebay.com
16.		Sony H300	..	+	..	..	4.5/5	4/5	Feb 2014	US$ 219	ebay.com
17.		Sony H400	..	o	..	..	3.5/5	3.5/5	Feb 2014	US$ 319	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
