Olympus E-5 vs Sony A6000

The Olympus E-5 and the Sony Alpha A6000 are two digital cameras that were officially introduced, respectively, in September 2010 and February 2014. The E-5 is a DSLR, while the A6000 is a mirrorless interchangeable lens camera. The cameras are based on a Four Thirds (E-5) and an APS-C (A6000) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Sony provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-5		Sony A6000
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Sony E mount lenses
12.2 MP – Four Thirds sensor		24 MP – APS-C sensor
720/30p Video		1080/60p Video
ISO 100-6,400		ISO 100-25,600 (100 - 51,200)
Optical viewfinder		Electronic viewfinder (1440k dots)
3.0" LCD – 920k dots		3.0" LCD – 922k dots
Swivel screen (not touch-sensitive)		Tilting screen (no touchscreen)
5 shutter flaps per second		11 shutter flaps per second
In-body stabilization		Lens stabilization only
Weathersealed body		not weather sealed
750 shots per battery charge		360 shots per battery charge
142 x 117 x 75 mm, 873 g		120 x 67 x 45 mm, 344 g

Check E-5 offers at
ebay.com
Check A6000 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-5 and the Sony Alpha A6000? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

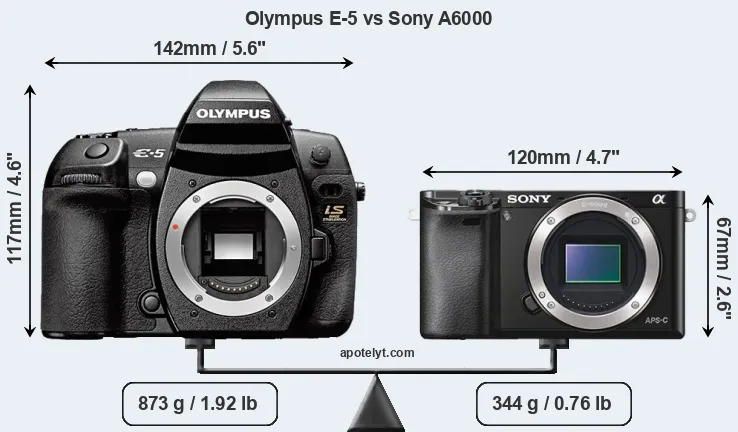

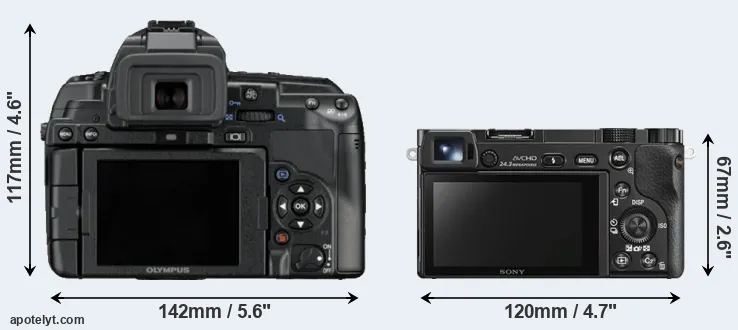

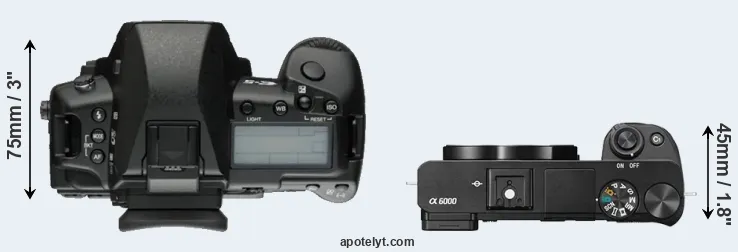

An illustration of the physical size and weight of the Olympus E-5 and the Sony A6000 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The A6000 can be obtained in three different colors (black, silver, white), while the E-5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A6000 is considerably smaller (52 percent) than the Olympus E-5. Moreover, the A6000 is substantially lighter (61 percent) than the E-5. It is worth mentioning in this context that the E-5 is splash and dust resistant, while the A6000 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-5) and the Sony E-Mount Lens Catalog (A6000). Mirrorless cameras, such as the A6000, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-5 gets 750 shots out of its Olympus BLM-5 battery, while the A6000 can take 360 images on a single charge of its Sony NP-FW50 power pack. The power pack in the A6000 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	1,699	ebay.com
2.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	599	ebay.com
3.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	1,699	ebay.com
4.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	1,699	ebay.com
5.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	1,299	ebay.com
6.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
7.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
8.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	449	ebay.com
9.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	699	ebay.com
10.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	799	ebay.com
11.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	799	ebay.com
12.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	599	ebay.com
13.		Sony A3000	128 mm	91 mm	85 mm	411 g	470	n	Aug 2013	329	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	449	ebay.com
15.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	549	ebay.com
16.		Sony A6300	120 mm	67 mm	49 mm	404 g	400	Y	Feb 2016	999	ebay.com
17.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The A6000 was launched at a markedly lower price (by 65 percent) than the E-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus E-5 features a Four Thirds sensor and the Sony A6000 an APS-C sensor. The sensor area in the A6000 is 63 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-5 has a native 4:3 aspect ratio, while the one in the A6000 offers a 3:2 aspect.

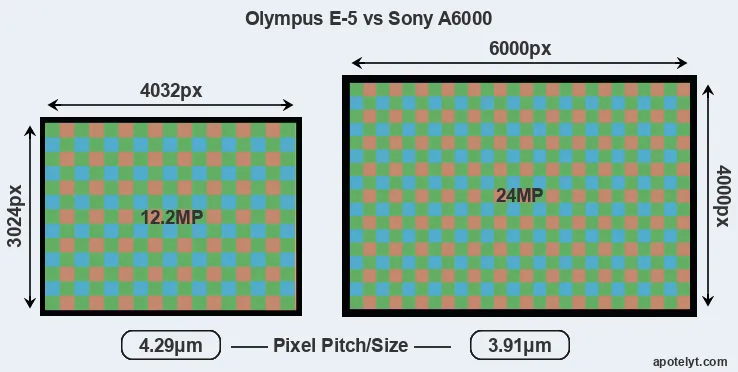

With 24MP, the A6000 offers a higher resolution than the E-5 (12.2MP), but the A6000 has smaller individual pixels (pixel pitch of 3.91μm versus 4.29μm for the E-5). Yet, the A6000 is a much more recent model (by 3 years and 4 months) than the E-5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony A6000 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A6000 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The A6000 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus E-5 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Sony Alpha A6000 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the A6000 offers substantially better image quality than the E-5 (overall score 26 points higher). The advantage is based on 2.5 bits higher color depth, 2.6 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
2.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
3.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
4.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
5.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
6.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
7.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
8.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
9.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
10.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
11.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
12.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
13.		Sony A3000	APS-C	19.8	5456	3632	1080/60i	23.7	12.8	1068	78
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
16.		Sony A6300	APS-C	24.0	6000	4000	4K/30p	24.4	13.7	1437	85
17.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the A6000 provides a better video resolution than the E-5. It can shoot movie footage at 1080/60p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the A6000 has an electronic viewfinder (1440k dots), while the E-5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the A6000 has a higher magnification than the one of the E-5 (0.70x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Olympus E-5, the Sony A6000, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
2.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
3.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
4.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
5.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
6.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
7.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
8.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
9.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
11.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
13.		Sony A3000	202	n	3.0 / 230	fixed	n	1/4000s	2.5/s	Y	n
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
16.		Sony A6300	2359	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
17.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-5, but is missing on the A6000 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-5 writes its imaging data to Compact Flash or xD Picture cards, while the A6000 uses SDXC or Memory Stick PRO Duo cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the A6000 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-5 and Sony Alpha A6000 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Sony A3000	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony A6300	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
17.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the A6000 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-5 does not provide wifi capability.

Studio photographers will appreciate that the Olympus E-5 (unlike the A6000) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-5 and the A6000 have been discontinued, but can regularly be found used on ebay. The A6000 was replaced by the Sony A6300, while the E-5 does not have a direct successor. Further information on the features and operation of the E-5 and A6000 can be found, respectively, in the Olympus E-5 Manual (free pdf) or the online Sony A6000 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Olympus E-5 and the Sony A6000? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Olympus E-5:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Can take more shots (750 versus 360) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in September 2010).

Arguments in favor of the Sony Alpha A6000:

• More detail: Has more megapixels (24 vs 12.2MP), which boosts linear resolution by 43%.
• Better image quality: Scores substantially higher (26 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.5 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.6 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.4 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.58x).
• Faster burst: Shoots at higher frequency (11 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x67mm vs 142x117mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 529g or 61 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
• More modern: Reflects 3 years and 4 months of technical progress since the E-5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the A6000 is the clear winner of the contest (18 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-5 and the Sony A6000 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-5 or the A6000 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	1,699	ebay.com
2.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	599	ebay.com
3.		Olympus E-1	..	..	..	+	o	..	Jun 2003	1,699	ebay.com
4.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	1,699	ebay.com
5.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	1,299	ebay.com
6.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
7.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
8.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	449	ebay.com
9.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	699	ebay.com
10.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	799	ebay.com
11.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	799	ebay.com
12.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	599	ebay.com
13.		Sony A3000	3/5	+	..	..	4/5	4/5	Aug 2013	329	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	449	ebay.com
15.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	549	ebay.com
16.		Sony A6300	4.5/5	+	..	85/100	5/5	5/5	Feb 2016	999	ebay.com
17.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check E-5 offers at
ebay.com
Check A6000 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check E-5 offers at
ebay.com
Check A6000 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
