Olympus E-1 vs Pentax KP

The Olympus E-1 and the Pentax KP are two digital cameras that were officially introduced, respectively, in June 2003 and January 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a Four Thirds (E-1) and an APS-C (KP) sensor. The Olympus has a resolution of 4.9 megapixels, whereas the Pentax provides 24.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-1		Pentax KP
Digital single lens reflex		Digital single lens reflex
Four Thirds lenses		Pentax K mount lenses
4.9 MP – Four Thirds sensor		24.1 MP – APS-C sensor
no Video		1080/60i Video
ISO 100-800 (100 - 3,200)		ISO 100-819,200
Optical viewfinder		Optical viewfinder
1.8" LCD – 134k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3 shutter flaps per second		7 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		Weathersealed body
750 shots per battery charge		390 shots per battery charge
141 x 104 x 81 mm, 738 g		132 x 101 x 76 mm, 703 g

Check E-1 offers at
ebay.com
Check KP offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-1 and the Pentax KP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

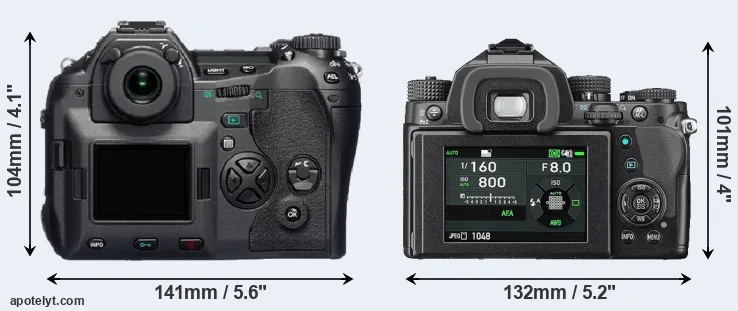

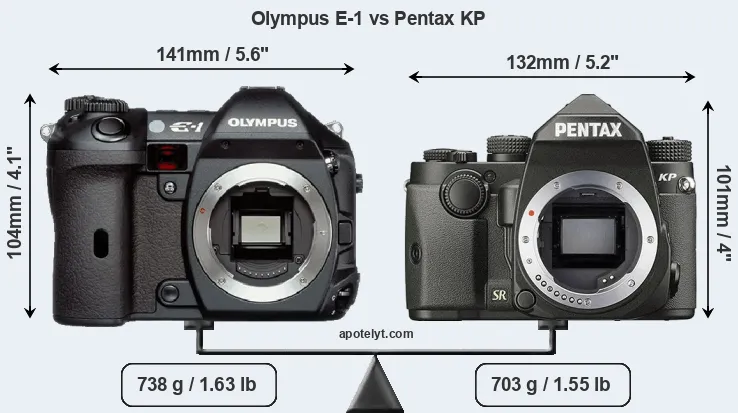

The physical size and weight of the Olympus E-1 and the Pentax KP are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The KP can be obtained in two different colors (black, silver), while the E-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax KP is notably smaller (9 percent) than the Olympus E-1. Moreover, the KP is markedly lighter (5 percent) than the E-1. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the E-1 gets 750 shots out of its Olympus BLM-1 battery, while the KP can take 390 images on a single charge of its Pentax D-LI109 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	US$ 1 699	ebay.com
2.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	US$ 1 099	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
5.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	US$ 1 499	ebay.com
6.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
7.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
8.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	US$ 1 499	ebay.com
9.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
10.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	US$ 1 699	ebay.com
11.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
13.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
15.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
16.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	US$ 649	ebay.com
17.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	US$ 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The KP was launched at a markedly lower price (by 35 percent) than the E-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

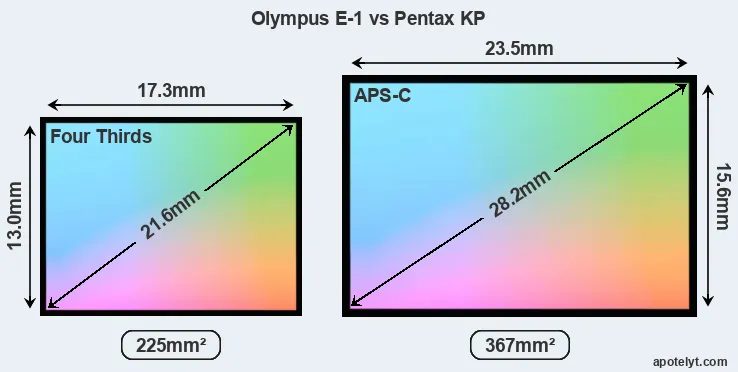

Of the two cameras under consideration, the Olympus E-1 features a Four Thirds sensor and the Pentax KP an APS-C sensor. The sensor area in the KP is 63 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-1 has a native 4:3 aspect ratio, while the one in the KP offers a 3:2 aspect.

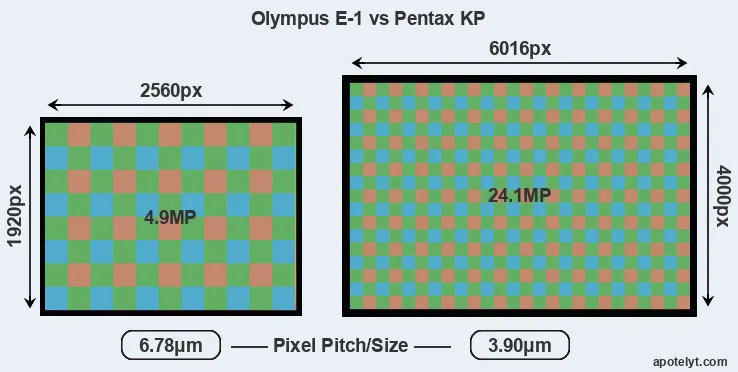

With 24.1MP, the KP offers a higher resolution than the E-1 (4.9MP), but the KP has smaller individual pixels (pixel pitch of 3.90μm versus 6.78μm for the E-1). Yet, the KP is a much more recent model (by 13 years and 7 months) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the KP has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax KP implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the KP for good quality output (200 dots per inch) amounts to 30.1 x 20 inches or 76.4 x 50.8 cm, for very good quality (250 dpi) 24.1 x 16 inches or 61.1 x 40.6 cm, and for excellent quality (300 dpi) 20.1 x 13.3 inches or 50.9 x 33.9 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

Unlike the E-1, the KP has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus E-1 has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-3200. The corresponding ISO settings for the Pentax KP are ISO 100 to ISO 819200 (no boost).

In terms of underlying technology, the E-1 is build around a CCD sensor, while the KP uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
2.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
5.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
6.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
7.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
8.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
9.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
10.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
11.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
12.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
13.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
14.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
15.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
16.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
17.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The KP indeed provides for movie recording, while the E-1 does not. The highest resolution format that the KP can use is 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The E-1 and the KP are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the KP has a higher magnification than the one of the E-1 (0.63x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-1 and Pentax KP along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
2.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
5.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
6.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
7.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
8.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
9.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
10.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
11.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
12.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
13.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
14.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
15.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
16.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
17.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-1, but is missing on the KP is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the KP is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Pentax KP has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-1 writes its imaging data to Compact Flash or xD Picture cards, while the KP uses SDXC cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the KP only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-1 and Pentax KP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
2.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
6.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
7.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
13.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
15.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
17.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-

It is notable that the KP offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-1 does not provide wifi capability.

Studio photographers will appreciate that the Olympus E-1 (unlike the KP) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-1 and the KP have been discontinued, but can regularly be found used on ebay. The E-1 was replaced by the Olympus E-3, while the KP does not have a direct successor. Further information on the features and operation of the E-1 and KP can be found, respectively, in the Olympus E-1 Manual (free pdf) or the online Pentax KP Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Olympus E-1 or the Pentax KP – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Olympus E-1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Longer lasting: Can take more shots (750 versus 390) on a single battery charge.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in June 2003).

Advantages of the Pentax KP:

• More detail: Has more megapixels (24.1 vs 4.9MP), which boosts linear resolution by 126%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can capture not only stills but also 1080/60i video.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.48x).
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 134k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (35 percent cheaper at launch).
• More modern: Reflects 13 years and 7 months of technical progress since the E-1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the KP is the clear winner of the contest (21 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-1 and the Pentax KP place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-1 and the KP in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-1	..	..	..	+	o	..	Jun 2003	US$ 1 699	ebay.com
2.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	US$ 1 099	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
5.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	US$ 1 499	ebay.com
6.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
7.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
8.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	US$ 1 499	ebay.com
9.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
10.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	US$ 1 699	ebay.com
11.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
13.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
15.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
16.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	US$ 649	ebay.com
17.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	US$ 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check E-1 offers at
ebay.com
Check KP offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check E-1 offers at
ebay.com
Check KP offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
