Olympus E-1 vs TG-5

The Olympus E-1 and the Olympus Tough TG-5 are two digital cameras that were officially introduced, respectively, in June 2003 and May 2017. The E-1 is a DSLR, while the TG-5 is a fixed lens compact. The cameras are based on a Four Thirds (E-1) and a 1/2.3-inch (TG-5) sensor. The E-1 has a resolution of 4.9 megapixels, whereas the TG-5 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-1		Olympus TG-5
Digital single lens reflex		Fixed lens compact camera
Four Thirds lenses		25-100mm f/2.0-4.9
4.9 MP – Four Thirds sensor		12 MP – 1/2.3" sensor
no Video		4K/30p Video
ISO 100-800 (100 - 3,200)		ISO 100-12,800
Optical viewfinder		No viewfinder, LCD framing
1.8" LCD – 134k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		20 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		Waterproof body (15m)
750 shots per battery charge		340 shots per battery charge
141 x 104 x 81 mm, 738 g		113 x 66 x 32 mm, 250 g

Check E-1 offers at
ebay.com
Check TG-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-1 and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

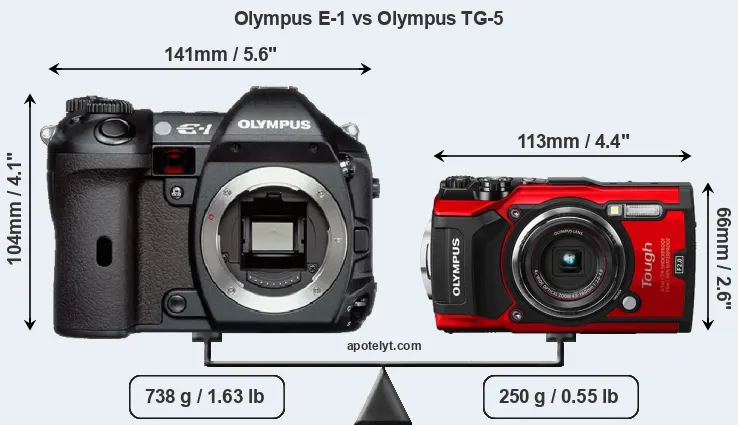

An illustration of the physical size and weight of the Olympus E-1 and the Olympus TG-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The TG-5 can be obtained in two different colors (black, red), while the E-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is considerably smaller (49 percent) than the Olympus E-1. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the E-1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-1 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the E-1 gets 750 shots out of its BLM-1 battery, while the TG-5 can take 340 images on a single charge of its LI-92B power pack. The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	1,699	ebay.com
2.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	449	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	1,999	amazon.com
4.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
5.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	1,699	ebay.com
6.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	1,499	ebay.com
7.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	389	amazon.com
8.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	1,999	amazon.com
9.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	1,999	ebay.com
10.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	1,499	ebay.com
11.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	449	amazon.com
12.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	379	ebay.com
13.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
14.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	1,699	ebay.com
15.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	1,699	ebay.com
16.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	999	ebay.com
17.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TG-5 was launched at a lower price than the E-1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

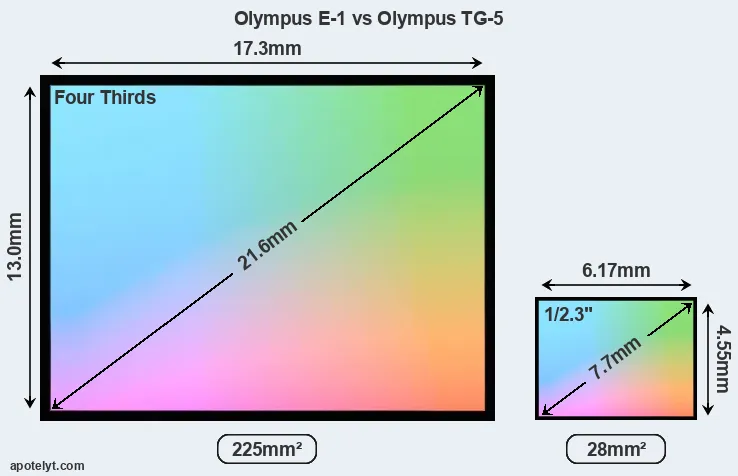

Of the two cameras under consideration, the Olympus E-1 features a Four Thirds sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the TG-5 uses a more advanced image processing engine (TruePic VIII) than the E-1 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the TG-5 offers a higher resolution of 12 megapixels, compared with 4.9 MP of the E-1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.53μm versus 6.78μm for the E-1). However, it should be noted that the TG-5 is much more recent (by 13 years and 10 months) than the E-1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Olympus TG-5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TG-5 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Olympus E-1 has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the E-1 is build around a CCD sensor, while the TG-5 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
2.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
5.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
6.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
7.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
8.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
9.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
10.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
11.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
12.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
13.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
14.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
15.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
16.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
17.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The TG-5 indeed provides for movie recording, while the E-1 does not. The highest resolution format that the TG-5 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Olympus E-1 and Olympus TG-5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
2.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
5.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
6.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
7.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
8.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
9.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
10.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
11.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
12.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
13.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
14.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
15.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
16.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
17.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-1, but is missing on the TG-5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-1 writes its imaging data to Compact Flash or xD Picture cards, while the TG-5 uses SDXC cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the TG-5 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-1 and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
6.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
7.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
8.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
9.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
10.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
14.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the E-1 has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Olympus E-1 (unlike the TG-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the E-1 and the TG-5 have been discontinued, but can regularly be found used on ebay. The E-1 was replaced by the Olympus E-3, while the TG-5 was followed by the Olympus TG-6. Further information on the features and operation of the E-1 and TG-5 can be found, respectively, in the Olympus E-1 Manual (free pdf) or the online Olympus TG-5 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-1 better than the Olympus TG-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Olympus E-1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (750 versus 340) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in June 2003).

Advantages of the Olympus Tough TG-5:

• More detail: Has more megapixels (12 vs 4.9MP), which boosts linear resolution by 56%.
• Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic).
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 134k dots).
• Faster burst: Shoots at higher frequency (20 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the E-1 requires a separate lens.
• More compact: Is smaller (113x66mm vs 141x104mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-1).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 13 years and 10 months of technical progress since the E-1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the TG-5 is the clear winner of the contest (18 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-1 and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-1 or the TG-5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-1	..	..	..	+	o	..	Jun 2003	1,699	ebay.com
2.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	449	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	1,999	amazon.com
4.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
5.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	1,699	ebay.com
6.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	1,499	ebay.com
7.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	389	amazon.com
8.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	1,999	amazon.com
9.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	1,999	ebay.com
10.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	1,499	ebay.com
11.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	449	amazon.com
12.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	379	ebay.com
13.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
14.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	1,699	ebay.com
15.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	1,699	ebay.com
16.		Olympus E-330	..	..	..	+	o	..	Jan 2006	999	ebay.com
17.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	799	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check E-1 offers at
ebay.com
Check TG-5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check E-1 offers at
ebay.com
Check TG-5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
