Nikon Z7 vs Olympus E-520
The Nikon Z7 and the Olympus E-520 are two digital cameras that were revealed to the public, respectively, in August 2018 and May 2008. The Z7 is a mirrorless interchangeable lens camera, while the E-520 is a DSLR. The cameras are based on a full frame (Z7) and a Four Thirds (E-520) sensor. The Nikon has a resolution of 45.4 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Z7 and the Olympus E-520? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Nikon Z7 and the Olympus E-520 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-520 is notably smaller (8 percent) than the Nikon Z7. Moreover, the E-520 is markedly lighter (21 percent) than the Z7. It is worth mentioning in this context that the Z7 is splash and dust resistant, while the E-520 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the Z7 gets 330 shots out of its EN-EL15b battery, while the E-520 can take 750 images on a single charge of its BLM-1 power pack. The power pack in the Z7 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Nikon Z7||5.3 in||4.0 in||2.6 in||23.8 oz||330||Y||Aug 2018||3,399|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Nikon Z7 II||5.3 in||4.0 in||2.8 in||24.9 oz||420||Y||Oct 2020||2,999|
|Nikon Z6||5.3 in||4.0 in||2.6 in||23.8 oz||310||Y||Aug 2018||1,999|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Olympus E-600||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-420||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
|Panasonic S1R||5.9 in||4.3 in||3.8 in||35.8 oz||380||Y||Feb 2019||3,699|
|Sony A7R III||5.0 in||3.8 in||2.9 in||22.9 oz||650||Y||Oct 2017||3,199|
|Sony A9||5.0 in||3.8 in||2.5 in||23.7 oz||650||Y||Apr 2017||4,499|
|Sony A99 II||5.6 in||4.1 in||3.0 in||29.9 oz||490||Y||Sep 2016||3,199|
|Sony A7R II||5.0 in||3.8 in||2.4 in||22.0 oz||290||Y||Jun 2015||3,199|
|Sony A7S II||5.0 in||3.8 in||2.4 in||22.1 oz||370||Y||Sep 2015||2,999|
|Sony A99||5.8 in||4.4 in||3.1 in||28.6 oz||500||Y||Sep 2012||2,799|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-520 was launched at a markedly lower price (by 79 percent) than the Z7, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

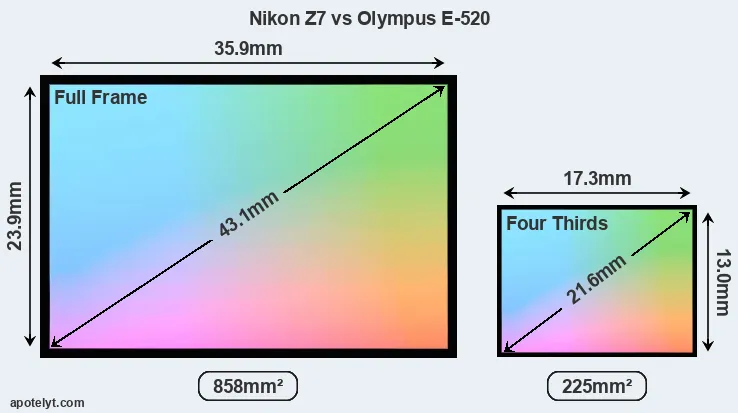

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon Z7 features a full frame sensor and the Olympus E-520 a Four Thirds sensor. The sensor area in the E-520 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the Z7 has a native 3:2 aspect ratio, while the one in the E-520 offers a 4:3 aspect.
With 45.4MP, the Z7 offers a higher resolution than the E-520 (10MP), but the Z7 has smaller individual pixels (pixel pitch of 4.35μm versus 4.74μm for the E-520). However, the Z7 is a much more recent model (by 10 years and 3 months) than the E-520, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the Z7 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon Z7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Z7 for good quality output (200 dots per inch) amounts to 41.3 x 27.5 inches or 104.9 x 69.9 cm, for very good quality (250 dpi) 33 x 22 inches or 83.9 x 55.9 cm, and for excellent quality (300 dpi) 27.5 x 18.3 inches or 69.9 x 46.6 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Z7 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Nikon Z7 has a native sensitivity range from ISO 64 to ISO 25600, which can be extended to ISO 32-102400. The corresponding ISO settings for the Olympus E-520 are ISO 100 to ISO 1600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the Z7 provides substantially higher image quality than the E-520, with an overall score that is 44 points higher. This advantage is based on 4.9 bits higher color depth, 4.2 EV in additional dynamic range, and 2.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||..||..||..||..|
|Nikon Z6||Full Frame||24.3||6048||4024||4K/30p||25.3||14.3||3299||95|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|Sony A7R III||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100|
|Sony A9||Full Frame||24.0||6000||4000||4K/30p||24.9||13.3||3517||92|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|Sony A7R II||Full Frame||42.2||7952||5304||4K/30p||26.0||13.9||3434||98|
|Sony A7S II||Full Frame||12.0||4240||2832||4K/30p||23.6||13.3||2993||85|
|Sony A99||Full Frame||24.0||6000||4000||1080/60p||25.0||14.0||1555||89|
Many modern cameras cannot only take still pictures, but also record videos. The Z7 indeed provides movie recording capabilities, while the E-520 does not. The highest resolution format that the Z7 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the Z7 has an electronic viewfinder (3690k dots), while the E-520 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the Z7 offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the Z7 has a higher magnification (0.80x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon Z7, the Olympus E-520, and comparable cameras.
|Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|Sony A7R III||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
|Sony A7R II||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y|
|Sony A7S II||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y|
One feature that is present on the Z7, but is missing on the E-520 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Z7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon Z7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The Z7 writes its imaging data to XQD cards, while the E-520 uses Compact Flash or xD Picture cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the Z7 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Z7 and Olympus E-520 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|Sony A7R III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
|Sony A7R II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
|Sony A7S II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the Z7 offers wifi support, while the E-520 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the Z7 and the E-520 have been discontinued, but can regularly be found used on eBay. The Z7 was replaced by the Nikon Z7 II, while the E-520 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what is the bottom line? Is the Nikon Z7 better than the Olympus E-520 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon Z7:
- More detail: Offers more megapixels (45.4 vs 10MP) with a 118% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (44 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (4.9 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (4.2 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.3 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 4K/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 215k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 3.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 10 years and 3 months of technical progress since the E-520 launch.
Arguments in favor of the Olympus E-520:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Less heavy: Has a lower weight (by 140g or 21 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (750 versus 330) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (79 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2008).
If the count of relative strengths (bullet points above) is taken as a measure, the Z7 is the clear winner of the match-up (27 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon Z7 and the Olympus E-520 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the Z7 and the E-520 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon Z7||+||89/100||4.5/5||4.5/5||5/5||Aug 2018||3,399|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Nikon Z7 II||..||..||..||..||..||Oct 2020||2,999|
|Nikon Z6||..||..||4.5/5||4.5/5||5/5||Aug 2018||1,999|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-420||85/100||+ +||4/5||o||4.5/5||Mar 2008||599|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Panasonic S1R||..||89/100||4.5/5||5/5||4.5/5||Feb 2019||3,699|
|Sony A7R III||+ +||90/100||4.5/5||5/5||5/5||Oct 2017||3,199|
|Sony A9||+ +||89/100||5/5||5/5||5/5||Apr 2017||4,499|
|Sony A99 II||..||85/100||4.5/5||4.5/5||4.5/5||Sep 2016||3,199|
|Sony A7R II||+ +||90/100||5/5||4.5/5||5/5||Jun 2015||3,199|
|Sony A7S II||+||..||4.5/5||5/5||5/5||Sep 2015||2,999|
|Sony A99||..||84/100||4.5/5||o||4.5/5||Sep 2012||2,799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1300D vs Olympus E-520
- Canon 1Ds vs Nikon Z7
- Canon 600D vs Olympus E-520
- Fujifilm X10 vs Nikon Z7
- Leica Digilux 3 vs Nikon Z7
- Leica TL vs Olympus E-520
- Nikon D1 vs Olympus E-520
- Nikon D4S vs Nikon Z7
- Nikon P1000 vs Olympus E-520
- Nikon Z7 vs Olympus E-PL9
- Nikon Z7 vs Panasonic GH4
- Olympus E-520 vs Sony A6400
Specifications: Nikon Z7 vs Olympus E-520
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon Z7||Olympus E-520|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Nikon Z mount lenses||Four Thirds lenses|
|Launch Date||August 2018||May 2008|
|Launch Price||USD 3,399||USD 699|
|Sensor Specs||Nikon Z7||Olympus E-520|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.9 x 23.9 mm||17.3 x 13.0 mm|
|Sensor Area||858.01 mm2||224.9 mm2|
|Sensor Diagonal||43.1 mm||21.6 mm|
|Sensor Resolution||45.4 Megapixels||10 Megapixels|
|Image Resolution||8256 x 5504 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.35 μm||4.74 μm|
|Pixel Density||5.30 MP/cm2||4.44 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||no Video|
|ISO Setting||64 - 25,600 ISO||100 - 1,600 ISO|
|ISO Boost||32 - 102,400 ISO||no Enhancement|
|Image Processor||EXPEED 6||TruePic III|
|DXO Sensor Quality (score)||99||55|
|DXO Color Depth (bits)||26.3||21.4|
|DXO Dynamic Range (EV)||14.6||10.4|
|DXO Low Light (ISO)||2668||548|
|Screen Specs||Nikon Z7||Olympus E-520|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Viewfinder Resolution||3690k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||2.7inch|
|LCD Resolution||2100k dots||215k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Nikon Z7||Olympus E-520|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||3.5 shutter flaps/s|
|Electronic Shutter||up to 1/8000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||XQD cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Nikon Z7||Olympus E-520|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||micro HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Nikon Z7||Olympus E-520|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||330 shots per charge||750 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
134 x 101 x 67 mm
(5.3 x 4.0 x 2.6 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||675 g (23.8 oz)||535 g (18.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
