Nikon D780 vs Pentax 645Z

The Nikon D780 and the Pentax 645Z are two digital cameras that were announced, respectively, in January 2020 and April 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (D780) and a medium format (645Z) sensor. The Nikon has a resolution of 24.3 megapixels, whereas the Pentax provides 51.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D780		Pentax 645Z
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Pentax 645 mount lenses
24.3 MP – Full Frame sensor		51.1 MP – Medium Format sensor
4K/30p Video		1080/60i Video
ISO 100-51,200 (50 - 204,800)		ISO 100-204,800
Optical viewfinder		Optical viewfinder
3.2" LCD – 2359k dots		3.2" LCD – 1037k dots
Tilting touchscreen		Tilting screen (no touchscreen)
12 shutter flaps per second		3 shutter flaps per second
Weathersealed body		Weathersealed body
2260 shots per battery charge		650 shots per battery charge
144 x 116 x 76 mm, 840 g		156 x 117 x 123 mm, 1550 g

Check D780 price at
amazon.com
Check 645Z offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D780 and the Pentax 645Z? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

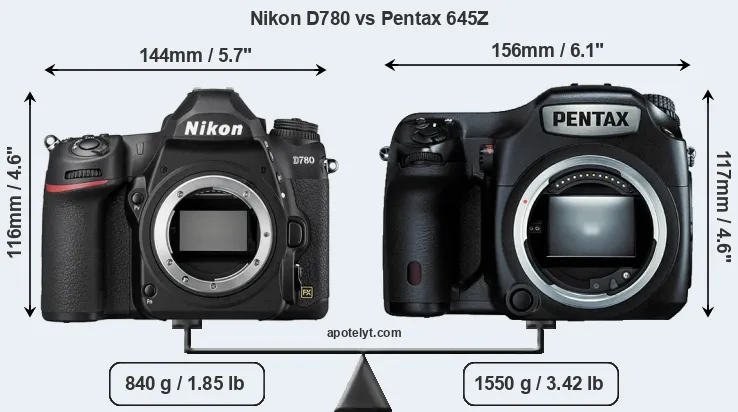

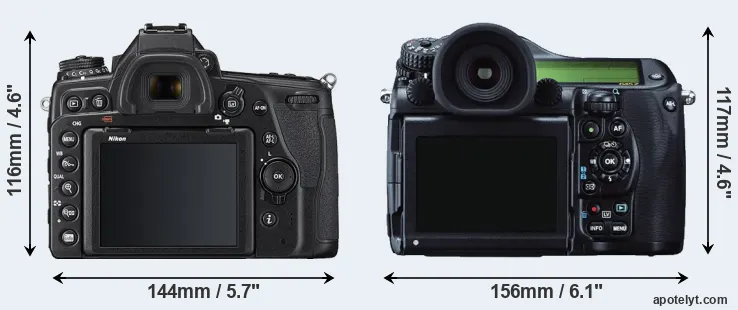

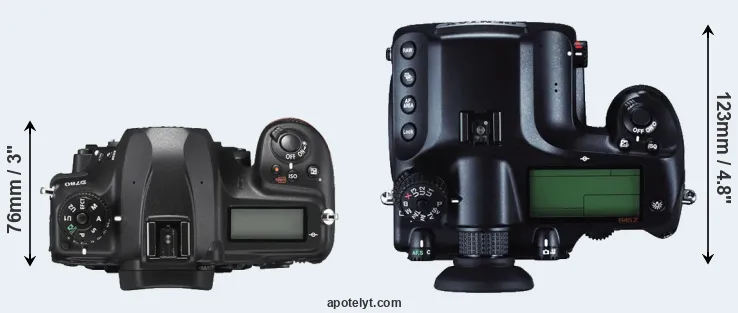

The physical size and weight of the Nikon D780 and the Pentax 645Z are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645Z is notably larger (9 percent) than the Nikon D780. Moreover, the 645Z is substantially heavier (85 percent) than the D780. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the D780 gets 2260 shots out of its Nikon EN-EL15b battery, while the 645Z can take 650 images on a single charge of its Pentax D-LI90 power pack. The power pack in the D780 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D780	144 mm	116 mm	76 mm	840 g	2260	Y	Jan 2020	US$ 2 299	amazon.com
2.		Pentax 645Z	156 mm	117 mm	123 mm	1550 g	650	Y	Apr 2014	US$ 8 499	ebay.com
3.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
4.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
5.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
6.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
7.		Hasselblad X1D	150 mm	98 mm	71 mm	725 g	..	Y	Jun 2016	US$ 8 995	ebay.com
8.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
9.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
10.		Nikon D6	160 mm	163 mm	92 mm	1270 g	3580	Y	Feb 2020	US$ 6 499	amazon.com
11.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
12.		Nikon D600	141 mm	113 mm	82 mm	850 g	900	Y	Sep 2012	US$ 2 099	ebay.com
13.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
14.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	US$ 2 299	ebay.com
15.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	US$ 2 749	ebay.com
16.		Nikon Z6 II	134 mm	101 mm	70 mm	705 g	410	Y	Oct 2020	US$ 1 999	amazon.com
17.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	US$ 9 995	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D780 was launched at a markedly lower price (by 73 percent) than the 645Z, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D780 features a full frame sensor and the Pentax 645Z a medium format sensor. The sensor area in the 645Z is 67 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.79. The sensor in the D780 has a native 3:2 aspect ratio, while the one in the 645Z offers a 4:3 aspect.

With 51.1MP, the 645Z offers a higher resolution than the D780 (24.3MP), but the 645Z has smaller individual pixels (pixel pitch of 5.30μm versus 5.94μm for the D780). Yet, the D780 is a much more recent model (by 5 years and 8 months) than the 645Z, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 645Z has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax 645Z implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645Z for good quality output (200 dots per inch) amounts to 41.3 x 31 inches or 104.9 x 78.6 cm, for very good quality (250 dpi) 33 x 24.8 inches or 83.9 x 62.9 cm, and for excellent quality (300 dpi) 27.5 x 20.6 inches or 69.9 x 52.4 cm. The corresponding values for the Nikon D780 are 30.2 x 20.1 inches or 76.8 x 51.1 cm for good quality, 24.2 x 16.1 inches or 61.4 x 40.9 cm for very good quality, and 20.2 x 13.4 inches or 51.2 x 34.1 cm for excellent quality prints.

The D780 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Nikon D780 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-204800. The corresponding ISO settings for the Pentax 645Z are ISO 100 to ISO 204800 (no boost).

In terms of underlying technology, the D780 is build around a BSI-CMOS sensor, while the 645Z uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D780	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	2877	95
2.		Pentax 645Z	Medium Format	51.1	8256	6192	1080/60i	26.0	14.7	4505	101
3.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
4.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
5.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
6.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
7.		Hasselblad X1D	Medium Format	51.3	8272	6200	1080/25p	26.2	14.8	4489	102
8.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
9.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
10.		Nikon D6	Full Frame	20.7	5568	3712	4K/30p	25.3	14.3	2886	95
11.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
12.		Nikon D600	Full Frame	24.2	6016	4016	1080/30p	25.1	14.2	2980	94
13.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
14.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
15.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
16.		Nikon Z6 II	Full Frame	24.3	6048	4024	4K/60p	25.0	14.4	3303	94
17.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D780 provides a higher video resolution than the 645Z. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D780 and the 645Z are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D780 offers a wider field of view (100%) than the one in the 645Z (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 645Z has a higher magnification (0.78x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D780 and Pentax 645Z in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D780	optical	Y	3.2 / 2359	tilting	Y	1/8000s	12.0/s	n	n
2.		Pentax 645Z	optical	Y	3.2 / 1037	tilting	n	1/4000s	3.0/s	n	n
3.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
6.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
7.		Hasselblad X1D	2360	n	3.0 / 920	fixed	Y	1/2000s	2.3/s	n	n
8.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
9.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
10.		Nikon D6	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
11.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
12.		Nikon D600	optical	Y	3.0 / 921	fixed	n	1/4000s	5.5/s	Y	n
13.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
14.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
15.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
16.		Nikon Z6 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	14.0/s	n	Y
17.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D780 has a touchscreen, while the 645Z has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Nikon D780 and the Pentax 645Z both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D780 and the 645Z write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The D780 supports UHS-II cards (on both slots), while the 645Z can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D780 and Pentax 645Z and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D780	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
2.		Pentax 645Z	Y	stereo / mono	Y	-	mini	3.0	-	-	-
3.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
4.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
6.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Hasselblad X1D	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
8.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
9.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
10.		Nikon D6	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
11.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
12.		Nikon D600	Y	mono / mono	Y	Y	mini	2.0	-	-	-
13.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
14.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
15.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
16.		Nikon Z6 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
17.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-

It is notable that the D780 has a headphone jack, which is not present on the 645Z This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The D780 is a recent model that features in the current product line-up of Nikon. In contrast, the 645Z has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 645Z from Pentax. Further information on the features and operation of the D780 and 645Z can be found, respectively, in the Nikon D780 Manual (free pdf) or the online Pentax 645Z Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Nikon D780 or the Pentax 645Z – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Nikon D780:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
• More detailed LCD: Has a higher resolution rear screen (2359k vs 1037k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 3 flaps/sec) to capture the decisive moment.
• Less heavy: Is lighter (by 710g or 46 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (2260 versus 650) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
• More modern: Reflects 5 years and 8 months of technical progress since the 645Z launch.

Reasons to prefer the Pentax 645Z:

• More detail: Has more megapixels (51.1 vs 24.3MP), which boosts linear resolution by 42%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.70x).
• More heavily discounted: Has been around for much longer (launched in April 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the D780 is the clear winner of the match-up (17 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D780 and the Pentax 645Z place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D780 or the 645Z. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D780	5/5	..	5/5	87/100	4.5/5	4.5/5	Jan 2020	US$ 2 299	amazon.com
2.		Pentax 645Z	5/5	..	3.5/5	..	4.5/5	5/5	Apr 2014	US$ 8 499	ebay.com
3.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
4.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
5.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
6.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
7.		Hasselblad X1D	..	o	..	81/100	..	4/5	Jun 2016	US$ 8 995	ebay.com
8.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
9.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
10.		Nikon D6	..	..	4/5	..	4.5/5	4.5/5	Feb 2020	US$ 6 499	amazon.com
11.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
12.		Nikon D600	4/5	+ +	..	87/100	5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
13.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
14.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	US$ 2 299	ebay.com
15.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	US$ 2 749	ebay.com
16.		Nikon Z6 II	4.5/5	..	4/5	89/100	4.5/5	4.5/5	Oct 2020	US$ 1 999	amazon.com
17.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	US$ 9 995	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
