Nikon D5600 vs Olympus TG-5
The Nikon D5600 and the Olympus Tough TG-5 are two digital cameras that were announced, respectively, in November 2016 and May 2017. The D5600 is a DSLR, while the TG-5 is a fixed lens compact. The cameras are based on an APS-C (D5600) and a 1/2.3-inch (TG-5) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5600 and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

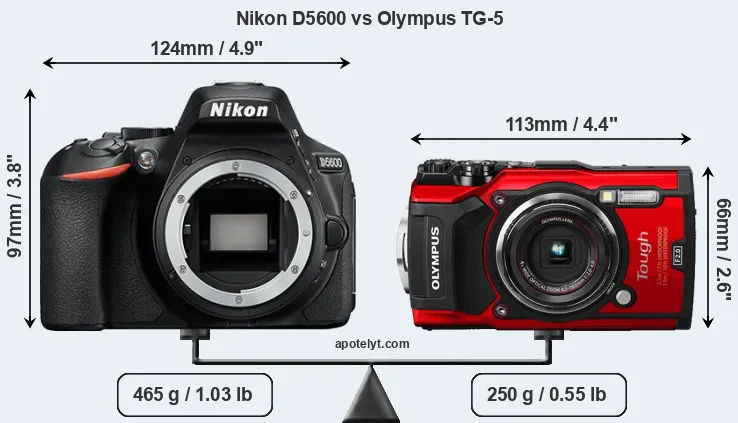

The physical size and weight of the Nikon D5600 and the Olympus TG-5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is considerably smaller (38 percent) than the Nikon D5600. It is noteworthy in this context that the TG-5 is splash and dust-proof, while the D5600 does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the D5600 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5600 and their specifications in the Nikon Lens Catalog.
Concerning battery life, the D5600 gets 970 shots out of its EN-EL14a battery, while the TG-5 can take 340 images on a single charge of its LI-92B power pack. The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|2.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|3.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|4.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|6.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|7.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|8.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899|
|9.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|10.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|11.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|12.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|13.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749|
|14.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|15.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|16.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|17.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-5 was launched at a lower price than the D5600, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D5600 features an APS-C sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 5.6. The sensor in the D5600 has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.

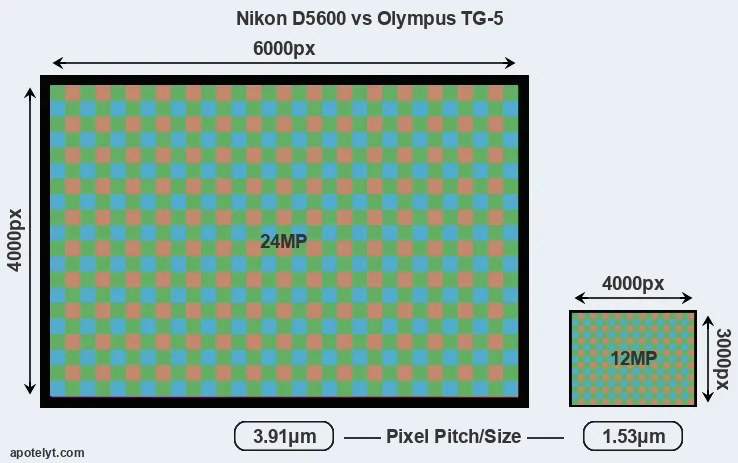

With 24MP, the D5600 offers a higher resolution than the TG-5 (12MP), but the D5600 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a somewhat more recent model (by 6 months) than the D5600, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D5600 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5600 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5600 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Nikon D5600 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|16.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the TG-5 provides a better video resolution than the D5600. It can shoot movie footage at 4K/30p, while the Nikon is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the D5600 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Nikon D5600 and Olympus TG-5 in connection with corresponding information for a sample of similar cameras.
|1.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|2.||Olympus TG-5||none||n||3.0 / 460||fixed||n||1/2000s||20.0||Y||Y|
|3.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|4.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Nikon D7500||optical||Y||3.2 / 922||tilting||Y||1/8000s||8.0||Y||n|
|6.||Nikon W300||none||n||3.0 / 921||fixed||n||1/4000s||7.0||Y||Y|
|7.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|8.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|9.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|10.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0||Y||n|
|11.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0||Y||n|
|12.||Nikon D5200||optical||n||3.0 / 921||swivel||n||1/4000s||5.0||Y||n|
|13.||Nikon D5100||optical||n||3.0 / 921||swivel||n||1/4000s||4.0||Y||n|
|14.||Olympus TG-6||none||n||3.0 / 1040||fixed||n||1/2000s||20.0||Y||Y|
|15.||Olympus TG-4||none||n||3.0 / 460||fixed||n||1/2000s||5.0||Y||Y|
|16.||Olympus E-PM1||optional||n||3.0 / 460||fixed||n||1/4000s||5.5||n||Y|
|17.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5600 has a touchscreen, while the TG-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The D5600 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the TG-5 does not have a selfie-screen.
The Nikon D5600 and the Olympus TG-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D5600 and the TG-5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5600 and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Olympus TG-5||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Nikon D7500||Y||stereo / mono||Y||Y||mini||2.0||Y||-||Y|
|6.||Nikon W300||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|7.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|8.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|9.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|11.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5200||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|13.||Nikon D5100||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|14.||Olympus TG-6||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus TG-4||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus E-PM1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
It is notable that the D5600 has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The D5600 is a recent model that features in the current product line-up of Nikon. In contrast, the TG-5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is the Nikon D5600 better than the Olympus TG-5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Nikon D5600:
- More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (970 versus 340) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More heavily discounted: Has been on the market for longer (launched in November 2016).
Reasons to prefer the Olympus Tough TG-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the D5600 requires a separate lens.
- More compact: Is smaller (113x66mm vs 124x97mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the D5600).
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Was introduced somewhat (6 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the D5600 is the clear winner of the match-up (20 : 13 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5600 and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the D5600 or the TG-5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|2.||Olympus TG-5||..||+ +||..||..||4/5||4/5||May 2017||449|
|3.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|4.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Nikon D7500||4.5/5||+ +||4.5/5||86/100||5/5||4.5/5||Apr 2017||1,299|
|6.||Nikon W300||..||+||..||..||4/5||4/5||May 2017||389|
|7.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499|
|8.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|9.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499|
|10.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799|
|11.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599|
|12.||Nikon D5200||4/5||+ +||..||79/100||4.5/5||4.5/5||Nov 2012||749|
|13.||Nikon D5100||5/5||+ +||..||76/100||4.5/5||4.5/5||Apr 2011||749|
|14.||Olympus TG-6||..||+ +||4.5/5||76/100||4/5||4/5||May 2019||449|
|15.||Olympus TG-4||..||+||..||79/100||4/5||4/5||Apr 2015||379|
|16.||Olympus E-PM1||..||86/100||..||71/100||4.5/5||4.5/5||Jun 2011||499|
|17.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 250D vs Olympus TG-5
- Canon M6 vs Olympus TG-5
- Canon SX40 vs Nikon D5600
- Canon T1i vs Olympus TG-5
- Fujifilm X-E3 vs Olympus TG-5
- Fujifilm XP120 vs Olympus TG-5
- Nikon 1 J4 vs Nikon D5600
- Nikon D5600 vs Olympus E-M1
- Nikon D5600 vs Panasonic GH3
- Nikon D5600 vs Panasonic LX100
- Nikon D5600 vs Sony HX95
- Olympus TG-5 vs Sony A99
Specifications: Nikon D5600 vs Olympus TG-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5600||Olympus TG-5|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Nikon F mount lenses||25-100mm f/2.0-4.9|
|Launch Date||November 2016||May 2017|
|Launch Price||USD 699||USD 449|
|Sensor Specs||Nikon D5600||Olympus TG-5|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||23.5 x 15.6 mm||6.17 x 4.55 mm|
|Sensor Area||366.6 mm2||28.0735 mm2|
|Sensor Diagonal||28.2 mm||7.7 mm|
|Sensor Resolution||24 Megapixels||12 Megapixels|
|Image Resolution||6000 x 4000 pixels||4000 x 3000 pixels|
|Pixel Pitch||3.91 μm||1.53 μm|
|Pixel Density||6.55 MP/cm2||42.74 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 12,800 ISO|
|Image Processor||EXPEED 4||TruePic VIII|
|DXO Sensor Quality (score)||84||..|
|DXO Color Depth (bits)||24.1||..|
|DXO Dynamic Range (EV)||14.0||..|
|DXO Low Light (ISO)||1306||..|
|Screen Specs||Nikon D5600||Olympus TG-5|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1037k dots||460k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Nikon D5600||Olympus TG-5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/2000s|
|Continuous Shooting||5 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Nikon D5600||Olympus TG-5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Nikon D5600||Olympus TG-5|
|Environmental Sealing||not weather sealed||Waterproof body (15m)|
|Battery Life (CIPA)||970 shots per charge||340 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
124 x 97 x 70 mm
(4.9 x 3.8 x 2.8 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||465 g (16.4 oz)||250 g (8.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
