Leica M10-P vs Olympus TG-5
The Leica M10-P and the Olympus Tough TG-5 are two digital cameras that were officially introduced, respectively, in August 2018 and May 2017. The M10-P is a rangefinder-focusing mirrorless camera, while the TG-5 is a fixed lens compact. The cameras are based on a full frame (M10-P) and a 1/2.3-inch (TG-5) sensor. The Leica has a resolution of 23.8 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10-P and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

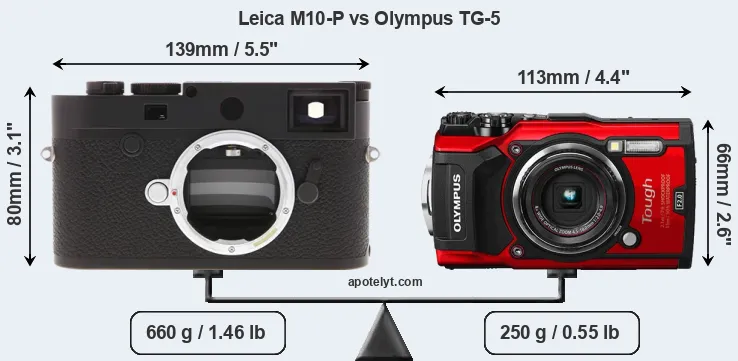

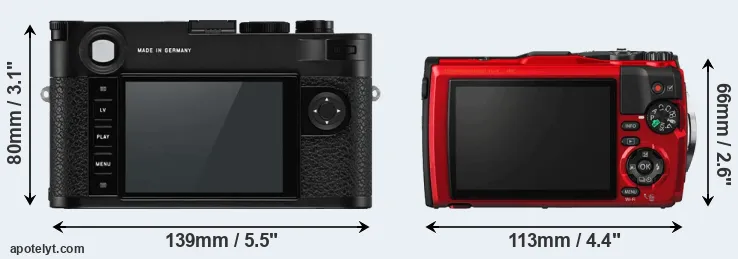

The physical size and weight of the Leica M10-P and the Olympus TG-5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The M10-P can be obtained in two different colors (black, silver), while the TG-5 is also available in two color-versions, but different ones (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is considerably smaller (33 percent) than the Leica M10-P. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the M10-P is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M10-P and their specifications in the Leica M Lens Catalog.
The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Leica M10-P||139 mm||80 mm||39 mm||660 g||210||Y||Aug 2018||7,995|
|2.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|3.||Canon 6D Mark II||144 mm||111 mm||75 mm||765 g||1200||Y||Jun 2017||1,999|
|4.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|5.||Leica M10-R||139 mm||80 mm||39 mm||660 g||210||Y||Jul 2020||8,295|
|6.||Leica Q2||130 mm||80 mm||92 mm||718 g||370||Y||Mar 2019||4,995|
|7.||Leica M-E Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Jun 2019||3,999|
|8.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595|
|9.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195|
|10.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249|
|11.||Leica SL||147 mm||104 mm||39 mm||847 g||400||Y||Oct 2015||7,450|
|12.||Leica M Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950|
|13.||Leica M9||139 mm||80 mm||37 mm||585 g||..||n||Sep 2009||7,999|
|14.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|15.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|16.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|17.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-5 was launched at a lower price than the M10-P, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Leica M10-P features a full frame sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the M10-P has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.
With 23.8MP, the M10-P offers a higher resolution than the TG-5 (12MP), but the M10-P nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 1.53μm for the TG-5) due to its larger sensor. Moreover, the M10-P is a somewhat more recent model (by 1 year and 3 months) than the TG-5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the M10-P has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica M10-P implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10-P for good quality output (200 dots per inch) amounts to 29.8 x 20 inches or 75.6 x 50.7 cm, for very good quality (250 dpi) 23.8 x 16 inches or 60.5 x 40.6 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.8 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Leica M10-P has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|1.||Leica M10-P||Full Frame||23.8||5952||3992||none||25.1||14.1||2739||93|
|3.||Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|5.||Leica M10-R||Full Frame||40.9||7864||5200||none||25.3||14.3||2924||95|
|6.||Leica Q2||Full Frame||46.7||8368||5584||4K/30p||26.4||13.5||2491||96|
|7.||Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||25.2||14.2||2821||94|
|8.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|9.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||24.8||13.7||2478||90|
|10.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|11.||Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|12.||Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|13.||Leica M9||Full Frame||18.1||5212||3472||none||22.5||11.7||884||69|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The TG-5 indeed provides for movie recording, while the M10-P does not. The highest resolution format that the TG-5 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M10-P has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Leica M10-P, the Olympus TG-5, and comparable cameras.
|1.||Leica M10-P||optical||n||3.0 / 1037||fixed||Y||1/4000s||5.0/s||n||n|
|2.||Olympus TG-5||none||n||3.0 / 460||fixed||n||1/2000s||20.0/s||Y||Y|
|3.||Canon 6D Mark II||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.5/s||n||n|
|4.||Canon SX730||none||n||3.0 / 922||tilting||n||1/3200s||5.9/s||Y||Y|
|5.||Leica M10-R||optical||n||3.0 / 1037||fixed||Y||1/4000s||4.5/s||n||n|
|6.||Leica Q2||3680||n||3.0 / 1040||fixed||Y||1/2000s||20.0/s||n||Y|
|7.||Leica M-E Typ 240||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||n||n|
|8.||Leica M10||optical||n||3.0 / 1037||fixed||n||1/4000s||5.0/s||n||n|
|9.||Leica M Typ 262||optical||n||3.0 / 921||fixed||n||1/4000s||3.0/s||n||n|
|10.||Leica Q Typ 116||3680||n||3.0 / 1040||fixed||Y||1/2000s||10.0/s||n||Y|
|11.||Leica SL||4400||Y||3.0 / 1040||fixed||Y||1/8000s||11.0/s||n||n|
|12.||Leica M Typ 240||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||n||n|
|13.||Leica M9||optical||n||2.5 / 230||fixed||n||1/4000s||2.0/s||n||n|
|14.||Nikon W300||none||n||3.0 / 921||fixed||n||1/4000s||7.0/s||Y||Y|
|15.||Olympus TG-6||none||n||3.0 / 1040||fixed||n||1/2000s||20.0/s||Y||Y|
|16.||Olympus TG-4||none||n||3.0 / 460||fixed||n||1/2000s||5.0/s||Y||Y|
|17.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M10-P has a touchscreen, while the TG-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Leica M10-P and the Olympus TG-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M10-P and the TG-5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10-P and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica M10-P||Y||- / -||-||-||-||-||Y||-||-|
|2.||Olympus TG-5||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon 6D Mark II||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon SX730||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|5.||Leica M10-R||Y||- / -||-||-||-||-||Y||-||-|
|6.||Leica Q2||Y||stereo / mono||-||-||-||-||Y||-||Y|
|7.||Leica M-E Typ 240||Y||mono / -||-||-||-||2.0||-||-||-|
|8.||Leica M10||Y||- / -||-||-||-||-||Y||-||-|
|9.||Leica M Typ 262||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Leica Q Typ 116||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Leica SL||Y||stereo / mono||Y||Y||full||3.0||Y||-||-|
|12.||Leica M Typ 240||Y||stereo / mono||-||-||-||2.0||-||-||-|
|13.||Leica M9||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Nikon W300||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|15.||Olympus TG-6||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus TG-4||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
It is notable that the M10-P has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The M10-P is a recent model that features in the current product line-up of Leica. In contrast, the TG-5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So how do things add up? Which of the two cameras – the Leica M10-P or the Olympus TG-5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Leica M10-P:
- More detail: Offers more megapixels (23.8 vs 12MP) with a 43% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Is somewhat more recent (announced 1 year and 3 months after the TG-5).
Arguments in favor of the Olympus Tough TG-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has an integrated lens, whereas the M10-P necessitates an extra lens.
- More compact: Is smaller (113x66mm vs 139x80mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the M10-P).
- Longer lasting: Gets more shots (340 versus 210) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been on the market for longer (launched in May 2017).
If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (14 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M10-P or the TG-5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica M10-P||..||..||3/5||..||..||4/5||Aug 2018||7,995|
|2.||Olympus TG-5||..||+ +||..||..||4/5||4/5||May 2017||449|
|3.||Canon 6D Mark II||4/5||+||4/5||80/100||4.5/5||4/5||Jun 2017||1,999|
|4.||Canon SX730||..||+||..||..||4/5||4/5||Apr 2017||399|
|5.||Leica M10-R||4.5/5||..||4/5||..||..||4/5||Jul 2020||8,295|
|6.||Leica Q2||..||..||..||84/100||4.5/5||4/5||Mar 2019||4,995|
|7.||Leica M-E Typ 240||..||..||..||..||..||..||Jun 2019||3,999|
|8.||Leica M10||4.5/5||..||..||..||4/5||4.5/5||Jan 2017||6,595|
|9.||Leica M Typ 262||..||..||..||..||..||..||Nov 2015||5,195|
|10.||Leica Q Typ 116||5/5||..||..||80/100||4.5/5||4.5/5||Jun 2015||4,249|
|11.||Leica SL||4/5||..||4/5||84/100||4.5/5||4/5||Oct 2015||7,450|
|12.||Leica M Typ 240||4/5||..||..||..||4/5||..||Sep 2012||6,950|
|13.||Leica M9||..||..||..||..||4.5/5||..||Sep 2009||7,999|
|14.||Nikon W300||..||+||..||..||4/5||4/5||May 2017||389|
|15.||Olympus TG-6||..||+ +||4.5/5||76/100||4/5||4/5||May 2019||449|
|16.||Olympus TG-4||..||+||..||79/100||4/5||4/5||Apr 2015||379|
|17.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon T2i vs Olympus TG-5
- Fujifilm X-T10 vs Olympus TG-5
- Leica M10-P vs Nikon D2H
- Leica M10-P vs Nikon D40X
- Leica M10-P vs Panasonic FZ150
- Leica M10-P vs Panasonic GF1
- Leica M10-P vs Panasonic GH2
- Leica M10-P vs Sony RX100 II
- Nikon B700 vs Olympus TG-5
- Nikon D850 vs Olympus TG-5
- Olympus TG-5 vs Sony NEX-3N
- Olympus TG-5 vs Sony NEX-5
Specifications: Leica M10-P vs Olympus TG-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica M10-P||Olympus TG-5|
|Camera Type||Rangefinder camera||Fixed lens compact camera|
|Camera Lens||Leica M mount lenses||25-100mm f/2.0-4.9|
|Launch Date||August 2018||May 2017|
|Launch Price||USD 7,995||USD 449|
|Sensor Specs||Leica M10-P||Olympus TG-5|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||35.8 x 23.9 mm||6.17 x 4.55 mm|
|Sensor Area||855.62 mm2||28.0735 mm2|
|Sensor Diagonal||43 mm||7.7 mm|
|Sensor Resolution||23.8 Megapixels||12 Megapixels|
|Image Resolution||5952 x 3992 pixels||4000 x 3000 pixels|
|Pixel Pitch||6.00 μm||1.53 μm|
|Pixel Density||2.78 MP/cm2||42.74 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 50,000 ISO||100 - 12,800 ISO|
|Image Processor||Maestro II||TruePic VIII|
|Screen Specs||Leica M10-P||Olympus TG-5|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||460k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica M10-P||Olympus TG-5|
|Focus System||Manual Focus||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/2000s|
|Continuous Shooting||5 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||no shake reduction||In-body stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Leica M10-P||Olympus TG-5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||no USB||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Leica M10-P||Olympus TG-5|
|Environmental Sealing||Weathersealed body||Waterproof body (15m)|
|Battery Life (CIPA)||210 shots per charge||340 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
139 x 80 x 39 mm
(5.5 x 3.1 x 1.5 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||660 g (23.3 oz)||250 g (8.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
