Nikon D5600 versus Canon 80D

The Nikon D5600 and the Canon EOS 80D are two digital cameras that were officially introduced, respectively, in November 2016 and February 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixel. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Nikon D5600 vs Canon 80D

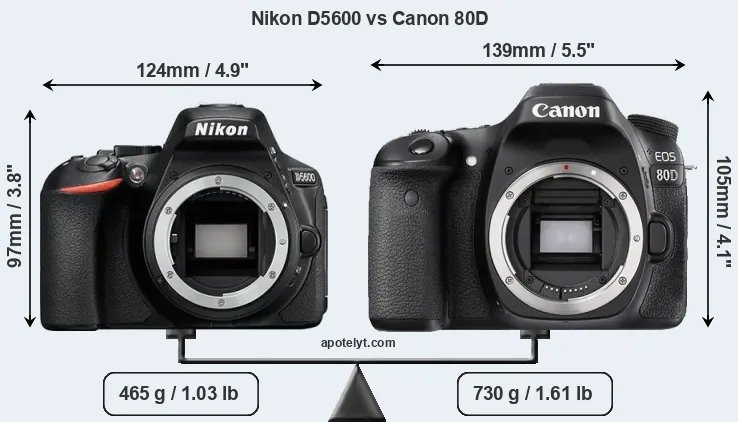

The side-by-side display below illustrates the physical size and weight of the Nikon D5600 and the Canon 80D. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left – the D5600 – represents the basis or 100 percent across all the size and weight measures).

Compare Nikon D5600 vs Canon 80D

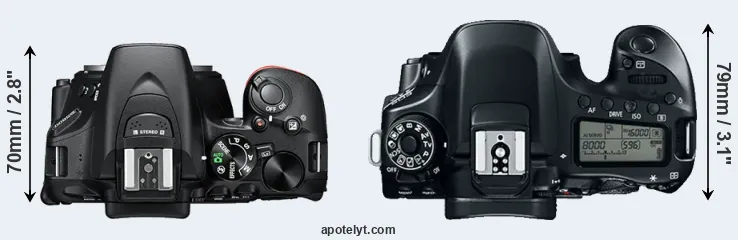

Compare D5600 versus 80D top

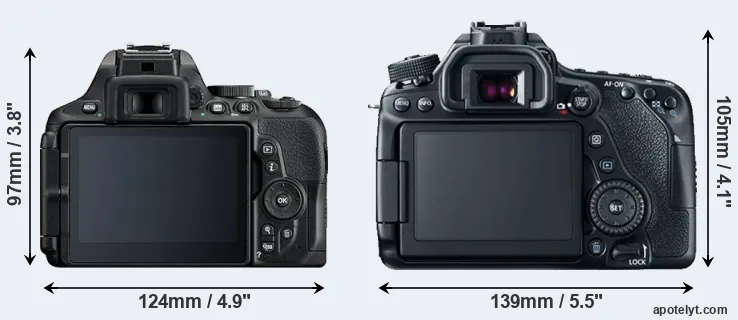

Compare D5600 and 80D rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 80D is notably larger (21 percent) than the Nikon D5600. Moreover, the 80D is substantially heavier (57 percent) than the D5600. It is noteworthy in this context that the 80D is splash and dust-proof, while the D5600 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can find an overview of optics for the two cameras in the Nikon Lens Catalog (D5600) and the Canon EF Lens Catalog (80D).

Concerning battery life, the D5600 gets 970 shots out of its EN-EL14a battery, while the 80D can take 960 images on a single charge of its LP-E6N power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Nikon D5600» 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i i Nikon D5600
Canon 80D« 5.5 in 4.1 in 3.1 in 25.8 oz 960 Y Feb 2016 1,199 i i Canon 80D
Canon 6D Mark II« » 5.7 in 4.4 in 3.0 in 27.0 oz 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon T6i« » 5.2 in 4.0 in 3.1 in 19.6 oz 440 n Feb 2015 749- i Canon T6i
Canon T6s« » 5.2 in 4.0 in 3.1 in 19.9 oz 440 n Feb 2015 849- i Canon T6s
Canon 7D II« » 5.9 in 4.4 in 3.1 in 32.1 oz 670 Y Sep 2014 1,799 i i Canon 7D II
Canon 70D« » 5.5 in 4.1 in 3.1 in 26.6 oz 920 Y Jul 2013 1,199- i Canon 70D
Nikon D7500« » 5.4 in 4.1 in 2.9 in 25.4 oz 950 Y Apr 2017 1,299 i i Nikon D7500
Nikon D500« » 5.8 in 4.5 in 3.2 in 30.3 oz 1240 Y Jan 2016 1,999 i i Nikon D500
Nikon D3400« » 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499- i Nikon D3400
Nikon D5500« » 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899- i Nikon D5500
Nikon D3300« » 4.9 in 3.9 in 3.0 in 15.2 oz 700 n Jan 2014 499- i Nikon D3300
Nikon D5300« » 4.9 in 3.9 in 3.0 in 16.9 oz 600 n Oct 2013 799- i Nikon D5300
Nikon D3200« » 4.9 in 3.8 in 3.0 in 17.8 oz 540 n Apr 2012 599- i Nikon D3200
Nikon D5200« » 5.1 in 3.9 in 3.1 in 19.6 oz 500 n Nov 2012 749- i Nikon D5200
Nikon D5100« » 5.0 in 3.8 in 3.1 in 19.8 oz 660 n Apr 2011 749- i Nikon D5100

Any camera purchase will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D5600 was launched at a markedly lower price (by 42 percent) than the 80D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Nikon D5600 vs Canon 80D

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

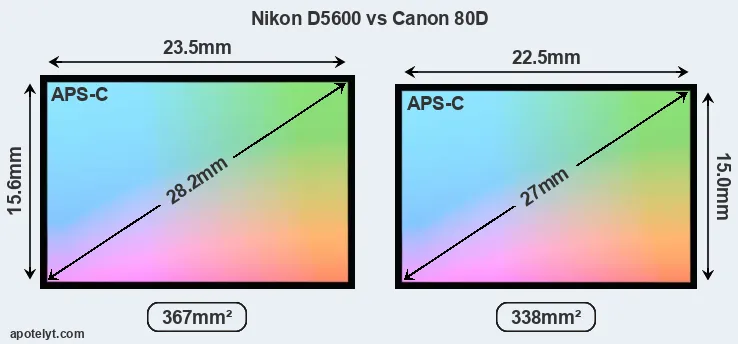

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the 80D is 8 percent smaller. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.5 (D5600) and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Nikon D5600 and Canon 80D sensor measures

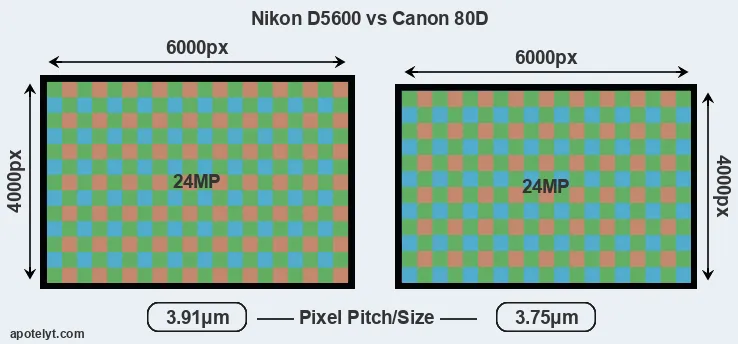

Even though the D5600 has a larger sensor, both cameras offer the same resolution of 24 megapixel. This implies that the D5600 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.91μm versus 3.75μm for the 80D), which gives it a potential advantage in terms of light gathering capacity. In addition, the D5600 is a somewhat more recent model (by 8 months) than the 80D, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the D5600 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

D5600 versus 80D MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D5600 has a notably higher overall DXO score than the 80D (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.5 bits higher color depth, 0.8 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Nikon D5600» APS-C 24.0 6000 40001080/60p24.114.0130684Nikon D5600
Canon 80D« APS-C 24.0 6000 40001080/60p23.613.2113579Canon 80D
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon T6i« » APS-C 24.0 6000 40001080/60p22.712.091971Canon T6i
Canon T6s« » APS-C 24.0 6000 40001080/30p22.612.091570Canon T6s
Canon 7D II« » APS-C 20.0 5472 36481080/60p22.411.8108270Canon 7D II
Canon 70D« » APS-C 20.0 5472 36481080/30p22.511.692668Canon 70D
Nikon D7500« » APS-C 20.7 5568 37124K/30p24.314.0148386Nikon D7500
Nikon D500« » APS-C 20.7 5568 37124K/30p24.014.0132483Nikon D500
Nikon D3400« » APS-C 24.0 6000 40001080/60p24.813.9119286Nikon D3400
Nikon D5500« » APS-C 24.0 6000 40001080/60p24.114.0143884Nikon D5500
Nikon D3300« » APS-C 24.0 6000 40001080/60p24.312.8138582Nikon D3300
Nikon D5300« » APS-C 24.0 6000 40001080/60p24.013.9133883Nikon D5300
Nikon D3200« » APS-C 24.1 6016 40001080/30p24.113.2113181Nikon D3200
Nikon D5200« » APS-C 24.0 6000 40001080/60i24.213.9128484Nikon D5200
Nikon D5100« » APS-C 16.1 4928 32641080/30p23.513.6118380Nikon D5100

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).



Feature comparison: Nikon D5600 vs Canon 80D

Apart from body and sensor, cameras can and do differ across a variety of features. The D5600 and the 80D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Nikon D5600 and Canon 80D in connection with corresponding information for a sample of similar cameras. If you need more detail on the specs, you can find comprehensive listings, for example, in the dpreview camera hub.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Nikon D5600»optical n 3.2 1037 swivel Y 4000 5.0 Y n Nikon D5600
Canon 80D«optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 80D
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon T6i« »optical n 3.0 1040 swivel Y 4000 5.0 Y n Canon T6i
Canon T6s« »optical Y 3.0 1040 swivel Y 4000 5.0 Y n Canon T6s
Canon 7D II« »optical Y 3.0 1040 fixed n 8000 10.0 Y n Canon 7D II
Canon 70D« »optical Y 3.0 1040 swivel Y 8000 7.0 Y n Canon 70D
Nikon D7500« »optical Y 3.2 922 tilting Y 8000 8.0 Y n Nikon D7500
Nikon D500« »optical Y 3.2 2359 tilting Y 8000 10.0 n n Nikon D500
Nikon D3400« »optical n 3.0 921 fixed n 4000 5.0 Y n Nikon D3400
Nikon D5500« »optical n 3.2 1037 swivel Y 4000 5.0 Y n Nikon D5500
Nikon D3300« »optical n 3.0 921 fixed n 4000 5.0 Y n Nikon D3300
Nikon D5300« »optical n 3.2 1037 swivel n 4000 5.0 Y n Nikon D5300
Nikon D3200« »optical n 3.0 921 fixed n 4000 4.0 Y n Nikon D3200
Nikon D5200« »optical n 3.0 921 swivel n 4000 5.0 Y n Nikon D5200
Nikon D5100« »optical n 3.0 921 swivel n 4000 4.0 Y n Nikon D5100

One feature that is present on the 80D, but is missing on the D5600 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both the D5600 and the 80D write their imaging data to SDXC cards.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Nikon D5600»YstereomonoY-mini2.0YYYNikon D5600
Canon 80D«YstereomonoYYmini2.0YY-Canon 80D
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon T6i« »YstereomonoY-mini2.0YY-Canon T6i
Canon T6s« »YstereomonoY-mini2.0YY-Canon T6s
Canon 7D II« »YstereomonoYYmini3.0---Canon 7D II
Canon 70D« »YstereomonoY-mini2.0Y--Canon 70D
Nikon D7500« »YstereomonoYYmini2.0Y-YNikon D7500
Nikon D500« »YstereomonoYYmini3.0YYYNikon D500
Nikon D3400« »Ymonomono--mini2.0Y-YNikon D3400
Nikon D5500« »YstereomonoY-mini2.0Y--Nikon D5500
Nikon D3300« »YmonomonoY-mini2.0---Nikon D3300
Nikon D5300« »YstereomonoY-mini2.0Y--Nikon D5300
Nikon D3200« »YmonomonoY-mini2.0---Nikon D3200
Nikon D5200« »YstereomonoY-mini2.0---Nikon D5200
Nikon D5100« »YmonomonoY-mini2.0---Nikon D5100

Both the D5600 and the 80D are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The 80D replaced the earlier Canon 70D, while the D5600 followed on from the Nikon D5500.

Review summary: Nikon D5600 vs Canon 80D

So how do things add up? Is there a clear favorite between the Nikon D5600 and the Canon 80D? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Advantages of the Nikon D5600:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
  • More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More compact: Is smaller (124x97mm vs 139x105mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 265g or 36 percent) and hence easier to carry around.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 8 months after the 80D).

ilogo

Reasons to prefer the Canon EOS 80D:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • More heavily discounted: Has been on the market for longer (launched in February 2016).

If the count of individual advantages (bullet points above) is taken as a guide, the D5600 emerges as the winner of the contest (9 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera.

D5600 09:07 80D

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the D5600 and the 80D in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why hands-on reviews by experts are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Nikon D5600»-79/1004.5/54.5/54/5 Nov 2016 699 i i Nikon D5600
Canon 80D«HiRec84/1004.5/54.5/54.5/5 Feb 2016 1,199 i i Canon 80D
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon T6i« »-75/1004.5/54.5/54.5/5 Feb 2015 749- i Canon T6i
Canon T6s« »Rec77/1004.5/54.5/54.5/5 Feb 2015 849- i Canon T6s
Canon 7D II« »Rec84/1004/55/54.5/5 Sep 2014 1,799 i i Canon 7D II
Canon 70D« »HiRec83/1004.5/54.5/55/5 Jul 2013 1,199- i Canon 70D
Nikon D7500« »HiRec86/1005/54.5/54.5/5 Apr 2017 1,299 i i Nikon D7500
Nikon D500« »HiRec91/1004.5/55/55/5 Jan 2016 1,999 i i Nikon D500
Nikon D3400« »Rec76/1004/54.5/54.5/5 Aug 2016 499- i Nikon D3400
Nikon D5500« »Rec79/1004.5/55/54.5/5 Jan 2015 899- i Nikon D5500
Nikon D3300« »Rec77/1004.5/54.5/54.5/5 Jan 2014 499- i Nikon D3300
Nikon D5300« »HiRec79/1004.5/54.5/54.5/5 Oct 2013 799- i Nikon D5300
Nikon D3200« »HiRec73/1004.5/54.5/54.5/5 Apr 2012 599- i Nikon D3200
Nikon D5200« »HiRec79/1004.5/54.5/54.5/5 Nov 2012 749- i Nikon D5200
Nikon D5100« »HiRec76/1004.5/55/54.5/5 Apr 2011 749- i Nikon D5100

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
