Nikon D40X vs D80

The Nikon D40X and the Nikon D80 are two digital cameras that were revealed to the public, respectively, in March 2007 and August 2006. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 10 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D40X versus Nikon D80
Nikon D40X Nikon D80
Digital single lens reflex Digital single lens reflex
Nikon F mount lenses Nikon F mount lenses
10 MP, APS-C Sensor 10 MP, APS-C Sensor
no Video no Video
ISO 100-1,600 (100 - 3,200) ISO 100-1,600 (100 - 3,200)
Optical viewfinder Optical viewfinder
2.5 LCD, 230k dots 2.5 LCD, 230k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3 shutter flaps per second 3 shutter flaps per second
520 shots per battery charge600 shots per battery charge
124 x 94 x 64 mm, 522 g 132 x 103 x 77 mm, 668 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D40X and the Nikon D80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Nikon D40X and the Nikon D80. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The D40X can be obtained in two different colors (black, silver), while the D80 is only available in black.

Size Nikon D40X vs Nikon D80
Compare D40X versus D80 top
Comparison D40X or D80 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D80 is notably larger (17 percent) than the Nikon D40X. Moreover, the D80 is markedly heavier (28 percent) than the D40X. In this context, it is worth noting that neither the D40X nor the D80 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Nikon Lens Catalog.

Concerning battery life, the D40X gets 520 shots out of its EN-EL9 battery, while the D80 can take 600 images on a single charge of its EN-EL3e power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D40X 124 mm 94 mm 64 mm 522 g 520 n Mar 2007 729i
2.

Nikon D80 132 mm 103 mm 77 mm 668 g 600 n Aug 2006 999i
3.

Canon 450D 129 mm 98 mm 62 mm 524 g 500 n Jan 2008 799i
4.

Canon 400D 127 mm 84 mm 65 mm 556 g 370 n Aug 2006 799i
5.

Nikon D3100 124 mm 96 mm 75 mm 505 g 550 n Aug 2010 599i
6.

Nikon D3000 126 mm 97 mm 64 mm 536 g 500 n Jul 2009 599i
7.

Nikon D5000 127 mm 104 mm 80 mm 590 g 510 n Apr 2009 749i
8.

Nikon D60 126 mm 94 mm 64 mm 522 g 500 n Jan 2008 629i
9.

Nikon D90 132 mm 103 mm 77 mm 703 g 850 n Aug 2008 1,299i
10.

Nikon D40 124 mm 94 mm 64 mm 522 g 470 n Nov 2006 499i
11.

Nikon D50 133 mm 102 mm 76 mm 620 g 400 n Apr 2005 749i
12.

Nikon D70s 140 mm 111 mm 78 mm 679 g 500 n Apr 2005 899i
13.

Nikon D70 140 mm 111 mm 78 mm 679 g 400 n Jan 2004 999i
14.

Olympus E-420 130 mm 91 mm 53 mm 440 g 500 n Mar 2008 599i
15.

Panasonic L10 135 mm 96 mm 78 mm 556 g 450 n Aug 2007 599i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D40X was launched at a markedly lower price (by 27 percent) than the D80, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

ad

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

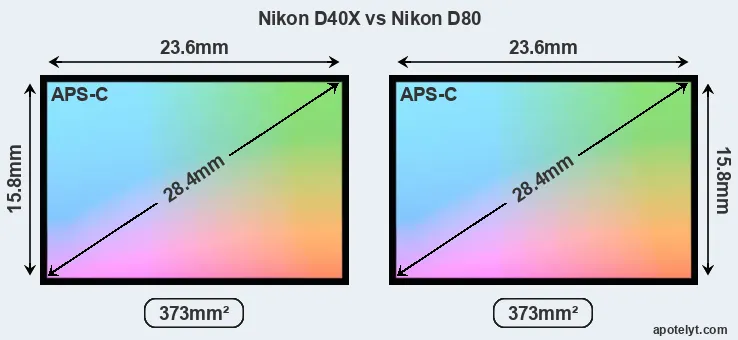

Nikon D40X and Nikon D80 sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 10 megapixels. This similarity in sensor specs implies that both the D40X and the D80 have the same pixel density, as well as the same pixel size. It should, however, be noted that the D40X is a somewhat more recent model (by 6 months) than the D80, and its sensor might have benefitted from technological advances during this time.

The Nikon D40X has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The Nikon D80 offers exactly the same ISO settings.

D40X versus D80 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon D40X APS-C 10.0 3872 2592none22.411.451663
2.

Nikon D80 APS-C 10.0 3872 2592none22.111.252461
3.

Canon 450D APS-C 12.2 4272 2848none21.910.869261
4.

Canon 400D APS-C 10.1 3888 2592none22.111.066462
5.

Nikon D3100 APS-C 14.2 4608 30721080/24p22.511.391967
6.

Nikon D3000 APS-C 10.0 3872 2592none22.311.156362
7.

Nikon D5000 APS-C 12.2 4288 2848720/24p22.712.586872
8.

Nikon D60 APS-C 10.0 3872 2592none22.511.456265
9.

Nikon D90 APS-C 12.2 4288 2848720/24p22.712.597773
10.

Nikon D40 APS-C 6.0 3008 2000none21.011.056156
11.

Nikon D50 APS-C 6.0 3008 2000none20.910.856055
12.

Nikon D70s APS-C 6.0 3008 2000none20.410.352950
13.

Nikon D70 APS-C 6.0 3008 2000none20.410.352950
14.

Olympus E-420 Four Thirds 10.0 3648 2736none21.510.452756
15.

Panasonic L10 Four Thirds 10.0 3648 2736none21.310.842955
Neither the D40X nor the D80 offer Live View, so that they cannot project the live image that the sensor receives onto the rear screen. Moreover, both cameras are still-image focused and cannot record videos.
ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D40X and the D80 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the D80 has a higher magnification than the one of the D40X (0.62x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D40X and Nikon D80 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon D40Xoptical n 2.5 230 fixed n 1/4000s 3.0 Y n
2.

Nikon D80optical n 2.5 230 fixed n 1/4000s 3.0 Y n
3.

Canon 450Doptical n 3.0 230 fixed n 1/4000s 3.5 Y n
4.

Canon 400Doptical n 2.5 230 fixed n 1/4000s 3.0 Y n
5.

Nikon D3100optical n 3.0 230 fixed n 1/4000s 3.0 Y n
6.

Nikon D3000optical n 3.0 230 fixed n 1/4000s 3.0 Y n
7.

Nikon D5000optical n 2.7 230 full-flex n 1/4000s 4.0 Y n
8.

Nikon D60optical n 2.5 230 fixed n 1/4000s 3.0 Y n
9.

Nikon D90optical Y 3.0 920 fixed n 1/4000s 4.5 Y n
10.

Nikon D40optical n 2.5 230 fixed n 1/4000s 2.5 Y n
11.

Nikon D50optical n 2.0 130 fixed n 1/4000s 2.5 Y n
12.

Nikon D70soptical n 2.0 130 fixed n 1/8000s 3.0 Y n
13.

Nikon D70optical n 1.8 130 fixed n 1/8000s 3.0 Y n
14.

Olympus E-420optical n 2.7 215 fixed n 1/4000s 3.5 Y n
15.

Panasonic L10optical n 2.5 207 swivel n 1/4000s 3.0 Y n

Concerning the storage of imaging data, both the D40X and the D80 write their files to SDHC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D40X and Nikon D80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon D40XY-----2.0---
2.

Nikon D80Y-----2.0---
3.

Canon 450DY----mini2.0---
4.

Canon 400DY-----2.0---
5.

Nikon D3100Ymonomono--mini2.0---
6.

Nikon D3000Y-----2.0---
7.

Nikon D5000Ymonomono--mini2.0---
8.

Nikon D60Y-----2.0---
9.

Nikon D90Ymonomono--mini2.0---
10.

Nikon D40Y-----2.0---
11.

Nikon D50Y-----2.0---
12.

Nikon D70sY-----2.0---
13.

Nikon D70Y-----1.0---
14.

Olympus E-420Y-----2.0---
15.

Panasonic L10Y-----2.0---

Both the D40X and the D80 have been discontinued, but can regularly be found used on eBay. The D80 was replaced by the Nikon D90, while the D40X was followed by the Nikon D60 . Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Nikon D40X or the Nikon D80 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.


Reasons to prefer the Nikon D40X:

  • More compact: Is smaller (124x94mm vs 132x103mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 146g or 22 percent) and hence easier to carry around.
  • More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 6 months after the D80).


Advantages of the Nikon D80:

  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.53x).
  • Longer lasting: Gets more shots (600 versus 520) out of a single battery charge.
  • More heavily discounted: Has been on the market for longer (launched in August 2006).

If the count of individual advantages (bullet points above) is taken as a guide, the D40X comes out slightly ahead of the D80 (4 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D40X 04:03 D80

How about other alternatives? Do the specifications of the Nikon D40X and the Nikon D80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D40X or the D80 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Nikon D40X..79/100+ +4/54/5 Mar 2007 729i
2.

Nikon D80..++ +o4.5/5 Aug 2006 999i
3.

Canon 450D..+ ++ +4/54.5/5 Jan 2008 799i
4.

Canon 400D..+ ++ +o4/5 Aug 2006 799i
5.

Nikon D31005/5+ +72/1004.5/54.5/5 Aug 2010 599i
6.

Nikon D3000..+72/1004/54.5/5 Jul 2009 599i
7.

Nikon D5000..+ +75/1004/54.5/5 Apr 2009 749i
8.

Nikon D60..80/100+ +4/54.5/5 Jan 2008 629i
9.

Nikon D90..+ ++ +4/54.5/5 Aug 2008 1,299i
10.

Nikon D40..81/100+ +o4.5/5 Nov 2006 499i
11.

Nikon D50..78/100+ +4/54.5/5 Apr 2005 749i
12.

Nikon D70s........5/5 Apr 2005 899i
13.

Nikon D70....+ +.... Jan 2004 999i
14.

Olympus E-420..85/100+ +4/54.5/5 Mar 2008 599i
15.

Panasonic L10..85/100+3.5/54/5 Aug 2007 599i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Nikon D40X:
Check Ebay offers
Nikon D80:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader

    Specifications: Nikon D40X vs Nikon D80

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D40X Nikon D80
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Nikon F mount lenses Nikon F mount lenses
    Launch Date March 2007 August 2006
    Launch Price USD 729 USD 999
    Sensor Specs Nikon D40X Nikon D80
    Sensor Technology CCD CCD
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 23.6 x 15.8 mm 23.6 x 15.8 mm
    Sensor Area 372.88 mm2 372.88 mm2
    Sensor Diagonal 28.4 mm 28.4 mm
    Crop Factor 1.5x 1.5x
    Sensor Resolution 10 Megapixels 10 Megapixels
    Image Resolution 3872 x 2592 pixels 3872 x 2592 pixels
    Pixel Pitch 6.11 μm 6.11 μm
    Pixel Density 2.69 MP/cm2 2.69 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video no Video
    ISO Setting 100 - 1,600 ISO 100 - 1,600 ISO
    ISO Boost 100 - 3,200 ISO 100 - 3,200 ISO
    DXO Sensor Quality (score) 63 61
    DXO Color Depth (bits) 22.4 22.1
    DXO Dynamic Range (EV) 11.4 11.2
    DXO Low Light (ISO) 516 524
    Screen Specs Nikon D40X Nikon D80
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 95%
    Viewfinder Magnification 0.53x 0.62x
    Rear LCD Size 2.5inch 2.5inch
    LCD Resolution 230k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Nikon D40X Nikon D80
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 3 shutter flaps/s 3 shutter flaps/s
    Shutter Life Expectancy50 000 actuations100 000 actuations
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDHC cards SDHC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Nikon D40X Nikon D80
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI no HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Nikon D40X Nikon D80
    Battery Type EN-EL9 EN-EL3e
    Battery Life (CIPA)520 shots per charge600 shots per charge
    Body Dimensions 124 x 94 x 64 mm
    (4.9 x 3.7 x 2.5 in)
    132 x 103 x 77 mm
    (5.2 x 4.1 x 3.0 in)
    Camera Weight 522 g (18.4 oz) 668 g (23.6 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D40X vs Nikon D80

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.


    If you like it, make sure you share it:

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback. I appreciate it.
