Nikon D40X vs D5300
The Nikon D40X and the Nikon D5300 are two digital cameras that were officially introduced, respectively, in March 2007 and October 2013. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The D40X has a resolution of 10 megapixels, whereas the D5300 provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Nikon D40X||Nikon D5300|
|Digital single lens reflex||Digital single lens reflex|
|Nikon F mount lenses||Nikon F mount lenses|
|10 MP, APS-C Sensor||24 MP, APS-C Sensor|
|no Video||1080/60p Video|
|ISO 100-1,600 (100 - 3,200)||ISO 100-12,800 (100 - 25,600)|
|Optical viewfinder||Optical viewfinder|
|2.5 LCD, 230k dots||3.2 LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Swivel screen (not touch-sensitive)|
|3 shutter flaps per second||5 shutter flaps per second|
|520 shots per battery charge||600 shots per battery charge|
|124 x 94 x 64 mm, 522 g||125 x 98 x 76 mm, 480 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D40X and the Nikon D5300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Nikon D40X and the Nikon D5300. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The D40X can be obtained in two different colors (black, silver), while the D5300 is available in three color-versions (black, grey, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5300 is somewhat larger (5 percent) than the Nikon D40X. However, the D5300 is markedly lighter (8 percent) than the D40X. In this context, it is worth noting that neither the D40X nor the D5300 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Nikon Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729|
|Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|Canon 450D||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|Canon 400D||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|Nikon D3100||124 mm||96 mm||75 mm||505 g||550||n||Aug 2010||599|
|Nikon D3000||126 mm||97 mm||64 mm||536 g||500||n||Jul 2009||599|
|Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|Nikon D60||126 mm||94 mm||64 mm||522 g||500||n||Jan 2008||629|
|Nikon D90||132 mm||103 mm||77 mm||703 g||850||n||Aug 2008||1,299|
|Nikon D40||124 mm||94 mm||64 mm||522 g||470||n||Nov 2006||499|
|Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599|
|Panasonic L10||135 mm||96 mm||78 mm||556 g||450||n||Aug 2007||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D40X was somewhat cheaper (by 9 percent) than the D5300 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

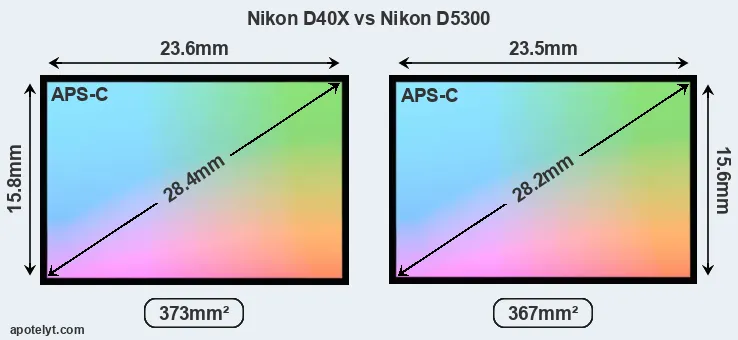

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D5300 is 2 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the D5300 uses a more advanced image processing engine (EXPEED 4) than the D40X (EXPEED), with benefits for noise reduction, color accuracy, and processing speed.
Despite having a slightly smaller sensor, the D5300 offers a higher resolution of 24 megapixels, compared with 10 MP of the D40X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 6.11μm for the D40X). However, it should be noted that the D5300 is much more recent (by 6 years and 7 months) than the D40X, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the D5300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D40X are 19.4 x 13 inches or 49.2 x 32.9 cm for good quality, 15.5 x 10.4 inches or 39.3 x 26.3 cm for very good quality, and 12.9 x 8.6 inches or 32.8 x 21.9 cm for excellent quality prints.
The Nikon D40X has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Nikon D5300 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D5300 offers substantially better image quality than the D40X (overall score 20 points higher). The advantage is based on 1.6 bits higher color depth, 2.5 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|Panasonic L10||Four Thirds||10.0||3648||2736||none||21.3||10.8||429||55|
Many modern cameras cannot only take still pictures, but also record videos. The D5300 indeed provides for movie recording, while the D40X does not. The highest resolution format that the D5300 can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The D40X and the D5300 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the D5300 has a higher magnification than the one of the D40X (0.57x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D40X and Nikon D5300 in connection with corresponding information for a sample of similar cameras.
The Nikon D5300 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D40X writes its imaging data to SDHC cards, while the D5300 uses SDXC cards. The D5300 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D40X cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D40X and Nikon D5300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the D5300 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D40X does not provide wifi capability.
Travel and landscape photographers will find it useful that the D5300 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the D40X and the D5300 have been discontinued, but can regularly be found used on eBay. The D40X was replaced by the Nikon D60 , while the D5300 was followed by the Nikon D5500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.
So how do things add up? Is there a clear favorite between the Nikon D40X and the Nikon D5300? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Nikon D40X:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More heavily discounted: Has been available for much longer (launched in March 2007).
Advantages of the Nikon D5300:
- More detail: Has more megapixels (24 vs 10MP), which boosts linear resolution by 55%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (20 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.4 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (EXPEED 4 vs EXPEED).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.57x vs 0.53x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (600 versus 520) out of a single battery charge.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 6 years and 7 months of technical progress since the D40X launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D5300 is the clear winner of the contest (20 : 2 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D40X and the Nikon D5300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the D40X or the D5300 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D40X||79/100||+ +||4/5||o||4/5||Mar 2007||729|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Canon 450D||+ +||+ +||4/5||5/5||4.5/5||Jan 2008||799|
|Canon 400D||+ +||+ +||o||4.5/5||4/5||Aug 2006||799|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Nikon D5200||+ +||79/100||4.5/5||4.5/5||4.5/5||Nov 2012||749|
|Nikon D3100||+ +||72/100||4.5/5||5/5||4.5/5||Aug 2010||599|
|Nikon D3000||+||72/100||4/5||3.5/5||4.5/5||Jul 2009||599|
|Nikon D5000||+ +||75/100||4/5||5/5||4.5/5||Apr 2009||749|
|Nikon D60||80/100||+ +||4/5||o||4.5/5||Jan 2008||629|
|Nikon D90||+ +||+ +||4/5||5/5||4.5/5||Aug 2008||1,299|
|Nikon D40||81/100||+ +||o||5/5||4.5/5||Nov 2006||499|
|Olympus E-420||85/100||+ +||4/5||o||4.5/5||Mar 2008||599|
|Panasonic L10||85/100||+||3.5/5||o||4/5||Aug 2007||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D C vs Nikon D5300
- Canon 1Ds vs Nikon D5300
- Canon G12 vs Nikon D40X
- Leica X2 vs Nikon D5300
- Nikon D40X vs Olympus E-30
- Nikon D40X vs Olympus E-420
- Nikon D40X vs Panasonic TZ95
- Nikon D40X vs Sony A7R IV
- Nikon D40X vs Sony A7S II
- Nikon D5300 vs Olympus E-PL5
- Nikon D5300 vs Sony A58
- Nikon D5300 vs Sony RX10 IV
Specifications: Nikon D40X vs Nikon D5300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D40X||Nikon D5300|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Nikon F mount lenses|
|Launch Date||March 2007||October 2013|
|Launch Price||USD 729||USD 799|
|Sensor Specs||Nikon D40X||Nikon D5300|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||23.6 x 15.8 mm||23.5 x 15.6 mm|
|Sensor Area||372.88 mm2||366.6 mm2|
|Sensor Diagonal||28.4 mm||28.2 mm|
|Sensor Resolution||10 Megapixels||24 Megapixels|
|Image Resolution||3872 x 2592 pixels||6000 x 4000 pixels|
|Pixel Pitch||6.11 μm||3.91 μm|
|Pixel Density||2.69 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 25,600 ISO|
|Image Processor||EXPEED||EXPEED 4|
|DXO Sensor Quality (score)||63||83|
|DXO Color Depth (bits)||22.4||24.0|
|DXO Dynamic Range (EV)||11.4||13.9|
|DXO Low Light (ISO)||516||1338|
|Screen Specs||Nikon D40X||Nikon D5300|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Nikon D40X||Nikon D5300|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||50 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Nikon D40X||Nikon D5300|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Nikon D40X||Nikon D5300|
|Battery Life (CIPA)||520 shots per charge||600 shots per charge|
124 x 94 x 64 mm
(4.9 x 3.7 x 2.5 in)
125 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
|Camera Weight||522 g (18.4 oz)||480 g (16.9 oz)|
