Nikon D40 vs Z5
The Nikon D40 and the Nikon Z5 are two digital cameras that were officially introduced, respectively, in November 2006 and July 2020. The D40 is a DSLR, while the Z5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D40) and a full frame (Z5) sensor. The D40 has a resolution of 6 megapixels, whereas the Z5 provides 24.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D40 and the Nikon Z5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

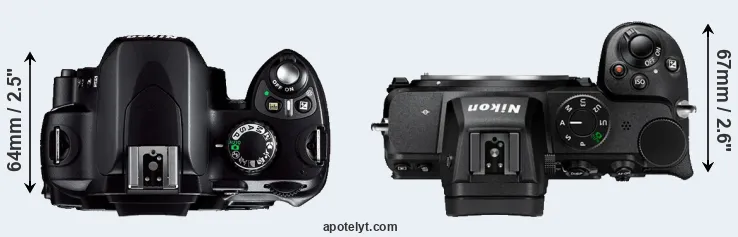

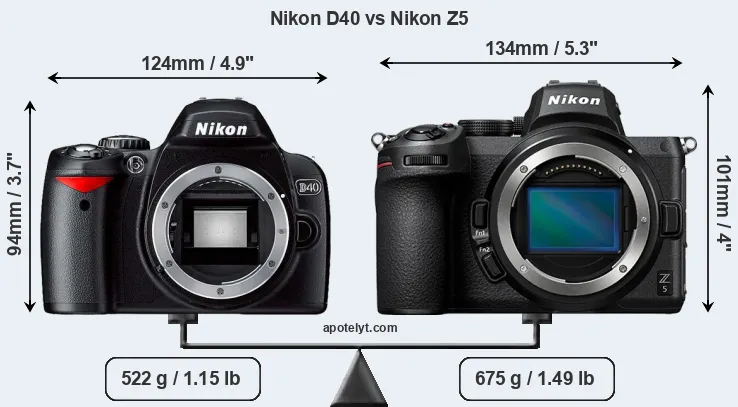

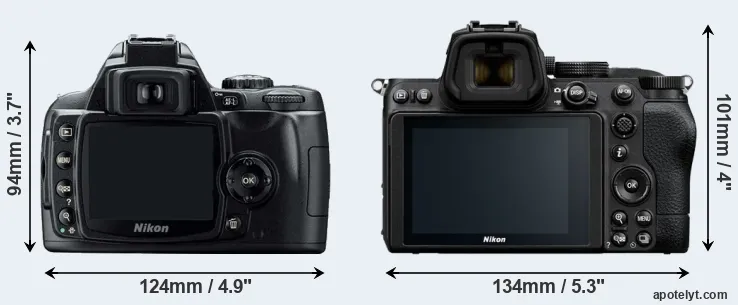

The physical size and weight of the Nikon D40 and the Nikon Z5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon Z5 is notably larger (16 percent) than the Nikon D40. Moreover, the Z5 is markedly heavier (29 percent) than the D40. It is noteworthy in this context that the Z5 is splash and dust-proof, while the D40 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the Z5 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Nikon D40||124 mm||94 mm||64 mm||522 g||470||n||Nov 2006||499|
|2.||Nikon Z5||134 mm||101 mm||67 mm||675 g||470||Y||Jul 2020||1,399|
|3.||Fujifilm X-T4||135 mm||93 mm||64 mm||607 g||500||Y||Feb 2020||1,699|
|4.||Nikon Z7 II||134 mm||101 mm||70 mm||705 g||420||Y||Oct 2020||2,999|
|5.||Nikon Z6 II||134 mm||101 mm||70 mm||705 g||410||Y||Oct 2020||1,999|
|6.||Nikon Z6||134 mm||101 mm||67 mm||675 g||310||Y||Aug 2018||1,999|
|7.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|8.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|9.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|10.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|11.||Nikon D3100||124 mm||96 mm||75 mm||505 g||550||n||Aug 2010||599|
|12.||Nikon D3000||126 mm||97 mm||64 mm||536 g||500||n||Jul 2009||599|
|13.||Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729|
|14.||Nikon D80||132 mm||103 mm||77 mm||668 g||600||n||Aug 2006||999|
|15.||Nikon D50||133 mm||102 mm||76 mm||620 g||400||n||Apr 2005||749|
|16.||Nikon D70s||140 mm||111 mm||78 mm||679 g||500||n||Apr 2005||899|
|17.||Panasonic L10||135 mm||96 mm||78 mm||556 g||450||n||Aug 2007||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D40 was launched at a markedly lower price (by 64 percent) than the Z5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

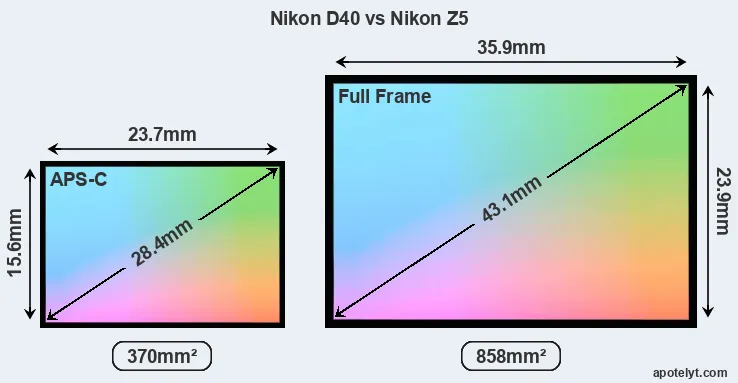

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D40 features an APS-C sensor and the Nikon Z5 a full frame sensor. The sensor area in the Z5 is 132 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

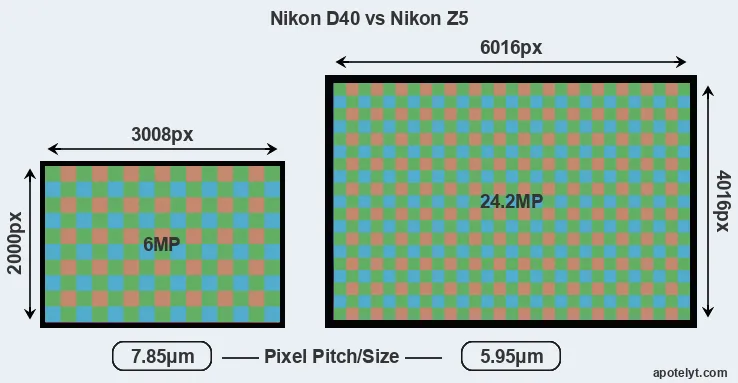

With 24.2MP, the Z5 offers a higher resolution than the D40 (6MP), but the Z5 has smaller individual pixels (pixel pitch of 5.95μm versus 7.85μm for the D40). Yet, the Z5 is a much more recent model (by 13 years and 8 months) than the D40, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Nikon Z5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Z5 for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inches or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inches or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20.1 x 13.4 inches or 50.9 x 34 cm. The corresponding values for the Nikon D40 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.
The Z5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Nikon D40 has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 200-3200. The corresponding ISO settings for the Nikon Z5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-102400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Nikon Z5||Full Frame||24.2||6016||4016||4K/30p||..||..||..||..|
|4.||Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||..||..||..||..|
|5.||Nikon Z6 II||Full Frame||24.3||6048||4024||4K/60p||..||..||..||..|
|6.||Nikon Z6||Full Frame||24.3||6048||4024||4K/30p||25.3||14.3||3299||95|
|17.||Panasonic L10||Four Thirds||10.0||3648||2736||none||21.3||10.8||429||55|
Many modern cameras cannot only take still pictures, but also record videos. The Z5 indeed provides for movie recording, while the D40 does not. The highest resolution format that the Z5 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the Z5 has an electronic viewfinder (3690k dots), while the D40 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the Z5 offers a wider field of view (100%) than the one in the D40 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the Z5 has a higher magnification (0.80x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D40 and Nikon Z5 along with similar information for a selection of comparators.
|4.||Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|5.||Nikon Z6 II||3690||Y||3.2||2100||tilting||Y||1/8000s||14.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The D40 has one, while the Z5 does not. While the built-in flash of the D40 is not very powerful, it can at times be useful as a fill-in light.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Z5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon Z5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D40 writes its imaging data to SDHC cards, while the Z5 uses SDXC cards. The Z5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D40 only has one slot. The Z5 supports UHS-II cards (on both slots), while the D40 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D40 and Nikon Z5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|5.||Nikon Z6 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
It is notable that the Z5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D40 does not provide wifi capability.
The Z5 is a recent model that features in the current product line-up of Nikon. In contrast, the D40 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D40 was succeeded by the Nikon D40X. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon website.
So what is the bottom line? Which of the two cameras – the Nikon D40 or the Nikon Z5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Nikon D40:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More compact: Is smaller (124x94mm vs 134x101mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 153g or 23 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (64 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in November 2006).
Arguments in favor of the Nikon Z5:
- More detail: Has more megapixels (24.2 vs 6MP), which boosts linear resolution by 100%.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.53x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (4.5 vs 2.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards on both slots.
- More modern: Reflects 13 years and 8 months of technical progress since the D40 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the Z5 is the clear winner of the contest (28 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D40 and the Nikon Z5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D40 or the Z5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D40||..||81/100||+ +||o||4.5/5||Nov 2006||499|
|2.||Nikon Z5||4/5||..||89/100||4.5/5||4/5||Jul 2020||1,399|
|3.||Fujifilm X-T4||5/5||+ +||..||5/5||5/5||Feb 2020||1,699|
|4.||Nikon Z7 II||4.5/5||..||..||4.5/5||4.5/5||Oct 2020||2,999|
|5.||Nikon Z6 II||4.5/5||..||89/100||4.5/5||4.5/5||Oct 2020||1,999|
|6.||Nikon Z6||5/5||..||..||4.5/5||5/5||Aug 2018||1,999|
|7.||Nikon D7500||4.5/5||+ +||86/100||5/5||4.5/5||Apr 2017||1,299|
|8.||Nikon D3400||4/5||+||76/100||4/5||4.5/5||Aug 2016||499|
|9.||Nikon D3300||3/5||+||77/100||4.5/5||4.5/5||Jan 2014||499|
|10.||Nikon D3200||5/5||+ +||73/100||4.5/5||4.5/5||Apr 2012||599|
|11.||Nikon D3100||5/5||+ +||72/100||4.5/5||4.5/5||Aug 2010||599|
|12.||Nikon D3000||..||+||72/100||4/5||4.5/5||Jul 2009||599|
|13.||Nikon D40X||..||79/100||+ +||4/5||4/5||Mar 2007||729|
|14.||Nikon D80||..||+||+ +||o||4.5/5||Aug 2006||999|
|15.||Nikon D50||..||78/100||+ +||4/5||4.5/5||Apr 2005||749|
|16.||Nikon D70s||..||..||..||..||5/5||Apr 2005||899|
|17.||Panasonic L10||..||85/100||+||3.5/5||4/5||Aug 2007||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon D40 vs Nikon Z5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D40||Nikon Z5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Nikon Z mount lenses|
|Launch Date||November 2006||July 2020|
|Launch Price||USD 499||USD 1,399|
|Sensor Specs||Nikon D40||Nikon Z5|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.7 x 15.6 mm||35.9 x 23.9 mm|
|Sensor Area||369.72 mm2||858.01 mm2|
|Sensor Diagonal||28.4 mm||43.1 mm|
|Sensor Resolution||6 Megapixels||24.2 Megapixels|
|Image Resolution||3008 x 2000 pixels||6016 x 4016 pixels|
|Pixel Pitch||7.85 μm||5.95 μm|
|Pixel Density||1.63 MP/cm2||2.82 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||200 - 1,600 ISO||100 - 51,200 ISO|
|ISO Boost||200 - 3,200 ISO||50 - 102,400 ISO|
|DXO Sensor Quality (score)||56||..|
|DXO Color Depth (bits)||21.0||..|
|DXO Dynamic Range (EV)||11.0||..|
|DXO Low Light (ISO)||561||..|
|Screen Specs||Nikon D40||Nikon Z5|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||3690k dots|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D40||Nikon Z5|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||2.5 shutter flaps/s||4.5 shutter flaps/s|
|Shutter Life Expectancy||50 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||no||Dual UHS-II|
|Connectivity Specs||Nikon D40||Nikon Z5|
|USB Connector||USB 2.0||USB 3.2|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D40||Nikon Z5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||470 shots per charge||470 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
124 x 94 x 64 mm
(4.9 x 3.7 x 2.5 in)
134 x 101 x 67 mm
(5.3 x 4.0 x 2.6 in)
|Camera Weight||522 g (18.4 oz)||675 g (23.8 oz)|
