Nikon D3400 vs Olympus E-PL3
The Nikon D3400 and the Olympus PEN E-PL3 are two digital cameras that were revealed to the public, respectively, in August 2016 and June 2011. The D3400 is a DSLR, while the E-PL3 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3400) and a Four Thirds (E-PL3) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3400 and the Olympus PEN E-PL3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

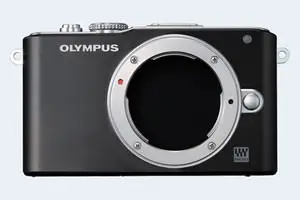

The side-by-side display below illustrates the physical size and weight of the Nikon D3400 and the Olympus E-PL3. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The D3400 can be obtained in two different colors (black, red), while the E-PL3 is available in four color-versions (black, silver, red, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL3 is considerably smaller (42 percent) than the Nikon D3400. Moreover, the E-PL3 is markedly lighter (30 percent) than the D3400. In this context, it is worth noting that neither the D3400 nor the E-PL3 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3400) and the Micro Four Thirds Lens Catalog (E-PL3). Mirrorless cameras, such as the E-PL3, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|2.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|3.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|4.||Nikon D3500||124 mm||97 mm||70 mm||415 g||1550||n||Aug 2018||429|
|5.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|6.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|7.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899|
|8.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|9.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|10.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|11.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|12.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|13.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|14.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|15.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|16.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|17.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D3400 was launched at a somewhat lower price (by 17 percent) than the E-PL3, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D3400 features an APS-C sensor and the Olympus E-PL3 a Four Thirds sensor. The sensor area in the E-PL3 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3400 has a native 3:2 aspect ratio, while the one in the E-PL3 offers a 4:3 aspect.
With 24MP, the D3400 offers a higher resolution than the E-PL3 (12.2MP), but the D3400 has smaller individual pixels (pixel pitch of 3.91μm versus 4.29μm for the E-PL3). However, the D3400 is a much more recent model (by 5 years and 1 month) than the E-PL3, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D3400 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL3 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Nikon D3400 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-PL3 are ISO 200 to ISO 12800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D3400 provides substantially higher image quality than the E-PL3, with an overall score that is 34 points higher. This advantage is based on 3.9 bits higher color depth, 3.6 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|13.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|14.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|15.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|16.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|17.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D3400 provides a higher frame rate than the E-PL3. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D3400 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL3 relies on live view and the rear LCD for framing. That said, the E-PL3 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Nikon D3400 and Olympus E-PL3 along with similar information for a selection of comparators.
|1.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|2.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5||n||Y|
|3.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|4.||Nikon D3500||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|5.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|6.||Nikon D500||optical||Y||3.2 / 2359||tilting||Y||1/8000s||10.0||n||n|
|7.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|8.||Nikon D7200||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0||Y||n|
|9.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|10.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0||Y||n|
|11.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0||Y||n|
|12.||Nikon D5200||optical||n||3.0 / 921||swivel||n||1/4000s||5.0||Y||n|
|13.||Olympus E-PL5||optional||n||3.0 / 460||tilting||Y||1/4000s||8.0||n||Y|
|14.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0||Y||Y|
|15.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||Y|
|16.||Olympus E-PM1||optional||n||3.0 / 460||fixed||n||1/4000s||5.5||n||Y|
|17.||Olympus E-PL1||optional||n||2.7 / 230||fixed||n||1/2000s||3.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The D3400 has one, while the E-PL3 does not. While the built-in flash of the D3400 is not very powerful, it can at times be useful as a fill-in light.The E-PL3 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D3400 does not have a selfie-screen.
Concerning the storage of imaging data, both the D3400 and the E-PL3 write their files to SDXC cards. The D3400 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL3 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3400 and Olympus PEN E-PL3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|2.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Nikon D3500||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|5.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Nikon D500||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|7.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|8.||Nikon D7200||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|9.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|11.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5200||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|13.||Olympus E-PL5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|14.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Olympus E-PM1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Olympus E-PL1||Y||stereo / -||-||-||mini||2.0||-||-||-|
Both the D3400 and the E-PL3 have been discontinued, but can regularly be found used on eBay. The E-PL3 was replaced by the Olympus E-PL5, while the D3400 was followed by the Nikon D3500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what is the bottom line? Is the Nikon D3400 better than the Olympus E-PL3 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Nikon D3400:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 43% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (34 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.9 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (3.6 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
- Longer lasting: Can take more shots (1200 versus 300) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced segment (17 percent cheaper at launch).
- More modern: Reflects 5 years and 1 month of technical progress since the E-PL3 launch.
Advantages of the Olympus PEN E-PL3:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (110x64mm vs 124x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 132g or 30 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More heavily discounted: Has been around for much longer (launched in June 2011).
If the count of relative strengths (bullet points above) is taken as a measure, the D3400 is the clear winner of the match-up (15 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D3400 and the Olympus E-PL3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D3400 or the E-PL3 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499|
|2.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599|
|3.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|4.||Nikon D3500||..||..||4/5||75/100||4/5||4.5/5||Aug 2018||429|
|5.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|6.||Nikon D500||5/5||+ +||4.7/5||91/100||4.5/5||5/5||Jan 2016||1,999|
|7.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|8.||Nikon D7200||4/5||+ +||..||84/100||4.5/5||4.5/5||Mar 2015||1,199|
|9.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499|
|10.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799|
|11.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599|
|12.||Nikon D5200||4/5||+ +||..||79/100||4.5/5||4.5/5||Nov 2012||749|
|13.||Olympus E-PL5||3/5||+ +||..||..||4.5/5||4.5/5||Sep 2012||599|
|14.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799|
|15.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599|
|16.||Olympus E-PM1||..||86/100||..||71/100||4.5/5||4.5/5||Jun 2011||499|
|17.||Olympus E-PL1||..||86/100||..||69/100||4/5||4.5/5||Feb 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 4000D vs Nikon D3400
- Canon G15 vs Nikon D3400
- Fujifilm X100 vs Olympus E-PL3
- Leica M10 vs Olympus E-PL3
- Nikon D1H vs Nikon D3400
- Nikon D3 vs Olympus E-PL3
- Nikon D3400 vs Olympus E-500
- Nikon D3400 vs Sony H400
- Nikon D3400 vs Sony RX100 II
- Olympus E-PL3 vs Panasonic GX9
- Olympus E-PL3 vs Sony H400
- Olympus E-PL3 vs Sony RX0 II
Specifications: Nikon D3400 vs Olympus E-PL3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D3400||Olympus E-PL3|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2016||June 2011|
|Launch Price||USD 499||USD 599|
|Sensor Specs||Nikon D3400||Olympus E-PL3|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4032 x 3024 pixels|
|Pixel Pitch||3.91 μm||4.29 μm|
|Pixel Density||6.55 MP/cm2||5.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/60i Video|
|ISO Setting||100 - 25,600 ISO||200 - 12,800 ISO|
|Image Processor||EXPEED 4||Truepic VI|
|DXO Sensor Quality (score)||86||52|
|DXO Color Depth (bits)||24.8||20.9|
|DXO Dynamic Range (EV)||13.9||10.3|
|DXO Low Light (ISO)||1192||499|
|Screen Specs||Nikon D3400||Olympus E-PL3|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||460k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Nikon D3400||Olympus E-PL3|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5 shutter flaps/s||5.5 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Nikon D3400||Olympus E-PL3|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Nikon D3400||Olympus E-PL3|
|Battery Life (CIPA)||1200 shots per charge||300 shots per charge|
124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
110 x 64 x 37 mm
(4.3 x 2.5 x 1.5 in)
|Camera Weight||445 g (15.7 oz)||313 g (11.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
