Nikon D3400 vs Olympus E-1

The Nikon D3400 and the Olympus E-1 are two digital cameras that were announced, respectively, in August 2016 and June 2003. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D3400) and a Four Thirds (E-1) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D3400
versus
Olympus E-1
Nikon D3400   Olympus E-1
Digital single lens reflex Digital single lens reflex
Nikon F mount lenses Four Thirds lenses
24 MP – APS-C sensor 4.9 MP – Four Thirds sensor
1080/60p Video no Video
ISO 100-25,600 ISO 100-800 (100 - 3,200)
Optical viewfinder Optical viewfinder
3.0" LCD – 921k dots 1.8" LCD – 134k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
5 shutter flaps per second 3 shutter flaps per second
not weather sealedWeathersealed body
1200 shots per battery charge750 shots per battery charge
124 x 98 x 76 mm, 445 g 141 x 104 x 81 mm, 738 g
logo
Check D3400 offers at
ebay.com
logo
Check E-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3400 and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Nikon D3400 and the Olympus E-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The D3400 can be obtained in two different colors (black, red), while the E-1 is only available in black.

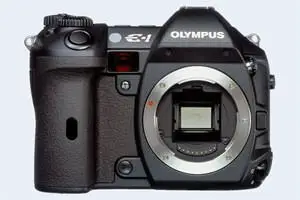

Size Nikon D3400 vs Olympus E-1
Compare D3400 versus E-1 top
Comparison D3400 or E-1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is notably larger (21 percent) than the Nikon D3400. Moreover, the E-1 is substantially heavier (66 percent) than the D3400. It is noteworthy in this context that the E-1 is splash and dust-proof, while the D3400 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3400) and the Four Thirds Lens Catalog (E-1).

Concerning battery life, the D3400 gets 1200 shots out of its Nikon EN-EL14a battery, while the E-1 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Nikon D3400 124 mm 98 mm 76 mm 445 g 1200 i Aug 2016 US$ 499ebay.com
2.

Olympus E-1 141 mm 104 mm 81 mm 738 g 750 i Jun 2003 US$ 1 699ebay.com
3.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 i Feb 2017 US$ 899ebay.com
4.

Canon 200D 122 mm 93 mm 70 mm 453 g 650 i Jun 2017 US$ 549ebay.com
5.

Canon M100 108 mm 67 mm 35 mm 302 g 295 i Aug 2017 US$ 499ebay.com
6.

Leica Digilux 3 146 mm 87 mm 77 mm 606 g 750 i Sep 2006 US$ 1 499ebay.com
7.

Nikon D3200 125 mm 96 mm 77 mm 505 g 540 i Apr 2012 US$ 599ebay.com
8.

Nikon D3300 124 mm 98 mm 76 mm 430 g 700 i Jan 2014 US$ 499ebay.com
9.

Nikon D3500 124 mm 97 mm 70 mm 415 g 1550 i Aug 2018 US$ 429ebay.com
10.

Nikon D5300 125 mm 98 mm 76 mm 480 g 600 i Oct 2013 US$ 799ebay.com
11.

Nikon D5500 124 mm 97 mm 70 mm 470 g 820 i Jan 2015 US$ 899ebay.com
12.

Nikon D5600 124 mm 97 mm 70 mm 465 g 970 i Nov 2016 US$ 699ebay.com
13.

Nikon D7500 136 mm 104 mm 73 mm 720 g 950 i Apr 2017 US$ 1 299 amazon.com
14.

Olympus E-3 142 mm 116 mm 75 mm 876 g 750 i Oct 2007 US$ 1 699ebay.com
15.

Olympus E-5 142 mm 117 mm 75 mm 873 g 750 i Sep 2010 US$ 1 699ebay.com
16.

Olympus E-300 147 mm 85 mm 64 mm 624 g 750 i Sep 2004 US$ 799ebay.com
17.

Olympus E-330 140 mm 87 mm 72 mm 637 g 750 i Jan 2006 US$ 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
  empty Camera
Model

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D3400 was launched at a markedly lower price (by 71 percent) than the E-1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D3400 features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3400 has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.

Nikon D3400 and Olympus E-1 sensor measures

With 24MP, the D3400 offers a higher resolution than the E-1 (4.9MP), but the D3400 has smaller individual pixels (pixel pitch of 3.91μm versus 6.78μm for the E-1). However, the D3400 is a much more recent model (by 13 years and 1 month) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D3400 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Nikon D3400 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the D3400 is build around a CMOS sensor, while the E-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

D3400 versus E-1 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286
2.

Olympus E-1 Four Thirds 4.9 2560 1920i20.09.7-14544
3.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
4.

Canon 200D APS-C 24.0 6000 40001080/60p23.613.4104179
5.

Canon M100 APS-C 24.0 6000 40001080/60p23.512.9127278
6.

Leica Digilux 3 Four Thirds 7.4 3136 2352i21.010.612753
7.

Nikon D3200 APS-C 24.1 6016 40001080/30p24.113.2113181
8.

Nikon D3300 APS-C 24.0 6000 40001080/60p24.312.8138582
9.

Nikon D3500 APS-C 24.0 6000 40001080/60p24.013.4185183
10.

Nikon D5300 APS-C 24.0 6000 40001080/60p24.013.9133883
11.

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884
12.

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684
13.

Nikon D7500 APS-C 20.7 5568 37124K/30p24.314.0148386
14.

Olympus E-3 Four Thirds 10.0 3648 2736i21.610.557156
15.

Olympus E-5 Four Thirds 12.2 4032 3024720/30p21.610.551956
16.

Olympus E-300 Four Thirds 8.0 3264 2448i20.410.1-4048
17.

Olympus E-330 Four Thirds 7.4 3136 2352i20.810.47352
Note: DXO values in italics represent estimates based on sensor size and age.
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
  empty Camera
Model

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D3400 indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the D3400 can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The D3400 and the E-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-1 offers a wider field of view (100%) than the one in the D3400 (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the D3400 has a higher magnification (0.57x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D3400 and Olympus E-1 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Nikon D3400optical i3.0 / 921 fixed i 1/4000s 5.0/s i i
2.

Olympus E-1optical i1.8 / 134 fixed i 1/4000s 3.0/s i i
3.

Canon 77Doptical i3.0 / 1040 swivel i 1/4000s 6.0/s i i
4.

Canon 200Doptical i3.0 / 1040 swivel i 1/4000s 5.0/s i i
5.

Canon M100i i3.0 / 1040 tilting i 1/4000s 6.1/s i i
6.

Leica Digilux 3optical i2.5 / 207 fixed i 1/4000s 3.0/s i i
7.

Nikon D3200optical i3.0 / 921 fixed i 1/4000s 4.0/s i i
8.

Nikon D3300optical i3.0 / 921 fixed i 1/4000s 5.0/s i i
9.

Nikon D3500optical i3.0 / 921 fixed i 1/4000s 5.0/s i i
10.

Nikon D5300optical i3.2 / 1037 swivel i 1/4000s 5.0/s i i
11.

Nikon D5500optical i3.2 / 1037 swivel i 1/4000s 5.0/s i i
12.

Nikon D5600optical i3.2 / 1037 swivel i 1/4000s 5.0/s i i
13.

Nikon D7500optical i3.2 / 922 tilting i 1/8000s 8.0/s i i
14.

Olympus E-3optical i2.5 / 230 swivel i 1/8000s 5.0/s i i
15.

Olympus E-5optical i3.0 / 920 swivel i 1/8000s 5.0/s i i
16.

Olympus E-300optical i1.8 / 134 fixed i 1/4000s 2.5/s i i
17.

Olympus E-330optical i2.5 / 215 tilting i 1/4000s 3.0/s i i
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
  empty Camera
Model

One difference between the cameras concerns the presence of an on-board flash. The D3400 has one, while the E-1 does not. While the built-in flash of the D3400 is not very powerful, it can at times be useful as a fill-in light.

The D3400 writes its imaging data to SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D3400 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3400 and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Nikon D3400imono / monoiimini2.0iii
2.

Olympus E-1ii / iiii2.0iii
3.

Canon 77Distereo / monoiimini2.0iii
4.

Canon 200Distereo / monoiimini2.0iii
5.

Canon M100istereo / monoiimicro2.0iii
6.

Leica Digilux 3istereo / monoiii2.0iii
7.

Nikon D3200imono / monoiimini2.0iii
8.

Nikon D3300imono / monoiimini2.0iii
9.

Nikon D3500imono / monoiimini2.0iii
10.

Nikon D5300istereo / monoiimini2.0iii
11.

Nikon D5500istereo / monoiimini2.0iii
12.

Nikon D5600istereo / monoiimini2.0iii
13.

Nikon D7500istereo / monoiimini2.0iii
14.

Olympus E-3ii / iiii2.0iii
15.

Olympus E-5istereo / iiimini2.0iii
16.

Olympus E-300ii / iiii2.0iii
17.

Olympus E-330ii / iiii2.0iii
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
  empty Camera
Model

Studio photographers will appreciate that the Olympus E-1 (unlike the D3400) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D3400 and the E-1 have been discontinued, but can regularly be found used on ebay. The E-1 was replaced by the Olympus E-3, while the D3400 was followed by the Nikon D3500. Further information on the features and operation of the D3400 and E-1 can be found, respectively, in the Nikon D3400 Manual (free pdf) or the online Olympus E-1 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Nikon D3400 or the Olympus E-1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Nikon D3400:

  • More detail: Offers more megapixels (24 vs 4.9MP) with a 125% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Broader imaging potential: Can record not only still images but also 1080/60p movies.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.57x vs 0.48x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (921k vs 134k dots).
  • Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (124x98mm vs 141x104mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 293g or 40 percent) and hence easier to carry around.
  • Longer lasting: Can take more shots (1200 versus 750) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (71 percent cheaper at launch).
  • More modern: Reflects 13 years and 1 month of technical progress since the E-1 launch.

ilogo

Advantages of the Olympus E-1:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been around for much longer (launched in June 2003).

If the number of relative strengths (bullet points above) is taken as a guide, the D3400 is the clear winner of the match-up (18 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D3400 18:07 E-1

How about other alternatives? Do the specifications of the Nikon D3400 and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D3400 or the E-1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Nikon D34004/5+4/576/1004/54.5/5 Aug 2016 US$ 499ebay.com
2.

Olympus E-1......+o.. Jun 2003 US$ 1 699ebay.com
3.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 US$ 899ebay.com
4.

Canon 200D4/5+ +4/578/1004.5/54.5/5 Jun 2017 US$ 549ebay.com
5.

Canon M1003/5+....4/53.5/5 Aug 2017 US$ 499ebay.com
6.

Leica Digilux 3............ Sep 2006 US$ 1 499ebay.com
7.

Nikon D32005/5+ +..73/1004.5/54.5/5 Apr 2012 US$ 599ebay.com
8.

Nikon D33003/5+..77/1004.5/54.5/5 Jan 2014 US$ 499ebay.com
9.

Nikon D35004/5..4/575/1004/54.5/5 Aug 2018 US$ 429ebay.com
10.

Nikon D53004/5+ +..79/1004.5/54.5/5 Oct 2013 US$ 799ebay.com
11.

Nikon D55005/5+..79/1004.5/54.5/5 Jan 2015 US$ 899ebay.com
12.

Nikon D56004/5..4/579/1004.5/54/5 Nov 2016 US$ 699ebay.com
13.

Nikon D75004.5/5+ +4.5/586/1005/54.5/5 Apr 2017 US$ 1 299 amazon.com
14.

Olympus E-3..88/100..+ +o4/5 Oct 2007 US$ 1 699ebay.com
15.

Olympus E-54/5....75/1004/54.5/5 Sep 2010 US$ 1 699ebay.com
16.

Olympus E-300......+o4.5/5 Sep 2004 US$ 799ebay.com
17.

Olympus E-330......+o.. Jan 2006 US$ 999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
  empty  Camera
 Model

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check D3400 offers at
ebay.com
logo
Check E-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
  • Credit Card
  • Canon 1D
  • Canon 1D Mark II
  • Canon 1D Mark II N
  • Canon 1D Mark III
  • Canon 1D Mark IV
  • Canon 1Ds
  • Canon 1Ds Mark II
  • Canon 1Ds Mark III
  • Canon 1D C
  • Canon 1D X
  • Canon 1D X Mark II
  • Canon 1D X Mark III
  • Canon 5D
  • Canon 5D Mark II
  • Canon 5D Mark III
  • Canon 5D Mark IV
  • Canon 5DS
  • Canon 5DS R
  • Canon 6D
  • Canon 6D Mark II
  • Canon 7D
  • Canon 7D II
  • Canon 10D
  • Canon 20D
  • Canon 30D
  • Canon 40D
  • Canon 50D
  • Canon 60D
  • Canon 70D
  • Canon 77D
  • Canon 80D
  • Canon 90D
  • Canon D30
  • Canon D60
  • Canon G1 X
  • Canon G1 X Mark II
  • Canon G1 X Mark III
  • Canon G3 X
  • Canon G5 X
  • Canon G5 X Mark II
  • Canon G7 X
  • Canon G7 X Mark II
  • Canon G7 X Mark III
  • Canon G9 X
  • Canon G9 X Mark II
  • Canon G12
  • Canon G15
  • Canon G16
  • Canon M
  • Canon M3
  • Canon M5
  • Canon M6
  • Canon M6 Mark II
  • Canon M10
  • Canon M50
  • Canon M50 Mark II
  • Canon M100
  • Canon M200
  • Canon R
  • Canon R1
  • Canon R3
  • Canon R5
  • Canon R5 Mark II
  • Canon R5 C
  • Canon R6
  • Canon R6 Mark II
  • Canon R7
  • Canon R8
  • Canon R10
  • Canon R50
  • Canon R50 V
  • Canon R100
  • Canon RP
  • Canon S120
  • Canon SL1
  • Canon SL2
  • Canon SL3
  • Canon SX1
  • Canon SX10
  • Canon SX20
  • Canon SX30
  • Canon SX40
  • Canon SX50
  • Canon SX60
  • Canon SX70
  • Canon SX400
  • Canon SX410
  • Canon SX420
  • Canon SX430
  • Canon SX500
  • Canon SX510
  • Canon SX520
  • Canon SX530
  • Canon SX540
  • Canon SX600
  • Canon SX610
  • Canon SX620
  • Canon SX700
  • Canon SX710
  • Canon SX720
  • Canon SX730
  • Canon SX740
  • Canon Rebel
  • Canon T1i
  • Canon T2i
  • Canon T3
  • Canon T3i
  • Canon T4i
  • Canon T5
  • Canon T5i
  • Canon T6
  • Canon T6i
  • Canon T6s
  • Canon T7
  • Canon T7i
  • Canon T8i
  • Canon T100
  • Canon V1
  • Canon XC10
  • Canon XS
  • Canon XSi
  • Canon XT
  • Canon XTi
  • Contax N Digital
  • Epson R-D1
  • Fujifilm GFX 50R
  • Fujifilm GFX 50S
  • Fujifilm GFX 50S II
  • Fujifilm GFX 100
  • Fujifilm GFX 100 II
  • Fujifilm GFX 100RF
  • Fujifilm GFX 100S
  • Fujifilm GFX 100S II
  • Fujifilm X-A1
  • Fujifilm X-A2
  • Fujifilm X-A3
  • Fujifilm X-A5
  • Fujifilm X-A7
  • Fujifilm X-A10
  • Fujifilm X-E1
  • Fujifilm X-E2
  • Fujifilm X-E2S
  • Fujifilm X-E3
  • Fujifilm X-E4
  • Fujifilm X-E5
  • Fujifilm X-H1
  • Fujifilm X-H2
  • Fujifilm X-H2S
  • Fujifilm X-M1
  • Fujifilm X-M5
  • Fujifilm X-Pro1
  • Fujifilm X-Pro2
  • Fujifilm X-Pro3
  • Fujifilm X-S10
  • Fujifilm X-S20
  • Fujifilm X-T1
  • Fujifilm X-T2
  • Fujifilm X-T3
  • Fujifilm X-T4
  • Fujifilm X-T5
  • Fujifilm X-T10
  • Fujifilm X-T20
  • Fujifilm X-T30
  • Fujifilm X-T30 II
  • Fujifilm X-T50
  • Fujifilm X-T100
  • Fujifilm X-T200
  • Fujifilm X10
  • Fujifilm X20
  • Fujifilm X30
  • Fujifilm X70
  • Fujifilm X100
  • Fujifilm X100S
  • Fujifilm X100T
  • Fujifilm X100F
  • Fujifilm X100V
  • Fujifilm X100VI
  • Fujifilm XF10
  • Fujifilm XQ1
  • Fujifilm XQ2
  • Fujifilm XP120
  • Fujifilm XP130
  • Fujifilm XP140
  • Hasselblad X1D
  • Hasselblad X1D II
  • Hasselblad X2D 100C
  • Kodak AZ901
  • Kodak S-1
  • Leica C-LUX
  • Leica CL
  • Leica D-LUX Typ 109
  • Leica D-LUX 5
  • Leica D-LUX 6
  • Leica D-LUX 7
  • Leica D-LUX 8
  • Leica Digilux 3
  • Leica M Typ 240
  • Leica M-E Typ 240
  • Leica M Typ 262
  • Leica M8
  • Leica M9
  • Leica M10
  • Leica M10-P
  • Leica M10-R
  • Leica M11
  • Leica Q Typ 116
  • Leica Q2
  • Leica Q3
  • Leica S1
  • Leica S2
  • Leica S3
  • Leica S Typ 006
  • Leica S-E Typ 006
  • Leica S Typ 007
  • Leica SL
  • Leica SL2
  • Leica SL2-S
  • Leica SL3
  • Leica SL3-S
  • Leica T
  • Leica TL
  • Leica TL2
  • Leica V-LUX 1
  • Leica V-LUX 2
  • Leica V-LUX 3
  • Leica V-LUX 4
  • Leica V-LUX Typ 114
  • Leica V-LUX 5
  • Leica X1
  • Leica X2
  • Leica X Vario
  • Leica X Typ 113
  • Leica X-U Typ 113
  • Leitz Ur-Leica
  • Nikon 1 J4
  • Nikon 1 J5
  • Nikon 1 V1
  • Nikon 1 V2
  • Nikon 1 V3
  • Nikon Coolpix A
  • Nikon A1000
  • Nikon B500
  • Nikon B600
  • Nikon B700
  • Nikon D1
  • Nikon D1H
  • Nikon D1X
  • Nikon D2H
  • Nikon D2X
  • Nikon D2Xs
  • Nikon D3
  • Nikon D3S
  • Nikon D3X
  • Nikon D4
  • Nikon D4S
  • Nikon D5
  • Nikon D6
  • Nikon D40
  • Nikon D40X
  • Nikon D50
  • Nikon D60
  • Nikon D70
  • Nikon D70s
  • Nikon D80
  • Nikon D90
  • Nikon D100
  • Nikon D200
  • Nikon D300
  • Nikon D300S
  • Nikon D500
  • Nikon D600
  • Nikon D610
  • Nikon D700
  • Nikon D750
  • Nikon D780
  • Nikon D800
  • Nikon D800E
  • Nikon D810
  • Nikon D850
  • Nikon D3000
  • Nikon D3100
  • Nikon D3200
  • Nikon D3300
  • Nikon D3400
  • Nikon D3500
  • Nikon D5000
  • Nikon D5100
  • Nikon D5200
  • Nikon D5300
  • Nikon D5500
  • Nikon D5600
  • Nikon D7000
  • Nikon D7100
  • Nikon D7200
  • Nikon D7500
  • Nikon Df
  • Nikon L840
  • Nikon P900
  • Nikon P950
  • Nikon P1000
  • Nikon P1100
  • Nikon P7800
  • Nikon W150
  • Nikon W300
  • Nikon Z5
  • Nikon Z5 II
  • Nikon Z6
  • Nikon Z6 II
  • Nikon Z6 III
  • Nikon Z7
  • Nikon Z7 II
  • Nikon Z8
  • Nikon Z9
  • Nikon Z30
  • Nikon Z50
  • Nikon Z50 II
  • Nikon Zf
  • Nikon Z fc
  • Olympus E-1
  • Olympus E-3
  • Olympus E-5
  • Olympus E-30
  • Olympus E-300
  • Olympus E-330
  • Olympus E-400
  • Olympus E-410
  • Olympus E-420
  • Olympus E-450
  • Olympus E-500
  • Olympus E-510
  • Olympus E-520
  • Olympus E-600
  • Olympus E-620
  • Olympus E-M1
  • Olympus E-M1 II
  • Olympus E-M1 III
  • Olympus E-M1X
  • Olympus E-M5
  • Olympus E-M5 II
  • Olympus E-M5 III
  • Olympus E-M10
  • Olympus E-M10 II
  • Olympus E-M10 III
  • Olympus E-M10 IV
  • Olympus E-P1
  • Olympus E-P2
  • Olympus E-P3
  • Olympus E-P5
  • Olympus E-P7
  • Olympus E-PL1
  • Olympus E-PL2
  • Olympus E-PL3
  • Olympus E-PL5
  • Olympus E-PL6
  • Olympus E-PL7
  • Olympus E-PL8
  • Olympus E-PL9
  • Olympus E-PL10
  • Olympus E-PM1
  • Olympus E-PM2
  • Olympus PEN-F
  • Olympus Stylus 1
  • Olympus Stylus 1s
  • Olympus TG-4
  • Olympus TG-5
  • Olympus TG-6
  • Olympus XZ-1
  • Olympus XZ-2
  • OM System OM-1
  • OM System OM-1 II
  • OM System OM-3
  • OM System OM-5
  • OM System OM-5 II
  • OM System TG-7
  • Panasonic FZ80
  • Panasonic FZ80D
  • Panasonic FZ100
  • Panasonic FZ150
  • Panasonic FZ200
  • Panasonic FZ300
  • Panasonic FZ1000
  • Panasonic FZ1000 II
  • Panasonic FZ2500
  • Panasonic G1
  • Panasonic G2
  • Panasonic G3
  • Panasonic G5
  • Panasonic G6
  • Panasonic G7
  • Panasonic G9
  • Panasonic G9 II
  • Panasonic G10
  • Panasonic G85
  • Panasonic G97
  • Panasonic G95
  • Panasonic G100
  • Panasonic GF1
  • Panasonic GF2
  • Panasonic GF3
  • Panasonic GF5
  • Panasonic GF6
  • Panasonic GF7
  • Panasonic GH1
  • Panasonic GH2
  • Panasonic GH3
  • Panasonic GH4
  • Panasonic GH5
  • Panasonic GH5 II
  • Panasonic GH5s
  • Panasonic GH6
  • Panasonic GH7
  • Panasonic GM1
  • Panasonic GM5
  • Panasonic GX1
  • Panasonic GX7
  • Panasonic GX8
  • Panasonic GX9
  • Panasonic GX85
  • Panasonic GX850
  • Panasonic L1
  • Panasonic L10
  • Panasonic LF1
  • Panasonic LX5
  • Panasonic LX7
  • Panasonic LX10
  • Panasonic LX100
  • Panasonic LX100 II
  • Panasonic S1
  • Panasonic S1 II
  • Panasonic S1H
  • Panasonic S1R
  • Panasonic S1R II
  • Panasonic S5
  • Panasonic S5 II
  • Panasonic S9
  • Panasonic TS7
  • Panasonic ZS70
  • Panasonic ZS80
  • Panasonic ZS100
  • Panasonic ZS200
  • Pentax 645D
  • Pentax 645Z
  • Pentax K-1
  • Pentax K-1 II
  • Pentax K-3
  • Pentax K-3 II
  • Pentax K-3 III
  • Pentax K-5
  • Pentax K-5 II
  • Pentax K-30
  • Pentax K-50
  • Pentax K-70
  • Pentax K-500
  • Pentax KP
  • Pentax K-S1
  • Pentax K-S2
  • Pentax MX-1
  • Pentax Q
  • Pentax WG-8
  • Pentax WG-90
  • Pentax WG-1000
  • Ricoh GR
  • Ricoh GR II
  • Ricoh GR III
  • Ricoh GR IIIx
  • Ricoh WG-6
  • Ricoh WG-60
  • Samsung NX1
  • Samsung NX30
  • Samsung NX500
  • Sigma fp
  • Sigma fp L
  • Sony A1
  • Sony A1 II
  • Sony A7
  • Sony A7 II
  • Sony A7 III
  • Sony A7 IV
  • Sony A7C
  • Sony A7C II
  • Sony A7C R
  • Sony A7R
  • Sony A7R II
  • Sony A7R III
  • Sony A7R IIIA
  • Sony A7R IV
  • Sony A7R IVA
  • Sony A7R V
  • Sony A7S
  • Sony A7S II
  • Sony A7S III
  • Sony A9
  • Sony A9 II
  • Sony A9 III
  • Sony A58
  • Sony A68
  • Sony A77
  • Sony A77 II
  • Sony A99
  • Sony A99 II
  • Sony A850
  • Sony A900
  • Sony A3000
  • Sony A5000
  • Sony A5100
  • Sony A6000
  • Sony A6100
  • Sony A6300
  • Sony A6400
  • Sony A6500
  • Sony A6600
  • Sony A6700
  • Sony H200
  • Sony H300
  • Sony H400
  • Sony HX80
  • Sony HX90V
  • Sony HX95
  • Sony HX99
  • Sony HX350
  • Sony HX400V
  • Sony NEX-3
  • Sony NEX-3N
  • Sony NEX-5
  • Sony NEX-5N
  • Sony NEX-5R
  • Sony NEX-5T
  • Sony NEX-6
  • Sony NEX-7
  • Sony NEX-C3
  • Sony NEX-F3
  • Sony RX0
  • Sony RX0 II
  • Sony RX1
  • Sony RX1R
  • Sony RX1R II
  • Sony RX1R III
  • Sony RX10
  • Sony RX10 II
  • Sony RX10 III
  • Sony RX10 IV
  • Sony RX100
  • Sony RX100 II
  • Sony RX100 III
  • Sony RX100 IV
  • Sony RX100 V
  • Sony RX100 VI
  • Sony RX100 VII
  • Sony WX800
  • Sony ZV-1
  • Sony ZV-1 II
  • Sony ZV-1F
  • Sony ZV-E1
  • Sony ZV-E10
  • Sony ZV-E10 II
  • YI M1
  • Zeiss ZX1
loader
ad

Specifications: Nikon D3400 vs Olympus E-1

Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

Camera Specifications
Camera Model Nikon D3400 Olympus E-1
Camera Type Digital single lens reflex Digital single lens reflex
Camera Lens Nikon F mount lenses Four Thirds lenses
Launch Date August 2016 June 2003
Launch Price USD 499 USD 1,699
Sensor Specs Nikon D3400 Olympus E-1
Sensor Technology CMOS CCD
Sensor Format APS-C Sensor Four Thirds Sensor
Sensor Size 23.5 x 15.6 mm 17.3 x 13.0 mm
Sensor Area 366.6 mm2 224.9 mm2
Sensor Diagonal 28.2 mm 21.6 mm
Crop Factor 1.5x 2.0x
Sensor Resolution 24 Megapixels 4.9 Megapixels
Image Resolution 6000 x 4000 pixels 2560 x 1920 pixels
Pixel Pitch 3.91 μm 6.78 μm
Pixel Density 6.55 MP/cm2 2.19 MP/cm2
Moiré control no AA filter Anti-Alias filter
Movie Capability 1080/60p Video no Video
ISO Setting 100 - 25,600 ISO 100 - 800 ISO
ISO Boost no Enhancement 100 - 3,200 ISO
Image Processor EXPEED 4 TruePic
DXO Sensor Quality (score) 86 ..
DXO Color Depth (bits) 24.8 ..
DXO Dynamic Range (EV) 13.9 ..
DXO Low Light (ISO) 1192 ..
Screen Specs Nikon D3400 Olympus E-1
Viewfinder Type Optical viewfinder Optical viewfinder
Viewfinder Field of View 95% 100%
Viewfinder Magnification 0.57x 0.48x
Top-Level Screen no Top Display Control Panel
LCD Framing Live View
Rear LCD Size 3.0inch 1.8inch
LCD Resolution 921k dots 134k dots
LCD Attachment Fixed screen Fixed screen
Shooting Specs Nikon D3400 Olympus E-1
Focus System Phase-detect AF Phase-detect AF
Continuous Shooting 5 shutter flaps/s 3 shutter flaps/s
Shutter Life Expectancy100 000 actuations150 000 actuations
Fill Flash Built-in Flash no On-Board Flash
Storage Medium SDXC cards CF or XD cards
Single or Dual Card Slots Single card slot Dual card slots
Connectivity Specs Nikon D3400 Olympus E-1
External Flash Hotshoe Hotshoe
Studio Flash no PC Sync PC Sync socket
USB Connector USB 2.0 USB 2.0
HDMI Port mini HDMI no HDMI
Wifi Support no Wifi no Wifi
Bluetooth Support Bluetooth built-in no Bluetooth
Body Specs Nikon D3400 Olympus E-1
Environmental Sealingnot weather sealedWeathersealed body
Battery Type Nikon EN-EL14a Olympus BLM-1
Battery Life (CIPA)1200 shots per charge750 shots per charge
Body Dimensions 124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
141 x 104 x 81 mm
(5.6 x 4.1 x 3.2 in)
Camera Weight 445 g (15.7 oz) 738 g (26.0 oz)
logo
Check D3400 offers at
ebay.com
logo
Check E-1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

You are here Home  »  CAM-parator  »  Nikon D3400 vs Olympus E-1
