Nikon D2Xs vs Panasonic LX5

The Nikon D2Xs and the Panasonic Lumix DMC-LX5 are two digital cameras that were officially introduced, respectively, in June 2006 and July 2010. The D2Xs is a DSLR, while the LX5 is a fixed lens compact. The cameras are based on an APS-C (D2Xs) and a 1/1.7-inch (LX5) sensor. The Nikon has a resolution of 12.2 megapixels, whereas the Panasonic provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D2Xs		Panasonic LX5
Digital single lens reflex		Fixed lens compact camera
Nikon F mount lenses		24-90mm f/2.0-3.3
12.2 MP – APS-C sensor		10 MP – 1/1.7" sensor
no Video		720/60p Video
ISO 100-800 (800 - 3,200)		ISO 80-3,200 (80 - 12,800)
Optical viewfinder		Viewfinder optional
2.5" LCD – 230k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		2.5 shutter flaps per second
Weathersealed body		not weather sealed
3800 shots per battery charge		400 shots per battery charge
158 x 150 x 86 mm, 1252 g		110 x 65 x 43 mm, 271 g

Check D2Xs offers at
ebay.com
Check LX5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D2Xs and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

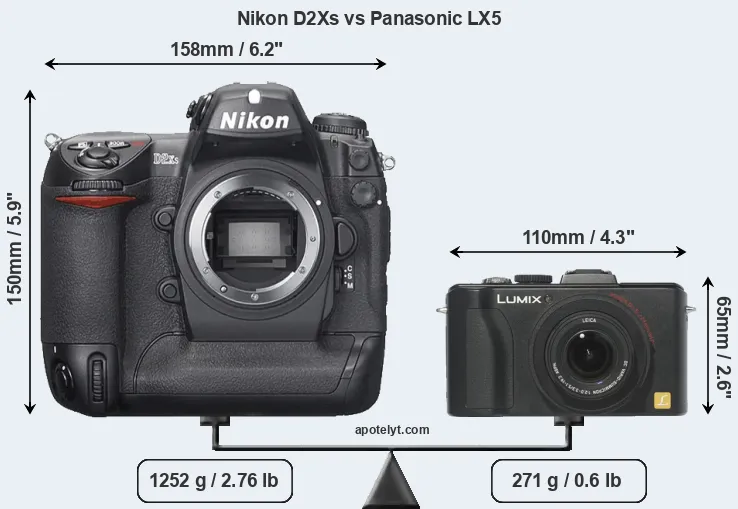

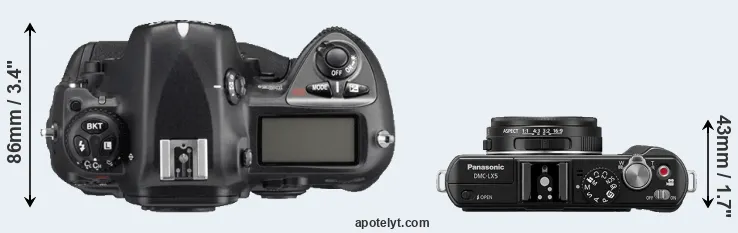

The side-by-side display below illustrates the physical size and weight of the Nikon D2Xs and the Panasonic LX5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The LX5 can be obtained in two different colors (black, white), while the D2Xs is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is considerably smaller (70 percent) than the Nikon D2Xs. It is worth mentioning in this context that the D2Xs is splash and dust resistant, while the LX5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the D2Xs is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D2Xs and their specifications in the Nikon Lens Catalog.

Concerning battery life, the D2Xs gets 3800 shots out of its Nikon EN-EL4a battery, while the LX5 can take 400 images on a single charge of its Panasonic DMW-BCJ13 power pack. As can be seen in the images above, the D2Xs has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	US$ 4 699	ebay.com
2.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
3.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	US$ 4 499	ebay.com
4.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	US$ 599	ebay.com
5.		Nikon D1	157 mm	153 mm	85 mm	1100 g	..	Y	Jun 1999	US$ 5 499	ebay.com
6.		Nikon D1H	157 mm	153 mm	85 mm	1100 g	1200	Y	Feb 2001	US$ 4 499	ebay.com
7.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	US$ 4 999	ebay.com
8.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
9.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	US$ 729	ebay.com
10.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	US$ 999	ebay.com
11.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
12.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	US$ 1 799	ebay.com
13.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
14.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
15.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The LX5 was launched at a lower price than the D2Xs, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon D2Xs features an APS-C sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.4. The sensor in the D2Xs has a native 3:2 aspect ratio, while the one in the LX5 offers a 4:3 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

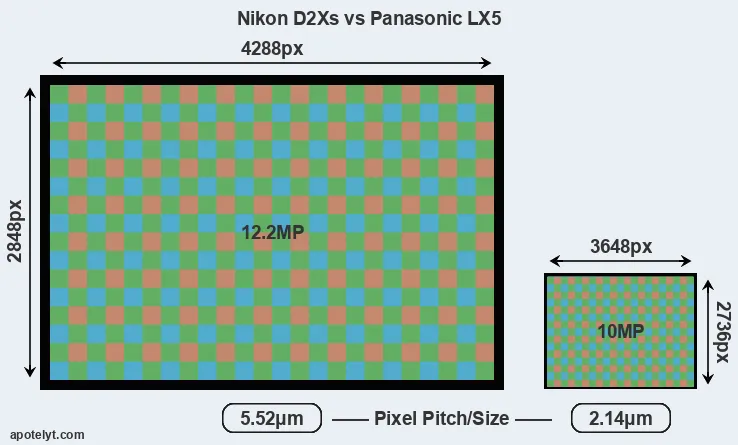

With 12.2MP, the D2Xs offers a higher resolution than the LX5 (10MP), but the D2Xs nevertheless has larger individual pixels (pixel pitch of 5.52μm versus 2.14μm for the LX5) due to its larger sensor. However, the LX5 is a much more recent model (by 4 years and 1 month) than the D2Xs, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Nikon D2Xs implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D2Xs for good quality output (200 dots per inch) amounts to 21.4 x 14.2 inches or 54.5 x 36.2 cm, for very good quality (250 dpi) 17.2 x 11.4 inches or 43.6 x 28.9 cm, and for excellent quality (300 dpi) 14.3 x 9.5 inches or 36.3 x 24.1 cm. The corresponding values for the Panasonic LX5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Nikon D2Xs has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 800-3200. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.

In terms of underlying technology, the D2Xs is build around a CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D2Xs provides substantially higher image quality than the LX5, with an overall score that is 18 points higher. This advantage is based on 2.6 bits higher color depth, 0.1 EV in additional dynamic range, and 1.9 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
2.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
3.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
4.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
5.		Nikon D1	APS-C	2.6	2000	1312	none	..	..	..	..
6.		Nikon D1H	APS-C	2.6	2000	1312	none	..	..	..	..
7.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
8.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
9.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
10.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
11.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
12.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
13.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
14.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
15.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50

Many modern cameras cannot only take still pictures, but also record videos. The LX5 indeed provides for movie recording, while the D2Xs does not. The highest resolution format that the LX5 can use is 720/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D2Xs has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the LX5 relies on live view and the rear LCD for framing. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The following table reports on some other key feature differences and similarities of the Nikon D2Xs, the Panasonic LX5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
2.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
3.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
4.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
5.		Nikon D1	optical	Y	2.0 / 120	fixed	n	1/16000s	4.5/s	n	n
6.		Nikon D1H	optical	Y	2.0 / 120	fixed	n	1/16000s	5.0/s	n	n
7.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
8.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
12.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
13.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
14.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
15.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D2Xs, but is missing on the LX5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The D2Xs writes its imaging data to Compact Flash cards, while the LX5 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D2Xs and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
4.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Nikon D1	Y	- / -	-	-	-	FW	-	-	-
6.		Nikon D1H	Y	- / -	-	-	-	FW	-	-	-
7.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
8.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
9.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
12.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
13.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
15.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Nikon D2Xs (unlike the LX5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the D2Xs and the LX5 have been discontinued, but can regularly be found used on ebay. The D2Xs was replaced by the Nikon D3X, while the LX5 was followed by the Panasonic LX7. Further information on the features and operation of the D2Xs and LX5 can be found, respectively, in the Nikon D2Xs Manual (free pdf) or the online Panasonic LX5 Manual.

Review summary

So how do things add up? Which of the two cameras – the Nikon D2Xs or the Panasonic LX5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Nikon D2Xs:

• More detail: Offers more megapixels (12.2 vs 10MP) with a 13% higher linear resolution.
• Better image quality: Scores substantially higher (18 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2.6 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (1.9 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (3800 versus 400) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in June 2006).

Arguments in favor of the Panasonic Lumix DMC-LX5:

• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can capture not only stills but also 720/60p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• Ready to shoot: Comes with an integrated lens, while the D2Xs requires a separate lens.
• More compact: Is smaller (110x65mm vs 158x150mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the D2Xs).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years and 1 month of technical progress since the D2Xs launch.

If the number of relative strengths (bullet points above) is taken as a guide, the D2Xs emerges as the winner of the contest (14 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D2Xs and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the D2Xs or the LX5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	US$ 4 699	ebay.com
2.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
3.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	US$ 4 499	ebay.com
4.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	US$ 599	ebay.com
5.		Nikon D1	..	..	..	+ +	..	..	Jun 1999	US$ 5 499	ebay.com
6.		Nikon D1H	..	..	..	+ +	..	..	Feb 2001	US$ 4 499	ebay.com
7.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	US$ 4 999	ebay.com
8.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
9.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	US$ 729	ebay.com
10.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	US$ 999	ebay.com
11.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
12.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	US$ 1 799	ebay.com
13.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
14.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
15.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
