Canon M100 vs Panasonic LX5
The Canon EOS M100 and the Panasonic Lumix DMC-LX5 are two digital cameras that were revealed to the public, respectively, in August 2017 and July 2010. The M100 is a mirrorless interchangeable lens camera, while the LX5 is a fixed lens compact. The cameras are based on an APS-C (M100) and a 1/1.7-inch (LX5) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

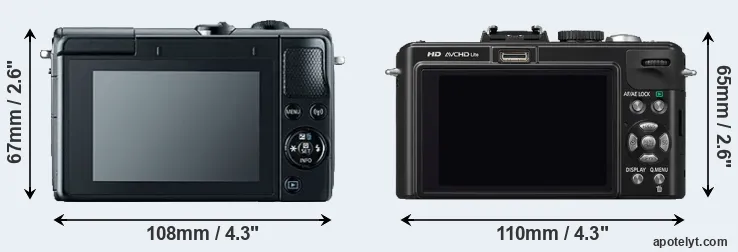

An illustration of the physical size and weight of the Canon M100 and the Panasonic LX5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is somewhat smaller (1 percent) than the Canon M100. In this context, it is worth noting that neither the M100 nor the LX5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the M100 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|2.||Panasonic LX5||110 mm||65 mm||43 mm||271 g||400||n||Jul 2010||499||ebay.com|
|3.||Canon M200||108 mm||67 mm||35 mm||299 g||315||n||Sep 2019||549||amazon.com|
|4.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779||ebay.com|
|5.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|6.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529||amazon.com|
|7.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||ebay.com|
|8.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|9.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|10.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|11.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|12.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|13.||Fujifilm X10||117 mm||70 mm||57 mm||350 g||270||n||Sep 2011||599||ebay.com|
|14.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499||ebay.com|
|15.||Panasonic LX7||111 mm||68 mm||46 mm||298 g||330||n||Jul 2012||499||ebay.com|
|16.||Panasonic FZ150||124 mm||82 mm||92 mm||528 g||410||n||Aug 2011||499||ebay.com|
|17.||Panasonic GF3||108 mm||67 mm||32 mm||264 g||300||n||Jun 2011||549||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M100 features an APS-C sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the M100 has a native 3:2 aspect ratio, while the one in the LX5 offers a 4:3 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.
With 24MP, the M100 offers a higher resolution than the LX5 (10MP), but the M100 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 2.14μm for the LX5) due to its larger sensor. Moreover, the M100 is a much more recent model (by 7 years and 1 month) than the LX5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic LX5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.
In terms of underlying technology, the M100 is build around a CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the M100 provides substantially higher image quality than the LX5, with an overall score that is 37 points higher. This advantage is based on 3.9 bits higher color depth, 2.1 EV in additional dynamic range, and 3.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|6.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|17.||Panasonic GF3||Four Thirds||12.0||4000||3000||1080/60i||20.6||10.1||459||50|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M100 provides a higher video resolution than the LX5. It can shoot video footage at 1080/60p, while the Panasonic is limited to 720/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The M100 and the LX5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The following table reports on some other key feature differences and similarities of the Canon M100, the Panasonic LX5, and comparable cameras.
|1.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|2.||Panasonic LX5||optional||n||3.0 / 460||fixed||n||1/4000s||2.5/s||Y||Y|
|3.||Canon M200||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|4.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|5.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon G9 X Mark II||none||n||3.0 / 1040||fixed||Y||1/2000s||8.2/s||Y||Y|
|7.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|8.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|10.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|11.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|12.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|13.||Fujifilm X10||optical||n||2.8 / 460||fixed||n||1/4000s||10.0/s||Y||Y|
|14.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0/s||Y||Y|
|15.||Panasonic LX7||optional||n||3.0 / 920||fixed||n||1/4000s||11.0/s||Y||Y|
|16.||Panasonic FZ150||202||n||3.0 / 460||swivel||n||1/2000s||12.0/s||Y||Y|
|17.||Panasonic GF3||none||n||3.0 / 460||fixed||Y||1/4000s||3.2/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M100 has a touchscreen, while the LX5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The M100 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the LX5 does not have a selfie-screen.
Concerning the storage of imaging data, both the M100 and the LX5 write their files to SDXC cards. The M100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the LX5 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|2.||Panasonic LX5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|3.||Canon M200||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|4.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|5.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|6.||Canon G9 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|7.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|9.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|10.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|12.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|13.||Fujifilm X10||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|14.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
|15.||Panasonic LX7||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Panasonic FZ150||Y||stereo / -||-||-||mini||2.0||-||-||-|
|17.||Panasonic GF3||-||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the M100 offers wifi support, while the LX5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the M100 and the LX5 have been discontinued, but can regularly be found used on ebay. The LX5 was replaced by the Panasonic LX7, while the M100 was followed by the Canon M200. Further information on the features and operation of the M100 and LX5 can be found, respectively, in the Canon M100 Manual (free pdf) or the online Panasonic LX5 Manual.
So how do things add up? Which of the two cameras – the Canon M100 or the Panasonic LX5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS M100:
- More detail: Offers more megapixels (24 vs 10MP) with a 58% higher linear resolution.
- Better image quality: Scores substantially higher (37 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.9 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.1 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (3.3 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/60p vs 720/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6.1 vs 2.5 flaps/sec) to capture the decisive moment.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 7 years and 1 month of technical progress since the LX5 launch.
Reasons to prefer the Panasonic Lumix DMC-LX5:
- Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Ready to shoot: Has an integrated lens, whereas the M100 necessitates an extra lens.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the M100).
- Longer lasting: Gets more shots (400 versus 295) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been around for much longer (launched in July 2010).
If the number of relative strengths (bullet points above) is taken as a guide, the M100 is the clear winner of the match-up (18 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M100 and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the M100 and the LX5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|2.||Panasonic LX5||4/5||+||..||73/100||4.5/5||4.5/5||Jul 2010||499||ebay.com|
|3.||Canon M200||..||+||3/5||79/100||4/5||4/5||Sep 2019||549||amazon.com|
|4.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779||ebay.com|
|5.||Canon T7||..||o||3.5/5||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|6.||Canon G9 X Mark II||4/5||..||4/5||75/100||4.5/5||4.5/5||Jan 2017||529||amazon.com|
|7.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779||ebay.com|
|8.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|9.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|10.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|11.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|12.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|13.||Fujifilm X10||..||..||..||76/100||4/5||4.5/5||Sep 2011||599||ebay.com|
|14.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499||ebay.com|
|15.||Panasonic LX7||3/5||+ +||..||75/100||4/5||4.5/5||Jul 2012||499||ebay.com|
|16.||Panasonic FZ150||3/5||+ +||..||76/100||4/5||4.5/5||Aug 2011||499||ebay.com|
|17.||Panasonic GF3||3/5||82/100||..||71/100||4.5/5||4/5||Jun 2011||549||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D C vs Panasonic LX5
- Canon G12 vs Canon M100
- Canon M100 vs Canon SX40
- Canon M100 vs Fujifilm X-Pro3
- Canon M100 vs Panasonic LF1
- Canon M100 vs Sony NEX-6
- Canon M100 vs Sony RX10
- Canon SX530 vs Panasonic LX5
- Canon XS vs Panasonic LX5
- Leica D-LUX 5 vs Panasonic LX5
- Panasonic LX5 vs Sony NEX-3N
- Panasonic LX5 vs Sony RX100 VII
Specifications: Canon M100 vs Panasonic LX5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M100||Panasonic LX5|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon EF-M mount lenses||24-90mm f/2.0-3.3|
|Launch Date||August 2017||July 2010|
|Launch Price||USD 499||USD 499|
|Sensor Specs||Canon M100||Panasonic LX5|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||22.3 x 14.9 mm||7.85 x 5.89 mm|
|Sensor Area||332.27 mm2||46.2365 mm2|
|Sensor Diagonal||26.8 mm||9.8 mm|
|Sensor Resolution||24 Megapixels||10 Megapixels|
|Image Resolution||6000 x 4000 pixels||3648 x 2736 pixels|
|Pixel Pitch||3.72 μm||2.14 μm|
|Pixel Density||7.22 MP/cm2||21.59 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||720/60p Video|
|ISO Setting||100 - 25,600 ISO||80 - 3,200 ISO|
|ISO Boost||no Enhancement||80 - 12,800 ISO|
|Image Processor||DIGIC 7||Venus FHD|
|DXO Sensor Quality (score)||78||41|
|DXO Color Depth (bits)||23.5||19.6|
|DXO Dynamic Range (EV)||12.9||10.8|
|DXO Low Light (ISO)||1272||132|
|Screen Specs||Canon M100||Panasonic LX5|
|Viewfinder Type||no viewfinder||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M100||Panasonic LX5|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||6.1 shutter flaps/s||2.5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M100||Panasonic LX5|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M100||Panasonic LX5|
|Battery Life (CIPA)||295 shots per charge||400 shots per charge|
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
110 x 65 x 43 mm
(4.3 x 2.6 x 1.7 in)
|Camera Weight||302 g (10.7 oz)||271 g (9.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
