Nikon 1 J5 vs Olympus XZ-2

The Nikon 1 J5 and the Olympus XZ-2 are two digital cameras that were officially introduced, respectively, in April 2015 and September 2012. The J5 is a mirrorless interchangeable lens camera, while the XZ-2 is a fixed lens compact. The cameras are based on an one-inch (J5) and a 1/1.7-inch (XZ-2) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon 1 J5		Olympus XZ-2
Mirrorless system camera		Fixed lens compact camera
Nikon 1 mount lenses		28-112mm f/1.8-2.5
20.7 MP – 1" sensor		11.8 MP – 1/1.7" sensor
4K/15p Video		1080/30p Video
ISO 160-12,800		ISO 100-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1037k dots		3.0" LCD – 920k dots
Tilting touchscreen		Tilting touchscreen
60 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
250 shots per battery charge		340 shots per battery charge
98 x 60 x 32 mm, 231 g		113 x 65 x 48 mm, 346 g

Check J5 offers at
ebay.com
Check XZ-2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 J5 and the Olympus XZ-2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

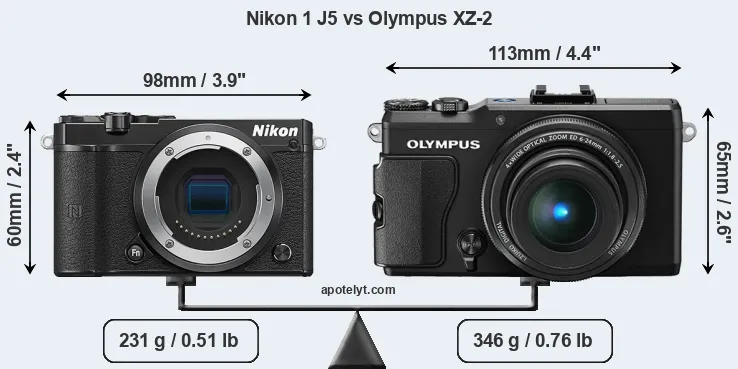

The side-by-side display below illustrates the physical size and weight of the Nikon 1 J5 and the Olympus XZ-2. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The J5 can be obtained in three different colors (black, silver, white), while the XZ-2 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-2 is notably larger (25 percent) than the Nikon 1 J5. In this context, it is worth noting that neither the J5 nor the XZ-2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-2 has a lens built in, whereas the J5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	EUR 449	ebay.com
2.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	EUR 599	ebay.com
3.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	EUR 399	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	EUR 499	ebay.com
5.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	EUR 299	ebay.com
6.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	EUR 329	ebay.com
7.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	EUR 589	ebay.com
8.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	EUR 749	ebay.com
9.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	EUR 599	ebay.com
10.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	EUR 549	ebay.com
11.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	EUR 499	ebay.com
12.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	EUR 480	ebay.com
13.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	EUR 499	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	EUR 399	ebay.com
15.		Sony HX80	102 mm	58 mm	36 mm	245 g	390	n	Mar 2016	EUR 449	ebay.com
16.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	EUR 469	ebay.com
17.		YI M1	114 mm	64 mm	34 mm	281 g	450	n	Sep 2016	EUR 349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Nikon 1 J5 features an one-inch sensor and the Olympus XZ-2 a 1/1.7-inch sensor. The sensor area in the XZ-2 is 63 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 4.4. The sensor in the J5 has a native 3:2 aspect ratio, while the one in the XZ-2 offers a 4:3 aspect.

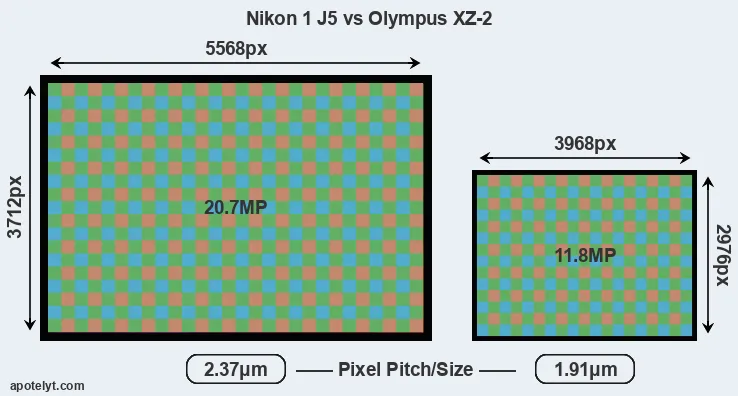

With 20.7MP, the J5 offers a higher resolution than the XZ-2 (11.8MP), but the J5 nevertheless has larger individual pixels (pixel pitch of 2.37μm versus 1.91μm for the XZ-2) due to its larger sensor. Moreover, the J5 is a much more recent model (by 2 years and 6 months) than the XZ-2, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the J5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon 1 J5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J5 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Olympus XZ-2 are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The J5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Nikon 1 J5 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Olympus XZ-2 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the J5 is build around a BSI-CMOS sensor, while the XZ-2 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the J5 provides substantially higher image quality than the XZ-2, with an overall score that is 16 points higher. This advantage is based on 0.7 bits higher color depth, 0.7 EV in additional dynamic range, and 1.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
2.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
3.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
6.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
7.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
8.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
9.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
10.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
11.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
12.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
13.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony HX80	1/2.3	18.0	4896	3672	1080/60p	20.4	11.8	822	48
16.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
17.		YI M1	Four Thirds	20.2	5184	3888	4K/30p	23.0	12.6	1030	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the J5 provides a higher video resolution than the XZ-2. It can shoot video footage at 4K/15p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The J5 and the XZ-2 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the XZ-2 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Nikon 1 J5 and Olympus XZ-2 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
2.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
3.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
6.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
7.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
8.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
9.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
10.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
11.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
12.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
13.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony HX80	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
17.		YI M1	none	n	3.0 / 1040	fixed	Y	1/4000s	5.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 J5 and the Olympus XZ-2 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the J5 and the XZ-2 write their files to SDXC cards. The J5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XZ-2 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 J5 and Olympus XZ-2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
8.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
9.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
13.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony HX80	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		YI M1	Y	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the J5 offers wifi support, while the XZ-2 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the J5 and the XZ-2 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Nikon and Olympus. Further information on the features and operation of the J5 and XZ-2 can be found, respectively, in the Nikon 1 J5 Manual (free pdf) or the online Olympus XZ-2 Manual.

Review summary

So how do things add up? Which of the two cameras – the Nikon 1 J5 or the Olympus XZ-2 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Nikon 1 J5:

• More detail: Offers more megapixels (20.7 vs 11.8MP) with a 35% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.1 stops ISO advantage).
• Better video: Provides higher definition movie capture (4K/15p vs 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (60 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (98x60mm vs 113x65mm) and thus needs less room in the bag.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 2 years and 6 months of technical progress since the XZ-2 launch.

Advantages of the Olympus XZ-2:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Ready to shoot: Has an integrated lens, whereas the J5 necessitates an extra lens.
• Longer lasting: Gets more shots (340 versus 250) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in September 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the J5 is the clear winner of the match-up (18 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon 1 J5 and the Olympus XZ-2 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the J5 and the XZ-2 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	EUR 449	ebay.com
2.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	EUR 599	ebay.com
3.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	EUR 399	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	EUR 499	ebay.com
5.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	EUR 299	ebay.com
6.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	EUR 329	ebay.com
7.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	EUR 589	ebay.com
8.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	EUR 749	ebay.com
9.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	EUR 599	ebay.com
10.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	EUR 549	ebay.com
11.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	EUR 499	ebay.com
12.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	EUR 480	ebay.com
13.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	EUR 499	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	EUR 399	ebay.com
15.		Sony HX80	..	..	..	..	..	..	Mar 2016	EUR 449	ebay.com
16.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	EUR 469	ebay.com
17.		YI M1	..	..	..	69/100	..	..	Sep 2016	EUR 349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
