Leica T vs Olympus TG-5
The Leica T (Typ 701) and the Olympus Tough TG-5 are two digital cameras that were revealed to the public, respectively, in April 2014 and May 2017. The T Typ 701 is a mirrorless interchangeable lens camera, while the TG-5 is a fixed lens compact. The cameras are based on an APS-C (T Typ 701) and a 1/2.3-inch (TG-5) sensor. The Leica has a resolution of 16.2 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica T (Typ 701) and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

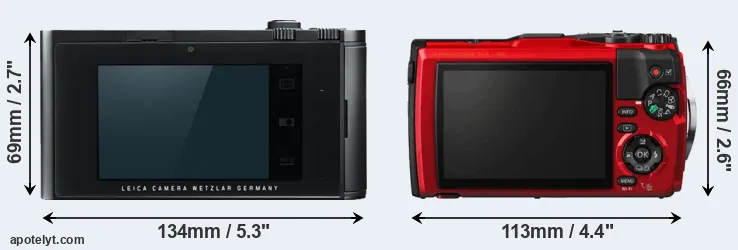

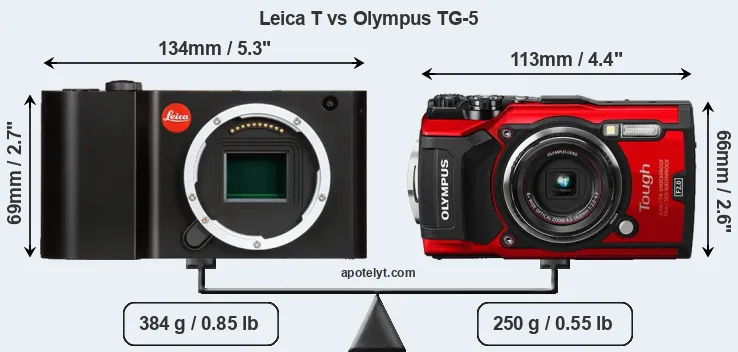

An illustration of the physical size and weight of the Leica T and the Olympus TG-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The T Typ 701 can be obtained in two different colors (black, silver), while the TG-5 is also available in two color-versions, but different ones (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is notably smaller (19 percent) than the Leica T. It is noteworthy in this context that the TG-5 is splash and dust-proof, while the T Typ 701 does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the T Typ 701 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850|
|2.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|3.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|4.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|5.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399|
|6.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|7.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795|
|8.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950|
|9.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695|
|10.||Leica X Vario||133 mm||73 mm||95 mm||680 g||450||n||Jun 2013||2,850|
|11.||Leica X2||124 mm||69 mm||52 mm||345 g||450||n||May 2012||1,995|
|12.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|13.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|14.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|15.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|16.||Ricoh GR II||117 mm||63 mm||35 mm||251 g||320||n||Jun 2015||699|
|17.||Sony A6000||120 mm||67 mm||45 mm||344 g||360||n||Feb 2014||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-5 was launched at a lower price than the T Typ 701, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica T features an APS-C sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 5.6. The sensor in the T Typ 701 has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.

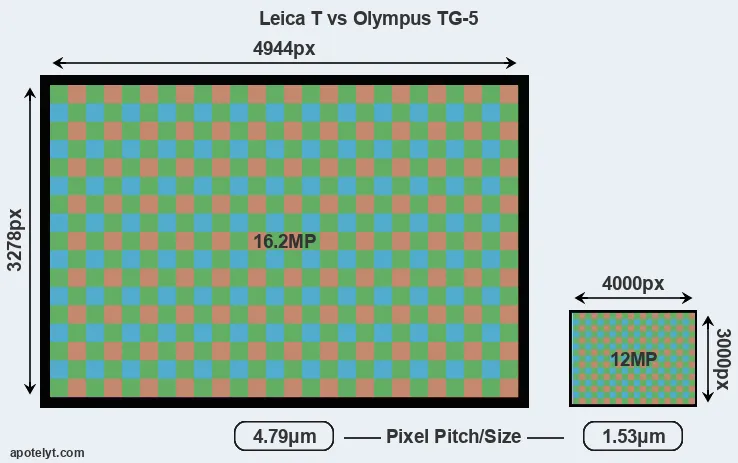

With 16.2MP, the T Typ 701 offers a higher resolution than the TG-5 (12MP), but the T Typ 701 nevertheless has larger individual pixels (pixel pitch of 4.79μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a much more recent model (by 3 years) than the T Typ 701, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the T Typ 701 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica T implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T Typ 701 for good quality output (200 dots per inch) amounts to 24.7 x 16.4 inches or 62.8 x 41.6 cm, for very good quality (250 dpi) 19.8 x 13.1 inches or 50.2 x 33.3 cm, and for excellent quality (300 dpi) 16.5 x 10.9 inches or 41.9 x 27.8 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Leica T (Typ 701) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|10.||Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78|
|16.||Ricoh GR II||APS-C||16.1||4928||3264||1080/30p||23.6||13.7||1078||80|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the TG-5 provides a better video resolution than the T Typ 701. It can shoot movie footage at 4K/30p, while the Leica is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The T Typ 701 and the TG-5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the T Typ 701 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Leica T and Olympus TG-5 along with similar information for a selection of comparators.
|1.||Leica T||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0||Y||n|
|2.||Olympus TG-5||none||n||3.0 / 460||fixed||n||1/2000s||20.0||Y||Y|
|3.||Canon SX730||none||n||3.0 / 922||tilting||n||1/3200s||5.9||Y||Y|
|4.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9||Y||n|
|5.||Fujifilm X-A2||none||n||3.0 / 920||tilting||n||1/4000s||5.6||Y||n|
|6.||Fujifilm X-T10||2360||n||3.0 / 920||tilting||n||1/4000s||8.0||Y||n|
|7.||Leica CL||2360||Y||3.0 / 1040||fixed||Y||1/8000s||10.0||n||n|
|8.||Leica TL2||optional||n||3.7 / 1230||fixed||Y||1/4000s||7.0||n||n|
|9.||Leica TL||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0||Y||n|
|10.||Leica X Vario||optional||n||3.0 / 920||fixed||n||1/2000s||5.0||Y||n|
|11.||Leica X2||optional||n||2.7 / 230||fixed||n||1/2000s||5.0||Y||n|
|12.||Nikon W300||none||n||3.0 / 921||fixed||n||1/4000s||7.0||Y||Y|
|13.||Olympus TG-6||none||n||3.0 / 1040||fixed||n||1/2000s||20.0||Y||Y|
|14.||Olympus TG-4||none||n||3.0 / 460||fixed||n||1/2000s||5.0||Y||Y|
|15.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0||Y||Y|
|16.||Ricoh GR II||optional||n||3.0 / 1230||fixed||n||1/4000s||4.0||Y||n|
|17.||Sony A6000||1440||n||3.0 / 922||tilting||n||1/4000s||11.0||Y||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T Typ 701 has a touchscreen, while the TG-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the T Typ 701 and the TG-5 write their files to SDXC cards. The TG-5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T Typ 701 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica T (Typ 701) and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica T||Y||stereo / mono||-||-||-||2.0||Y||-||-|
|2.||Olympus TG-5||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon SX730||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|5.||Fujifilm X-A2||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|6.||Fujifilm X-T10||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|7.||Leica CL||Y||stereo / mono||-||-||-||-||Y||-||-|
|8.||Leica TL2||Y||stereo / mono||-||-||micro||3.0||Y||-||-|
|9.||Leica TL||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|10.||Leica X Vario||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Leica X2||Y||- / -||-||-||mini||2.0||-||-||-|
|12.||Nikon W300||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|13.||Olympus TG-6||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|14.||Olympus TG-4||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
|16.||Ricoh GR II||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|17.||Sony A6000||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
It is notable that the T Typ 701 has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the T Typ 701 and the TG-5 have been discontinued, but can regularly be found used on eBay. The T Typ 701 was replaced by the Leica TL, while the TG-5 was followed by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So what is the bottom line? Which of the two cameras – the Leica T or the Olympus TG-5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Leica T (Typ 701):
- More detail: Offers more megapixels (16.2 vs 12MP) with a 19% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1230k vs 460k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Longer lasting: Can take more shots (400 versus 340) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More heavily discounted: Has been available for much longer (launched in April 2014).
Advantages of the Olympus Tough TG-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has an integrated lens, whereas the T Typ 701 necessitates an extra lens.
- More compact: Is smaller (113x66mm vs 134x69mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the T Typ 701).
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 3 years of technical progress since the T Typ 701 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the T Typ 701 emerges as the winner of the contest (16 : 14 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica T and the Olympus TG-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the T Typ 701 and the TG-5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica T||3/5||..||..||..||4/5||4/5||Apr 2014||1,850|
|2.||Olympus TG-5||..||+ +||..||..||4/5||4/5||May 2017||449|
|3.||Canon SX730||..||+||..||..||4/5||4/5||Apr 2017||399|
|4.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549|
|5.||Fujifilm X-A2||4/5||..||..||..||4.5/5||4.5/5||Jan 2015||399|
|6.||Fujifilm X-T10||4.5/5||+ +||..||80/100||5/5||5/5||May 2015||799|
|7.||Leica CL||..||..||4.2/5||..||..||4/5||Nov 2017||2,795|
|8.||Leica TL2||3.5/5||..||3/5||..||4/5||4/5||Jul 2017||1,950|
|9.||Leica TL||..||..||..||..||..||4/5||Nov 2016||1,695|
|10.||Leica X Vario||3/5||..||..||..||4/5||4/5||Jun 2013||2,850|
|11.||Leica X2||3/5||..||..||..||3/5||4/5||May 2012||1,995|
|12.||Nikon W300||..||+||..||..||4/5||4/5||May 2017||389|
|13.||Olympus TG-6||..||+ +||4.5/5||76/100||4/5||4/5||May 2019||449|
|14.||Olympus TG-4||..||+||..||79/100||4/5||4/5||Apr 2015||379|
|15.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499|
|16.||Ricoh GR II||..||..||..||..||4.5/5||4.5/5||Jun 2015||699|
|17.||Sony A6000||5/5||+||4.5/5||80/100||4.5/5||5/5||Feb 2014||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Leica D-LUX 7 vs Leica T
- Leica D-LUX Typ 109 vs Leica T
- Leica T vs Nikon D4
- Leica T vs Nikon D750
- Leica T vs Olympus E-M10 III
- Leica T vs Sony NEX-5N
- Olympus E-M1 III vs Olympus TG-5
- Olympus E-M10 vs Olympus TG-5
- Olympus TG-5 vs Sony A77
- Olympus TG-5 vs Sony A7R III
- Olympus TG-5 vs Sony RX100 II
- Olympus TG-5 vs Sony RX1R II
Specifications: Leica T vs Olympus TG-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica T||Olympus TG-5|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Leica T mount lenses||25-100mm f/2.0-4.9|
|Launch Date||April 2014||May 2017|
|Launch Price||USD 1,850||USD 449|
|Sensor Specs||Leica T||Olympus TG-5|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||23.6 x 15.7 mm||6.17 x 4.55 mm|
|Sensor Area||370.52 mm2||28.0735 mm2|
|Sensor Diagonal||28.3 mm||7.7 mm|
|Sensor Resolution||16.2 Megapixels||12 Megapixels|
|Image Resolution||4944 x 3278 pixels||4000 x 3000 pixels|
|Pixel Pitch||4.79 μm||1.53 μm|
|Pixel Density||4.37 MP/cm2||42.74 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 12,500 ISO||100 - 12,800 ISO|
|DXO Sensor Quality (score)||75||..|
|DXO Color Depth (bits)||23.0||..|
|DXO Dynamic Range (EV)||12.7||..|
|DXO Low Light (ISO)||1082||..|
|Screen Specs||Leica T||Olympus TG-5|
|Viewfinder Type||Viewfinder optional||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.7inch||3.0inch|
|LCD Resolution||1230k dots||460k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica T||Olympus TG-5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/2000s|
|Continuous Shooting||5 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Leica T||Olympus TG-5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Leica T||Olympus TG-5|
|Environmental Sealing||not weather sealed||Waterproof body (15m)|
|Battery Life (CIPA)||400 shots per charge||340 shots per charge|
|In-Camera Charging||USB charging||USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||384 g (13.5 oz)||250 g (8.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
