Leica T vs Olympus E-420
The Leica T (Typ 701) and the Olympus E-420 are two digital cameras that were announced, respectively, in April 2014 and March 2008. The T Typ 701 is a mirrorless interchangeable lens camera, while the E-420 is a DSLR. The cameras are based on an APS-C (T Typ 701) and a Four Thirds (E-420) sensor. The Leica has a resolution of 16.2 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica T (Typ 701) and the Olympus E-420? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

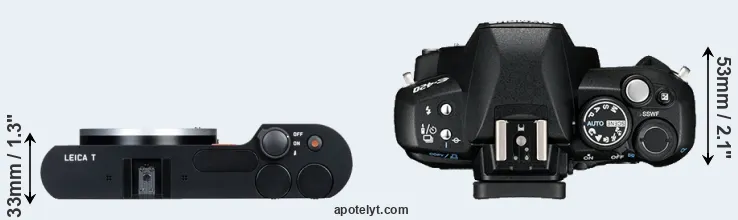

An illustration of the physical size and weight of the Leica T and the Olympus E-420 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The T Typ 701 can be obtained in two different colors (black, silver), while the E-420 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-420 is notably larger (28 percent) than the Leica T. Moreover, the E-420 is markedly heavier (15 percent) than the T Typ 701. In this context, it is worth noting that neither the T Typ 701 nor the E-420 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the T Typ 701 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850||ebay.com|
|2.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599||ebay.com|
|3.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|4.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|5.||Canon 100D||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|6.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950||amazon.com|
|7.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695||ebay.com|
|8.||Leica X Vario||133 mm||73 mm||95 mm||680 g||450||n||Jun 2013||2,850||ebay.com|
|9.||Leica X2||124 mm||69 mm||52 mm||345 g||450||n||May 2012||1,995||ebay.com|
|10.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|11.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||ebay.com|
|12.||Olympus E-450||130 mm||91 mm||53 mm||440 g||500||n||Mar 2009||499||ebay.com|
|13.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699||ebay.com|
|14.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699||ebay.com|
|15.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699||ebay.com|
|16.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699||ebay.com|
|17.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-420 was launched at a markedly lower price (by 68 percent) than the T Typ 701, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica T features an APS-C sensor and the Olympus E-420 a Four Thirds sensor. The sensor area in the E-420 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the T Typ 701 has a native 3:2 aspect ratio, while the one in the E-420 offers a 4:3 aspect.
With 16.2MP, the T Typ 701 offers a higher resolution than the E-420 (10MP), but the T Typ 701 nevertheless has marginally larger individual pixels (pixel pitch of 4.79μm versus 4.74μm for the E-420) due to its larger sensor. Moreover, the T Typ 701 is a much more recent model (by 6 years and 1 month) than the E-420, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the T Typ 701 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica T implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T Typ 701 for good quality output (200 dots per inch) amounts to 24.7 x 16.4 inches or 62.8 x 41.6 cm, for very good quality (250 dpi) 19.8 x 13.1 inches or 50.2 x 33.3 cm, and for excellent quality (300 dpi) 16.5 x 10.9 inches or 41.9 x 27.8 cm. The corresponding values for the Olympus E-420 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Leica T (Typ 701) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus E-420 are ISO 100 to ISO 1600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the T Typ 701 provides substantially higher image quality than the E-420, with an overall score that is 19 points higher. This advantage is based on 1.5 bits higher color depth, 2.3 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|8.||Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78|
|11.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|12.||Olympus E-450||Four Thirds||10.0||3648||2736||none||21.5||10.5||512||56|
|13.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|14.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|15.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|16.||Olympus E-400||Four Thirds||10.0||3648||2736||none||21.0||10.6||127||53|
|17.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.4||904||71|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The T Typ 701 indeed provides movie recording capabilities, while the E-420 does not. The highest resolution format that the T Typ 701 can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-420 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the T Typ 701 relies on live view and the rear LCD for framing. That said, the T Typ 701 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Leica T and Olympus E-420 along with similar information for a selection of comparators.
|1.||Leica T||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|2.||Olympus E-420||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||n|
|3.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|4.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|5.||Canon 100D||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|6.||Leica TL2||optional||n||3.7 / 1230||fixed||Y||1/4000s||7.0/s||n||n|
|7.||Leica TL||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|8.||Leica X Vario||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|9.||Leica X2||optional||n||2.7 / 230||fixed||n||1/2000s||5.0/s||Y||n|
|10.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|12.||Olympus E-450||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||n|
|13.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0/s||Y||Y|
|14.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||Y|
|15.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|16.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|17.||Panasonic G7||2360||n||3.0 / 1040||swivel||Y||1/4000s||7.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T Typ 701 has a touchscreen, while the E-420 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The T Typ 701 writes its imaging data to SDXC cards, while the E-420 uses Compact Flash or xD Picture cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T Typ 701 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica T (Typ 701) and Olympus E-420 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica T||Y||stereo / mono||-||-||-||2.0||Y||-||-|
|2.||Olympus E-420||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon 100D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|6.||Leica TL2||Y||stereo / mono||-||-||micro||3.0||Y||-||-|
|7.||Leica TL||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|8.||Leica X Vario||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Leica X2||Y||- / -||-||-||mini||2.0||-||-||-|
|10.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|11.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|12.||Olympus E-450||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Panasonic G7||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
It is notable that the T Typ 701 offers wifi support, while the E-420 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the T Typ 701 and the E-420 have been discontinued, but can regularly be found used on ebay. The T Typ 701 was replaced by the Leica TL, while the E-420 does not have a direct successor. Further information on the features and operation of the T Typ 701 and E-420 can be found, respectively, in the Leica T Manual (free pdf) or the online Olympus E-420 Manual.
So how do things add up? Is there a clear favorite between the Leica T and the Olympus E-420? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Leica T (Typ 701):
- More detail: Offers more megapixels (16.2 vs 10MP) with a 30% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (19 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Larger screen: Has a bigger rear LCD (3.7" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1230k vs 215k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (5 vs 3.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (134x69mm vs 130x91mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 56g or 13 percent) and hence easier to carry around.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 6 years and 1 month of technical progress since the E-420 launch.
Advantages of the Olympus E-420:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Gets more shots (500 versus 400) out of a single battery charge.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (68 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2008).
If the number of relative strengths (bullet points above) is taken as a guide, the T Typ 701 is the clear winner of the match-up (18 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica T and the Olympus E-420 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the T Typ 701 or the E-420 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica T||3/5||..||..||..||4/5||4/5||Apr 2014||1,850||ebay.com|
|2.||Olympus E-420||..||85/100||..||+ +||4/5||4.5/5||Mar 2008||599||ebay.com|
|3.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|4.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|5.||Canon 100D||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|6.||Leica TL2||3.5/5||..||3/5||..||4/5||4/5||Jul 2017||1,950||amazon.com|
|7.||Leica TL||..||..||..||..||..||4/5||Nov 2016||1,695||ebay.com|
|8.||Leica X Vario||3/5||..||..||..||4/5||4/5||Jun 2013||2,850||ebay.com|
|9.||Leica X2||3/5||..||..||..||3/5||4/5||May 2012||1,995||ebay.com|
|10.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|11.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649||ebay.com|
|12.||Olympus E-450||..||..||..||..||4/5||4/5||Mar 2009||499||ebay.com|
|13.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699||ebay.com|
|14.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699||ebay.com|
|15.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699||ebay.com|
|16.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699||ebay.com|
|17.||Panasonic G7||4/5||+ +||..||80/100||5/5||4.5/5||May 2015||649||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon G1 X vs Leica T
- Canon G5 X Mark II vs Olympus E-420
- Canon G7 X vs Olympus E-420
- Canon T1i vs Olympus E-420
- Canon T3i vs Olympus E-420
- Fujifilm X-E2S vs Leica T
- Leica S Typ 007 vs Olympus E-420
- Leica T vs Nikon D3
- Leica T vs Olympus E-M10 IV
- Leica T vs Panasonic LX10
- Leica T vs Sony A9 II
- Olympus E-420 vs Sony A6100
Specifications: Leica T vs Olympus E-420
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica T||Olympus E-420|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Leica T mount lenses||Four Thirds lenses|
|Launch Date||April 2014||March 2008|
|Launch Price||USD 1,850||USD 599|
|Sensor Specs||Leica T||Olympus E-420|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.7 mm||17.3 x 13.0 mm|
|Sensor Area||370.52 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16.2 Megapixels||10 Megapixels|
|Image Resolution||4944 x 3278 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.79 μm||4.74 μm|
|Pixel Density||4.37 MP/cm2||4.44 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,500 ISO||100 - 1,600 ISO|
|DXO Sensor Quality (score)||75||56|
|DXO Color Depth (bits)||23.0||21.5|
|DXO Dynamic Range (EV)||12.7||10.4|
|DXO Low Light (ISO)||1082||527|
|Screen Specs||Leica T||Olympus E-420|
|Viewfinder Type||Viewfinder optional||Optical viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.7inch||2.7inch|
|LCD Resolution||1230k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica T||Olympus E-420|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||3.5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|Connectivity Specs||Leica T||Olympus E-420|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Leica T||Olympus E-420|
|Battery Life (CIPA)||400 shots per charge||500 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
130 x 91 x 53 mm
(5.1 x 3.6 x 2.1 in)
|Camera Weight||384 g (13.5 oz)||440 g (15.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
