Leica S2 vs Pentax 645Z

The Leica S2 and the Pentax 645Z are two professional cameras that were announced, respectively, in September 2008 and April 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a medium format sensor. The Leica has a resolution of 37.5 megapixels, whereas the Pentax provides 51.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica S2		Pentax 645Z
Digital single lens reflex		Digital single lens reflex
Leica S mount lenses		Pentax 645 mount lenses
37.5 MP – Medium Format sensor		51.1 MP – Medium Format sensor
no Video		1080/60i Video
ISO 80-1,250		ISO 100-204,800
Optical viewfinder		Optical viewfinder
3.0" LCD – 460k dots		3.2" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
1.5 shutter flaps per second		3 shutter flaps per second
Weathersealed body		Weathersealed body
160 x 120 x 80 mm, 1410 g		156 x 117 x 123 mm, 1550 g

Check S2 offers at
ebay.com
Check 645Z offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S2 and the Pentax 645Z? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

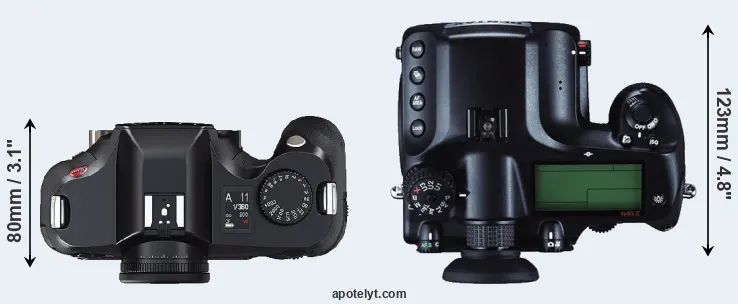

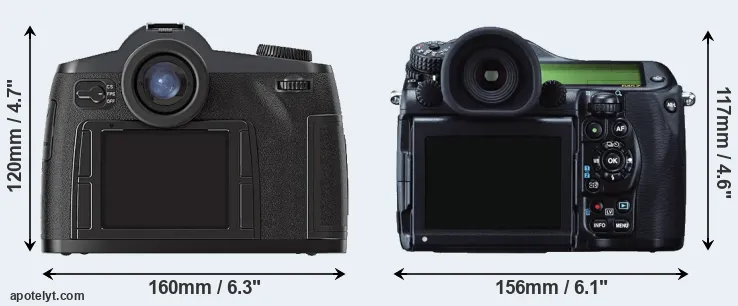

Body comparison

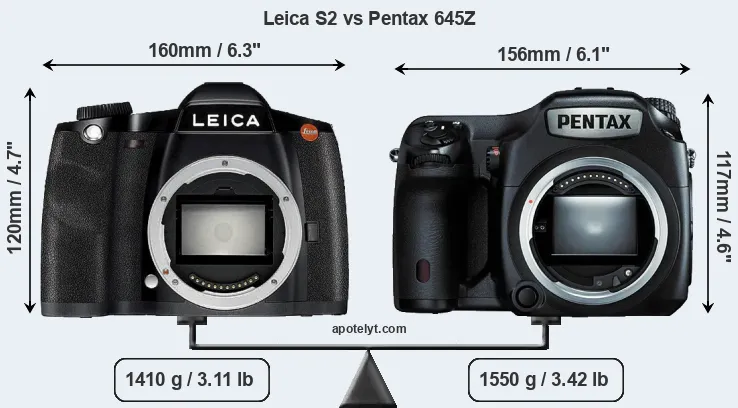

The physical size and weight of the Leica S2 and the Pentax 645Z are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645Z is notably smaller (5 percent) than the Leica S2. However, the 645Z is markedly heavier (10 percent) than the S2. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the S2 gets .. shots out of its Leica BP-PRO1 battery, while the 645Z can take 650 images on a single charge of its Pentax D-LI90 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	22,995	ebay.com
2.		Pentax 645Z	156 mm	117 mm	123 mm	1550 g	650	Y	Apr 2014	8,499	ebay.com
3.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
4.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
5.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	7,999	ebay.com
6.		Hasselblad X1D	150 mm	98 mm	71 mm	725 g	..	Y	Jun 2016	8,995	ebay.com
7.		Leica S3	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2018	18,995	ebay.com
8.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	7,450	ebay.com
9.		Leica S-E Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	16,900	ebay.com
10.		Leica S Typ 007	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	24,490	ebay.com
11.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	21,950	ebay.com
12.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	21,490	ebay.com
13.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	5,199	ebay.com
14.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	7,999	ebay.com
15.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	4,999	ebay.com
16.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	9,995	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 645Z was launched at a markedly lower price (by 63 percent) than the S2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

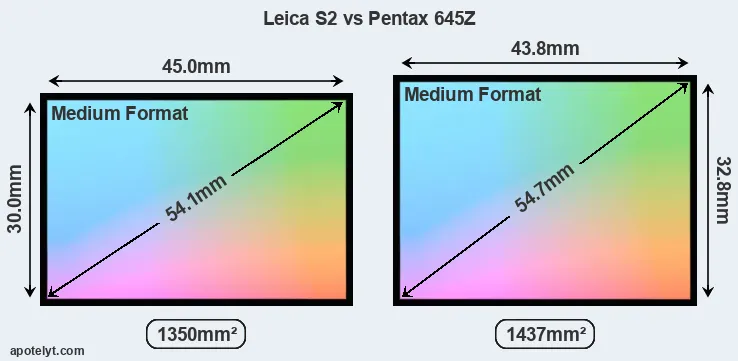

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a medium format sensor, but their sensors differ slightly in size. The sensor area in the 645Z is 6 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 0.8 (S2) and 0.79. The sensor in the S2 has a native 3:2 aspect ratio, while the one in the 645Z offers a 4:3 aspect.

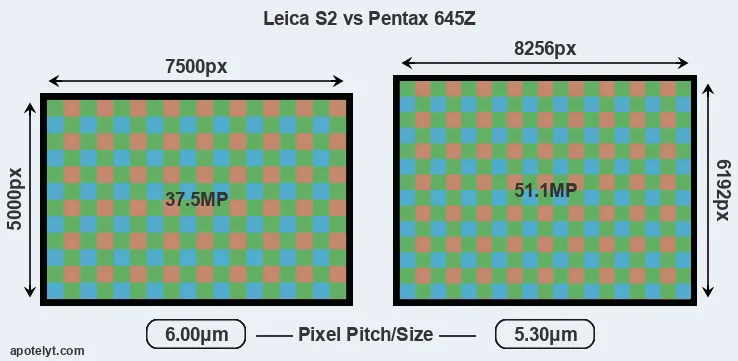

With 51.1MP, the 645Z offers a higher resolution than the S2 (37.5MP), but the 645Z has smaller individual pixels (pixel pitch of 5.30μm versus 6.00μm for the S2). Yet, the 645Z is a much more recent model (by 5 years and 6 months) than the S2, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Pentax 645Z implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645Z for good quality output (200 dots per inch) amounts to 41.3 x 31 inches or 104.9 x 78.6 cm, for very good quality (250 dpi) 33 x 24.8 inches or 83.9 x 62.9 cm, and for excellent quality (300 dpi) 27.5 x 20.6 inches or 69.9 x 52.4 cm. The corresponding values for the Leica S2 are 37.5 x 25 inches or 95.3 x 63.5 cm for good quality, 30 x 20 inches or 76.2 x 50.8 cm for very good quality, and 25 x 16.7 inches or 63.5 x 42.3 cm for excellent quality prints.

The Leica S2 has a native sensitivity range from ISO 80 to ISO 1250. The corresponding ISO settings for the Pentax 645Z are ISO 100 to ISO 204800 (no boost).

In terms of underlying technology, the S2 is build around a CCD sensor, while the 645Z uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
2.		Pentax 645Z	Medium Format	51.1	8256	6192	1080/60i	26.0	14.7	4505	101
3.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
4.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
5.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
6.		Hasselblad X1D	Medium Format	51.3	8272	6200	1080/25p	26.2	14.8	4489	102
7.		Leica S3	Medium Format	64.0	9800	6533	4K/24p	25.6	14.4	3143	98
8.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
9.		Leica S-E Typ 006	Medium Format	37.5	7500	5000	none	25.1	13.7	2763	93
10.		Leica S Typ 007	Medium Format	37.5	7500	5000	4K/24p	25.1	13.7	2763	93
11.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
12.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
13.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
14.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
15.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
16.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The 645Z indeed provides for movie recording, while the S2 does not. The highest resolution format that the 645Z can use is 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The S2 and the 645Z are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 645Z offers a wider field of view (98%) than the one in the S2 (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S2 has a higher magnification (0.86x vs 0.78x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Leica S2 and Pentax 645Z in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
2.		Pentax 645Z	optical	Y	3.2 / 1037	tilting	n	1/4000s	3.0/s	n	n
3.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
6.		Hasselblad X1D	2360	n	3.0 / 920	fixed	Y	1/2000s	2.3/s	n	n
7.		Leica S3	optical	Y	3.0 / 922	fixed	n	1/4000s	3.0/s	n	n
8.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
9.		Leica S-E Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
10.		Leica S Typ 007	optical	Y	3.0 / 922	fixed	n	1/4000s	3.5/s	n	n
11.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
12.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
13.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
14.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
15.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
16.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Pentax 645Z has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The S2 writes its imaging data to Compact Flash or SDHC cards, while the 645Z uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The 645Z supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the S2 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S2 and Pentax 645Z and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
2.		Pentax 645Z	Y	stereo / mono	Y	-	mini	3.0	-	-	-
3.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
4.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
6.		Hasselblad X1D	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
7.		Leica S3	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
8.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
9.		Leica S-E Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
10.		Leica S Typ 007	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
11.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
12.		Leica S1	-	- / -	-	-	-	-	-	-	-
13.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
15.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
16.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the S2 and the 645Z have been discontinued, but can regularly be found used on ebay. The S2 was replaced by the Leica S Typ 006, while the 645Z does not have a direct successor. Further information on the features and operation of the S2 and 645Z can be found, respectively, in the Leica S2 Manual (free pdf) or the online Pentax 645Z Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Leica S2 or the Pentax 645Z – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica S2:

• Larger viewfinder image: Features a viewfinder with a higher magnification (0.86x vs 0.78x).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in September 2008).

Advantages of the Pentax 645Z:

• More detail: Has more megapixels (51.1 vs 37.5MP), which boosts linear resolution by 14%.
• Broader imaging potential: Can capture not only stills but also 1080/60i video.
• More complete view: Has a viewfinder with a larger field of view (98% vs 96%).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster burst: Shoots at higher frequency (3 vs 1.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (63 percent cheaper at launch).
• More modern: Reflects 5 years and 6 months of technical progress since the S2 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the 645Z is the clear winner of the contest (12 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica S2 and the Pentax 645Z place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the S2 or the 645Z perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica S2	..	..	..	..	..	..	Sep 2008	22,995	ebay.com
2.		Pentax 645Z	5/5	..	3.5/5	..	4.5/5	5/5	Apr 2014	8,499	ebay.com
3.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
4.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
5.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	7,999	ebay.com
6.		Hasselblad X1D	..	o	..	81/100	..	4/5	Jun 2016	8,995	ebay.com
7.		Leica S3	..	..	..	..	..	..	Sep 2018	18,995	ebay.com
8.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	7,450	ebay.com
9.		Leica S-E Typ 006	..	..	..	..	..	..	Sep 2014	16,900	ebay.com
10.		Leica S Typ 007	4/5	..	..	..	..	..	Sep 2014	24,490	ebay.com
11.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	21,950	ebay.com
12.		Leica S1	..	..	..	..	..	..	Aug 1996	21,490	ebay.com
13.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	5,199	ebay.com
14.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	7,999	ebay.com
15.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	4,999	ebay.com
16.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	9,995	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
