Leica S1 vs V-LUX Typ 114

The Leica S1 Pro and the Leica V-LUX (Typ 114) are two digital cameras that were announced, respectively, in August 1996 and September 2014. The S1 is a mirrorless interchangeable lens camera, while the V-LUX Typ 114 is a fixed lens compact. The cameras are based on a medium format (S1) and an one-inch (V-LUX Typ 114) sensor. The S1 has a resolution of 26.4 megapixels, whereas the V-LUX Typ 114 provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica S1		Leica V-LUX Typ 114
Mirrorless system camera		Fixed lens compact camera
Leica R mount lenses		25-400mm f/2.8-4.0
26.4 MP – Medium Format sensor		20 MP – 1" sensor
no Video		4K/30p Video
ISO 50-1,600		ISO 125-12,800 (80 - 25,600)
Optical viewfinder		Electronic viewfinder (2359k dots)
no LCD		3.0" LCD – 921k dots
no rear screen		Swivel screen (not touch-sensitive)
0.01 shutter flaps per second		12 shutter flaps per second
339 x 214 x 119 mm, 2500 g		137 x 99 x 131 mm, 830 g

Check S1 offers at
ebay.com
Check V-LUX Typ 114 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S1 Pro and the Leica V-LUX (Typ 114)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

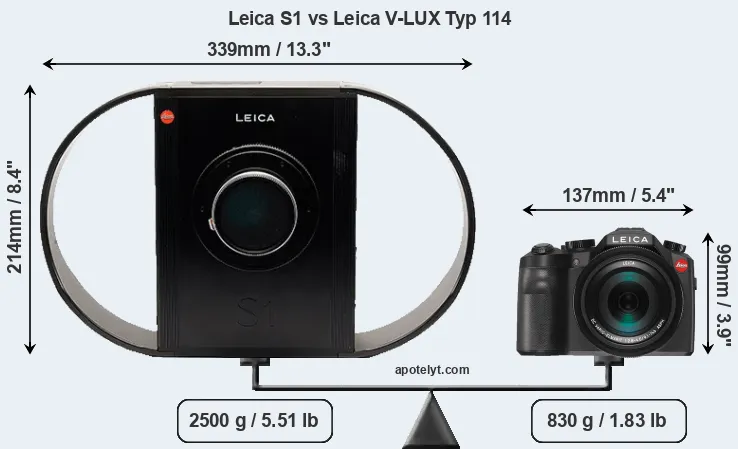

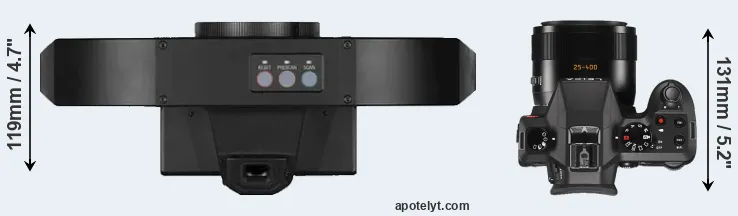

Body comparison

The physical size and weight of the Leica S1 and the Leica V-LUX Typ 114 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica V-LUX Typ 114 is considerably smaller (81 percent) than the Leica S1. In this context, it is worth noting that neither the S1 nor the V-LUX Typ 114 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the V-LUX Typ 114 has a lens built in, whereas the S1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the S1 and their specifications in the Leica R Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	US$ 21 499	ebay.com
2.		Leica V-LUX Typ 114	137 mm	99 mm	131 mm	830 g	360	n	Sep 2014	US$ 1 349	ebay.com
3.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
4.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
5.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
6.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
7.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
8.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
9.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
10.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
11.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	US$ 1 249	amazon.com
12.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
13.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
14.		Sony A6100	120 mm	67 mm	59 mm	396 g	420	n	Aug 2019	US$ 749	ebay.com
15.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	US$ 899	amazon.com
16.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The V-LUX Typ 114 was launched at a lower price than the S1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica S1 features a medium format sensor and the Leica V-LUX Typ 114 an one-inch sensor. The sensor area in the V-LUX Typ 114 is 91 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.85 and 2.7. The sensor in the S1 has a native 1:1 aspect ratio, while the one in the V-LUX Typ 114 offers a 3:2 aspect.

With 26.4MP, the S1 offers a higher resolution than the V-LUX Typ 114 (20MP), but the S1 nevertheless has larger individual pixels (pixel pitch of 7.01μm versus 2.41μm for the V-LUX Typ 114) due to its larger sensor. However, the V-LUX Typ 114 is a much more recent model (by 18 years) than the S1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica S1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S1 for good quality output (200 dots per inch) amounts to 25.7 x 25.7 inches or 65.3 x 65.3 cm, for very good quality (250 dpi) 20.6 x 20.6 inches or 52.2 x 52.2 cm, and for excellent quality (300 dpi) 17.1 x 17.1 inches or 43.5 x 43.5 cm. The corresponding values for the Leica V-LUX Typ 114 are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The Leica S1 Pro has a native sensitivity range from ISO 50 to ISO 1600. The corresponding ISO settings for the Leica V-LUX (Typ 114) are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

In terms of underlying technology, the S1 is build around a CCD sensor, while the V-LUX Typ 114 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
2.		Leica V-LUX Typ 114	1-inch	20.0	5472	3648	4K/30p	21.6	11.7	127	60
3.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
4.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
5.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
6.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
7.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
8.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
9.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
10.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
11.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
12.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
13.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
14.		Sony A6100	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1947	84
15.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
16.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The V-LUX Typ 114 indeed provides for movie recording, while the S1 does not. The highest resolution format that the V-LUX Typ 114 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the V-LUX Typ 114 has an electronic viewfinder (2359k dots), while the S1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Leica S1 and Leica V-LUX Typ 114 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
2.		Leica V-LUX Typ 114	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
3.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
4.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
6.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
7.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
8.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
9.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
10.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
11.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
12.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
13.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
14.		Sony A6100	1440	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
15.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
16.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The V-LUX Typ 114 has one, while the S1 does not. While the built-in flash of the V-LUX Typ 114 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the V-LUX Typ 114 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica V-LUX Typ 114 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The S1 writes its imaging data to external storage, while the V-LUX Typ 114 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S1 Pro and Leica V-LUX (Typ 114) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica S1	-	- / -	-	-	-	-	-	-	-
2.		Leica V-LUX Typ 114	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
3.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
4.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
5.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
6.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
7.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
8.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
10.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
11.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
13.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
14.		Sony A6100	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y
15.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y
16.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the V-LUX Typ 114 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the S1 does not provide wifi capability.

Both the S1 and the V-LUX Typ 114 have been discontinued, but can regularly be found used on ebay. The S1 was replaced by the Leica S2, while the V-LUX Typ 114 was followed by the Leica V-LUX 5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica website.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Leica S1 or the Leica V-LUX Typ 114 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Leica S1 Pro:

• More detail: Offers more megapixels (26.4 vs 20MP) with a 11% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More heavily discounted: Has been available for much longer (launched in August 1996).

Reasons to prefer the Leica V-LUX (Typ 114):

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Rear screen: Has a backside LCD (3.0") for image review and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (12 vs 0.01 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the S1 necessitates an extra lens.
• More compact: Is smaller (137x99mm vs 339x214mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the S1).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 18 years of technical progress since the S1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the V-LUX Typ 114 is the clear winner of the contest (19 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica S1 and the Leica V-LUX Typ 114 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the S1 and the V-LUX Typ 114 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica S1	..	..	..	..	..	..	Aug 1996	US$ 21 499	ebay.com
2.		Leica V-LUX Typ 114	..	..	..	..	..	5/5	Sep 2014	US$ 1 349	ebay.com
3.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
4.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
5.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
6.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
7.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
8.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
9.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
10.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
11.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	US$ 1 249	amazon.com
12.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
13.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
14.		Sony A6100	..	..	4/5	82/100	4/5	5/5	Aug 2019	US$ 749	ebay.com
15.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	US$ 899	amazon.com
16.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
