Leica M10 vs Olympus TG-5
The Leica M10 (Typ 3656) and the Olympus Tough TG-5 are two digital cameras that were announced, respectively, in January 2017 and May 2017. The M10 is a rangefinder-style mirrorless camera, while the TG-5 is a fixed lens compact. The cameras are based on a full frame (M10) and a 1/2.3-inch (TG-5) sensor. The Leica has a resolution of 23.8 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica M10||Olympus TG-5|
|Rangefinder camera||Fixed lens compact camera|
|Leica M mount lenses||25-100mm f/2.0-4.9|
|23.8 MP, Full Frame Sensor||12 MP, 1/2.3" Sensor|
|no Video||4K/30p Video|
|ISO 100-50000||ISO 100-12800|
|Optical viewfinder||No viewfinder, LCD framing|
|3.0" LCD, 1037k dots||3.0" LCD, 460k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|5 shutter flaps per second||20 shutter flaps per second|
|No shake reduction||In-body stabilization|
|Weathersealed body||Waterproof body (15m)|
|210 shots per battery charge||340 shots per battery charge|
|139 x 80 x 39 mm, 660 g||113 x 66 x 32 mm, 250 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10 (Typ 3656) and the Olympus Tough TG-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

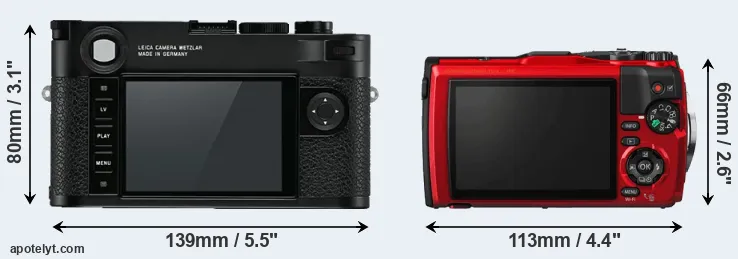

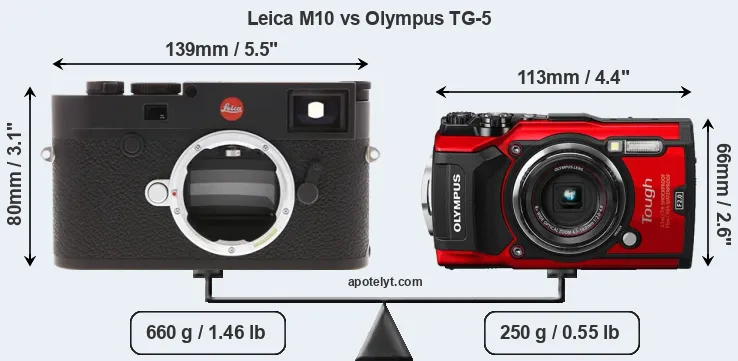

An illustration of the physical size and weight of the Leica M10 and the Olympus TG-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M10 can be obtained in two different colors (black, silver), while the TG-5 is also available in two color-versions, but different ones (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-5 is considerably smaller (33 percent) than the Leica M10. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the M10 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M10 and their specifications in the Leica M Lens Catalog.
The power pack in the TG-5 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Leica M10»||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595||Leica M10|
|Olympus TG-5«||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449||Olympus TG-5|
|Canon 1D X Mark II« »||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||Canon 1D X Mark II|
|Canon 80D« »||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||Canon 80D|
|Leica M-E Typ 240« »||139 mm||80 mm||42 mm||680 g||..||Y||Jun 2019||3,999||Leica M-E Typ 240|
|Leica M10-P« »||139 mm||80 mm||39 mm||660 g||210||Y||Aug 2018||7,995||Leica M10-P|
|Leica M Typ 262« »||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195||Leica M Typ 262|
|Leica Q Typ 116« »||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249||Leica Q Typ 116|
|Leica M Typ 240« »||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950||Leica M Typ 240|
|Leica M9« »||139 mm||80 mm||37 mm||585 g||..||n||Sep 2009||7,999||Leica M9|
|Leica M8« »||139 mm||80 mm||37 mm||591 g||..||n||Sep 2006||5,499||Leica M8|
|Nikon W300« »||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389||Nikon W300|
|Nikon D5« »||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499||Nikon D5|
|Olympus TG-6« »||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449||Olympus TG-6|
|Olympus TG-4« »||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379||Olympus TG-4|
|Olympus E-PM1« »||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499||Olympus E-PM1|
|Olympus XZ-1« »||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499||Olympus XZ-1|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-5 was launched at a lower price than the M10, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

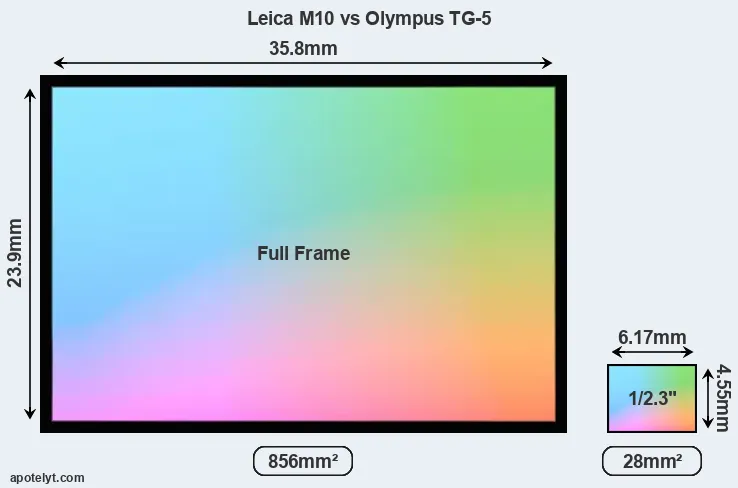

Of the two cameras under consideration, the Leica M10 features a full frame sensor and the Olympus TG-5 a 1/2.3-inch sensor. The sensor area in the TG-5 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the M10 has a native 3:2 aspect ratio, while the one in the TG-5 offers a 4:3 aspect.
With 23.8MP, the M10 offers a higher resolution than the TG-5 (12MP), but the M10 nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a somewhat more recent model (by 3 months) than the M10, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the M10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10 for good quality output (200 dots per inch) amounts to 29.8 x 20 inch or 75.6 x 50.7 cm, for very good quality (250 dpi) 23.8 x 16 inch or 60.5 x 40.6 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inch or 50.4 x 33.8 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inch or 50.8 x 38.1 cm for good quality, 16 x 12 inch or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inch or 33.9 x 25.4 cm for excellent quality prints.
The Leica M10 (Typ 3656) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Olympus Tough TG-5 are ISO 100 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86||Leica M10|
|Olympus TG-5||1/2.3||12.0||4000||3000||4K/30p||..||..||..||..||Olympus TG-5|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88||Canon 1D X Mark II|
|Canon 80D||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||..||..||..||..||Leica M-E Typ 240|
|Leica M10-P||Full Frame||23.8||5952||3992||none||..||..||..||..||Leica M10-P|
|Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..||Leica M Typ 262|
|Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85||Leica Q Typ 116|
|Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84||Leica M Typ 240|
|Leica M9||Full Frame||18.1||5212||3472||none||22.5||11.7||884||69||Leica M9|
|Leica M8||APS-H||10.4||3936||2630||none||21.1||11.3||663||59||Leica M8|
|Nikon W300||1/2.3||15.9||4608||3456||4K/30p||..||..||..||..||Nikon W300|
|Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88||Nikon D5|
|Olympus TG-6||1/2.3||12.0||4000||3000||4K/30p||..||..||..||..||Olympus TG-6|
|Olympus TG-4||1/2.3||15.9||4608||3456||1080/30p||..||..||..||..||Olympus TG-4|
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52||Olympus E-PM1|
|Olympus XZ-1||1/1.7||10.1||3664||2752||720/30p||18.8||10.4||117||34||Olympus XZ-1|
Many modern cameras are not only capable of taking still images, but can also record movies. The TG-5 indeed provides for movie recording, while the M10 does not. The highest resolution format that the TG-5 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M10 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Leica M10, the Olympus TG-5, and comparable cameras.
|Leica M10||optical||n||3.0||1037||fixed||n||1/4000s||5.0||n||n||Leica M10|
|Olympus TG-5||none||n||3.0||460||fixed||n||1/2000s||20.0||Y||Y||Olympus TG-5|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n||Canon 1D X Mark II|
|Canon 80D||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Leica M-E Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n||Leica M-E Typ 240|
|Leica M10-P||optical||n||3.0||1037||fixed||Y||1/4000s||5.0||n||n||Leica M10-P|
|Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n||Leica M Typ 262|
|Leica Q Typ 116||3680||n||3.0||1040||fixed||Y||1/2000s||10.0||n||Y||Leica Q Typ 116|
|Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n||Leica M Typ 240|
|Leica M9||optical||n||2.5||230||fixed||n||1/4000s||2.0||n||n||Leica M9|
|Leica M8||optical||n||2.5||230||fixed||n||1/8000s||2.0||n||n||Leica M8|
|Nikon W300||none||n||3.0||921||fixed||n||1/4000s||7.0||Y||Y||Nikon W300|
|Nikon D5||optical||Y||3.2||2359||fixed||Y||1/8000s||14.0||n||n||Nikon D5|
|Olympus TG-6||none||n||3.0||1040||fixed||n||1/2000s||20.0||Y||Y||Olympus TG-6|
|Olympus TG-4||none||n||3.0||460||fixed||n||1/2000s||5.0||Y||Y||Olympus TG-4|
|Olympus E-PM1||optional||n||3.0||460||fixed||n||1/4000s||5.5||n||Y||Olympus E-PM1|
|Olympus XZ-1||optional||n||3.0||614||fixed||n||1/2000s||2.0||Y||Y||Olympus XZ-1|
One difference between the cameras concerns the presence of an on-board flash. The TG-5 has one, while the M10 does not. While the built-in flash of the TG-5 is not very powerful, it can at times be useful as a fill-in light.
The Leica M10 and the Olympus TG-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M10 and the TG-5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10 (Typ 3656) and Olympus Tough TG-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Leica M10||Y||none||none||-||-||none||none||Y||-||-||Leica M10|
|Olympus TG-5||-||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus TG-5|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-||Canon 1D X Mark II|
|Canon 80D||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Leica M-E Typ 240||Y||mono||none||-||-||none||2.0||-||-||-||Leica M-E Typ 240|
|Leica M10-P||Y||none||none||-||-||none||none||Y||-||-||Leica M10-P|
|Leica M Typ 262||Y||none||none||-||-||none||2.0||-||-||-||Leica M Typ 262|
|Leica Q Typ 116||Y||stereo||mono||-||-||micro||2.0||Y||Y||-||Leica Q Typ 116|
|Leica M Typ 240||Y||stereo||mono||-||-||none||2.0||-||-||-||Leica M Typ 240|
|Leica M9||Y||none||none||-||-||none||2.0||-||-||-||Leica M9|
|Leica M8||Y||none||none||-||-||none||2.0||-||-||-||Leica M8|
|Nikon W300||-||stereo||mono||-||-||micro||2.0||Y||-||Y||Nikon W300|
|Nikon D5||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Nikon D5|
|Olympus TG-6||-||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus TG-6|
|Olympus TG-4||-||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus TG-4|
|Olympus E-PM1||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM1|
|Olympus XZ-1||Y||mono||none||-||-||mini||2.0||-||-||-||Olympus XZ-1|
It is notable that the M10 has a hotshoe, while the TG-5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The M10 is a recent model that features in the current product line-up of Leica. In contrast, the TG-5 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So how do things add up? Which of the two cameras – the Leica M10 or the Olympus TG-5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Leica M10 (Typ 3656):
- More detail: Offers more megapixels (23.8 vs 12MP) with a 43% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More heavily discounted: Has been on the market for longer (launched in January 2017).
Reasons to prefer the Olympus Tough TG-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has an integrated lens, whereas the M10 necessitates an extra lens.
- More compact: Is smaller (113x66mm vs 139x80mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the M10).
- Longer lasting: Gets more shots (340 versus 210) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Was introduced somewhat (3 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (13 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M10 or the TG-5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1000D vs Leica M10
- Fujifilm X-T200 vs Leica M10
- Fujifilm X100F vs Leica M10
- Leica M10 vs Nikon B500
- Leica M10 vs Nikon D100
- Leica M10 vs Nikon Df
- Leica M10 vs Nikon L840
- Leica M10 vs Sony RX100 VII
- Nikon D1H vs Olympus TG-5
- Nikon D300S vs Olympus TG-5
- Nikon D70 vs Olympus TG-5
- Nikon D7100 vs Olympus TG-5
Specifications: Leica M10 vs Olympus TG-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica M10||Olympus TG-5|
|Camera Type||Rangefinder camera||Fixed lens compact camera|
|Camera Lens||Leica M mount lenses||25-100mm f/2.0-4.9|
|Launch Date||January 2017||May 2017|
|Launch Price||USD 6595||USD 449|
|Sensor Specs||Leica M10||Olympus TG-5|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||35.8 x 23.9 mm||6.17 x 4.55 mm|
|Sensor Area||855.62 mm2||28.0735 mm2|
|Sensor Diagonal||43 mm||7.7 mm|
|Sensor Resolution||23.8 Megapixels||12 Megapixels|
|Image Resolution||5952 x 3992 pixels||4000 x 3000 pixels|
|Pixel Pitch||6.00 μm||1.53 μm|
|Pixel Density||2.78 MP/cm2||42.74 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100-50000 ISO||100-12800 ISO|
|Image Processor||Maestro II||TruePic VIII|
|DXO Sensor Quality (score)||86||..|
|DXO Color Depth (bits)||24.4||..|
|DXO Dynamic Range (EV)||13.2||..|
|DXO Low Light (ISO)||2133||..|
|Screen Specs||Leica M10||Olympus TG-5|
|Viewfinder Type||Optical viewfinder||No viewfinder|
|Viewfinder Field of View||100%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1037k dots||460k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Leica M10||Olympus TG-5|
|Focus System||Manual Focus||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000/s||1/2000/s|
|Continuous Shooting||5 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||No shake reduction||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Leica M10||Olympus TG-5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB no||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Leica M10||Olympus TG-5|
|Environmental Sealing||Weathersealed body||Waterproof body (15m)|
|Battery Life (CIPA)||210 shots per charge||340 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
139 x 80 x 39 mm
(5.5 x 3.1 x 1.5 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||660 g (23.3 oz)||250 g (8.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
