Leica M10 vs M11

The Leica M10 (Typ 3656) and the Leica M11 (Typ 2416) are two enthusiast cameras that were revealed to the public, respectively, in January 2017 and January 2022. Both the M10 and the M11 are rangefinder-focusing mirrorless cameras that are equipped with a full frame sensor. The M10 has a resolution of 23.8 megapixels, whereas the M11 provides 60.3 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M10		Leica M11
Rangefinder camera		Rangefinder camera
Leica M mount lenses		Leica M mount lenses
23.8 MP – Full Frame sensor		60.3 MP – Full Frame sensor
no Video		no Video
ISO 100-50,000		ISO 64-50,000
Optical viewfinder		Optical viewfinder
3.0" LCD – 1037k dots		3.0" LCD – 2333k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
5 shutter flaps per second		4.5 shutter flaps per second
Weathersealed body		Weathersealed body
210 shots per battery charge		700 shots per battery charge
139 x 80 x 39 mm, 660 g		139 x 80 x 39 mm, 640 g

Check M10 offers at
ebay.com
Check M11 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10 (Typ 3656) and the Leica M11 (Typ 2416)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Leica M10 and the Leica M11 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

In this particular case, the Leica M10 and the Leica M11 have exactly the same width and height, and, thus, have identically-sized bodies. However, the M11 is slightly lighter (3 percent) than the M10. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Leica M Lens Catalog.

Concerning battery life, the M10 gets 210 shots out of its Leica BP-SCL5 battery, while the M11 can take 700 images on a single charge of its Leica BP-SCL7 power pack. The power pack in the M11 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
2.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
5.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
6.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
7.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
8.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
9.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
10.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
11.		Leica Q3	130 mm	80 mm	93 mm	743 g	350	Y	May 2023	US$ 5 999	amazon.com
12.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
13.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M10 was launched at a markedly lower price (by 27 percent) than the M11, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

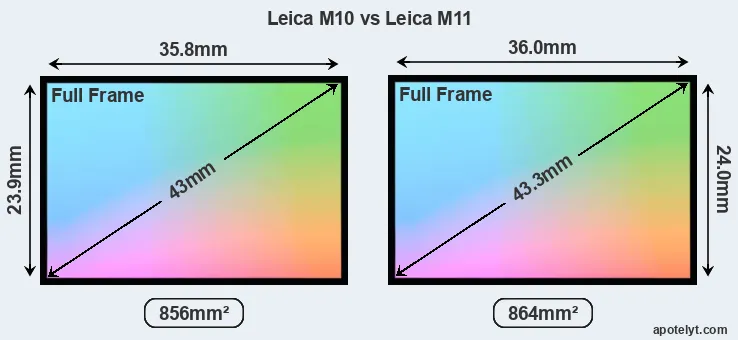

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the M11 is 1 percent bigger. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the M11 uses a more advanced image processing engine (Maestro III) than the M10 (Maestro II), with benefits for noise reduction, color accuracy, and processing speed.

With 60.3MP, the M11 offers a higher resolution than the M10 (23.8MP), but the M11 has smaller individual pixels (pixel pitch of 3.79μm versus 6.00μm for the M10). Yet, the M11 is a much more recent model (by 4 years and 11 months) than the M10, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Leica M11 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M11 for good quality output (200 dots per inch) amounts to 47.6 x 31.6 inches or 121 x 80.4 cm, for very good quality (250 dpi) 38.1 x 25.3 inches or 96.8 x 64.3 cm, and for excellent quality (300 dpi) 31.8 x 21.1 inches or 80.7 x 53.6 cm. The corresponding values for the Leica M10 are 29.8 x 20 inches or 75.6 x 50.7 cm for good quality, 23.8 x 16 inches or 60.5 x 40.6 cm for very good quality, and 19.8 x 13.3 inches or 50.4 x 33.8 cm for excellent quality prints.

The Leica M10 (Typ 3656) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Leica M11 (Typ 2416) are ISO 64 to ISO 50000 (no boost).

In terms of underlying technology, the M10 is build around a CMOS sensor, while the M11 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the M11 offers substantially better image quality than the M10 (overall score 14 points higher). The advantage is based on 1.9 bits higher color depth, 1.6 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
2.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
6.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
7.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
8.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
9.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
10.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
11.		Leica Q3	Full Frame	60.3	9528	6328	8K/30p	25.4	14.7	3216	96
12.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
13.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The M10 and the M11 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), as well as the same magnification (0.73x). The adjacent table lists some of the other core features of the Leica M10 and Leica M11 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
2.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
7.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
8.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
9.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
10.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
11.		Leica Q3	5760	n	3.0 / 1840	tilting	Y	1/2000s	15.0/s	n	Y
12.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
13.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M11 has a touchscreen, while the M10 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the M11 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica M10 and the Leica M11 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M10 and the M11 write their files to SDXC cards. The M11 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M10 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10 (Typ 3656) and Leica M11 (Typ 2416) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
2.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
6.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
7.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
9.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
10.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Leica Q3	Y	stereo / mono	-	-	micro	3.1	Y	-	Y
12.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
13.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-

The M11 is a recent model that features in the current product line-up of Leica. In contrast, the M10 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M10 was succeeded by the Leica M11. Further information on the features and operation of the M10 and M11 can be found, respectively, in the Leica M10 Manual (free pdf) or the online Leica M11 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Leica M10 and the Leica M11? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Leica M10 (Typ 3656):

• More affordable: Was introduced into a lower priced category (27 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in January 2017).

Advantages of the Leica M11 (Typ 2416):

• More detail: Has more megapixels (60.3 vs 23.8MP), which boosts linear resolution by 60%.
• Better image quality: Scores substantially higher (14 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.9 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.6 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (Maestro III vs Maestro II).
• More detailed LCD: Has a higher resolution rear screen (2333k vs 1037k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Longer lasting: Gets more shots (700 versus 210) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 4 years and 11 months of technical progress since the M10 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the M11 is the clear winner of the contest (14 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the M10 or the M11 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
2.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
5.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
6.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
7.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
8.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
9.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
10.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
11.		Leica Q3	5/5	..	4.5/5	..	..	4.5/5	May 2023	US$ 5 999	amazon.com
12.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
13.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
