Leica M Typ 262 vs Olympus E-520
The Leica M (Typ 262) and the Olympus E-520 are two digital cameras that were revealed to the public, respectively, in November 2015 and May 2008. The M Typ 262 is a rangefinder-style mirrorless camera, while the E-520 is a DSLR. The cameras are based on a full frame (M Typ 262) and a Four Thirds (E-520) sensor. The Leica has a resolution of 23.7 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica M Typ 262||Olympus E-520|
|Rangefinder camera||Digital single lens reflex|
|Leica M mount lenses||Four Thirds lenses|
|23.7 MP, Full Frame Sensor||10 MP, Four Thirds Sensor|
|no Video||no Video|
|ISO 200-6,400||ISO 100-1,600|
|Optical viewfinder||Optical viewfinder|
|3.0 LCD, 921k dots||2.7 LCD, 215k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|3 shutter flaps per second||3.5 shutter flaps per second|
|no shake reduction||In-body stabilization|
|Weathersealed body||not weather sealed|
|139 x 80 x 42 mm, 680 g||136 x 92 x 68 mm, 535 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M (Typ 262) and the Olympus E-520? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Leica M Typ 262 and the Olympus E-520 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The M Typ 262 can be obtained in two different colors (black, silver), while the E-520 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-520 is notably larger (13 percent) than the Leica M Typ 262. However, the E-520 is markedly lighter (21 percent) than the M Typ 262. It is worth mentioning in this context that the M Typ 262 is splash and dust resistant, while the E-520 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (M Typ 262) and the Four Thirds Lens Catalog (E-520).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Leica M Typ 262||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Nov 2015||5,195|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Canon 1D X Mark II||6.2 in||6.6 in||3.3 in||54.0 oz||1210||Y||Feb 2016||5,999|
|Leica M10-R||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Jul 2020||8,295|
|Leica Q2||5.1 in||3.1 in||3.6 in||25.3 oz||370||Y||Mar 2019||4,995|
|Leica M-E Typ 240||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Jun 2019||3,999|
|Leica M10-P||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Aug 2018||7,995|
|Leica M10||5.5 in||3.1 in||1.5 in||23.3 oz||210||Y||Jan 2017||6,595|
|Leica Q Typ 116||5.1 in||3.1 in||3.7 in||22.6 oz||300||n||Jun 2015||4,249|
|Leica SL||5.8 in||4.1 in||1.5 in||29.9 oz||400||Y||Oct 2015||7,450|
|Leica M Typ 240||5.5 in||3.1 in||1.7 in||24.0 oz||..||Y||Sep 2012||6,950|
|Nikon D750||5.6 in||4.4 in||3.1 in||26.5 oz||1230||Y||Sep 2014||2,299|
|Olympus E-600||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-420||5.1 in||3.6 in||2.1 in||15.5 oz||500||n||Mar 2008||599|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-520 was launched at a markedly lower price (by 87 percent) than the M Typ 262, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Leica M Typ 262 features a full frame sensor and the Olympus E-520 a Four Thirds sensor. The sensor area in the E-520 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the M Typ 262 has a native 3:2 aspect ratio, while the one in the E-520 offers a 4:3 aspect.

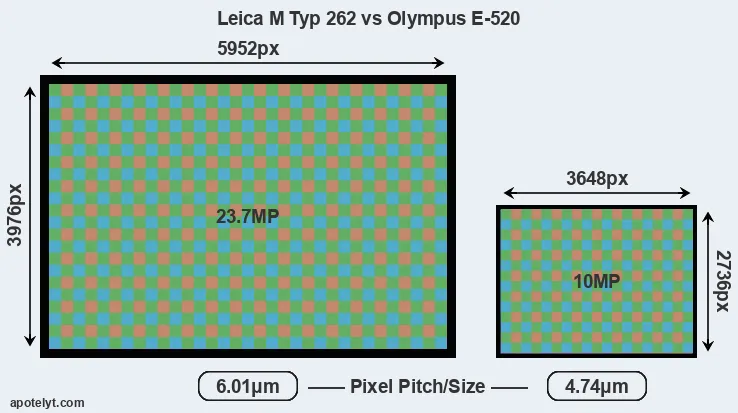

With 23.7MP, the M Typ 262 offers a higher resolution than the E-520 (10MP), but the M Typ 262 nevertheless has larger individual pixels (pixel pitch of 6.01μm versus 4.74μm for the E-520) due to its larger sensor. Moreover, the M Typ 262 is a much more recent model (by 7 years and 6 months) than the E-520, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the M Typ 262 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica M Typ 262 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M Typ 262 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Leica M (Typ 262) has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-6400. The corresponding ISO settings for the Olympus E-520 are ISO 100 to ISO 1600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Leica M10-R||Full Frame||40.9||7864||5200||none||..||..||..||..|
|Leica Q2||Full Frame||46.7||8368||5584||4K/30p||26.4||13.5||2491||96|
|Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||..||..||..||..|
|Leica M10-P||Full Frame||23.8||5952||3992||none||..||..||..||..|
|Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
Beyond body and sensor, cameras can and do differ across a range of features. The M Typ 262 and the E-520 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M Typ 262 offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M Typ 262 has a higher magnification (0.68x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica M Typ 262 and Olympus E-520 along with similar information for a selection of comparators.
|Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n|
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Leica M-E Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
|Leica Q Typ 116||3680||n||3.0||1040||fixed||Y||1/2000s||10.0||n||Y|
|Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The E-520 has one, while the M Typ 262 does not. While the built-in flash of the E-520 is not very powerful, it can at times be useful as a fill-in light.
The M Typ 262 writes its imaging data to SDXC cards, while the E-520 uses Compact Flash or xD Picture cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M Typ 262 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M (Typ 262) and Olympus E-520 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Leica M Typ 262||Y||-||-||-||-||-||2.0||-||-||-|
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Leica M-E Typ 240||Y||mono||-||-||-||-||2.0||-||-||-|
|Leica Q Typ 116||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Leica M Typ 240||Y||stereo||mono||-||-||-||2.0||-||-||-|
Both the M Typ 262 and the E-520 have been discontinued, but can regularly be found used on eBay. The M Typ 262 was replaced by the Leica M10, while the E-520 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Leica M Typ 262 and the Olympus E-520? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Leica M (Typ 262):
- More detail: Offers more megapixels (23.7 vs 10MP) with a 57% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.68x vs 0.46x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 215k dots).
- More compact: Is smaller (139x80mm vs 136x92mm) and thus needs less room in the bag.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 7 years and 6 months of technical progress since the E-520 launch.
Advantages of the Olympus E-520:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster burst: Shoots at higher frequency (3.5 vs 3 flaps/sec) to capture the decisive moment.
- Less heavy: Has a lower weight (by 145g or 21 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (87 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2008).
If the count of relative strengths (bullet points above) is taken as a measure, the M Typ 262 is the clear winner of the match-up (14 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M Typ 262 and the E-520 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Leica M Typ 262||..||..||..||..||..||Nov 2015||5,195|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Leica M10-R||..||..||..||..||4/5||Jul 2020||8,295|
|Leica Q2||..||84/100||4.5/5||..||4/5||Mar 2019||4,995|
|Leica M-E Typ 240||..||..||..||..||..||Jun 2019||3,999|
|Leica M10-P||..||..||..||..||4/5||Aug 2018||7,995|
|Leica M10||..||..||4/5||..||4.5/5||Jan 2017||6,595|
|Leica Q Typ 116||..||80/100||4.5/5||..||4.5/5||Jun 2015||4,249|
|Leica SL||..||84/100||4.5/5||4/5||4/5||Oct 2015||7,450|
|Leica M Typ 240||..||..||4/5||..||..||Sep 2012||6,950|
|Nikon D750||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299|
|Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-420||85/100||+ +||4/5||o||4.5/5||Mar 2008||599|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 650D vs Leica M Typ 262
- Canon G12 vs Olympus E-520
- Fujifilm X-M1 vs Olympus E-520
- Fujifilm X-T30 vs Leica M Typ 262
- Fujifilm X70 vs Leica M Typ 262
- Leica M Typ 262 vs Leica V-LUX 2
- Leica M Typ 262 vs Leica X2
- Leica M Typ 262 vs Nikon 1 V1
- Leica M Typ 262 vs Nikon D100
- Leica M Typ 262 vs Sony HX99
- Olympus E-520 vs Panasonic GX80
- Olympus E-520 vs Sony A7S II
Specifications: Leica M Typ 262 vs Olympus E-520
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica M Typ 262||Olympus E-520|
|Camera Type||Rangefinder camera||Digital single lens reflex|
|Camera Lens||Leica M mount lenses||Four Thirds lenses|
|Launch Date||November 2015||May 2008|
|Launch Price||USD 5,195||USD 699|
|Sensor Specs||Leica M Typ 262||Olympus E-520|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.8 x 23.9 mm||17.3 x 13.0 mm|
|Sensor Area||855.62 mm2||224.9 mm2|
|Sensor Diagonal||43 mm||21.6 mm|
|Sensor Resolution||23.7 Megapixels||10 Megapixels|
|Image Resolution||5952 x 3976 pixels||3648 x 2736 pixels|
|Pixel Pitch||6.01 μm||4.74 μm|
|Pixel Density||2.77 MP/cm2||4.44 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||200 - 6,400 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 6,400 ISO||no Enhancement|
|Image Processor||Maestro||TruePic III|
|DXO Sensor Quality (score)||..||55|
|DXO Color Depth (bits)||..||21.4|
|DXO Dynamic Range (EV)||..||10.4|
|DXO Low Light (ISO)||..||548|
|Screen Specs||Leica M Typ 262||Olympus E-520|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||921k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Leica M Typ 262||Olympus E-520|
|Focus System||Manual Focus||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||3 shutter flaps/s||3.5 shutter flaps/s|
|Image Stabilization||no shake reduction||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Leica M Typ 262||Olympus E-520|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Leica M Typ 262||Olympus E-520|
|Environmental Sealing||Weathersealed body||not weather sealed|
139 x 80 x 42 mm
(5.5 x 3.1 x 1.7 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||680 g (24.0 oz)||535 g (18.9 oz)|
