Leica D-LUX Typ 109 vs Sony NEX-5N

The Leica D-LUX (Typ 109) and the Sony Alpha NEX-5N are two digital cameras that were announced, respectively, in September 2014 and August 2011. The D-LUX Typ 109 is a fixed lens compact, while the NEX-5N is a mirrorless interchangeable lens camera. The cameras are based on a Four Thirds (D-LUX Typ 109) and an APS-C (NEX-5N) sensor. The Leica has a resolution of 12.7 megapixels, whereas the Sony provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica D-LUX Typ 109		Sony NEX-5N
Fixed lens compact camera		Mirrorless system camera
24-75mm f/1.7-2.8		Sony E mount lenses
12.7 MP – Four Thirds sensor		16 MP – APS-C sensor
4K/30p Video		1080/60i Video
ISO 200-12,500 (100 - 25,600)		ISO 100-25,600
Electronic viewfinder (2764k dots)		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
11 shutter flaps per second		10 shutter flaps per second
300 shots per battery charge		460 shots per battery charge
118 x 66 x 55 mm, 405 g		111 x 59 x 38 mm, 269 g

Check D-LUX Typ 109 offers at
ebay.com
Check NEX-5N offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX (Typ 109) and the Sony Alpha NEX-5N? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

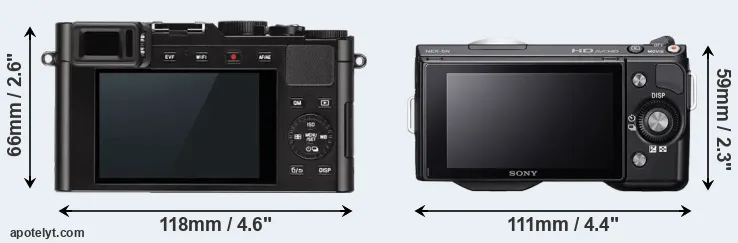

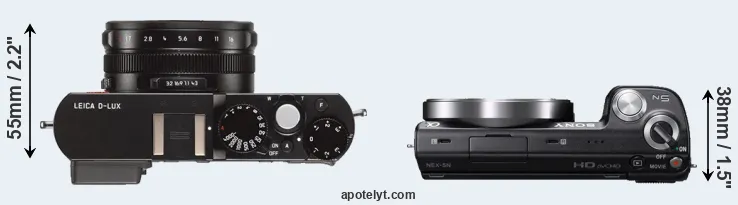

The side-by-side display below illustrates the physical size and weight of the Leica D-LUX Typ 109 and the Sony NEX-5N. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The D-LUX Typ 109 can be obtained in two different colors (black, grey), while the NEX-5N is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5N is notably smaller (16 percent) than the Leica D-LUX Typ 109. In this context, it is worth noting that neither the D-LUX Typ 109 nor the NEX-5N are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX Typ 109 has a lens built in, whereas the NEX-5N is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the NEX-5N and their specifications in the Sony E-Mount Lens Catalog.

Concerning battery life, the D-LUX Typ 109 gets 300 shots out of its Leica BP-DC15 battery, while the NEX-5N can take 460 images on a single charge of its Sony NP-FW50 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	1,195	ebay.com
2.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	699	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
4.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
5.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
6.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	1,299	ebay.com
7.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	1,299	ebay.com
8.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	699	ebay.com
9.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	1,195	ebay.com
10.		Leica V-LUX Typ 114	137 mm	99 mm	131 mm	830 g	360	n	Sep 2014	1,349	ebay.com
11.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	2,295	ebay.com
12.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	899	ebay.com
13.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
14.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	699	ebay.com
15.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
16.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	599	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

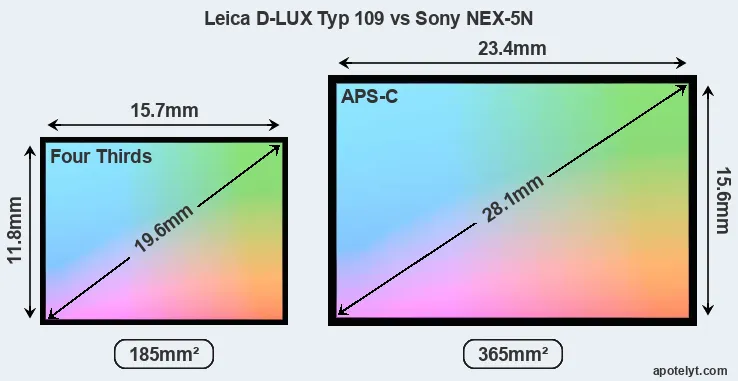

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica D-LUX Typ 109 features a Four Thirds sensor and the Sony NEX-5N an APS-C sensor. The sensor area in the NEX-5N is 97 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the D-LUX Typ 109 has a native 4:3 aspect ratio, while the one in the NEX-5N offers a 3:2 aspect. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

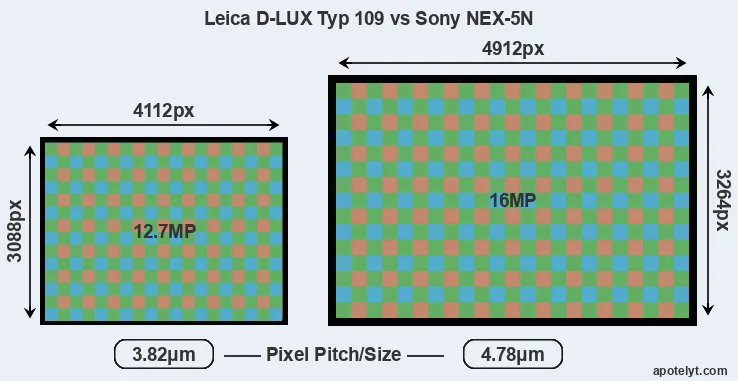

With 16MP, the NEX-5N offers a higher resolution than the D-LUX Typ 109 (12.7MP), but the NEX-5N nevertheless has larger individual pixels (pixel pitch of 4.78μm versus 3.82μm for the D-LUX Typ 109) due to its larger sensor. However, the D-LUX Typ 109 is a much more recent model (by 3 years) than the NEX-5N, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony NEX-5N implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-5N for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.6 x 27.6 cm. The corresponding values for the Leica D-LUX Typ 109 are 20.6 x 15.4 inches or 52.2 x 39.2 cm for good quality, 16.4 x 12.4 inches or 41.8 x 31.4 cm for very good quality, and 13.7 x 10.3 inches or 34.8 x 26.1 cm for excellent quality prints.

The Leica D-LUX (Typ 109) has a native sensitivity range from ISO 200 to ISO 12500, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha NEX-5N are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
2.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
5.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
6.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
7.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
8.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
9.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
10.		Leica V-LUX Typ 114	1-inch	20.0	5472	3648	4K/30p	21.6	11.7	127	60
11.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
12.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
13.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
14.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
15.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
16.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D-LUX Typ 109 provides a higher video resolution than the NEX-5N. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D-LUX Typ 109 has an electronic viewfinder (2764k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NEX-5N relies on live view and the rear LCD for framing. That said, the NEX-5N can be equipped with an optional viewfinder – the FDA-EV1S. The table below summarizes some of the other core capabilities of the Leica D-LUX Typ 109 and Sony NEX-5N in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
2.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
5.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
6.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
7.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
8.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
9.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
10.		Leica V-LUX Typ 114	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
11.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
12.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
13.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
14.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
15.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The NEX-5N has a touchscreen, while the D-LUX Typ 109 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the D-LUX Typ 109 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica D-LUX Typ 109 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D-LUX Typ 109 writes its imaging data to SDXC cards, while the NEX-5N uses SDXC or Memory Stick PRO Duo cards. The D-LUX Typ 109 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5N cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX (Typ 109) and Sony Alpha NEX-5N and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
5.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
7.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Leica V-LUX Typ 114	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
11.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the D-LUX Typ 109 offers wifi support, while the NEX-5N does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the D-LUX Typ 109 and the NEX-5N have been discontinued, but can regularly be found used on ebay. The NEX-5N was replaced by the Sony NEX-5R, while the D-LUX Typ 109 was followed by the Leica D-LUX 7. Further information on the features and operation of the D-LUX Typ 109 and NEX-5N can be found, respectively, in the Leica D-LUX Typ 109 Manual (free pdf) or the online Sony NEX-5N Manual.

Review summary

So how do things add up? Is there a clear favorite between the Leica D-LUX Typ 109 and the Sony NEX-5N? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Leica D-LUX (Typ 109):

• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the NEX-5N requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 3 years of technical progress since the NEX-5N launch.

Advantages of the Sony Alpha NEX-5N:

• More detail: Has more megapixels (16 vs 12.7MP), which boosts linear resolution by 15%.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (111x59mm vs 118x66mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (460 versus 300) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in August 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the D-LUX Typ 109 is the clear winner of the match-up (12 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica D-LUX Typ 109 and the Sony NEX-5N place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D-LUX Typ 109 or the NEX-5N. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	1,195	ebay.com
2.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	699	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
4.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
5.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
6.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	1,299	ebay.com
7.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	1,299	ebay.com
8.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	699	ebay.com
9.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	1,195	ebay.com
10.		Leica V-LUX Typ 114	..	..	..	..	..	5/5	Sep 2014	1,349	ebay.com
11.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	2,295	ebay.com
12.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	899	ebay.com
13.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
14.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	699	ebay.com
15.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
16.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	599	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
