Hasselblad X1D versus Nikon D5

The Hasselblad X1D-50c and the Nikon D5 are two professional cameras that were revealed to the public, respectively, in June 2016 and January 2016. The X1D is a mirrorless interchangeable lens camera, while the D5 is a DSLR. The cameras are based on a medium format (X1D) and a full frame (D5) sensor. The Hasselblad has a resolution of 51.3 megapixel, whereas the Nikon provides 20.7 MP. Read on to find out how these two cameras compare with respect to their size, their sensors, their features, and their reception by expert reviewers.

Body comparison: Hasselblad X1D vs Nikon D5

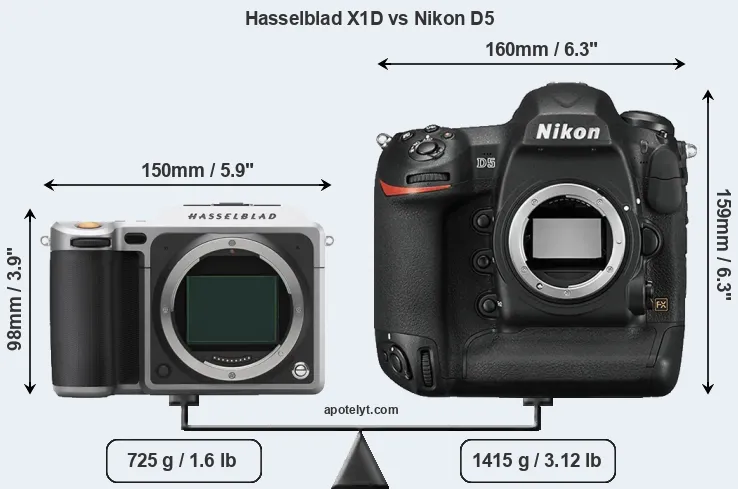

The side-by-side display below illustrates the physical size and weight of the Hasselblad X1D and the Nikon D5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter. You can also use the toggle button to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the X1D – represents the basis for the calculations across all the size and weight measures).

Compare Hasselblad X1D vs Nikon D5

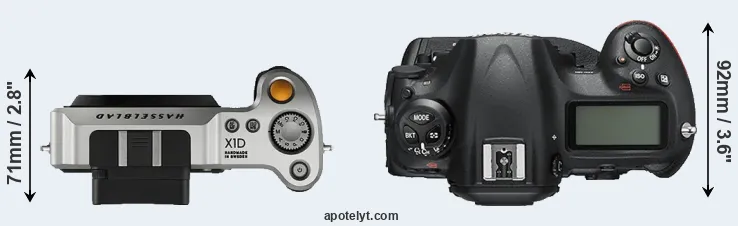

Compare X1D versus D5 top

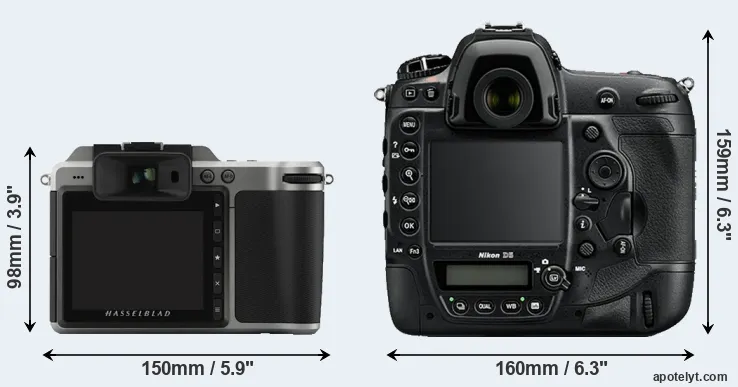

Compare X1D and D5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (73 percent) than the Hasselblad X1D. Moreover, the D5 is substantially heavier (95 percent) than the X1D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

As can be seen in the images above, the D5 has a battery grip build in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Hasselblad X1D» 150 mm 98 mm 71 mm 725 g .. Y Jun 2016 8,995 i i Hasselblad X1D
Nikon D5« 160 mm 159 mm 92 mm 1415 g 3780 Y Jan 2016 6,499 i i Nikon D5
Canon 6D Mark II« » 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« » 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5DS« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS R
Fujifilm GFX 50S« » 148 mm 94 mm 91 mm 740 g 400 Y Sep 2016 6,499 i i Fujifilm GFX 50S
Leica SL« » 147 mm 104 mm 39 mm 847 g 400 Y Oct 2015 7,450 i i Leica SL
Nikon D7500« » 136 mm 104 mm 73 mm 720 g 950 Y Apr 2017 1,299 i i Nikon D7500
Nikon D850« » 146 mm 124 mm 79 mm 1005 g 1840 Y Jul 2017 3,299 i i Nikon D850
Nikon D7200« » 136 mm 107 mm 76 mm 765 g 1110 Y Mar 2015 1,199- i Nikon D7200
Nikon D4S« » 160 mm 157 mm 91 mm 1350 g 3020 Y Feb 2014 6,499- i Nikon D4S
Nikon D4« » 160 mm 157 mm 91 mm 1340 g 2600 Y Jan 2012 5,999- i Nikon D4
Nikon D3X« » 160 mm 157 mm 88 mm 1260 g 4400 Y Dec 2008 7,999- i Nikon D3X
Sony A99 II« » 143 mm 104 mm 76 mm 849 g 490 Y Sep 2016 3,199 i i Sony A99 II
Sony A7R II« » 127 mm 96 mm 60 mm 625 g 290 Y Jun 2015 3,199- i Sony A7R II

Any camera purchase will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D5 was launched at a markedly lower price (by 28 percent) than the X1D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.



Sensor comparison: Hasselblad X1D vs Nikon D5

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

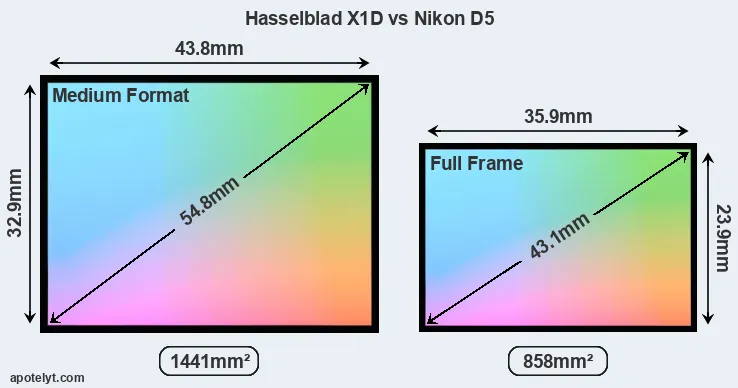

Of the two cameras under consideration, the Hasselblad X1D features a medium format sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.79 and 1.0. The sensor in the X1D has a native 4:3 aspect ratio, while the one in the D5 offers a 3:2 aspect.

Hasselblad X1D and Nikon D5 sensor measures

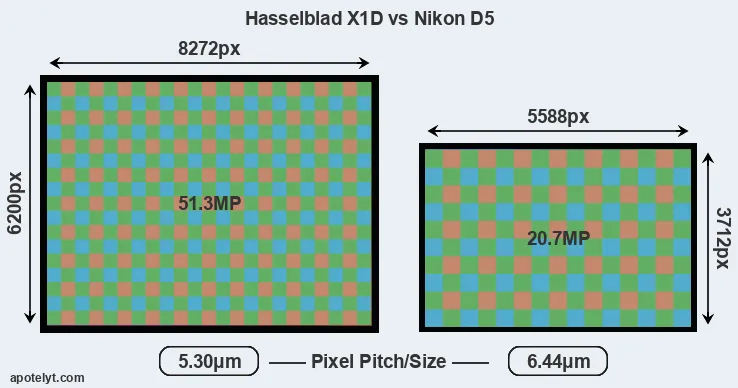

With 51.3MP, the X1D offers a higher resolution than the D5 (20.7MP), but the X1D has smaller individual pixels (pixel pitch of 5.30μm versus 6.44μm for the D5). However, the X1D is a somewhat more recent model (by 5 months) than the D5, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X1D has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

X1D versus D5 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the X1D provides substantially higher image quality than the D5, with an overall score that is 14 points higher. This advantage is based on 1.1 bits higher color depth, 2.5 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Hasselblad X1D» Medium Format 51.3 8272 62001080/25p26.214.84489102Hasselblad X1D
Nikon D5« Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5
Canon 6D Mark II« » Full Frame 26.0 6240 41601080/60p24.411.9286285Canon 6D Mark II
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 5DS R« » Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R
Fujifilm GFX 50S« » Medium Format 51.1 8256 61921080/30p----Fujifilm GFX 50S
Leica SL« » Full Frame 24.0 6000 40004K/30p25.013.4182188Leica SL
Nikon D7500« » APS-C 20.7 5568 37124K/30p24.314.0148386Nikon D7500
Nikon D850« » Full Frame 45.4 8256 55044K/30p26.414.82660100Nikon D850
Nikon D7200« » APS-C 24.0 6000 40001080/60p24.514.6133387Nikon D7200
Nikon D4S« » Full Frame 16.2 4928 32801080/60p24.413.3307489Nikon D4S
Nikon D4« » Full Frame 16.2 4928 32801080/30p24.713.1296589Nikon D4
Nikon D3X« » Full Frame 24.4 6048 4032-24.713.7199288Nikon D3X
Sony A99 II« » Full Frame 42.2 7952 53044K/30p25.413.4231792Sony A99 II
Sony A7R II« » Full Frame 42.2 7952 53044K/30p26.013.9343498Sony A7R II

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D5 provides a better video resolution than the X1D. It can shoot movie footage at 4K/30p, while the Hasselblad is limited to 1080/25p.



Feature comparison: Hasselblad X1D vs Nikon D5

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the X1D has an electronic viewfinder (2360k dots), while the D5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Hasselblad X1D and Nikon D5 along with similar information for a selection of comparators. If needed, the dpreview camera hub, for example, contains further detail on the cameras' specs.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Build-in
Flash
(yes/no)
Build-in
Stab
Camera
Model
Hasselblad X1D»2360 n 3.0 920 fixed Y 2000 2.3 n n Hasselblad X1D
Nikon D5«optical Y 3.2 2359 fixed Y 8000 14.0 n n Nikon D5
Canon 6D Mark II« »optical Y 3.0 1040 swivel Y 4000 6.5 n n Canon 6D Mark II
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 5DS R« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS R
Fujifilm GFX 50S« »- Y 3.2 2360 full-flex Y 4000 3.0 n n Fujifilm GFX 50S
Leica SL« »4400 Y 3.0 1040 fixed Y 8000 11.0 n n Leica SL
Nikon D7500« »optical Y 3.2 922 tilting Y 8000 8.0 Y n Nikon D7500
Nikon D850« »optical Y 3.2 2359 tilting Y 8000 9.0 n n Nikon D850
Nikon D7200« »optical Y 3.2 1229 fixed n 8000 6.0 Y n Nikon D7200
Nikon D4S« »optical Y 3.2 921 fixed n 8000 11.0 n n Nikon D4S
Nikon D4« »optical Y 3.2 921 fixed n 8000 11.0 n n Nikon D4
Nikon D3X« »optical Y 3.0 922 fixed n 8000 5.0 n n Nikon D3X
Sony A99 II« »2400 Y 3.0 1229 full-flex n 8000 12.0 n Y Sony A99 II
Sony A7R II« »2400 n 3.0 1229 tilting n 8000 5.0 n Y Sony A7R II

One feature that is present on the D5, but is missing on the X1D is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The X1D writes its imaging data to SDXC cards, while the D5 uses Compact Flash or XQD cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Hasselblad X1D»YstereomonoYYmini3.0Y--Hasselblad X1D
Nikon D5«YstereomonoYYmini3.0---Nikon D5
Canon 6D Mark II« »YstereomonoY-mini2.0YYYCanon 6D Mark II
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 5DS R« »YmonomonoY-mini3.0---Canon 5DS R
Fujifilm GFX 50S« »YstereomonoYYmicro3.0Y--Fujifilm GFX 50S
Leica SL« »YstereomonoYYfull3.0Y--Leica SL
Nikon D7500« »YstereomonoYYmini2.0Y-YNikon D7500
Nikon D850« »YstereomonoYYmini3.0YYYNikon D850
Nikon D7200« »YstereomonoYYmini2.0YY-Nikon D7200
Nikon D4S« »YmonomonoYYmini2.0---Nikon D4S
Nikon D4« »Ymonomono--micro2.0---Nikon D4
Nikon D3X« »Y----mini2.0---Nikon D3X
Sony A99 II« »YstereomonoYYmicro2.0YYYSony A99 II
Sony A7R II« »YstereomonoYYmicro2.0YY-Sony A7R II

Both the X1D and the D5 are recent models that feature in their makers' current product line-up. The D5 replaced the earlier Nikon D4S, while the X1D does not have a direct predecessor.

Review summary: Hasselblad X1D vs Nikon D5

So what is the bottom line? Is the Hasselblad X1D better than the Nikon D5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Hasselblad X1D-50c:

  • More detail: Offers more megapixels (51.3 vs 20.7MP) with a 54% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (14 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (1.1 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (2.5 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More compact: Is smaller (150x98mm vs 160x159mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 690g or 49 percent) and hence easier to carry around.
  • More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
  • Easier file upload: Has wifi build in for automatic backup or image transfer to the web.
  • More prestigious: Has the Hasselblad luxury appeal, which ensures a high resale price.
  • More modern: Is somewhat more recent (announced 5 months after the D5).

ilogo

Advantages of the Nikon D5:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/25p).
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 920k dots).
  • Faster shutter: Has higher mechanical shutter speed (8000/sec vs 2000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (14 vs 2.3 flaps/sec) to capture the decisive moment.
  • More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
  • More affordable: Was introduced into a lower priced category (28 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in January 2016).

If the count of relative strengths (bullet points above) is taken as a measure, the X1D emerges as the winner of the contest (13 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

X1D 13:11 D5

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the X1D or the D5 handle or perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is why hands-on reviews by experts are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). You can find the full text of the reviews by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Hasselblad X1D»rev81/100--4/5 Jun 2016 8,995 i i Hasselblad X1D
Nikon D5«-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5
Canon 6D Mark II« »Rec80/1004.5/54/54/5 Jun 2017 1,999 i i Canon 6D Mark II
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« »Rec83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R
Fujifilm GFX 50S« »-85/1005/55/54.5/5 Sep 2016 6,499 i i Fujifilm GFX 50S
Leica SL« »-84/1004.5/54/54/5 Oct 2015 7,450 i i Leica SL
Nikon D7500« »HiRec86/1005/54.5/54.5/5 Apr 2017 1,299 i i Nikon D7500
Nikon D850« »HiRec89/1004.5/55/55/5 Jul 2017 3,299 i i Nikon D850
Nikon D7200« »HiRec84/1004.5/54/54.5/5 Mar 2015 1,199- i Nikon D7200
Nikon D4S« »--4.5/55/54.5/5 Feb 2014 6,499- i Nikon D4S
Nikon D4« »--4.5/5-4.5/5 Jan 2012 5,999- i Nikon D4
Nikon D3X« »-86/1004/55/55/5 Dec 2008 7,999- i Nikon D3X
Sony A99 II« »-85/1004.5/54.5/54.5/5 Sep 2016 3,199 i i Sony A99 II
Sony A7R II« »HiRec90/1005/54.5/55/5 Jun 2015 3,199- i Sony A7R II

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
