Epson R-D1 vs Sony A77

The Epson R-D1 and the Sony Alpha SLT-A77 are two enthusiast cameras that were revealed to the public, respectively, in March 2004 and August 2011. The R-D1 is a rangefinder-focusing mirrorless camera, while the A77 is a DSLR. Both cameras are equipped with an APS-C sensor. The Epson has a resolution of 6 megapixels, whereas the Sony provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Sony A77
Rangefinder camera		Digital single lens reflex
Leica M mount lenses		Sony A mount lenses
6 MP – APS-C sensor		24 MP – APS-C sensor
no Video		1080/60p Video
ISO 200-1,600		ISO 100-16,000 (50 - 25,600)
Optical viewfinder		Electronic viewfinder (2359k dots)
2.0" LCD – 235k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fully flexible screen (no touchscreen)
1 shutter flaps per second		12 shutter flaps per second
no shake reduction		In-body stabilization
not weather sealed		Weathersealed body
142 x 89 x 40 mm, 620 g		143 x 104 x 81 mm, 732 g

Check R-D1 offers at
ebay.com
Check A77 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Sony Alpha SLT-A77? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

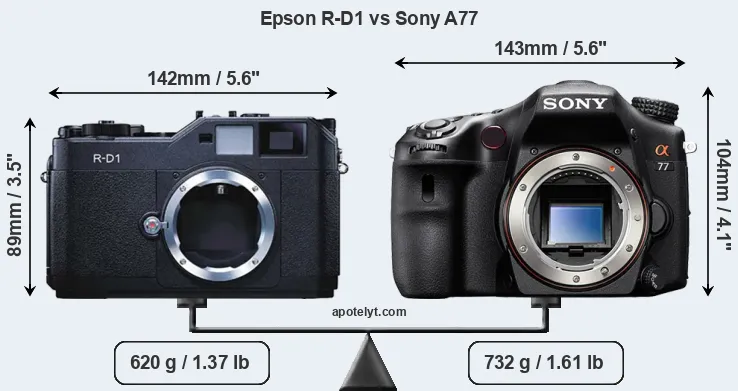

An illustration of the physical size and weight of the Epson R-D1 and the Sony A77 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A77 is notably larger (18 percent) than the Epson R-D1. Moreover, the A77 is markedly heavier (18 percent) than the R-D1. It is noteworthy in this context that the A77 is splash and dust-proof, while the R-D1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
2.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	US$ 1 399	ebay.com
3.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
4.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
5.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
6.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
7.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
8.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	US$ 2 949	ebay.com
9.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	US$ 499	ebay.com
10.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
13.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
14.		Sony A7 II	127 mm	96 mm	60 mm	599 g	350	Y	Nov 2014	US$ 1 999	ebay.com
15.		Sony A77 II	143 mm	104 mm	81 mm	647 g	480	Y	May 2014	US$ 1 199	ebay.com
16.		Sony A99	147 mm	111 mm	78 mm	812 g	500	Y	Sep 2012	US$ 2 799	ebay.com
17.		Sony A6500	120 mm	67 mm	53 mm	453 g	350	Y	Oct 2016	US$ 1 399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The A77 was launched at a markedly lower price (by 53 percent) than the R-D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the A77 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a slightly smaller sensor, the A77 offers a higher resolution of 24 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.91μm versus 7.85μm for the R-D1). However, it should be noted that the A77 is much more recent (by 7 years and 5 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Sony A77 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A77 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Sony Alpha SLT-A77 are ISO 100 to ISO 16000, with the possibility to increase the ISO range to 50-25600.

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the A77 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78
3.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
4.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
5.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
6.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
7.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
8.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
9.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
10.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
11.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
12.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
14.		Sony A7 II	Full Frame	24.0	6000	4000	1080/60p	24.9	13.6	2449	90
15.		Sony A77 II	APS-C	24.0	6000	4000	1080/60p	24.4	13.4	1013	82
16.		Sony A99	Full Frame	24.0	6000	4000	1080/60p	25.0	14.0	1555	89
17.		Sony A6500	APS-C	24.0	6000	4000	4K/30p	24.5	13.7	1405	85
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The A77 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the A77 can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the A77 has an electronic viewfinder (2359k dots), while the R-D1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Epson R-D1 and Sony A77 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
3.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
4.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
5.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
6.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
7.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
8.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
9.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
10.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
11.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
12.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
14.		Sony A7 II	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	Y
15.		Sony A77 II	2359	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	Y	Y
16.		Sony A99	2359	Y	3.0 / 1229	full-flex	n	1/8000s	6.0/s	n	Y
17.		Sony A6500	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the A77, but is missing on the R-D1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The R-D1 writes its imaging data to SDHC cards, while the A77 uses SDXC or Memory Stick PRO Duo cards. The A77 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Sony Alpha SLT-A77 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
4.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
5.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
6.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
7.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
12.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
13.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Sony A7 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
15.		Sony A77 II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
16.		Sony A99	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
17.		Sony A6500	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Travel and landscape photographers will find it useful that the A77 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the R-D1 and the A77 have been discontinued, but can regularly be found used on ebay. The A77 was replaced by the Sony A77 II, while the R-D1 does not have a direct successor. Further information on the features and operation of the R-D1 and A77 can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Sony A77 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Epson R-D1 and the Sony A77? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Epson R-D1:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More compact: Is smaller (142x89mm vs 143x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 112g or 15 percent) and hence easier to carry around.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Advantages of the Sony Alpha SLT-A77:

• More detail: Has more megapixels (24 vs 6MP), which boosts linear resolution by 100%.
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 235k dots).
• More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 1 flaps/sec) to capture the decisive moment.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
• More modern: Reflects 7 years and 5 months of technical progress since the R-D1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the A77 is the clear winner of the contest (17 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R-D1 or the A77. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
2.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	US$ 1 399	ebay.com
3.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
4.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
5.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
6.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
7.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
8.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	US$ 2 949	ebay.com
9.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	US$ 499	ebay.com
10.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
13.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
14.		Sony A7 II	5/5	+	4/5	82/100	4.5/5	5/5	Nov 2014	US$ 1 999	ebay.com
15.		Sony A77 II	4/5	..	..	80/100	4.5/5	5/5	May 2014	US$ 1 199	ebay.com
16.		Sony A99	5/5	..	..	84/100	4.5/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
17.		Sony A6500	5/5	+ +	3.5/5	85/100	4.5/5	4.5/5	Oct 2016	US$ 1 399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
