Epson R-D1 vs Panasonic GM1
The Epson R-D1 and the Panasonic Lumix DMC-GM1 are two digital cameras that were revealed to the public, respectively, in March 2004 and October 2013. The R-D1 is a rangefinder-focusing mirrorless, while the GM1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (R-D1) and a Four Thirds (GM1) sensor. The Epson has a resolution of 6 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

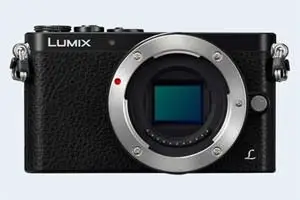

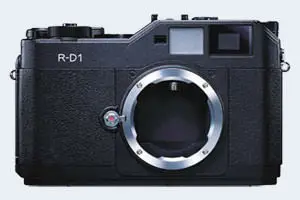

The side-by-side display below illustrates the physical size and weight of the Epson R-D1 and the Panasonic GM1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The GM1 can be obtained in three different colors (black, silver, red), while the R-D1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is considerably smaller (57 percent) than the Epson R-D1. Moreover, the GM1 is substantially lighter (67 percent) than the R-D1. In this context, it is worth noting that neither the R-D1 nor the GM1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (R-D1) and the Micro Four Thirds Lens Catalog (GM1).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Epson R-D1||142 mm||89 mm||40 mm||620 g||..||n||Mar 2004||2,999|
|2.||Panasonic GM1||99 mm||55 mm||30 mm||204 g||230||n||Oct 2013||749|
|3.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|4.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795|
|5.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595|
|6.||Leica X-U Typ 113||140 mm||79 mm||88 mm||635 g||450||Y||Jan 2016||2,950|
|7.||Leica X Vario||133 mm||73 mm||95 mm||680 g||450||n||Jun 2013||2,850|
|8.||Leica M9||139 mm||80 mm||37 mm||585 g||..||n||Sep 2009||7,999|
|9.||Nikon D40||124 mm||94 mm||64 mm||522 g||470||n||Nov 2006||499|
|10.||Nikon D50||133 mm||102 mm||76 mm||620 g||400||n||Apr 2005||749|
|11.||Nikon D70s||140 mm||111 mm||78 mm||679 g||500||n||Apr 2005||899|
|12.||Nikon D70||140 mm||111 mm||78 mm||679 g||400||n||Jan 2004||999|
|13.||Panasonic GM5||99 mm||60 mm||36 mm||211 g||220||n||Sep 2014||749|
|14.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|15.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|16.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|17.||Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The GM1 was launched at a markedly lower price (by 75 percent) than the R-D1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Panasonic GM1 a Four Thirds sensor. The sensor area in the GM1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the R-D1 has a native 3:2 aspect ratio, while the one in the GM1 offers a 4:3 aspect.
Despite having a smaller sensor, the GM1 offers a higher resolution of 15.8 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 7.85μm for the R-D1). However, it should be noted that the GM1 is much more recent (by 9 years and 7 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Panasonic GM1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GM1 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.
The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Panasonic GM1||Four Thirds||15.8||4592||3448||1080/60i||22.3||11.7||660||66|
|5.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|6.||Leica X-U Typ 113||APS-C||16.1||4928||3264||1080/30p||23.8||13.0||1614||80|
|7.||Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78|
|8.||Leica M9||Full Frame||18.1||5212||3472||none||22.5||11.7||884||69|
|13.||Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66|
|14.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|15.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|16.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|17.||Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The GM1 indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the GM1 can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R-D1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GM1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Epson R-D1 and Panasonic GM1 in connection with corresponding information for a sample of similar cameras.
|1.||Epson R-D1||optical||n||2.0 / 235||fixed||n||1/2000s||1.0/s||n||n|
|2.||Panasonic GM1||none||n||3.0 / 1036||fixed||Y||1/500s||5.0/s||Y||n|
|3.||Canon Rebel||optical||n||1.8 / 118||fixed||n||1/4000s||2.5/s||Y||n|
|4.||Leica CL||2360||Y||3.0 / 1040||fixed||Y||1/8000s||10.0/s||n||n|
|5.||Leica M10||optical||n||3.0 / 1037||fixed||n||1/4000s||5.0/s||n||n|
|6.||Leica X-U Typ 113||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|7.||Leica X Vario||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|8.||Leica M9||optical||n||2.5 / 230||fixed||n||1/4000s||2.0/s||n||n|
|9.||Nikon D40||optical||n||2.5 / 230||fixed||n||1/4000s||2.5/s||Y||n|
|10.||Nikon D50||optical||n||2.0 / 130||fixed||n||1/4000s||2.5/s||Y||n|
|11.||Nikon D70s||optical||n||2.0 / 130||fixed||n||1/8000s||3.0/s||Y||n|
|12.||Nikon D70||optical||n||1.8 / 130||fixed||n||1/8000s||3.0/s||Y||n|
|13.||Panasonic GM5||1166||n||3.0 / 921||fixed||Y||1/500s||5.8/s||n||n|
|14.||Panasonic G6||1440||n||3.0 / 1036||swivel||Y||1/4000s||7.0/s||Y||n|
|15.||Panasonic GX7||2760||n||3.0 / 1040||tilting||Y||1/8000s||5.0/s||Y||Y|
|16.||Panasonic GX1||optional||n||3.0 / 460||fixed||Y||1/4000s||4.2/s||Y||n|
|17.||Panasonic GH2||1534||n||3.0 / 460||swivel||n||1/4000s||3.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GM1 has a touchscreen, while the R-D1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GM1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The R-D1 writes its imaging data to SDHC cards, while the GM1 uses SDXC cards. The GM1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Epson R-D1||Y||- / -||-||-||-||-||-||-||-|
|2.||Panasonic GM1||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon Rebel||Y||- / -||-||-||-||1.1||-||-||-|
|4.||Leica CL||Y||stereo / mono||-||-||-||-||Y||-||-|
|5.||Leica M10||Y||- / -||-||-||-||-||Y||-||-|
|6.||Leica X-U Typ 113||Y||stereo / mono||-||-||-||2.0||-||-||-|
|7.||Leica X Vario||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|8.||Leica M9||Y||- / -||-||-||-||2.0||-||-||-|
|9.||Nikon D40||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Nikon D50||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Nikon D70s||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Nikon D70||Y||- / -||-||-||-||1.0||-||-||-|
|13.||Panasonic GM5||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|14.||Panasonic G6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|15.||Panasonic GX7||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|16.||Panasonic GX1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Panasonic GH2||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
It is notable that the R-D1 has a hotshoe, while the GM1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Epson R-D1 (unlike the GM1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the R-D1 and the GM1 have been discontinued, but can regularly be found used on eBay. The GM1 was replaced by the Panasonic GM5, while the R-D1 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Epson and Panasonic websites.
So what conclusions can be drawn? Which of the two cameras – the Epson R-D1 or the Panasonic GM1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Epson R-D1:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/500s) to freeze action.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in March 2004).
Arguments in favor of the Panasonic Lumix DMC-GM1:
- More detail: Has more megapixels (15.8 vs 6MP), which boosts linear resolution by 59%.
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1036k vs 235k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (5 vs 1 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (99x55mm vs 142x89mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 416g or 67 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
- More modern: Reflects 9 years and 7 months of technical progress since the R-D1 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the GM1 is the clear winner of the contest (15 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the R-D1 or the GM1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Epson R-D1||..||..||..||..||..||..||Mar 2004||2,999|
|2.||Panasonic GM1||3/5||+||..||78/100||5/5||4.5/5||Oct 2013||749|
|3.||Canon Rebel||..||..||..||+ +||..||..||Aug 2003||899|
|4.||Leica CL||..||..||4.2/5||..||..||4/5||Nov 2017||2,795|
|5.||Leica M10||4.5/5||..||..||..||4/5||4.5/5||Jan 2017||6,595|
|6.||Leica X-U Typ 113||3.5/5||..||..||..||..||3.5/5||Jan 2016||2,950|
|7.||Leica X Vario||3/5||..||..||..||4/5||4/5||Jun 2013||2,850|
|8.||Leica M9||..||..||..||..||4.5/5||..||Sep 2009||7,999|
|9.||Nikon D40||..||81/100||..||+ +||o||4.5/5||Nov 2006||499|
|10.||Nikon D50||..||78/100||..||+ +||4/5||4.5/5||Apr 2005||749|
|11.||Nikon D70s||..||..||..||..||..||5/5||Apr 2005||899|
|12.||Nikon D70||..||..||..||+ +||..||..||Jan 2004||999|
|13.||Panasonic GM5||3.5/5||+||..||77/100||5/5||4.5/5||Sep 2014||749|
|14.||Panasonic G6||4/5||+ +||..||..||5/5||4.5/5||Apr 2013||599|
|15.||Panasonic GX7||4/5||+||..||79/100||5/5||5/5||Aug 2013||999|
|16.||Panasonic GX1||3/5||+||..||77/100||4.5/5||4.5/5||Nov 2011||699|
|17.||Panasonic GH2||5/5||+ +||..||79/100||4.5/5||5/5||Sep 2010||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Epson R-D1 vs Nikon B600
- Epson R-D1 vs Panasonic FZ82
- Epson R-D1 vs Panasonic G1
- Epson R-D1 vs Panasonic GH2
- Epson R-D1 vs Sony RX100
- Epson R-D1 vs Sony RX100 VI
- Nikon D1H vs Panasonic GM1
- Nikon D300 vs Panasonic GM1
- Panasonic GF6 vs Panasonic GM1
- Panasonic GM1 vs Panasonic S5
- Panasonic GM1 vs Sony A3000
- Panasonic GM1 vs Sony A99 II
Specifications: Epson R-D1 vs Panasonic GM1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Epson R-D1||Panasonic GM1|
|Camera Type||Rangefinder camera||Mirrorless system camera|
|Camera Lens||Leica M mount lenses||Micro Four Thirds lenses|
|Launch Date||March 2004||October 2013|
|Launch Price||USD 2,999||USD 749|
|Sensor Specs||Epson R-D1||Panasonic GM1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.7 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||369.72 mm2||224.9 mm2|
|Sensor Diagonal||28.4 mm||21.6 mm|
|Sensor Resolution||6 Megapixels||15.8 Megapixels|
|Image Resolution||3008 x 2000 pixels||4592 x 3448 pixels|
|Pixel Pitch||7.85 μm||3.77 μm|
|Pixel Density||1.63 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||200 - 1,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||125 - 25,600 ISO|
|DXO Sensor Quality (score)||..||66|
|DXO Color Depth (bits)||..||22.3|
|DXO Dynamic Range (EV)||..||11.7|
|DXO Low Light (ISO)||..||660|
|Screen Specs||Epson R-D1||Panasonic GM1|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|LCD Framing||Live View|
|Rear LCD Size||2.0inch||3.0inch|
|LCD Resolution||235k dots||1036k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Epson R-D1||Panasonic GM1|
|Focus System||Manual Focus||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/500s|
|Continuous Shooting||1 shutter flaps/s||5 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Epson R-D1||Panasonic GM1|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||no USB||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Epson R-D1||Panasonic GM1|
142 x 89 x 40 mm
(5.6 x 3.5 x 1.6 in)
99 x 55 x 30 mm
(3.9 x 2.2 x 1.2 in)
|Camera Weight||620 g (21.9 oz)||204 g (7.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
