Epson R-D1 vs Olympus E-M10 II

The Epson R-D1 and the Olympus OM-D E-M10 Mark II are two digital cameras that were revealed to the public, respectively, in March 2004 and August 2015. The R-D1 is a rangefinder-focusing mirrorless, while the E-M10 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (R-D1) and a Four Thirds (E-M10 II) sensor. The Epson has a resolution of 6 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Olympus E-M10 II
Rangefinder camera		Mirrorless system camera
Leica M mount lenses		Micro Four Thirds lenses
6 MP – APS-C sensor		15.9 MP – Four Thirds sensor
no Video		1080/60p Video
ISO 200-1,600		ISO 200-25,600
Optical viewfinder		Electronic viewfinder (2360k dots)
2.0" LCD – 235k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
1 shutter flaps per second		8 shutter flaps per second
no shake reduction		In-body stabilization
142 x 89 x 40 mm, 620 g		120 x 83 x 47 mm, 390 g

Check R-D1 offers at
ebay.com
Check E-M10 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

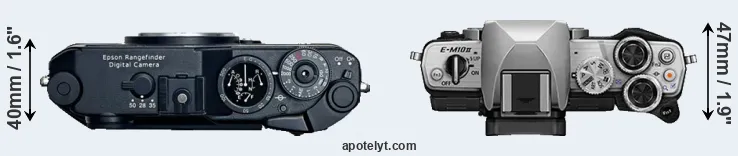

Body comparison

The physical size and weight of the Epson R-D1 and the Olympus E-M10 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-M10 II can be obtained in three different colors (black, silver, brown), while the R-D1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is notably smaller (21 percent) than the Epson R-D1. Moreover, the E-M10 II is substantially lighter (37 percent) than the R-D1. In this context, it is worth noting that neither the R-D1 nor the E-M10 II are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (R-D1) and the Micro Four Thirds Lens Catalog (E-M10 II).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
2.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
3.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
4.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
5.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
6.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
7.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
8.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	US$ 2 949	ebay.com
9.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	US$ 499	ebay.com
10.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
13.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
14.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
15.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
16.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
17.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M10 II was launched at a markedly lower price (by 78 percent) than the R-D1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

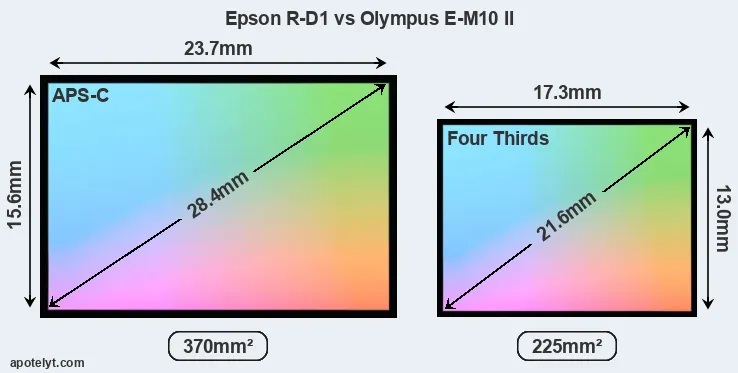

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Epson R-D1 features an APS-C sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the R-D1 has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.

Despite having a smaller sensor, the E-M10 II offers a higher resolution of 15.9 megapixels, compared with 6 MP of the R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 7.85μm for the R-D1). However, it should be noted that the E-M10 II is much more recent (by 11 years and 5 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-M10 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M10 II for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the R-D1 is build around a CCD sensor, while the E-M10 II uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
3.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
4.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
5.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
6.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
7.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
8.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
9.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
10.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
11.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
12.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
14.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
15.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
16.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
17.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The E-M10 II indeed provides for movie recording, while the R-D1 does not. The highest resolution format that the E-M10 II can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), while the R-D1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Epson R-D1 and Olympus E-M10 II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
3.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
4.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
5.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
6.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
7.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
8.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
9.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
10.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
11.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
12.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
15.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
16.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
17.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M10 II has a touchscreen, while the R-D1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M10 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R-D1 writes its imaging data to SDHC cards, while the E-M10 II uses SDXC cards. The E-M10 II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
4.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
5.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
6.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
7.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
12.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the E-M10 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the R-D1 does not provide wifi capability.

Studio photographers will appreciate that the Epson R-D1 (unlike the E-M10 II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R-D1 and the E-M10 II have been discontinued, but can regularly be found used on ebay. The E-M10 II was replaced by the Olympus E-M10 III, while the R-D1 does not have a direct successor. Further information on the features and operation of the R-D1 and E-M10 II can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Olympus E-M10 II Manual.

Review summary

So what conclusions can be drawn? Is the Epson R-D1 better than the Olympus E-M10 II or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Epson R-D1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Advantages of the Olympus OM-D E-M10 Mark II:

• More detail: Has more megapixels (15.9 vs 6MP), which boosts linear resolution by 59%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 235k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 1 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (120x83mm vs 142x89mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 230g or 37 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
• More modern: Reflects 11 years and 5 months of technical progress since the R-D1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-M10 II is the clear winner of the contest (20 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R-D1 or the E-M10 II. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
2.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
3.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
4.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
5.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
6.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
7.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
8.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	US$ 2 949	ebay.com
9.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	US$ 499	ebay.com
10.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
13.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
14.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
15.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
16.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
17.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
