Canon XT vs Pentax KP
The Canon EOS Rebel XT (called Canon 350D in some regions) and the Pentax KP are two digital cameras that were announced, respectively, in February 2005 and January 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 8 megapixels, whereas the Pentax provides 24.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XT and the Pentax KP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

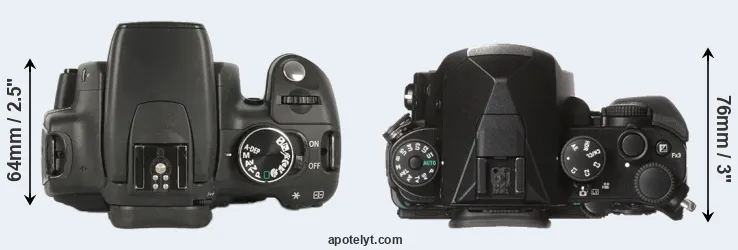

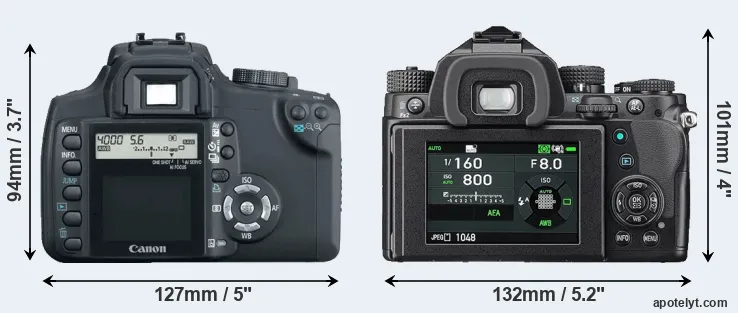

An illustration of the physical size and weight of the Canon XT and the Pentax KP is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax KP is notably larger (12 percent) than the Canon XT. Moreover, the KP is markedly heavier (30 percent) than the XT. It is noteworthy in this context that the KP is splash and dust-proof, while the XT does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|2.||Pentax KP||132 mm||101 mm||76 mm||703 g||390||Y||Jan 2017||1,099|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|5.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|6.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|7.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|8.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|9.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|10.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|11.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|12.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|13.||Pentax K-70||126 mm||93 mm||74 mm||688 g||410||Y||Jun 2016||649|
|14.||Pentax K-S2||123 mm||91 mm||73 mm||678 g||410||Y||Feb 2015||749|
|15.||Pentax K-3 II||131 mm||100 mm||77 mm||800 g||720||Y||Apr 2015||1,099|
|16.||Pentax K-3||131 mm||100 mm||77 mm||800 g||560||Y||Oct 2013||1,299|
|17.||Pentax K-5 II||131 mm||97 mm||73 mm||760 g||740||Y||Sep 2012||1,099|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XT was launched at a somewhat lower price (by 18 percent) than the KP, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the KP is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XT) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 24.1MP, the KP offers a higher resolution than the XT (8MP), but the KP has smaller individual pixels (pixel pitch of 3.90μm versus 6.41μm for the XT). Yet, the KP is a much more recent model (by 11 years and 11 months) than the XT, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the KP has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax KP implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the KP for good quality output (200 dots per inch) amounts to 30.1 x 20 inches or 76.4 x 50.8 cm, for very good quality (250 dpi) 24.1 x 16 inches or 61.1 x 40.6 cm, and for excellent quality (300 dpi) 20.1 x 13.3 inches or 50.9 x 33.9 cm. The corresponding values for the Canon XT are 17.3 x 11.5 inches or 43.9 x 29.3 cm for good quality, 13.8 x 9.2 inches or 35.1 x 23.4 cm for very good quality, and 11.5 x 7.7 inches or 29.3 x 19.5 cm for excellent quality prints.
Unlike the XT, the KP has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS Rebel XT has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Pentax KP are ISO 100 to ISO 819200 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|15.||Pentax K-3 II||APS-C||24.1||6016||4000||1080/60i||23.6||13.6||1106||80|
|17.||Pentax K-5 II||APS-C||16.1||4928||3264||1080/25p||23.8||14.1||1235||82|
Many modern cameras cannot only take still pictures, but also record videos. The KP indeed provides for movie recording, while the XT does not. The highest resolution format that the KP can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a range of features. The XT and the KP are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the KP offers a wider field of view (100%) than the one in the XT (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the KP has a higher magnification (0.63x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon XT and Pentax KP in connection with corresponding information for a sample of similar cameras.
|15.||Pentax K-3 II||optical||Y||3.2||1037||fixed||n||1/8000s||8.3||n||Y|
|17.||Pentax K-5 II||optical||Y||3.0||921||fixed||n||1/8000s||7.0||Y||Y|
One feature that differentiates the KP and the XT is in-body image stabilization (IBIS). The KP reduces the risk of handshake-induced blur with all attached lenses, while the XT offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the KP is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Pentax KP has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XT writes its imaging data to Compact Flash cards, while the KP uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XT and Pentax KP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|15.||Pentax K-3 II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|17.||Pentax K-5 II||Y||stereo||mono||Y||-||mini||2.0||-||-||-|
It is notable that the KP offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XT does not provide wifi capability.
The KP is a recent model that features in the current product line-up of Pentax. In contrast, the XT has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the XT was succeeded by the Canon Xti. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what conclusions can be drawn? Which of the two cameras – the Canon XT or the Pentax KP – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS Rebel XT:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (127x94mm vs 132x101mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 163g or 23 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced segment (18 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in February 2005).
Advantages of the Pentax KP:
- More detail: Has more megapixels (24.1 vs 8MP), which boosts linear resolution by 74%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.49x).
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 115k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 11 years and 11 months of technical progress since the XT launch.
If the count of relative strengths (bullet points above) is taken as a measure, the KP is the clear winner of the contest (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XT and the Pentax KP place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XT or the KP. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|2.||Pentax KP||4/5||..||82/100||5/5||4.5/5||Jan 2017||1,099|
|3.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|5.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|6.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|7.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|8.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|9.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|10.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|11.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|12.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|13.||Pentax K-70||4.5/5||..||79/100||4.5/5||4.5/5||Jun 2016||649|
|14.||Pentax K-S2||4.5/5||..||..||5/5||4.5/5||Feb 2015||749|
|15.||Pentax K-3 II||4.5/5||..||..||5/5||5/5||Apr 2015||1,099|
|16.||Pentax K-3||4/5||..||83/100||5/5||5/5||Oct 2013||1,299|
|17.||Pentax K-5 II||5/5||..||80/100||5/5||4.5/5||Sep 2012||1,099|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon XT vs Pentax KP
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XT||Pentax KP|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Pentax K mount lenses|
|Launch Date||February 2005||January 2017|
|Launch Price||USD 899||USD 1,099|
|Sensor Specs||Canon XT||Pentax KP|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.2 x 14.8 mm||23.5 x 15.6 mm|
|Sensor Area||328.56 mm2||366.6 mm2|
|Sensor Diagonal||26.7 mm||28.2 mm|
|Sensor Resolution||8 Megapixels||24.1 Megapixels|
|Image Resolution||3456 x 2304 pixels||6016 x 4000 pixels|
|Pixel Pitch||6.41 μm||3.90 μm|
|Pixel Density||2.42 MP/cm2||6.56 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100 - 1,600 ISO||100 - 819,200 ISO|
|Image Processor||DIGIC II||PRIME IV|
|DXO Sensor Quality (score)||60||..|
|DXO Color Depth (bits)||21.8||..|
|DXO Dynamic Range (EV)||10.8||..|
|DXO Low Light (ISO)||637||..|
|Screen Specs||Canon XT||Pentax KP|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.0inch|
|LCD Resolution||115k dots||921k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon XT||Pentax KP|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/6000s|
|Continuous Shooting||3 shutter flaps/s||7 shutter flaps/s|
|Shutter Life Expectancy||50 000 actuations||100 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/24000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XT||Pentax KP|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon XT||Pentax KP|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||400 shots per charge||390 shots per charge|
127 x 94 x 64 mm
(5.0 x 3.7 x 2.5 in)
132 x 101 x 76 mm
(5.2 x 4.0 x 3.0 in)
|Camera Weight||540 g (19.0 oz)||703 g (24.8 oz)|
