Canon XC10 vs Zeiss ZX1

The Canon XC10 and the Zeiss ZX1 are two enthusiast cameras that were revealed to the public, respectively, in April 2015 and September 2018. Both the XC10 and the ZX1 are fixed lens compact cameras that are based on an one-inch (XC10) and a full frame (ZX1) sensor. The Canon has a resolution of 12 megapixels, whereas the Zeiss provides 37.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XC10		Zeiss ZX1
Fixed lens compact camera		Fixed lens compact camera
24-240mm f/2.8-5.6		35mm f/2.8
12 MP – 1" sensor		37.4 MP – Full Frame sensor
4K/30p Video		4K/30p Video
ISO 160-20,000		ISO 80-51,200
No viewfinder, LCD framing		Electronic viewfinder (6221k dots)
3.0" LCD – 1030k dots		4.3" LCD – 2765k dots
Tilting touchscreen		Fixed touchscreen
3.8 shutter flaps per second		3 shutter flaps per second
370 shots per battery charge		250 shots per battery charge
125 x 102 x 122 mm, 1040 g		142 x 93 x 46 mm, 800 g

Check XC10 offers at
ebay.com
Check ZX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon XC10 and the Zeiss ZX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

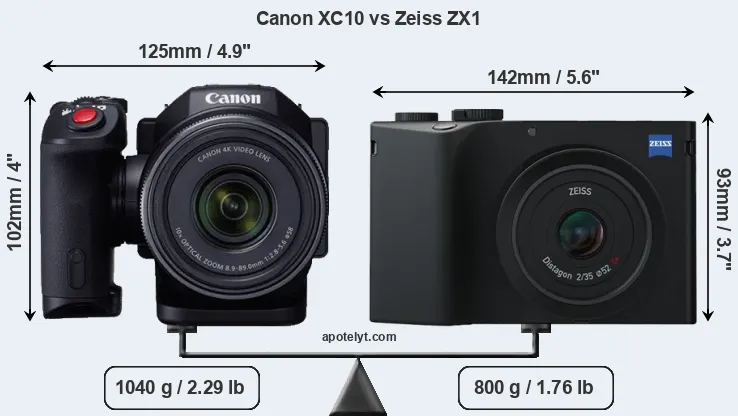

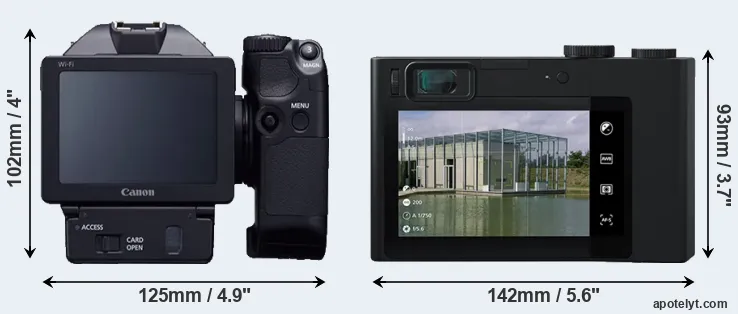

An illustration of the physical size and weight of the Canon XC10 and the Zeiss ZX1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Zeiss ZX1 is somewhat larger (4 percent) than the Canon XC10. However, the ZX1 is markedly lighter (23 percent) than the XC10. In this context, it is worth noting that neither the XC10 nor the ZX1 are weather-sealed.

Concerning battery life, the XC10 gets 370 shots out of its Canon LP-E6N battery, while the ZX1 can take 250 images on a single charge of its Zeiss DD-PS1A power pack. The power pack in the XC10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	EUR 2 199	ebay.com
2.		Zeiss ZX1	142 mm	93 mm	46 mm	800 g	250	n	Sep 2018	EUR 5 999	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	EUR 849	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	EUR 789	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	EUR 649	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	EUR 685	ebay.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	EUR 499	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	EUR 529	ebay.com
9.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	EUR 549	ebay.com
10.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	EUR 4 799	amazon.com
11.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	EUR 1 199	amazon.com
12.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	EUR 619	ebay.com
13.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	EUR 899	ebay.com
14.		Panasonic FZ1000 II	136 mm	97 mm	131 mm	810 g	350	n	Feb 2019	EUR 849	amazon.com
15.		Panasonic FZ2000	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	EUR 1 249	amazon.com
16.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	EUR 799	ebay.com
17.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	EUR 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XC10 was launched at a markedly lower price (by 58 percent) than the ZX1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon XC10 features an one-inch sensor and the Zeiss ZX1 a full frame sensor. The sensor area in the ZX1 is 602 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.75 and 1.0. The sensor in the XC10 has a native 4:3 aspect ratio, while the one in the ZX1 offers a 3:2 aspect.

With 37.4MP, the ZX1 offers a higher resolution than the XC10 (12MP), but the ZX1 nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 3.20μm for the XC10) due to its larger sensor. Moreover, the ZX1 is a much more recent model (by 3 years and 5 months) than the XC10, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Zeiss ZX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the ZX1 for good quality output (200 dots per inch) amounts to 37.4 x 25 inches or 95.1 x 63.4 cm, for very good quality (250 dpi) 30 x 20 inches or 76.1 x 50.7 cm, and for excellent quality (300 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm. The corresponding values for the Canon XC10 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon XC10 has a native sensitivity range from ISO 160 to ISO 20000. The corresponding ISO settings for the Zeiss ZX1 are ISO 80 to ISO 51200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
2.		Zeiss ZX1	Full Frame	37.4	7488	4992	4K/30p	25.2	14.1	2759	94
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
10.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
11.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
12.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
13.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
14.		Panasonic FZ1000 II	1-inch	20.0	5472	3648	4K/30p	22.1	12.4	546	65
15.		Panasonic FZ2000	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
16.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
17.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the ZX1 has an electronic viewfinder (6221k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon XC10 and Zeiss ZX1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
2.		Zeiss ZX1	6221	n	4.3 / 2765	fixed	Y	1/1000s	3.0/s	n	n
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
10.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
11.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
12.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
13.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
14.		Panasonic FZ1000 II	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
15.		Panasonic FZ2000	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
16.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
17.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon XC10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XC10 is equipped with a zoom lens, while the ZX1 comes with a built-in prime. The XC10 has a 24-240mm f/2.8-5.6 optic and the ZX1 offers a 35mm f/2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Zeiss. Both cameras offer the same maximum aperture.

The XC10 writes its imaging data to CFast or SDXC cards, while the ZX1 uses an internal SSD.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon XC10 and Zeiss ZX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Zeiss ZX1	Y	stereo / mono	-	-	-	3.1	Y	Y	Y
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
11.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
14.		Panasonic FZ1000 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
15.		Panasonic FZ2000	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
16.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the XC10 has a microphone port, which is missing on the ZX1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the XC10 and the ZX1 have been discontinued, but can regularly be found used on ebay. The XC10 was replaced by the Canon XC15, while the ZX1 does not have a direct successor. Further information on the features and operation of the XC10 and ZX1 can be found, respectively, in the Canon XC10 Manual (free pdf) or the online Zeiss ZX1 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon XC10 and the Zeiss ZX1? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon XC10:

• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/1000s) to freeze action.
• Faster burst: Shoots at higher frequency (3.8 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Longer lasting: Can take more shots (370 versus 250) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in April 2015).

Reasons to prefer the Zeiss ZX1:

• More detail: Has more megapixels (37.4 vs 12MP), which boosts linear resolution by 80%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (4.3" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2765k vs 1030k dots).
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Less heavy: Has a lower weight (by 240g or 23 percent) and is thus easier to take along.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More prestigious: Has the Zeiss luxury appeal, which ensures a high resale value.
• More modern: Reflects 3 years and 5 months of technical progress since the XC10 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the ZX1 emerges as the winner of the match-up (14 : 12 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XC10 and the Zeiss ZX1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XC10 or the ZX1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	EUR 2 199	ebay.com
2.		Zeiss ZX1	3/5	..	..	83/100	4/5	4/5	Sep 2018	EUR 5 999	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	EUR 849	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	EUR 789	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	EUR 649	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	EUR 685	ebay.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	EUR 499	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	EUR 529	ebay.com
9.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	EUR 549	ebay.com
10.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	EUR 4 799	amazon.com
11.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	EUR 1 199	amazon.com
12.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	EUR 619	ebay.com
13.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	EUR 899	ebay.com
14.		Panasonic FZ1000 II	..	..	..	83/100	4.5/5	4.5/5	Feb 2019	EUR 849	amazon.com
15.		Panasonic FZ2000	..	+	..	82/100	4.5/5	5/5	Sep 2016	EUR 1 249	amazon.com
16.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	EUR 799	ebay.com
17.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	EUR 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
