Canon SX60 vs Pentax 645D
The Canon PowerShot SX60 HS and the Pentax 645D are two digital cameras that were announced, respectively, in September 2014 and March 2010. The SX60 is a fixed lens compact, while the 645D is a DSLR. The cameras are based on a 1/2.3-inch (SX60) and a medium format (645D) sensor. The Canon has a resolution of 14.2 megapixels, whereas the Pentax provides 39.5 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX60 HS and the Pentax 645D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

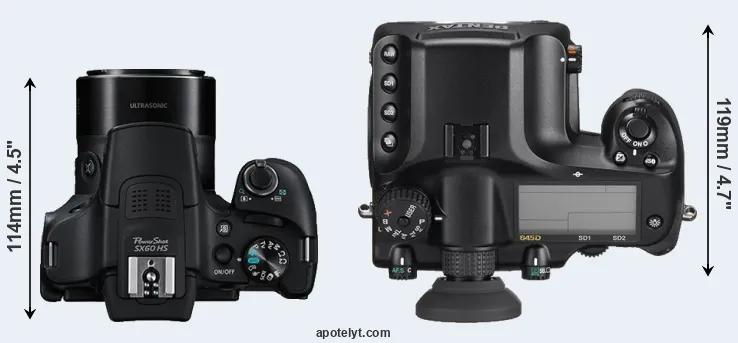

An illustration of the physical size and weight of the Canon SX60 and the Pentax 645D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645D is considerably larger (53 percent) than the Canon SX60. It is noteworthy in this context that the 645D is splash and dust-proof, while the SX60 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX60 has a lens built in, whereas the 645D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549|
|2.||Pentax 645D||156 mm||117 mm||119 mm||1480 g||800||Y||Mar 2010||9,995|
|3.||Canon SX70||127 mm||91 mm||117 mm||608 g||325||n||Sep 2018||549|
|4.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799|
|5.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|6.||Canon G15||107 mm||76 mm||40 mm||352 g||350||n||Sep 2012||499|
|7.||Canon SX50||123 mm||87 mm||106 mm||595 g||315||n||Sep 2012||429|
|8.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|9.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|10.||Leica S Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2012||21,950|
|11.||Nikon P900||140 mm||103 mm||137 mm||899 g||360||n||Mar 2015||599|
|12.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199|
|13.||Panasonic FZ300||132 mm||92 mm||117 mm||691 g||380||Y||Jul 2015||599|
|14.||Panasonic FZ200||125 mm||87 mm||110 mm||588 g||540||n||Jul 2012||599|
|15.||Panasonic FZ150||124 mm||82 mm||92 mm||528 g||410||n||Aug 2011||499|
|16.||Pentax 645Z||156 mm||117 mm||123 mm||1550 g||650||Y||Apr 2014||8,499|
|17.||Sony HX400V||130 mm||93 mm||103 mm||660 g||300||n||Feb 2014||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX60 was launched at a lower price than the 645D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SX60 features a 1/2.3-inch sensor and the Pentax 645D a medium format sensor. The sensor area in the 645D is 5086 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 0.79. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

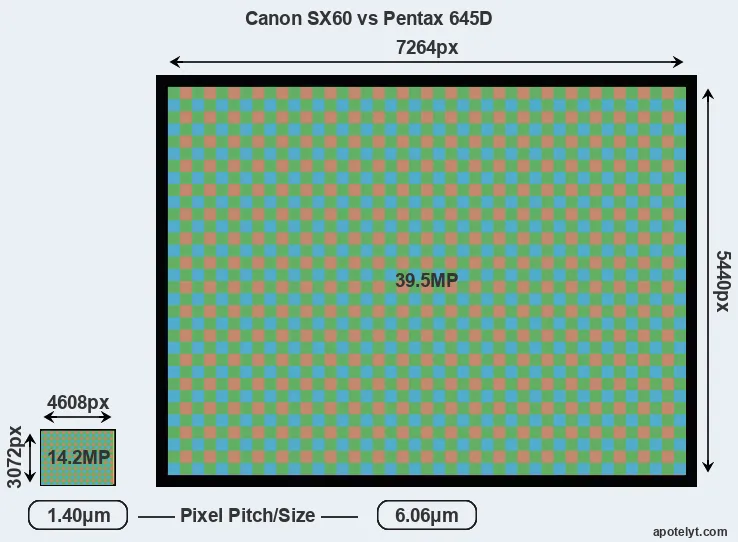

With 39.5MP, the 645D offers a higher resolution than the SX60 (14.2MP), but the 645D nevertheless has larger individual pixels (pixel pitch of 6.06μm versus 1.40μm for the SX60) due to its larger sensor. However, the SX60 is a much more recent model (by 4 years and 6 months) than the 645D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Pentax 645D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645D for good quality output (200 dots per inch) amounts to 36.3 x 27.2 inches or 92.3 x 69.1 cm, for very good quality (250 dpi) 29.1 x 21.8 inches or 73.8 x 55.3 cm, and for excellent quality (300 dpi) 24.2 x 18.1 inches or 61.5 x 46.1 cm. The corresponding values for the Canon SX60 are 23 x 15.4 inches or 58.5 x 39 cm for good quality, 18.4 x 12.3 inches or 46.8 x 31.2 cm for very good quality, and 15.4 x 10.2 inches or 39 x 26 cm for excellent quality prints.
The Canon PowerShot SX60 HS has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Pentax 645D are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the 645D offers substantially better image quality than the SX60 (overall score 43 points higher). The advantage is based on 5.4 bits higher color depth, 1.8 EV in additional dynamic range, and 3.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Pentax 645D||Medium Format||39.5||7264||5440||none||24.6||12.6||1262||82|
|4.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|8.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|9.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|10.||Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|12.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|16.||Pentax 645Z||Medium Format||51.1||8256||6192||1080/60i||26.0||14.7||4505||101|
Many modern cameras are not only capable of taking still images, but can also record movies. The SX60 indeed provides movie recording capabilities, while the 645D does not. The highest resolution format that the SX60 can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the SX60 has an electronic viewfinder (922k dots), while the 645D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon SX60 and Pentax 645D along with similar information for a selection of comparators.
|4.||Canon G1 X Mark II||optional||n||3.0||1040||tilting||Y||1/4000s||5.2||Y||Y|
|8.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|9.||Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|10.||Leica S Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
One difference between the cameras concerns the presence of an on-board flash. The SX60 has one, while the 645D does not. While the built-in flash of the SX60 is not very powerful, it can at times be useful as a fill-in light.The SX60 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the 645D does not have a selfie-screen.
The Pentax 645D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX60 and the 645D write their files to SDXC cards. The 645D features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX60 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX60 HS and Pentax 645D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon G1 X Mark II||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|8.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|9.||Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|10.||Leica S Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
It is notable that the SX60 offers wifi support, while the 645D does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Pentax 645D (unlike the SX60) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the SX60 and the 645D have been discontinued, but can regularly be found used on eBay. The 645D was replaced by the Pentax 645Z, while the SX60 was followed by the Canon SX70. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon SX60 and the Pentax 645D? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon PowerShot SX60 HS:
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6.4 vs 1.1 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with a built-in lens, while the 645D requires a separate lens.
- More compact: Is smaller (128x93mm vs 156x117mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the 645D).
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 4 years and 6 months of technical progress since the 645D launch.
Arguments in favor of the Pentax 645D:
- More detail: Has more megapixels (39.5 vs 14.2MP), which boosts linear resolution by 64%.
- Better image quality: Scores substantially higher (43 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (5.4 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.8 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (3.3 stops ISO advantage).
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (800 versus 340) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in March 2010).
If the count of individual advantages (bullet points above) is taken as a guide, the 645D comes out slightly ahead of the SX60 (15 : 14 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX60 and the Pentax 645D place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX60 or the 645D. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX60||3/5||+ +||75/100||4/5||4.5/5||Sep 2014||549|
|2.||Pentax 645D||5/5||..||..||..||..||Mar 2010||9,995|
|3.||Canon SX70||..||+ +||..||3.5/5||3.5/5||Sep 2018||549|
|4.||Canon G1 X Mark II||3/5||+||77/100||4/5||4.5/5||Feb 2014||799|
|5.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|6.||Canon G15||4/5||+||76/100||4.5/5||4.5/5||Sep 2012||499|
|7.||Canon SX50||3/5||+ +||72/100||4.5/5||4.5/5||Sep 2012||429|
|8.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|9.||Canon 1D Mark IV||5/5||..||89/100||..||..||Oct 2009||4,999|
|10.||Leica S Typ 006||..||..||..||..||..||Sep 2012||21,950|
|11.||Nikon P900||..||..||77/100||4/5||4/5||Mar 2015||599|
|12.||Nikon D3S||5/5||..||89/100||4.5/5||5/5||Oct 2009||5,199|
|13.||Panasonic FZ300||..||+ +||..||4.5/5||4.5/5||Jul 2015||599|
|14.||Panasonic FZ200||3/5||+ +||80/100||4.5/5||4.5/5||Jul 2012||599|
|15.||Panasonic FZ150||3/5||+ +||76/100||4/5||4.5/5||Aug 2011||499|
|16.||Pentax 645Z||5/5||..||..||4.5/5||5/5||Apr 2014||8,499|
|17.||Sony HX400V||4/5||+ +||..||4/5||4/5||Feb 2014||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon SX60 vs Pentax 645D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX60||Pentax 645D|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||21-1365mm f/3.4-6.5||Pentax 645 mount lenses|
|Launch Date||September 2014||March 2010|
|Launch Price||USD 549||USD 9,995|
|Sensor Specs||Canon SX60||Pentax 645D|
|Sensor Format||1/2.3" Sensor||Medium Format Sensor|
|Sensor Size||6.17 x 4.55 mm||44.0 x 33.0 mm|
|Sensor Area||28.0735 mm2||1452 mm2|
|Sensor Diagonal||7.7 mm||55 mm|
|Sensor Resolution||14.2 Megapixels||39.5 Megapixels|
|Image Resolution||4608 x 3072 pixels||7264 x 5440 pixels|
|Pixel Pitch||1.40 μm||6.06 μm|
|Pixel Density||50.42 MP/cm2||2.72 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 3,200 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 6,400 ISO||no Enhancement|
|Image Processor||DIGIC 6||PRIME II|
|DXO Sensor Quality (score)||39||82|
|DXO Color Depth (bits)||19.2||24.6|
|DXO Dynamic Range (EV)||10.8||12.6|
|DXO Low Light (ISO)||127||1262|
|Screen Specs||Canon SX60||Pentax 645D|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||98%|
|Viewfinder Resolution||922k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||922k dots||921k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon SX60||Pentax 645D|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||6.4 shutter flaps/s||1.1 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||no||no|
|Connectivity Specs||Canon SX60||Pentax 645D|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX60||Pentax 645D|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||340 shots per charge||800 shots per charge|
128 x 93 x 114 mm
(5.0 x 3.7 x 4.5 in)
156 x 117 x 119 mm
(6.1 x 4.6 x 4.7 in)
|Camera Weight||650 g (22.9 oz)||1480 g (52.2 oz)|
