Canon SX520 vs Ricoh WG-60

The Canon PowerShot SX520 HS and the Ricoh WG-60 are two digital cameras that were officially introduced, respectively, in July 2014 and October 2018. Both the SX520 and the WG-60 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Ricoh WG-60
Fixed lens compact camera		Fixed lens compact camera
24-1008mm f/3.4-6		28-140mm f/3.5-5.5
15.9 MP – 1/2.3" sensor		15.9 MP – 1/2.3" sensor
1080/30p Video		1080/60p Video
ISO 100-3,200		ISO 125-6,400
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 461k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.6 shutter flaps per second		8 shutter flaps per second
not weather sealed		Waterproof body (14m)
210 shots per battery charge		300 shots per battery charge
120 x 82 x 92 mm, 441 g		123 x 62 x 30 mm, 193 g

Check SX520 offers at
ebay.com
Check WG-60 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Ricoh WG-60? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

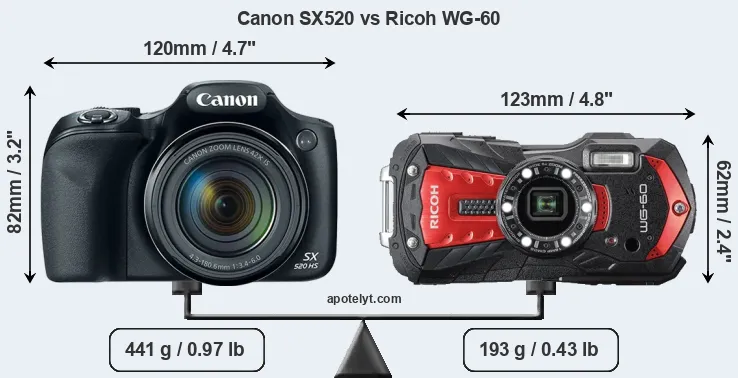

Body comparison

The physical size and weight of the Canon SX520 and the Ricoh WG-60 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The WG-60 can be obtained in two different colors (black, red), while the SX520 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh WG-60 is notably smaller (22 percent) than the Canon SX520. Moreover, the WG-60 is substantially lighter (56 percent) than the SX520. It is noteworthy in this context that the WG-60 is splash and dust-proof, while the SX520 does not feature any corresponding weather-sealing. More than that, the WG-60 is water-proof up to 14m and can, thus, be used for underwater photography.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	EUR 299	ebay.com
2.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	EUR 249	ebay.com
3.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	EUR 399	ebay.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	EUR 449	ebay.com
5.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	EUR 399	amazon.com
6.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	EUR 529	ebay.com
7.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	EUR 329	ebay.com
8.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	EUR 379	ebay.com
9.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	EUR 369	ebay.com
10.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	EUR 349	ebay.com
11.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	EUR 299	ebay.com
12.		Fujifilm XP120	110 mm	71 mm	28 mm	203 g	210	Y	Jan 2017	EUR 219	ebay.com
13.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	EUR 219	ebay.com
14.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	EUR 359	ebay.com
15.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	EUR 449	ebay.com
16.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	EUR 379	amazon.com
17.		Sony WX800	102 mm	58 mm	36 mm	233 g	370	n	Oct 2018	EUR 399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-60 was launched at a markedly lower price (by 30 percent) than the SX520, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

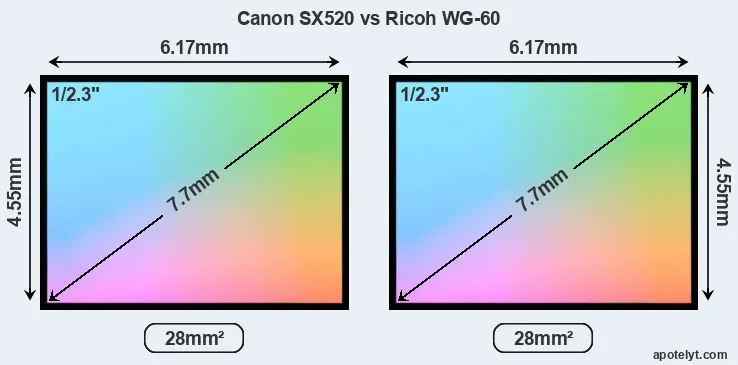

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the SX520 and the WG-60 have the same pixel density, as well as the same pixel size. It should, however, be noted that the WG-60 is much more recent (by 4 years and 2 months) than the SX520, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Ricoh WG-60 are ISO 125 to ISO 6400 (no boost).

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the WG-60 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
3.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
6.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
7.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
8.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
9.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
10.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
11.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
12.		Fujifilm XP120	1/2.3	15.9	4608	3456	1080/60p	20.5	11.9	900	49
13.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
14.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
15.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
16.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
17.		Sony WX800	1/2.3	18.0	4896	3672	4K/30p	20.6	12.2	1070	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The SX520 and the WG-60 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Canon SX520, the Ricoh WG-60, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
3.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
7.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
8.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
9.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
10.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
11.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
12.		Fujifilm XP120	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
13.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
14.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
15.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
16.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
17.		Sony WX800	none	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Ricoh WG-60 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the SX520 and the WG-60 have zoom lenses built in. The SX520 has a 24-1008mm f/3.4-6 optic and the WG-60 offers a 28-140mm f/3.5-5.5 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Ricoh. The SX520 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX520 and the WG-60 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Ricoh WG-60 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-
3.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
8.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
9.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Fujifilm XP120	-	mono / mono	-	-	micro	2.0	Y	-	-
13.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
14.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony WX800	-	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the SX520 and the WG-60 have been discontinued, but can regularly be found used on ebay. The SX520 was replaced by the Canon SX530, while the WG-60 does not have a direct successor. Further information on the features and operation of the SX520 and WG-60 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Ricoh WG-60 Manual.

Review summary

So how do things add up? Is the Canon SX520 better than the Ricoh WG-60 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot SX520 HS:

• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (461k vs 230k dots).
• Better light gathering: Has a lens with a wider maximum aperture (f/3.4 vs f/3.5).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More heavily discounted: Has been available for much longer (launched in July 2014).

Reasons to prefer the Ricoh WG-60:

• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 1.6 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (123x62mm vs 120x82mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 248g or 56 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (300 versus 210) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 14m).
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
• More modern: Reflects 4 years and 2 months of technical progress since the SX520 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the WG-60 emerges as the winner of the match-up (10 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Ricoh WG-60 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX520 or the WG-60. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	EUR 299	ebay.com
2.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	EUR 249	ebay.com
3.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	EUR 399	ebay.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	EUR 449	ebay.com
5.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	EUR 399	amazon.com
6.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	EUR 529	ebay.com
7.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	EUR 329	ebay.com
8.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	EUR 379	ebay.com
9.		Canon SX540	..	..	..	..	..	..	Jan 2016	EUR 369	ebay.com
10.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	EUR 349	ebay.com
11.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	EUR 299	ebay.com
12.		Fujifilm XP120	..	o	..	..	3.5/5	4/5	Jan 2017	EUR 219	ebay.com
13.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	EUR 219	ebay.com
14.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	EUR 359	ebay.com
15.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	EUR 449	ebay.com
16.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	EUR 379	amazon.com
17.		Sony WX800	..	..	..	..	..	..	Oct 2018	EUR 399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
