Canon SX520 vs Olympus E-500

The Canon PowerShot SX520 HS and the Olympus Evolt E-500 are two digital cameras that were announced, respectively, in July 2014 and September 2005. The SX520 is a fixed lens compact, while the E-500 is a DSLR. The cameras are based on a 1/2.3-inch (SX520) and a Four Thirds (E-500) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Olympus provides 8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Olympus E-500
Fixed lens compact camera		Digital single lens reflex
24-1008mm f/3.4-6		Four Thirds lenses
15.9 MP – 1/2.3" sensor		8 MP – Four Thirds sensor
1080/30p Video		no Video
ISO 100-3,200		ISO 100-400 (100 - 1,600)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 461k dots		2.5" LCD – 215k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.6 shutter flaps per second		2.5 shutter flaps per second
210 shots per battery charge		750 shots per battery charge
120 x 82 x 92 mm, 441 g		130 x 95 x 66 mm, 479 g

Check SX520 offers at
ebay.com
Check E-500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon SX520 and the Olympus E-500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is notably larger (26 percent) than the Canon SX520. In this context, it is worth noting that neither the SX520 nor the E-500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the E-500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-500 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the E-500 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
2.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	US$ 599	ebay.com
3.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
4.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
5.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
6.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
7.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
8.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
9.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
10.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	US$ 349	ebay.com
11.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
13.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	US$ 699	ebay.com
14.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
15.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
16.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
17.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX520 was launched at a lower price than the E-500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

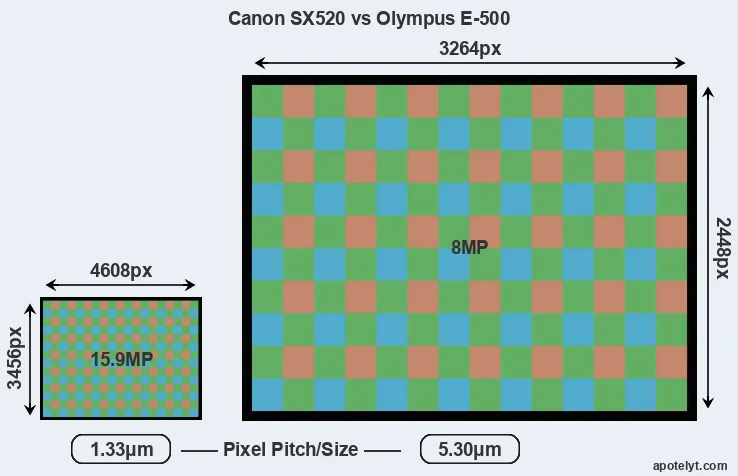

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Olympus E-500 a Four Thirds sensor. The sensor area in the E-500 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Canon SX520 offers a higher resolution of 15.9 megapixels, compared with 8 MP of the Olympus E-500. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 5.30μm for the E-500). However, it should be noted that the SX520 is much more recent (by 8 years and 10 months) than the E-500, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX520 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX520 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the E-500 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
3.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
4.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
5.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
6.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
7.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
8.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
9.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
10.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
11.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
12.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
13.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
14.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
15.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
16.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
17.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The SX520 indeed provides movie recording capabilities, while the E-500 does not. The highest resolution format that the SX520 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX520 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX520 and Olympus E-500 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
4.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
5.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
6.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
7.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
8.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
9.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
10.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
11.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
12.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
13.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
14.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
15.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
16.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
17.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The SX520 writes its imaging data to SDXC cards, while the E-500 uses Compact Flash or xD Picture cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX520 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
16.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
17.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the E-500 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX520 does not feature such an accessory-socket.

Both the SX520 and the E-500 have been discontinued, but can regularly be found used on ebay. The E-500 was replaced by the Olympus E-510, while the SX520 was followed by the Canon SX530. Further information on the features and operation of the SX520 and E-500 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Olympus E-500 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SX520 and the Olympus E-500? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot SX520 HS:

• More detail: Offers more megapixels (15.9 vs 8MP) with a 41% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (461k vs 215k dots).
• Ready to shoot: Comes with a built-in lens, while the E-500 requires a separate lens.
• More compact: Is smaller (120x82mm vs 130x95mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-500).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 8 years and 10 months of technical progress since the E-500 launch.

Advantages of the Olympus Evolt E-500:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (2.5 vs 1.6 flaps/sec) to capture the decisive moment.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 210) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in September 2005).

If the count of individual advantages (bullet points above) is taken as a guide, the E-500 emerges as the winner of the match-up (13 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Olympus E-500 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX520 or the E-500. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
2.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	US$ 599	ebay.com
3.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
4.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
5.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
6.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
7.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
8.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
9.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
10.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	US$ 349	ebay.com
11.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
13.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	US$ 699	ebay.com
14.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
15.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
16.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
17.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
