Canon SX520 vs Fujifilm X-A2
The Canon PowerShot SX520 HS and the Fujifilm X-A2 are two digital cameras that were revealed to the public, respectively, in July 2014 and January 2015. The SX520 is a fixed lens compact, while the X-A2 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX520) and an APS-C (X-A2) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Fujifilm provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Fujifilm X-A2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

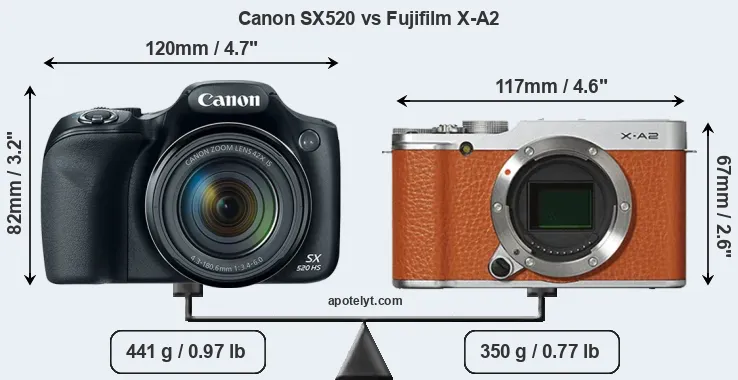

The physical size and weight of the Canon SX520 and the Fujifilm X-A2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The X-A2 can be obtained in three different colors (black, brown, white), while the SX520 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-A2 is notably smaller (20 percent) than the Canon SX520. In this context, it is worth noting that neither the SX520 nor the X-A2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the X-A2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the X-A2 and their specifications in the Fujinon X Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon SX520||120 mm||82 mm||92 mm||441 g||210||n||Jul 2014||399||ebay.com|
|2.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399||ebay.com|
|3.||Canon SX540||120 mm||82 mm||92 mm||442 g||205||n||Jan 2016||399||ebay.com|
|4.||Canon SX530||120 mm||82 mm||92 mm||442 g||210||n||Jan 2015||429||ebay.com|
|5.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349||ebay.com|
|6.||Canon SX700||113 mm||66 mm||35 mm||269 g||250||n||Feb 2014||349||ebay.com|
|7.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549||ebay.com|
|8.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|9.||Canon SX510||104 mm||70 mm||80 mm||349 g||250||n||Aug 2013||249||ebay.com|
|10.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399||ebay.com|
|11.||Fujifilm X-A10||117 mm||67 mm||40 mm||331 g||410||n||Dec 2016||399||ebay.com|
|12.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699||ebay.com|
|13.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799||ebay.com|
|14.||Fujifilm X-A1||117 mm||67 mm||39 mm||330 g||350||n||Sep 2013||399||ebay.com|
|15.||Nikon B600||122 mm||82 mm||99 mm||500 g||280||n||Jan 2019||349||amazon.com|
|16.||Sony HX90V||102 mm||58 mm||36 mm||245 g||360||n||Apr 2015||429||ebay.com|
|17.||Sony H200||123 mm||83 mm||87 mm||530 g||240||n||Jan 2013||249||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Fujifilm X-A2 an APS-C sensor. The sensor area in the X-A2 is 1214 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX520 has a native 4:3 aspect ratio, while the one in the X-A2 offers a 3:2 aspect.
With 16MP, the X-A2 offers a higher resolution than the SX520 (15.9MP), but the X-A2 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 1.33μm for the SX520) due to its larger sensor. Moreover, the X-A2 is a somewhat more recent model (by 5 months) than the SX520, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Fujifilm X-A2 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the X-A2 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).
Apart from body and sensor, cameras can and do differ across a variety of features. The SX520 and the X-A2 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon SX520 and Fujifilm X-A2 in connection with corresponding information for a sample of similar cameras.
|1.||Canon SX520||none||n||3.0 / 461||fixed||n||1/2000s||1.6/s||Y||Y|
|2.||Fujifilm X-A2||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|3.||Canon SX540||none||n||3.0 / 461||fixed||n||1/2000s||5.9/s||Y||Y|
|4.||Canon SX530||none||n||3.0 / 461||fixed||n||1/2000s||1.6/s||Y||Y|
|5.||Canon SX710||none||n||3.0 / 922||fixed||n||1/3200s||6.0/s||Y||Y|
|6.||Canon SX700||none||n||3.0 / 922||fixed||n||1/3200s||8.5/s||Y||Y|
|7.||Canon SX60||922||n||3.0 / 922||swivel||n||1/2000s||6.4/s||Y||Y|
|8.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|9.||Canon SX510||none||n||3.0 / 461||fixed||n||1/1600s||3.8/s||Y||Y|
|10.||Fujifilm X-A3||none||n||3.0 / 1040||tilting||Y||1/4000s||6.0/s||Y||n|
|11.||Fujifilm X-A10||none||n||3.0 / 1040||tilting||n||1/4000s||6.0/s||Y||n|
|12.||Fujifilm X-E2S||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0/s||Y||n|
|13.||Fujifilm X-T10||2360||n||3.0 / 920||tilting||n||1/4000s||8.0/s||Y||n|
|14.||Fujifilm X-A1||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|15.||Nikon B600||none||n||3.0 / 921||fixed||n||1/4000s||7.4/s||Y||Y|
|16.||Sony HX90V||638||n||3.0 / 921||tilting||n||1/2000s||10.0/s||Y||Y|
|17.||Sony H200||none||n||3.0 / 460||fixed||n||1/1500s||0.8/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
Concerning the storage of imaging data, both the SX520 and the X-A2 write their files to SDXC cards. The X-A2 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX520 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Fujifilm X-A2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon SX520||-||stereo / mono||-||-||mini||2.0||-||-||-|
|2.||Fujifilm X-A2||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|3.||Canon SX540||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon SX530||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon SX710||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon SX700||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon SX60||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon SX510||-||stereo / mono||-||-||mini||2.0||Y||-||-|
|10.||Fujifilm X-A3||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|11.||Fujifilm X-A10||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|12.||Fujifilm X-E2S||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|13.||Fujifilm X-T10||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|14.||Fujifilm X-A1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|15.||Nikon B600||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|16.||Sony HX90V||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|17.||Sony H200||-||mono / mono||-||-||-||2.0||-||-||-|
It is notable that the X-A2 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX520 does not provide wifi capability.
Both the SX520 and the X-A2 have been discontinued, but can regularly be found used on ebay. The SX520 was replaced by the Canon SX530, while the X-A2 was followed by the Fujifilm X-A3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So how do things add up? Is there a clear favorite between the Canon SX520 and the Fujifilm X-A2? Which camera is better? The listing below highlights the relative strengths of the two models.
Advantages of the Canon PowerShot SX520 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has a lens built-in, whereas the X-A2 requires a separate lens.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- More heavily discounted: Has been on the market for longer (launched in July 2014).
Reasons to prefer the Fujifilm X-A2:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More detailed LCD: Has a higher resolution rear screen (920k vs 461k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (5.6 vs 1.6 flaps/sec) to capture the decisive moment.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- More compact: Is smaller (117x67mm vs 120x82mm) and will fit more readily into a bag.
- Longer lasting: Gets more shots (410 versus 210) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Was introduced somewhat (5 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the X-A2 is the clear winner of the contest (17 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX520 and the Fujifilm X-A2 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX520 or the X-A2. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX520||..||+||..||..||3.5/5||3.5/5||Jul 2014||399||ebay.com|
|2.||Fujifilm X-A2||4/5||..||..||..||4.5/5||4.5/5||Jan 2015||399||ebay.com|
|3.||Canon SX540||..||..||..||..||..||..||Jan 2016||399||ebay.com|
|4.||Canon SX530||..||+ +||..||..||4/5||4/5||Jan 2015||429||ebay.com|
|5.||Canon SX710||..||+||..||..||4/5||3.5/5||Jan 2015||349||ebay.com|
|6.||Canon SX700||..||+ +||..||..||4/5||4/5||Feb 2014||349||ebay.com|
|7.||Canon SX60||3/5||+ +||..||75/100||4/5||4.5/5||Sep 2014||549||ebay.com|
|8.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|9.||Canon SX510||..||+ +||..||..||4.5/5||4/5||Aug 2013||249||ebay.com|
|10.||Fujifilm X-A3||..||..||..||74/100||4.5/5||4/5||Aug 2016||399||ebay.com|
|11.||Fujifilm X-A10||..||..||..||..||4/5||4/5||Dec 2016||399||ebay.com|
|12.||Fujifilm X-E2S||4.5/5||..||..||77/100||4.5/5||4.5/5||Jan 2016||699||ebay.com|
|13.||Fujifilm X-T10||4.5/5||+ +||..||80/100||5/5||5/5||May 2015||799||ebay.com|
|14.||Fujifilm X-A1||..||..||..||..||4.5/5||4.5/5||Sep 2013||399||ebay.com|
|15.||Nikon B600||..||+||..||..||3.5/5||3/5||Jan 2019||349||amazon.com|
|16.||Sony HX90V||4/5||+ +||..||..||4/5||4.5/5||Apr 2015||429||ebay.com|
|17.||Sony H200||..||..||..||..||3.5/5||3.5/5||Jan 2013||249||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon M100 vs Canon SX520
- Canon SX520 vs Canon T6
- Canon SX520 vs Canon T6s
- Canon SX520 vs Fujifilm X-Pro2
- Canon SX520 vs Leica M8
- Canon SX520 vs Nikon B600
- Canon T6i vs Fujifilm X-A2
- Fujifilm X-A2 vs Fujifilm X-Pro1
- Fujifilm X-A2 vs Fujifilm X-T10
- Fujifilm X-A2 vs Nikon B500
- Fujifilm X-A2 vs Panasonic GX7
- Fujifilm X-A2 vs Sony A7R II
Specifications: Canon SX520 vs Fujifilm X-A2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX520||Fujifilm X-A2|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-1008mm f/3.4-6||Fujifilm X mount lenses|
|Launch Date||July 2014||January 2015|
|Launch Price||USD 399||USD 399|
|Sensor Specs||Canon SX520||Fujifilm X-A2|
|Sensor Format||1/2.3" Sensor||APS-C Sensor|
|Sensor Size||6.17 x 4.55 mm||23.6 x 15.6 mm|
|Sensor Area||28.0735 mm2||368.16 mm2|
|Sensor Diagonal||7.7 mm||28.3 mm|
|Sensor Resolution||15.9 Megapixels||16 Megapixels|
|Image Resolution||4608 x 3456 pixels||4896 x 3264 pixels|
|Pixel Pitch||1.33 μm||4.80 μm|
|Pixel Density||56.73 MP/cm2||4.34 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 3,200 ISO||200 - 6,400 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 4+||EXR Processor II|
|Screen Specs||Canon SX520||Fujifilm X-A2|
|Viewfinder Type||no viewfinder||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||461k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon SX520||Fujifilm X-A2|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/4000s|
|Continuous Shooting||1.6 shutter flaps/s||5.6 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon SX520||Fujifilm X-A2|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon SX520||Fujifilm X-A2|
|Battery Life (CIPA)||210 shots per charge||410 shots per charge|
120 x 82 x 92 mm
(4.7 x 3.2 x 3.6 in)
117 x 67 x 40 mm
(4.6 x 2.6 x 1.6 in)
|Camera Weight||441 g (15.6 oz)||350 g (12.3 oz)|
