Canon SX510 vs T3

The Canon PowerShot SX510 HS and the Canon EOS Rebel T3 (labelled Canon 1100D in some countries) are two digital cameras that were officially introduced, respectively, in August 2013 and February 2011. The SX510 is a fixed lens compact, while the T3 is a DSLR. The cameras are based on a 1/2.3-inch (SX510) and an APS-C (T3) sensor. The SX510 has a resolution of 15.9 megapixels, whereas the T3 provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SX510 versus Canon T3
Canon SX510 Canon T3
Fixed lens compact camera Digital single lens reflex
24-720mm f/3.4-5.8 Canon EF mount lenses
15.9 MP, 1/2.3" Sensor 12.2 MP, APS-C Sensor
1080/24p Video 720/30p Video
ISO 80-3,200 ISO 100-6,400
No viewfinder, LCD framing Optical viewfinder
3.0 LCD, 461k dots 2.7 LCD, 230k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3.8 shutter flaps per second 3 shutter flaps per second
250 shots per battery charge700 shots per battery charge
104 x 70 x 80 mm, 349 g 130 x 100 x 78 mm, 495 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Canon EOS Rebel T3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

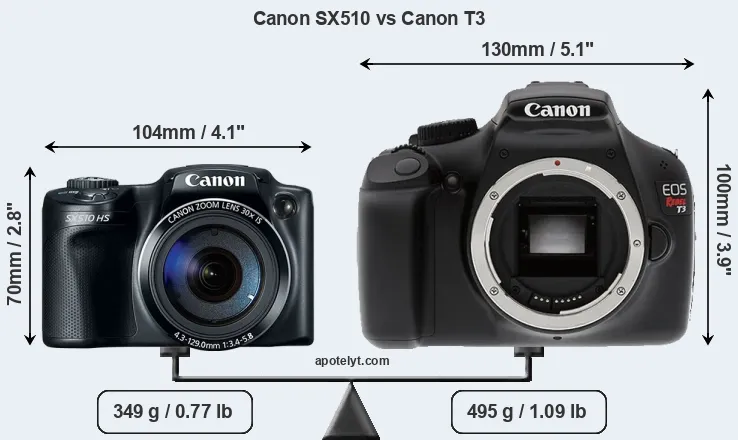

An illustration of the physical size and weight of the Canon SX510 and the Canon T3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon SX510 vs Canon T3
Compare SX510 versus T3 top
Comparison SX510 or T3 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T3 is considerably larger (79 percent) than the Canon SX510. In this context, it is worth noting that neither the SX510 nor the T3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX510 has a lens built in, whereas the T3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T3 and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the SX510 gets 250 shots out of its NB-6LH battery, while the T3 can take 700 images on a single charge of its LP-E10 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SX510 104 mm 70 mm 80 mm 349 g 250 n Aug 2013 249i
2.

Canon T3 130 mm 100 mm 78 mm 495 g 700 n Feb 2011 449i
3.

Canon T100 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 i
4.

Canon SX420 104 mm 69 mm 85 mm 325 g 195 n Jan 2016 299i
5.

Canon SX520 120 mm 82 mm 92 mm 441 g 210 n Jul 2014 399i
6.

Canon SX700 113 mm 66 mm 35 mm 269 g 250 n Feb 2014 349i
7.

Canon SX600 104 mm 61 mm 26 mm 188 g 290 n Jan 2014 249i
8.

Canon SX400 104 mm 69 mm 80 mm 313 g 190 n Jul 2014 249i
9.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449i
10.

Canon SX500 104 mm 70 mm 80 mm 341 g 195 n Aug 2012 329i
11.

Canon G1 X 117 mm 81 mm 65 mm 534 g 250 n Jan 2012 799i
12.

Canon G15 107 mm 76 mm 40 mm 352 g 350 n Sep 2012 499i
13.

Canon M 109 mm 66 mm 32 mm 298 g 230 n Jul 2012 599i
14.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849i
15.

Canon XS 126 mm 98 mm 65 mm 502 g 500 n Jun 2008 449i
16.

Leica X2 124 mm 69 mm 52 mm 345 g 450 n May 2012 1,995i
17.

Sony H200 123 mm 83 mm 87 mm 530 g 240 n Jan 2013 249 i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX510 was launched at a lower price than the T3, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

ad

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Canon T3 an APS-C sensor. The sensor area in the T3 is 1054 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.6. The sensor in the SX510 has a native 4:3 aspect ratio, while the one in the T3 offers a 3:2 aspect.

Canon SX510 and Canon T3 sensor measures

Despite having a smaller sensor, the Canon SX510 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the Canon T3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 5.15μm for the T3). However, it should be noted that the SX510 is much more recent (by 2 years and 6 months) than the T3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX510 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX510 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon T3 are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Canon EOS Rebel T3 are ISO 100 to ISO 6400 (no boost).

SX510 versus T3 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon SX510 1/2.3 15.9 4608 34561080/24p........
2.

Canon T3 APS-C 12.2 4272 2848720/30p21.911.075562
3.

Canon T100 APS-C 17.9 5184 34561080/30p21.911.469563
4.

Canon SX420 1/2.3 19.9 5152 3864720/25p........
5.

Canon SX520 1/2.3 15.9 4608 34561080/30p........
6.

Canon SX700 1/2.3 15.9 4608 34561080/60p........
7.

Canon SX600 1/2.3 15.9 4608 34561080/30p........
8.

Canon SX400 1/2.3 15.9 4608 3456720/30p........
9.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463
10.

Canon SX500 1/2.3 15.9 4608 3456720/30p........
11.

Canon G1 X 1.5-inch 14.2 4352 32641080/24p21.710.864460
12.

Canon G15 1/1.7 12.0 4000 30001080/24p19.911.516546
13.

Canon M APS-C 17.9 5184 34561080/30p22.111.282765
14.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
15.

Canon XS APS-C 10.1 3888 2592none........
16.

Leica X2 APS-C 16.1 4928 3264none........
17.

Sony H200 1/2.3 15.2 5184 2930720/30p........

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX510 provides a higher video resolution than the T3. It can shoot video footage at 1080/24p, while the T3 is limited to 720/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the T3 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX510 and Canon T3 along with similar information for a selection of comparators.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon SX510none n 3.0 461 fixed n 1/1600s 3.8 Y Y
2.

Canon T3optical n 2.7 230 fixed n 1/4000s 3.0 Y n
3.

Canon T100optical n 2.7 230 fixed n 1/4000s 3.0 Y n
4.

Canon SX420none n 3.0 230 fixed n 1/4000s 0.5 Y Y
5.

Canon SX520none n 3.0 461 fixed n 1/2000s 1.6 Y Y
6.

Canon SX700none n 3.0 922 fixed n 1/3200s 8.5 Y Y
7.

Canon SX600none n 3.0 461 fixed n 1/2000s 3.9 Y Y
8.

Canon SX400none n 3.0 230 fixed n 1/1600s 0.8 Y Y
9.

Canon T5optical n 3.0 460 fixed n 1/4000s 3.0 Y n
10.

Canon SX500none n 3.0 461 fixed n 1/1600s 0.8 Y Y
11.

Canon G1 Xoptical n 3.0 922 Swivel n 1/4000s 1.9 Y Y
12.

Canon G15optical n 3.0 922 fixed n 1/4000s 2.1 Y Y
13.

Canon Mnone n 3.0 1040 fixed Y 1/4000s 4.3 n n
14.

Canon T4ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n
15.

Canon XSoptical n 2.5 230 fixed n 1/4000s 3.0 Y n
16.

Leica X2optional n 2.7 230 fixed n 1/2000s 5.0 Y n
17.

Sony H200none n 3.0 460 fixed n 1/1500s 0.8 Y Y

Concerning the storage of imaging data, both the SX510 and the T3 write their files to SDXC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Canon EOS Rebel T3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon SX510-stereomono--mini2.0Y--
2.

Canon T3Ystereomono--mini2.0---
3.

Canon T100Ymonomono--mini2.0YY-
4.

Canon SX420-monomono---2.0YY-
5.

Canon SX520-stereomono--mini2.0---
6.

Canon SX700-stereomono--micro2.0YY-
7.

Canon SX600-monomono--micro2.0YY-
8.

Canon SX400-stereomono---2.0---
9.

Canon T5Ymonomono--mini2.0---
10.

Canon SX500-stereomono---2.0---
11.

Canon G1 XYstereomono--mini2.0---
12.

Canon G15Ystereomono--mini2.0---
13.

Canon MYstereomonoY-mini2.0---
14.

Canon T4iYstereomonoY-mini2.0---
15.

Canon XSY-----2.0---
16.

Leica X2Y----mini2.0---
17.

Sony H200-monomono---2.0---

It is notable that the SX510 offers wifi support, while the T3 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX510 and the T3 have been discontinued, but can regularly be found used on eBay. The T3 was replaced by the Canon T5, while the SX510 was followed by the Canon SX520. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

ad

Review summary

So what is the bottom line? Which of the two cameras – the Canon SX510 or the Canon T3 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.


Advantages of the Canon PowerShot SX510 HS:

  • More detail: Offers more megapixels (15.9 vs 12.2MP) with a 12% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better video: Provides higher definition movie capture (1080/24p vs 720/30p).
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (461k vs 230k dots).
  • Faster burst: Shoots at higher frequency (3.8 vs 3 flaps/sec) to capture the decisive moment.
  • Ready to shoot: Comes with a built-in lens, while the T3 requires a separate lens.
  • More compact: Is smaller (104x70mm vs 130x100mm) and thus needs less room in the bag.
  • Less heavy: Is lighter even though it comes with a built-in lens (unlike the T3).
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Reflects 2 years and 6 months of technical progress since the T3 launch.


Arguments in favor of the Canon EOS Rebel T3:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
  • More flexible: Makes it possible to change lenses and thus to use specialty optics.
  • Longer lasting: Gets more shots (700 versus 250) out of a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • More heavily discounted: Has been around for much longer (launched in February 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the SX510 emerges as the winner of the contest (13 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SX510 13:11 T3

How about other alternatives? Do the specifications of the Canon SX510 and the Canon T3 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX510 or the T3. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SX510..+ +..4.5/54/5 Aug 2013 249i
2.

Canon T3..80/10069/1004/54.5/5 Feb 2011 449i
3.

Canon T100..o..3.5/53.5/5 Feb 2018 399 i
4.

Canon SX420........3/5 Jan 2016 299i
5.

Canon SX520..+..3.5/53.5/5 Jul 2014 399i
6.

Canon SX700..+ +..4/54/5 Feb 2014 349i
7.

Canon SX600..+..4/54/5 Jan 2014 249i
8.

Canon SX400..+...... Jul 2014 249i
9.

Canon T53/5+..4/54.5/5 Feb 2014 449i
10.

Canon SX500..+ +..4/54/5 Aug 2012 329i
11.

Canon G1 X5/5+76/1004/54.5/5 Jan 2012 799i
12.

Canon G154/5+76/1004.5/54.5/5 Sep 2012 499i
13.

Canon M3/5+..4/54/5 Jul 2012 599i
14.

Canon T4i4/5+ +77/1004.5/54.5/5 Jun 2012 849i
15.

Canon XS..82/100+ +3.5/54.5/5 Jun 2008 449i
16.

Leica X23/5....3/54/5 May 2012 1,995i
17.

Sony H200......3.5/53.5/5 Jan 2013 249 i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon SX510:
Check Ebay offers
Canon T3:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications: Canon SX510 vs Canon T3

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SX510 Canon T3
    Camera Type Fixed lens compact camera Digital single lens reflex
    Camera Lens 24-720mm f/3.4-5.8 Canon EF mount lenses
    Launch Date August 2013 February 2011
    Launch Price USD 249 USD 449
    Sensor Specs Canon SX510 Canon T3
    Sensor Technology CMOS CMOS
    Sensor Format 1/2.3" Sensor APS-C Sensor
    Sensor Size 6.17 x 4.55 mm 22.0 x 14.7 mm
    Sensor Area 28.0735 mm2 323.4 mm2
    Sensor Diagonal 7.7 mm 26.5 mm
    Crop Factor 5.6x 1.6x
    Sensor Resolution 15.9 Megapixels 12.2 Megapixels
    Image Resolution 4608 x 3456 pixels 4272 x 2848 pixels
    Pixel Pitch 1.33 μm 5.15 μm
    Pixel Density 56.73 MP/cm2 3.76 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 1080/24p Video 720/30p Video
    ISO Setting 80 - 3,200 ISO 100 - 6,400 ISO
    Image Processor DIGIC 4 DIGIC 4
    DXO Sensor Quality (score) .. 62
    DXO Color Depth (bits) .. 21.9
    DXO Dynamic Range (EV) .. 11.0
    DXO Low Light (ISO) .. 755
    Screen Specs Canon SX510 Canon T3
    Viewfinder Type no viewfinder Optical viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.50x
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 2.7inch
    LCD Resolution 461k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon SX510 Canon T3
    Focus System Contrast-detect AF Phase-detect AF
    Continuous Shooting 3.8 shutter flaps/s 3 shutter flaps/s
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Canon SX510 Canon T3
    External Flash no Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support Wifi built-in no Wifi
    Body Specs Canon SX510 Canon T3
    Battery Type NB-6LH LP-E10
    Battery Life (CIPA)250 shots per charge700 shots per charge
    Body Dimensions 104 x 70 x 80 mm
    (4.1 x 2.8 x 3.1 in)
    130 x 100 x 78 mm
    (5.1 x 3.9 x 3.1 in)
    Camera Weight 349 g (12.3 oz) 495 g (17.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SX510 vs Canon T3

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.


    If you like it, make sure you share it:

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback. I appreciate it.
