Canon SX420 vs Nikon D500

The Canon PowerShot SX420 IS and the Nikon D500 are two digital cameras that were officially introduced in January 2016. The SX420 is a fixed lens compact, while the D500 is a DSLR. The cameras are based on a 1/2.3-inch (SX420) and an APS-C (D500) sensor. The Canon has a resolution of 19.9 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX420		Nikon D500
Fixed lens compact camera		Digital single lens reflex
24-1008mm f/3.5-6.6		Nikon F mount lenses
19.9 MP – 1/2.3" sensor		20.7 MP – APS-C sensor
720/25p Video		4K/30p Video
ISO 100-1,600		ISO 100-51,200 (50 - 1,640,000)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 230k dots		3.2" LCD – 2359k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
0.5 shutter flaps per second		10 shutter flaps per second
not weather sealed		Weathersealed body
195 shots per battery charge		1240 shots per battery charge
104 x 69 x 85 mm, 325 g		147 x 115 x 81 mm, 860 g

Check SX420 offers at
ebay.com
Check D500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX420 IS and the Nikon D500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

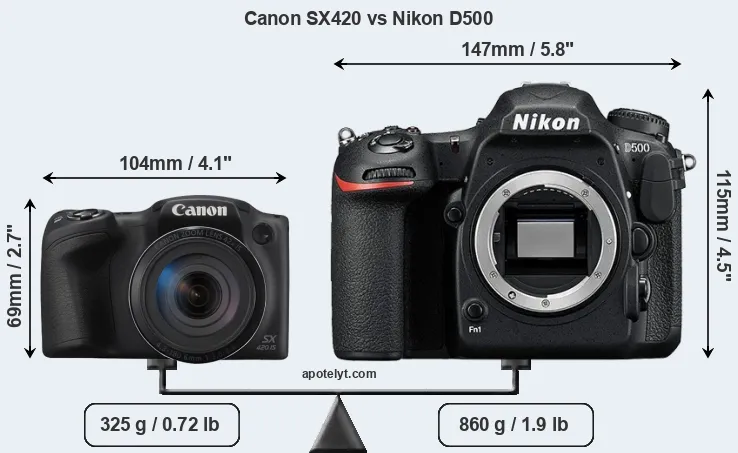

An illustration of the physical size and weight of the Canon SX420 and the Nikon D500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The SX420 can be obtained in two different colors (black, red), while the D500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D500 is considerably larger (136 percent) than the Canon SX420. It is noteworthy in this context that the D500 is splash and dust-proof, while the SX420 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX420 has a lens built in, whereas the D500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D500 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the SX420 gets 195 shots out of its Canon NB-11LH battery, while the D500 can take 1240 images on a single charge of its Nikon EN-EL15 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
2.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
3.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
5.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
6.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
7.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
8.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	US$ 249	ebay.com
9.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
10.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
11.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
12.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
13.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
14.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
15.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
16.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
17.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX420 was launched at a lower price than the D500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX420 features a 1/2.3-inch sensor and the Nikon D500 an APS-C sensor. The sensor area in the D500 is 1218 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX420 has a native 4:3 aspect ratio, while the one in the D500 offers a 3:2 aspect.

With 20.7MP, the D500 offers a higher resolution than the SX420 (19.9MP), but the D500 nevertheless has larger individual pixels (pixel pitch of 4.22μm versus 1.19μm for the SX420) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX420 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Nikon D500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000.

In terms of underlying technology, the SX420 is build around a CCD sensor, while the D500 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
2.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
3.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
4.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
5.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
6.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
7.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
8.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
9.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
10.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
11.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
12.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
13.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
14.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
15.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
16.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
17.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D500 provides a better video resolution than the SX420. It can shoot movie footage at 4K/30p, while the Canon is limited to 720/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX420 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX420 and Nikon D500 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
2.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
3.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
4.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
5.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
6.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
9.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
10.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
11.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
12.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
13.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
14.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
15.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
16.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
17.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX420 has one, while the D500 does not. While the built-in flash of the SX420 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SX420 writes its imaging data to SDXC cards, while the D500 uses SDXC or XQD cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX420 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SX420 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX420 IS and Nikon D500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
2.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
3.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
7.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
9.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
13.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
15.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
16.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
17.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y

It is notable that the D500 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX420 does not feature such a mic input.

Studio photographers will appreciate that the Nikon D500 (unlike the SX420) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the SX420 and the D500 have been discontinued, but can regularly be found used on ebay. The SX420 was replaced by the Canon SX430, while the D500 does not have a direct successor. Further information on the features and operation of the SX420 and D500 can be found, respectively, in the Canon SX420 Manual (free pdf) or the online Nikon D500 Manual.

Review summary

So what is the bottom line? Is the Canon SX420 better than the Nikon D500 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot SX420 IS:

• Ready to shoot: Comes with a built-in lens, while the D500 requires a separate lens.
• More compact: Is smaller (104x69mm vs 147x115mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D500).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

Advantages of the Nikon D500:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (4K/30p vs 720/25p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 0.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (1240 versus 195) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.

If the number of relative strengths (bullet points above) is taken as a guide, the D500 is the clear winner of the contest (25 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX420 and the Nikon D500 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX420 or the D500 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
2.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
3.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
5.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
6.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
7.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
8.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	US$ 249	ebay.com
9.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
10.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
11.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
12.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
13.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
14.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
15.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
16.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
17.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check SX420 offers at
ebay.com
Check D500 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check SX420 offers at
ebay.com
Check D500 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
