Canon SL1 vs SL2
The Canon EOS Rebel SL1 (called Canon 100D in some regions) and the Canon EOS Rebel SL2 (labelled Canon 200D in some countries) are two digital cameras that were announced, respectively, in March 2013 and June 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The SL1 has a resolution of 17.9 megapixels, whereas the SL2 provides 24 MP.
As their names suggest, both the Canon EOS Rebel SL1 and the Canon EOS Rebel SL2 belong to Canon's Rebel line of DSLR cameras. This range of APS-C cameras, which started out with the Canon EOS Digital Rebel in 2003, has been a big commercial success and the backbone of Canon's dominance in the digital camera market. The popularity of the Rebel cameras is the result of them inheriting much of the sensor and shooting technology from earlier released professional DSLRs, while being sold at a much more budget-friendly price point. The strong brand reputation of Canon and the comprehensive EOS system of compatible lenses and accessories further contributes to the appeal of the Rebel cams, including the Canon SL1 and Canon SL2. Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL1 and the Canon EOS Rebel SL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

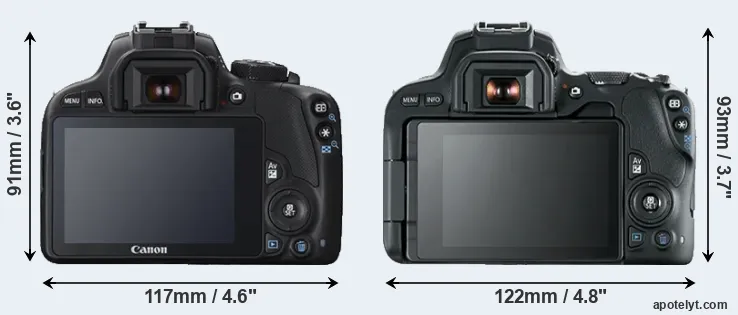

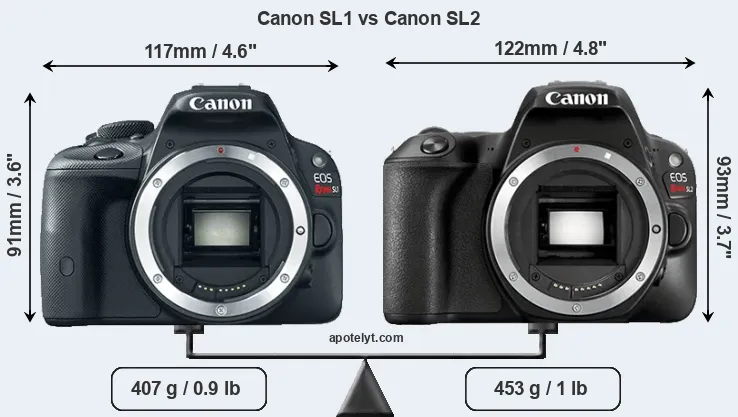

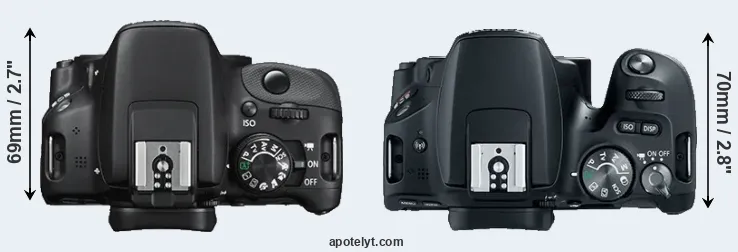

The physical size and weight of the Canon SL1 and the Canon SL2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SL2 is notably larger (7 percent) than the Canon SL1. Moreover, the SL2 is markedly heavier (11 percent) than the SL1. In this context, it is worth noting that neither the SL1 nor the SL2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|2.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|3.||Canon SL3||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599|
|4.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|5.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|6.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|7.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|8.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|9.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|10.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|11.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|12.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|13.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|14.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|15.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

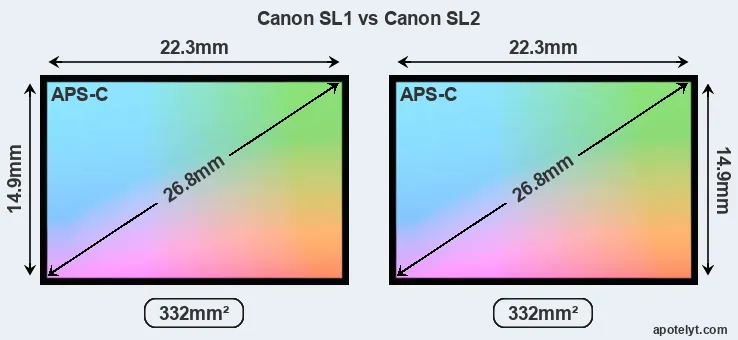

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the SL2 uses a more advanced image processing engine (DIGIC 7) than the SL1 (DIGIC 5), with benefits for noise reduction, color accuracy, and processing speed.

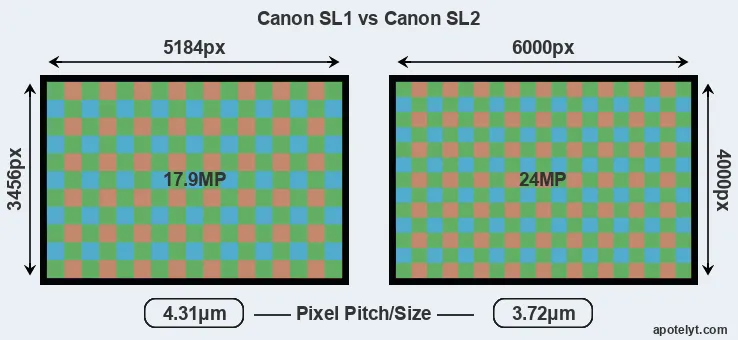

While the two cameras under review share the same sensor size, the SL2 offers a higher resolution of 24 megapixels, compared with 17.9 MP of the SL1. This megapixels advantage translates into a 16 percent gain in linear resolution. On the other hand, these sensor specs imply that the SL2 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.31μm for the SL1). However, it should be noted that the SL2 is much more recent (by 4 years and 3 months) than the SL1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Canon SL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL2 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SL1 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS Rebel SL1 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS Rebel SL2 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the SL2 offers substantially better image quality than the SL1 (overall score 16 points higher). The advantage is based on 1.8 bits higher color depth, 2.1 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the SL2 provides a faster frame rate than the SL1. It can shoot movie footage at 1080/60p, while the SL1 is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The SL1 and the SL2 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), as well as the same magnification (0.54x). The table below summarizes some of the other core capabilities of the Canon SL1 and Canon SL2 in connection with corresponding information for a sample of similar cameras.
|1.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9||Y||n|
|2.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|3.||Canon SL3||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|4.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|5.||Canon T100||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|6.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|7.||Canon T6||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|8.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6||Y||n|
|9.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|10.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|11.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2||Y||Y|
|12.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|13.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3||n||n|
|14.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|15.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7||Y||n|
The Canon SL2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SL1 and the SL2 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL1 and Canon EOS Rebel SL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|2.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|3.||Canon SL3||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon T100||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|6.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon T6||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|8.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|9.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|10.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|11.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|12.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|13.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|14.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|15.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
It is notable that the SL2 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SL1 does not provide wifi capability.
Both the SL1 and the SL2 have been discontinued, but can regularly be found used on eBay. The SL1 was replaced by the Canon SL2, while the SL2 was followed by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Which of the two cameras – the Canon SL1 or the Canon SL2 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS Rebel SL1:
- Less heavy: Is lighter (by 46g or 10 percent) and hence easier to carry around.
- More heavily discounted: Has been available for much longer (launched in March 2013).
Reasons to prefer the Canon EOS Rebel SL2:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.1 EV of extra DR).
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 5).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (650 versus 380) out of a single battery charge.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 4 years and 3 months of technical progress since the SL1 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the SL2 is the clear winner of the contest (14 : 2 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SL1 and the Canon SL2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SL1 or the SL2. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549|
|2.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|3.||Canon SL3||..||o||4.5/5||79/100||4/5||4/5||Apr 2019||599|
|4.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|5.||Canon T100||..||o||3/5||..||3.5/5||3.5/5||Feb 2018||399|
|6.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|7.||Canon T6||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449|
|8.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499|
|9.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|10.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|11.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549|
|12.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|13.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599|
|14.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|15.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon SL1 vs Canon SL2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SL1||Canon SL2|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Canon EF mount lenses|
|Launch Date||March 2013||June 2017|
|Launch Price||USD 549||USD 549|
|Sensor Specs||Canon SL1||Canon SL2|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||332.27 mm2||332.27 mm2|
|Sensor Diagonal||26.8 mm||26.8 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.72 μm|
|Pixel Density||5.39 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 12,800 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 5||DIGIC 7|
|DXO Sensor Quality (score)||63||79|
|DXO Color Depth (bits)||21.8||23.6|
|DXO Dynamic Range (EV)||11.3||13.4|
|DXO Low Light (ISO)||843||1041|
|Screen Specs||Canon SL1||Canon SL2|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon SL1||Canon SL2|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||4.9 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon SL1||Canon SL2|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon SL1||Canon SL2|
|Battery Life (CIPA)||380 shots per charge||650 shots per charge|
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
122 x 93 x 70 mm
(4.8 x 3.7 x 2.8 in)
|Camera Weight||407 g (14.4 oz)||453 g (16.0 oz)|
