Canon Rebel vs Olympus E-1
The Canon EOS Digital Rebel (called Canon 300D in some regions) and the Olympus E-1 are two digital cameras that were revealed to the public, respectively, in August 2003 and June 2003. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (Rebel) and a Four Thirds (E-1) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 4.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Digital Rebel and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

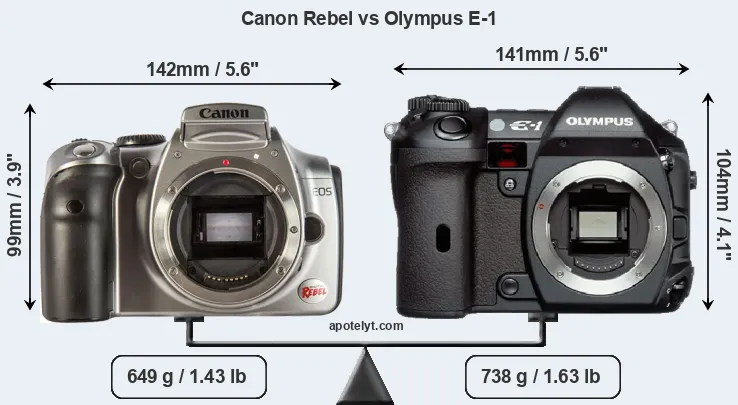

The side-by-side display below illustrates the physical size and weight of the Canon Rebel and the Olympus E-1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is somewhat larger (4 percent) than the Canon Rebel. Moreover, the E-1 is markedly heavier (14 percent) than the Rebel. It is noteworthy in this context that the E-1 is splash and dust-proof, while the Rebel does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (Rebel) and the Four Thirds Lens Catalog (E-1).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|2.||Olympus E-1||141 mm||104 mm||81 mm||738 g||750||Y||Jun 2003||1,699|
|3.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|6.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|7.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|8.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|9.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|10.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|11.||Canon 10D||150 mm||107 mm||75 mm||850 g||500||n||Feb 2003||1,999|
|12.||Leica Digilux 3||146 mm||87 mm||77 mm||606 g||750||n||Sep 2006||1,499|
|13.||Nikon D70||140 mm||111 mm||78 mm||679 g||400||n||Jan 2004||999|
|14.||Olympus E-5||142 mm||117 mm||75 mm||873 g||750||Y||Sep 2010||1,699|
|15.||Olympus E-3||142 mm||116 mm||75 mm||876 g||750||Y||Oct 2007||1,699|
|16.||Olympus E-330||140 mm||87 mm||72 mm||637 g||750||n||Jan 2006||999|
|17.||Olympus E-300||147 mm||85 mm||64 mm||624 g||750||n||Sep 2004||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Rebel was launched at a markedly lower price (by 47 percent) than the E-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon Rebel features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 34 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the Rebel has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.
With 6.3MP, the Rebel offers a higher resolution than the E-1 (4.9MP), but the Rebel nevertheless has larger individual pixels (pixel pitch of 7.38μm versus 6.78μm for the E-1) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.
The resolution advantage of the Canon Rebel implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Rebel for good quality output (200 dots per inch) amounts to 15.4 x 10.2 inches or 39 x 26 cm, for very good quality (250 dpi) 12.3 x 8.2 inches or 31.2 x 20.8 cm, and for excellent quality (300 dpi) 10.2 x 6.8 inches or 26 x 17.3 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.
The Canon EOS Digital Rebel has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Olympus E-1||Four Thirds||4.9||2560||1920||none||..||..||..||..|
|12.||Leica Digilux 3||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|14.||Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|15.||Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56|
|16.||Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|17.||Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..|
Apart from body and sensor, cameras can and do differ across a range of features. The Rebel and the E-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-1 offers a wider field of view (100%) than the one in the Rebel (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the Rebel has a higher magnification (0.55x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon Rebel, the Olympus E-1, and comparable cameras.
|12.||Leica Digilux 3||optical||n||2.5||207||fixed||n||1/4000s||3.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The Rebel has one, while the E-1 does not. While the built-in flash of the Rebel is not very powerful, it can at times be useful as a fill-in light.
The Rebel writes its imaging data to Compact Flash cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the Rebel only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Digital Rebel and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|12.||Leica Digilux 3||Y||stereo||mono||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Olympus E-1 (unlike the Rebel) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the Rebel and the E-1 have been discontinued, but can regularly be found used on eBay. The E-1 was replaced by the Olympus E-3, while the Rebel was followed by the Canon XT. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Canon Rebel and the Olympus E-1? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS Digital Rebel:
- More detail: Offers more megapixels (6.3 vs 4.9MP) with a 15% higher linear resolution.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.55x vs 0.48x).
- Less heavy: Is lighter (by 89g or 12 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
Reasons to prefer the Olympus E-1:
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (134k vs 118k dots).
- Faster burst: Shoots at higher frequency (3 vs 2.5 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (750 versus 400) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (9 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon Rebel and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the Rebel or the E-1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|2.||Olympus E-1||..||..||+||o||..||Jun 2003||1,699|
|3.||Canon T7i||4.5/5||..||80/100||4.5/5||4/5||Feb 2017||749|
|4.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|6.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|7.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|8.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|9.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|10.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|11.||Canon 10D||..||..||+ +||..||..||Feb 2003||1,999|
|12.||Leica Digilux 3||..||..||..||..||..||Sep 2006||1,499|
|13.||Nikon D70||..||..||+ +||..||..||Jan 2004||999|
|14.||Olympus E-5||4/5||..||75/100||4/5||4.5/5||Sep 2010||1,699|
|15.||Olympus E-3||..||88/100||+ +||o||4/5||Oct 2007||1,699|
|16.||Olympus E-330||..||..||+||o||..||Jan 2006||999|
|17.||Olympus E-300||..||..||+||o||4.5/5||Sep 2004||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon Rebel vs Olympus E-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon Rebel||Olympus E-1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||August 2003||June 2003|
|Launch Price||USD 899||USD 1,699|
|Sensor Specs||Canon Rebel||Olympus E-1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.7 x 15.1 mm||17.3 x 13.0 mm|
|Sensor Area||342.77 mm2||224.9 mm2|
|Sensor Diagonal||27.3 mm||21.6 mm|
|Sensor Resolution||6.3 Megapixels||4.9 Megapixels|
|Image Resolution||3072 x 2048 pixels||2560 x 1920 pixels|
|Pixel Pitch||7.38 μm||6.78 μm|
|Pixel Density||1.84 MP/cm2||2.19 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||no Video|
|ISO Setting||100 - 1,600 ISO||100 - 800 ISO|
|ISO Boost||no Enhancement||100 - 3,200 ISO|
|DXO Sensor Quality (score)||55||..|
|DXO Color Depth (bits)||21.0||..|
|DXO Dynamic Range (EV)||10.8||..|
|DXO Low Light (ISO)||544||..|
|Screen Specs||Canon Rebel||Olympus E-1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|Rear LCD Size||1.8inch||1.8inch|
|LCD Resolution||118k dots||134k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon Rebel||Olympus E-1|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||2.5 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon Rebel||Olympus E-1|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon Rebel||Olympus E-1|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||400 shots per charge||750 shots per charge|
142 x 99 x 72 mm
(5.6 x 3.9 x 2.8 in)
141 x 104 x 81 mm
(5.6 x 4.1 x 3.2 in)
|Camera Weight||649 g (22.9 oz)||738 g (26.0 oz)|
