Canon R5 vs Samsung NX500

The Canon EOS R5 and the Samsung NX500 are two digital cameras that were revealed to the public, respectively, in July 2020 and February 2015. Both the R5 and the NX500 are mirrorless interchangeable lens cameras that are based on a full frame (R5) and an APS-C (NX500) sensor. The Canon has a resolution of 44.8 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon R5
versus
Samsung NX500
Canon R5   Samsung NX500
Mirrorless system camera Mirrorless system camera
Canon RF mount lenses Samsung NX mount lenses
44.8 MP – Full Frame sensor 28 MP – APS-C sensor
8K/30p Video 4K/30p Video
ISO 100-51,200 (50 - 102,400) ISO 100-25,600 (100 - 51,200)
Electronic viewfinder (5760k dots) No viewfinder, LCD framing
3.2" LCD – 2100k dots 3.0" LCD – 1036k dots
Swivel touchscreen Tilting touchscreen
12 shutter flaps per second 9 shutter flaps per second
In-body stabilizationLens stabilization only
Weathersealed bodynot weather sealed
320 shots per battery charge370 shots per battery charge
138 x 98 x 88 mm, 738 g 120 x 64 x 43 mm, 287 g
logo
Check R5 price at
amazon.com
logo
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

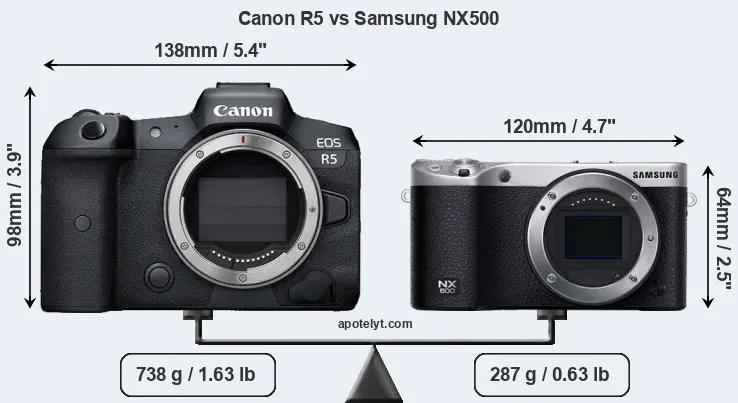

The side-by-side display below illustrates the physical size and weight of the Canon R5 and the Samsung NX500. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

Size Canon R5 vs Samsung NX500
Compare R5 versus NX500 top
Comparison R5 or NX500 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is considerably smaller (43 percent) than the Canon R5. Moreover, the NX500 is substantially lighter (61 percent) than the R5. It is worth mentioning in this context that the R5 is splash and dust resistant, while the NX500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 EUR 4 499 amazon.com
2.

Samsung NX500 120 mm 64 mm 43 mm 287 g 370 n Feb 2015 EUR 749ebay.com
3.

Canon M3 111 mm 68 mm 44 mm 366 g 250 n Feb 2015 EUR 749ebay.com
4.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 EUR 2 699 amazon.com
5.

Nikon D5500 124 mm 97 mm 70 mm 470 g 820 n Jan 2015 EUR 799ebay.com
6.

Nikon D5600 124 mm 97 mm 70 mm 465 g 970 n Nov 2016 EUR 819ebay.com
7.

Nikon Z7 134 mm 101 mm 67 mm 675 g 330 Y Aug 2018 EUR 3 849ebay.com
8.

Nikon Z7 II 134 mm 101 mm 70 mm 705 g 420 Y Oct 2020 EUR 3 399 amazon.com
9.

Panasonic S1R 149 mm 110 mm 97 mm 1016 g 380 Y Feb 2019 EUR 3 699 amazon.com
10.

Ricoh GR II 117 mm 63 mm 35 mm 251 g 320 n Jun 2015 EUR 799ebay.com
11.

Sony A7R III 127 mm 96 mm 74 mm 650 g 650 Y Oct 2017 EUR 3 499ebay.com
12.

Sony A7R IIIA 127 mm 96 mm 74 mm 650 g 650 Y Apr 2021 EUR 3 499 amazon.com
13.

Sony A7R IV 129 mm 96 mm 78 mm 665 g 670 Y Jul 2019 EUR 3 999ebay.com
14.

Sony A7S III 127 mm 97 mm 81 mm 699 g 600 Y Jul 2020 EUR 4 199 amazon.com
15.

Sony A9 II 129 mm 96 mm 76 mm 678 g 690 Y Oct 2019 EUR 5 399 amazon.com
16.

Sony A99 II 143 mm 104 mm 76 mm 849 g 490 Y Sep 2016 EUR 3 599ebay.com
17.

Sony A6000 120 mm 67 mm 45 mm 344 g 360 n Feb 2014 EUR 549ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NX500 was launched at a markedly lower price (by 80 percent) than the R5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R5 features a full frame sensor and the Samsung NX500 an APS-C sensor. The sensor area in the NX500 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon R5 and Samsung NX500 sensor measures

With 44.8MP, the R5 offers a higher resolution than the NX500 (28MP), but the R5 nevertheless has larger individual pixels (pixel pitch of 4.39μm versus 3.63μm for the NX500) due to its larger sensor. Moreover, the R5 is a much more recent model (by 5 years and 5 months) than the NX500, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the NX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Samsung NX500 are 32.4 x 21.6 inches or 82.3 x 54.9 cm for good quality, 25.9 x 17.3 inches or 65.8 x 43.9 cm for very good quality, and 21.6 x 14.4 inches or 54.9 x 36.6 cm for excellent quality prints.

The Canon EOS R5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the R5 is build around a CMOS sensor, while the NX500 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

R5 versus NX500 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the R5 has a notably higher overall DXO score than the NX500 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.5 bits higher color depth, 0.7 EV in additional dynamic range, and 1.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
2.

Samsung NX500 APS-C 28.0 6480 43204K/30p24.813.9137987
3.

Canon M3 APS-C 24.0 6000 40001080/30p22.811.8116972
4.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
5.

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884
6.

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684
7.

Nikon Z7 Full Frame 45.4 8256 55044K/30p26.314.6266899
8.

Nikon Z7 II Full Frame 45.4 8256 55044K/60p26.314.72841100
9.

Panasonic S1R Full Frame 46.7 8368 55844K/60p26.414.13525100
10.

Ricoh GR II APS-C 16.1 4928 32641080/30p23.613.7107880
11.

Sony A7R III Full Frame 42.2 7952 53044K/30p26.014.73523100
12.

Sony A7R IIIA Full Frame 42.2 7952 53044K/30p26.014.73523100
13.

Sony A7R IV Full Frame 60.2 9504 63364K/30p26.014.8334499
14.

Sony A7S III Full Frame 12.0 4240 28324K/120p23.713.9252086
15.

Sony A9 II Full Frame 24.0 6000 40004K/30p25.014.0343493
16.

Sony A99 II Full Frame 42.2 7952 53044K/30p25.413.4231792
17.

Sony A6000 APS-C 24.0 6000 40001080/60p24.113.1134782

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the R5 provides a higher video resolution than the NX500. It can shoot video footage at 8K/30p, while the Samsung is limited to 4K/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the R5 has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon R5 and Samsung NX500 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
2.

Samsung NX500none n3.0 / 1036 tilting Y 1/6000s 9.0/s Y n
3.

Canon M3optional n3.0 / 1040 tilting Y 1/4000s 4.2/s Y n
4.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
5.

Nikon D5500optical n3.2 / 1037 swivel Y 1/4000s 5.0/s Y n
6.

Nikon D5600optical n3.2 / 1037 swivel Y 1/4000s 5.0/s Y n
7.

Nikon Z73690 Y3.2 / 2100 tilting Y 1/8000s 9.0/s n Y
8.

Nikon Z7 II3690 Y3.2 / 2100 tilting Y 1/8000s 10.0/s n Y
9.

Panasonic S1R5760 Y3.2 / 2100 full-flex Y 1/8000s 9.0/s n Y
10.

Ricoh GR IIoptional n3.0 / 1230 fixed n 1/4000s 4.0/s Y n
11.

Sony A7R III3686 n3.0 / 1440 tilting Y 1/8000s 10.0/s n Y
12.

Sony A7R IIIA3686 n3.0 / 2340 tilting Y 1/8000s 10.0/s n Y
13.

Sony A7R IV5760 n3.0 / 1440 tilting Y 1/8000s 10.0/s n Y
14.

Sony A7S III9440 n3.0 / 1440 swivel Y 1/8000s 10.0/s n Y
15.

Sony A9 II3686 n3.0 / 1440 tilting Y 1/8000s 20.0/s n Y
16.

Sony A99 II2400 Y3.0 / 1229 full-flex n 1/8000s 12.0/s n Y
17.

Sony A60001440 n3.0 / 922 tilting n 1/4000s 11.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the R5, but is missing on the NX500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 writes its imaging data to CFexpress (type B) or SDXC cards, while the NX500 uses SDXC cards. The R5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the NX500 only has one slot. The R5 supports UHS-II cards (on both slots), while the NX500 can use UHS-I cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon R5Ymono / monoYYmicro3.2Y-Y
2.

Samsung NX500Ystereo / mono--micro2.0YYY
3.

Canon M3Ystereo / monoY-mini2.0YY-
4.

Canon R6Ymono / monoYYmicro3.2Y-Y
5.

Nikon D5500Ystereo / monoY-mini2.0Y--
6.

Nikon D5600Ystereo / monoY-mini2.0YYY
7.

Nikon Z7Ystereo / monoYYmicro3.1Y-Y
8.

Nikon Z7 IIYstereo / monoYYmicro3.2Y-Y
9.

Panasonic S1RYstereo / monoYYfull3.1Y-Y
10.

Ricoh GR IIYstereo / mono--micro2.0YY-
11.

Sony A7R IIIYstereo / monoYYmicro3.1YYY
12.

Sony A7R IIIAYstereo / monoYYmicro3.2YYY
13.

Sony A7R IVYstereo / monoYYmicro3.1YYY
14.

Sony A7S IIIYstereo / monoYYfull3.2Y-Y
15.

Sony A9 IIYstereo / monoYYmicro3.1YYY
16.

Sony A99 IIYstereo / monoYYmicro2.0YYY
17.

Sony A6000Ystereo / mono--micro2.0YY-

It is notable that the R5 has a microphone port, which is missing on the NX500. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Canon R5 (unlike the NX500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The R5 is a recent model that features in the current product line-up of Canon. In contrast, the NX500 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the NX500 from Samsung. Further information on the features and operation of the R5 and NX500 can be found, respectively, in the Canon R5 Manual (free pdf) or the online Samsung NX500 Manual.

ad

Review summary

So what conclusions can be drawn? Is the Canon R5 better than the Samsung NX500 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Advantages of the Canon EOS R5:

  • More detail: Offers more megapixels (44.8 vs 28MP) with a 26% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
  • More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (1.1 stops ISO advantage).
  • Better video: Provides higher definition movie capture (8K/30p vs 4K/30p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1036k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 5 years and 5 months of technical progress since the NX500 launch.

ilogo

Arguments in favor of the Samsung NX500:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • More compact: Is smaller (120x64mm vs 138x98mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 451g or 61 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (370 versus 320) out of a single battery charge.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in February 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the R5 is the clear winner of the match-up (23 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

R5 23:08 NX500

How about other alternatives? Do the specifications of the Canon R5 and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the R5 or the NX500 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 EUR 4 499 amazon.com
2.

Samsung NX5004.5/5....81/1005/54.5/5 Feb 2015 EUR 749ebay.com
3.

Canon M34/5o..75/1004.5/54/5 Feb 2015 EUR 749ebay.com
4.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 EUR 2 699 amazon.com
5.

Nikon D55005/5+..79/1004.5/54.5/5 Jan 2015 EUR 799ebay.com
6.

Nikon D56004/5..4/579/1004.5/54/5 Nov 2016 EUR 819ebay.com
7.

Nikon Z75/5+4.8/589/1004.5/55/5 Aug 2018 EUR 3 849ebay.com
8.

Nikon Z7 II4.5/5..4.5/5..4.5/54.5/5 Oct 2020 EUR 3 399 amazon.com
9.

Panasonic S1R4.5/5..4.6/589/1004.5/54.5/5 Feb 2019 EUR 3 699 amazon.com
10.

Ricoh GR II........4.5/54.5/5 Jun 2015 EUR 799ebay.com
11.

Sony A7R III..+ +4/590/1004.5/55/5 Oct 2017 EUR 3 499ebay.com
12.

Sony A7R IIIA..+ +4/590/1004.5/55/5 Apr 2021 EUR 3 499 amazon.com
13.

Sony A7R IV5/5+4.5/591/1004.5/55/5 Jul 2019 EUR 3 999ebay.com
14.

Sony A7S III4.5/5+ +5/591/1004.5/55/5 Jul 2020 EUR 4 199 amazon.com
15.

Sony A9 II....5/590/1005/55/5 Oct 2019 EUR 5 399 amazon.com
16.

Sony A99 II....4.5/585/1004.5/54.5/5 Sep 2016 EUR 3 599ebay.com
17.

Sony A60005/5+4.5/580/1004.5/55/5 Feb 2014 EUR 549ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check R5 price at
amazon.com
logo
Check NX500 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon R5 vs Samsung NX500

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon R5 Samsung NX500
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon RF mount lenses Samsung NX mount lenses
    Launch Date July 2020 February 2015
    Launch Price USD 3,899 USD 799
    Sensor Specs Canon R5 Samsung NX500
    Sensor Technology CMOS BSI-CMOS
    Sensor Format Full Frame Sensor APS-C Sensor
    Sensor Size 36.0 x 24.0 mm 23.5 x 15.7 mm
    Sensor Area 864 mm2 368.95 mm2
    Sensor Diagonal 43.3 mm 28.3 mm
    Crop Factor 1.0x 1.5x
    Sensor Resolution 44.8 Megapixels 28 Megapixels
    Image Resolution 8192 x 5464 pixels 6480 x 4320 pixels
    Pixel Pitch 4.39 μm 3.63 μm
    Pixel Density 5.18 MP/cm2 7.59 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 8K/30p Video 4K/30p Video
    ISO Setting 100 - 51,200 ISO 100 - 25,600 ISO
    ISO Boost 50 - 102,400 ISO 100 - 51,200 ISO
    Image Processor DIGIC X DRIMe Vs
    DXO Sensor Quality (score) 95 87
    DXO Color Depth (bits) 25.3 24.8
    DXO Dynamic Range (EV) 14.6 13.9
    DXO Low Light (ISO) 3042 1379
    Screen Specs Canon R5 Samsung NX500
    Viewfinder Type Electronic viewfinder no viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.76x
    Viewfinder Resolution 5760k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 2100k dots 1036k dots
    LCD Attachment Swivel screen Tilting screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon R5 Samsung NX500
    Focus System On-Sensor Phase-detect On-Sensor Phase-detect
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/6000s
    Continuous Shooting 12 shutter flaps/s 9 shutter flaps/s
    Electronic Shutterup to 1/8000sno E-Shutter
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium CFexB or SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support Dual UHS-II UHS-I
    Connectivity Specs Canon R5 Samsung NX500
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.2 USB 2.0
    HDMI Port micro HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support Bluetooth built-in Bluetooth built-in
    Body Specs Canon R5 Samsung NX500
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type Canon LP-E6NH Samsung BP1130
    Battery Life (CIPA)320 shots per charge370 shots per charge
    In-Camera Charging USB charging USB charging
    Body Dimensions 138 x 98 x 88 mm
    (5.4 x 3.9 x 3.5 in)
    120 x 64 x 43 mm
    (4.7 x 2.5 x 1.7 in)
    Camera Weight 738 g (26.0 oz) 287 g (10.1 oz)
    logo
    Check R5 price at
    amazon.com
    logo
    Check NX500 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon R5 vs Samsung NX500
