Canon R5 vs Canon RP
The Canon EOS R5 and the Canon EOS RP are two digital cameras that were officially introduced, respectively, in July 2020 and February 2019. Both the Canon R5 and the Canon RP are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Canon R5 has a resolution of 44.8 megapixels, whereas the Canon RP provides 26.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 and the Canon EOS RP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

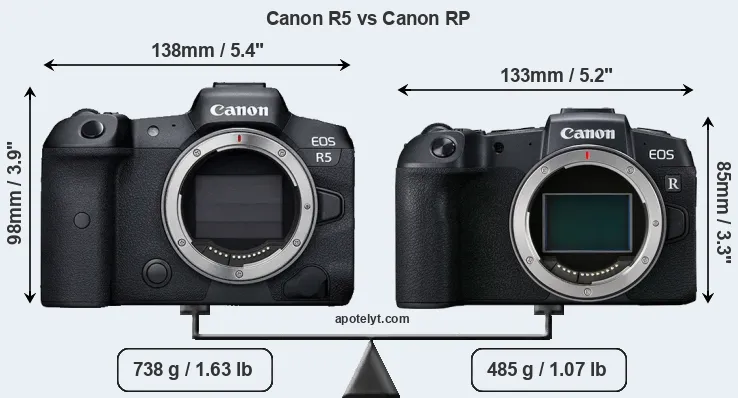

The physical size and weight of the Canon R5 and the Canon RP are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon RP is notably smaller (16 percent) than the Canon R5. Moreover, the Canon RP is markedly lighter (34 percent) than the Canon R5. It is worth mentioning in this context that the Canon R5 is splash and dust resistant, while the Canon RP does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the Canon R5 gets 320 shots out of its LP-E6NH battery, while the Canon RP can take 250 images on a single charge of its LP-E17 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon R5||138 mm||98 mm||88 mm||738 g||320||Y||Jul 2020||3,899|
|2.||Canon RP||133 mm||85 mm||70 mm||485 g||250||n||Feb 2019||1,299|
|3.||Canon 850D||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749|
|4.||Canon R6||138 mm||98 mm||88 mm||680 g||360||Y||Jul 2020||2,499|
|5.||Canon 250D||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599|
|6.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|7.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|8.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950|
|9.||Nikon Z7 II||134 mm||101 mm||70 mm||705 g||420||Y||Oct 2020||2,999|
|10.||Nikon Z7||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399|
|11.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|12.||Sony A7S III||127 mm||97 mm||81 mm||699 g||600||Y||Jul 2020||3,499|
|13.||Sony A9 II||129 mm||96 mm||76 mm||678 g||690||Y||Oct 2019||4,499|
|14.||Sony A7R IV||129 mm||96 mm||78 mm||665 g||670||Y||Jul 2019||3,499|
|15.||Sony A7R III||127 mm||96 mm||74 mm||650 g||650||Y||Oct 2017||3,199|
|16.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|17.||Sony A7R II||127 mm||96 mm||60 mm||625 g||290||Y||Jun 2015||3,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Canon RP was launched at a markedly lower price (by 67 percent) than the Canon R5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the Canon R5 uses a more advanced image processing engine (DIGIC X) than the Canon RP (DIGIC 8), with benefits for noise reduction, color accuracy, and processing speed.
With 44.8MP, the Canon R5 offers a higher resolution than the Canon RP (26.2MP), but the Canon R5 has smaller individual pixels (pixel pitch of 4.39μm versus 5.74μm for the Canon RP). However, the Canon R5 is a somewhat more recent model (by 1 year and 4 months) than the Canon RP, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon R5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon R5 for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon RP are 31.2 x 20.8 inches or 79.2 x 52.8 cm for good quality, 25 x 16.6 inches or 63.4 x 42.3 cm for very good quality, and 20.8 x 13.9 inches or 52.8 x 35.2 cm for excellent quality prints.
The Canon EOS R5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS RP are ISO 100 to ISO 40000, with the possibility to increase the ISO range to 50-102400.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Canon R5||Full Frame||44.8||8192||5464||8k/30p||25.3||14.6||3042||95|
|2.||Canon RP||Full Frame||26.2||6240||4160||4K/30p||..||..||..||..|
|4.||Canon R6||Full Frame||20.0||5472||3648||4k/60p||24.2||14.3||3394||90|
|9.||Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||..||..||..||..|
|10.||Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|11.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|12.||Sony A7S III||Full Frame||12.0||4240||2832||4K/120p||23.7||13.9||2520||86|
|13.||Sony A9 II||Full Frame||24.0||6000||4000||4K/30p||25.0||14.0||3434||93|
|14.||Sony A7R IV||Full Frame||60.2||9504||6336||4K/30p||26.0||14.8||3344||99|
|15.||Sony A7R III||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100|
|16.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|17.||Sony A7R II||Full Frame||42.2||7952||5304||4K/30p||26.0||13.9||3434||98|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the Canon R5 provides a higher video resolution than the Canon RP. It can shoot video footage at 8k/30p, while the Canon RP is limited to 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the Canon R5 offers a substantially higher resolution than the one in the Canon RP (5760k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Canon R5, the Canon RP, and comparable cameras.
|9.||Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|12.||Sony A7S III||9440||n||3.0||1440||swivel||Y||1/8000s||10.0||n||Y|
|13.||Sony A9 II||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|14.||Sony A7R IV||5760||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|15.||Sony A7R III||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|16.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
|17.||Sony A7R II||2400||n||3.0||1229||tilting||n||1/8000s||5.0||n||Y|
One feature that is present on the Canon R5, but is missing on the Canon RP is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon R5 and the Canon RP both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The Canon R5 writes its imaging data to CFexpress or SDXC cards, while the Canon RP uses SDXC cards. The Canon R5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the Canon RP only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 and Canon EOS RP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|9.||Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|12.||Sony A7S III||Y||stereo||mono||Y||Y||full||3.2||Y||-||Y|
|13.||Sony A9 II||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|14.||Sony A7R IV||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|15.||Sony A7R III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|16.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
|17.||Sony A7R II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
Both the Canon R5 and the Canon RP are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Is there a clear favorite between the Canon R5 and the Canon RP? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS R5:
- More detail: Offers more megapixels (44.8 vs 26.2MP) with a 31% higher linear resolution.
- Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 8).
- Better video: Provides higher definition movie capture (8k/30p vs 4K/30p).
- More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Longer lasting: Can take more shots (320 versus 250) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Is somewhat more recent (announced 1 year and 4 months after the Canon RP).
Arguments in favor of the Canon EOS RP:
- More compact: Is smaller (133x85mm vs 138x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 253g or 34 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in February 2019).
If the count of relative strengths (bullet points above) is taken as a measure, the Canon R5 is the clear winner of the match-up (17 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon R5 and the Canon RP place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon R5 or the Canon RP. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon R5||4.5/5||..||91/100||4.5/5||4.5/5||Jul 2020||3,899|
|2.||Canon RP||4/5||+||..||4.5/5||4/5||Feb 2019||1,299|
|3.||Canon 850D||4/5||+||80/100||4/5||3.5/5||Feb 2020||749|
|4.||Canon R6||5/5||+ +||90/100||4.5/5||5/5||Jul 2020||2,499|
|5.||Canon 250D||..||o||79/100||4/5||4/5||Apr 2019||599|
|6.||Canon 200D||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|7.||Canon M5||4/5||+||82/100||4/5||4/5||Sep 2016||979|
|8.||Leica TL2||3.5/5||..||..||4/5||4/5||Jul 2017||1,950|
|9.||Nikon Z7 II||4.5/5||..||..||4.5/5||4.5/5||Oct 2020||2,999|
|10.||Nikon Z7||5/5||+||89/100||4.5/5||5/5||Aug 2018||3,399|
|11.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|12.||Sony A7S III||..||+ +||91/100||4.5/5||5/5||Jul 2020||3,499|
|13.||Sony A9 II||..||..||90/100||5/5||5/5||Oct 2019||4,499|
|14.||Sony A7R IV||5/5||+||91/100||4.5/5||5/5||Jul 2019||3,499|
|15.||Sony A7R III||..||+ +||90/100||4.5/5||5/5||Oct 2017||3,199|
|16.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|17.||Sony A7R II||5/5||+ +||90/100||5/5||5/5||Jun 2015||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon R5 vs Canon RP
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon R5||Canon RP|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon RF mount lenses||Canon RF mount lenses|
|Launch Date||July 2020||February 2019|
|Launch Price||USD 3,899||USD 1,299|
|Sensor Specs||Canon R5||Canon RP|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm||35.9 x 24.0 mm|
|Sensor Area||864 mm2||861.6 mm2|
|Sensor Diagonal||43.3 mm||43.2 mm|
|Sensor Resolution||44.8 Megapixels||26.2 Megapixels|
|Image Resolution||8192 x 5464 pixels||6240 x 4160 pixels|
|Pixel Pitch||4.39 μm||5.74 μm|
|Pixel Density||5.18 MP/cm2||3.01 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||8k/30p Video||4K/30p Video|
|ISO Setting||100 - 51,200 ISO||100 - 40,000 ISO|
|ISO Boost||50 - 102,400 ISO||50 - 102,400 ISO|
|Image Processor||DIGIC X||DIGIC 8|
|DXO Sensor Quality (score)||95||..|
|DXO Color Depth (bits)||25.3||..|
|DXO Dynamic Range (EV)||14.6||..|
|DXO Low Light (ISO)||3042||..|
|Screen Specs||Canon R5||Canon RP|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||5760k dots||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||2100k dots||1040k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon R5||Canon RP|
|Focus System||On-Sensor Phase-detect||On-Sensor Phase-detect|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||10 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||300 000 actuations||100 000 actuations|
|Electronic Shutter||up to 1/8000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CFexpress or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-II||UHS-II|
|Connectivity Specs||Canon R5||Canon RP|
|USB Connector||USB 3.2||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon R5||Canon RP|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||320 shots per charge||250 shots per charge|
|In-Camera Charging||USB charging||USB charging|
138 x 98 x 88 mm
(5.4 x 3.9 x 3.5 in)
133 x 85 x 70 mm
(5.2 x 3.3 x 2.8 in)
|Camera Weight||738 g (26.0 oz)||485 g (17.1 oz)|
