Canon R5 C vs RP

The Canon EOS R5 C and the Canon EOS RP are two digital cameras that were revealed to the public, respectively, in January 2022 and February 2019. Both the R5 C and the RP are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The R5 C has a resolution of 44.8 megapixels, whereas the RP provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R5 C		Canon RP
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Canon RF mount lenses
44.8 MP – Full Frame sensor		26 MP – Full Frame sensor
8k/60p Video		4K/30p Video
ISO 100-51,200 (50 - 102,400)		ISO 100-40,000 (50 - 102,400)
Electronic viewfinder (5760k dots)		Electronic viewfinder (2360k dots)
3.2" LCD – 2100k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Swivel touchscreen
12 shutter flaps per second		5 shutter flaps per second
Weathersealed body		not weather sealed
320 shots per battery charge		250 shots per battery charge
142 x 101 x 111 mm, 770 g		133 x 85 x 70 mm, 485 g

Check R5 C price at
amazon.com
Check RP price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 C and the Canon EOS RP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

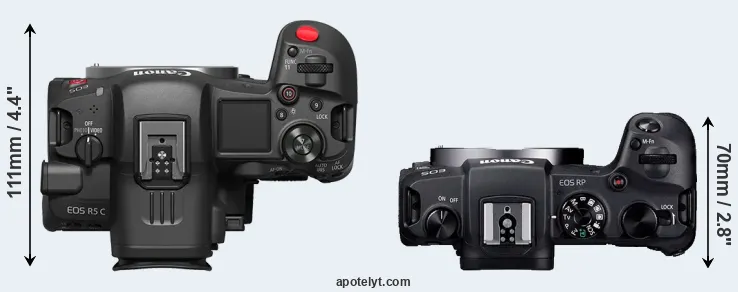

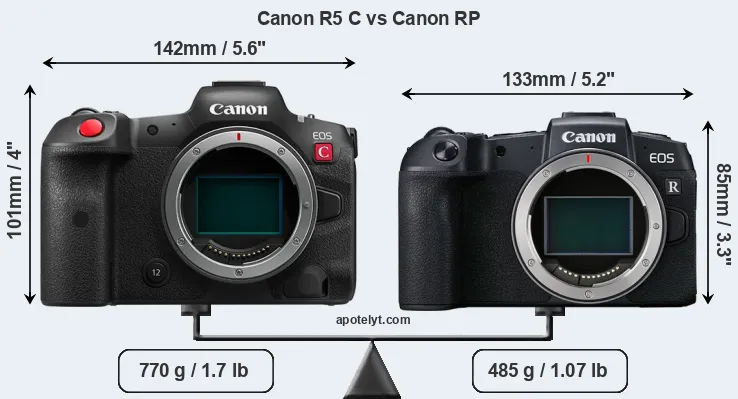

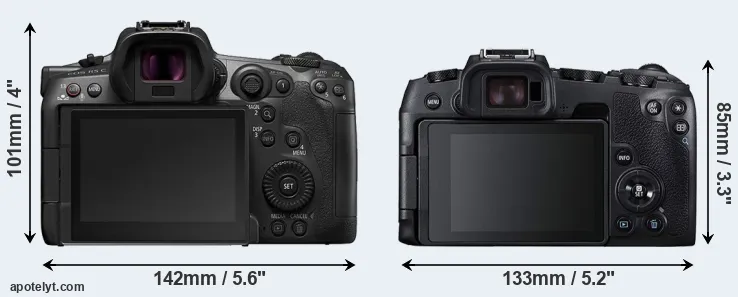

The side-by-side display below illustrates the physical size and weight of the Canon R5 C and the Canon RP. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon RP is notably smaller (21 percent) than the Canon R5 C. Moreover, the RP is substantially lighter (37 percent) than the R5 C. It is worth mentioning in this context that the R5 C is splash and dust resistant, while the RP does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R5 C gets 320 shots out of its Canon LP-E6NH battery, while the RP can take 250 images on a single charge of its Canon LP-E17 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
2.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
3.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
4.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
5.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
6.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
7.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
8.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
9.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	US$ 2 299	ebay.com
10.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
11.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
12.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
13.		Fujifilm GFX 50R	161 mm	97 mm	66 mm	775 g	400	Y	Sep 2018	US$ 4 499	ebay.com
14.		Fujifilm GFX 50S II	150 mm	104 mm	87 mm	900 g	440	Y	Sep 2021	US$ 3 999	amazon.com
15.		Hasselblad X1D II	148 mm	97 mm	70 mm	766 g	..	Y	Jun 2019	US$ 5 749	ebay.com
16.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
17.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The RP was launched at a markedly lower price (by 71 percent) than the R5 C, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

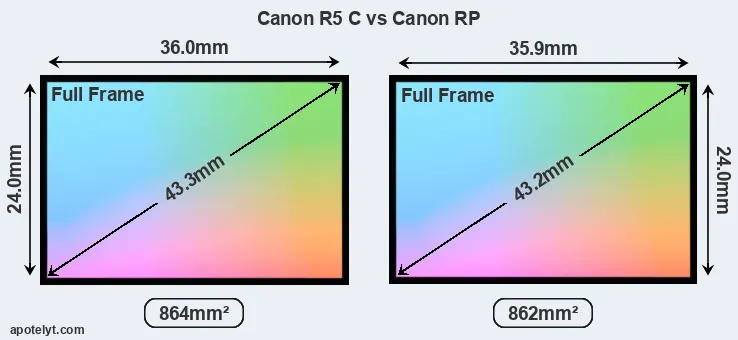

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the R5 C uses a more advanced image processing engine (DIGIC X) than the RP (DIGIC 8), with benefits for noise reduction, color accuracy, and processing speed.

With 44.8MP, the R5 C offers a higher resolution than the RP (26MP), but the R5 C has smaller individual pixels (pixel pitch of 4.39μm versus 5.76μm for the RP). However, the R5 C is a much more recent model (by 2 years and 11 months) than the RP, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R5 C implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 C for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Canon RP are 31.2 x 20.8 inches or 79.2 x 52.8 cm for good quality, 25 x 16.6 inches or 63.4 x 42.3 cm for very good quality, and 20.8 x 13.9 inches or 52.8 x 35.2 cm for excellent quality prints.

The Canon EOS R5 C has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Canon EOS RP are ISO 100 to ISO 40000, with the possibility to increase the ISO range to 50-102400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
2.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
3.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
4.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
5.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
6.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
8.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
9.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
10.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
11.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
12.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
13.		Fujifilm GFX 50R	Medium Format	51.1	8256	6192	1080/30p	25.7	14.4	3169	98
14.		Fujifilm GFX 50S II	Medium Format	51.1	8256	6192	1080/30p	25.9	14.8	3456	100
15.		Hasselblad X1D II	Medium Format	51.3	8272	6200	1080/25p	25.7	14.5	3234	99
16.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
17.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the R5 C provides a higher video resolution than the RP. It can shoot video footage at 8k/60p, while the RP is limited to 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the R5 C offers a substantially higher resolution than the one in the RP (5760k vs 2360k dots). The adjacent table lists some of the other core features of the Canon R5 C and Canon RP along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
2.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
3.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
4.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
10.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
11.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
12.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
13.		Fujifilm GFX 50R	3690	n	3.2 / 2360	tilting	Y	1/4000s	3.0/s	n	n
14.		Fujifilm GFX 50S II	3690	Y	3.2 / 2360	full-flex	Y	1/4000s	3.0/s	n	Y
15.		Hasselblad X1D II	3690	n	3.6 / 2360	fixed	Y	1/2000s	2.7/s	n	n
16.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
17.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the R5 C, but is missing on the RP is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 C is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 C and the Canon RP both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 C writes its imaging data to CFexpress (type B) or SDXC cards, while the RP uses SDXC cards. The R5 C features dual card slots, which can be very useful in case a memory card fails. In contrast, the RP only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 C and Canon EOS RP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
3.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
4.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
10.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
11.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
12.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
13.		Fujifilm GFX 50R	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
14.		Fujifilm GFX 50S II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	-
15.		Hasselblad X1D II	Y	stereo / mono	Y	Y	-	3.0	Y	-	-
16.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
17.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

Studio photographers will appreciate that the Canon R5 C (unlike the RP) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R5 C and the RP are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon. Further information on the features and operation of the R5 C and RP can be found, respectively, in the Canon R5 C Manual (free pdf) or the online Canon RP Manual.

Review summary

So what conclusions can be drawn? Is the Canon R5 C better than the Canon RP or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS R5 C:

• More detail: Offers more megapixels (44.8 vs 26MP) with a 31% higher linear resolution.
• Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 8).
• Better video: Provides higher definition movie capture (8k/60p vs 4K/30p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Longer lasting: Can take more shots (320 versus 250) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 2 years and 11 months of technical progress since the RP launch.

Arguments in favor of the Canon EOS RP:

• More compact: Is smaller (133x85mm vs 142x101mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 285g or 37 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (71 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in February 2019).

If the count of individual advantages (bullet points above) is taken as a guide, the R5 C is the clear winner of the match-up (17 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R5 C and the Canon RP place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the R5 C or the RP perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
2.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
3.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
4.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
5.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
6.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
7.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
8.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
9.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	US$ 2 299	ebay.com
10.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
11.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
12.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
13.		Fujifilm GFX 50R	5/5	..	5/5	84/100	4.5/5	4.5/5	Sep 2018	US$ 4 499	ebay.com
14.		Fujifilm GFX 50S II	5/5	..	5/5	87/100	..	5/5	Sep 2021	US$ 3 999	amazon.com
15.		Hasselblad X1D II	..	..	4/5	..	4/5	4/5	Jun 2019	US$ 5 749	ebay.com
16.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
17.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
