Canon R10 vs Fujifilm X-S20

The Canon EOS R10 and the Fujifilm X-S20 are two digital cameras that were officially introduced, respectively, in May 2022 and May 2023. Both the R10 and the X-S20 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R10		Fujifilm X-S20
Mirrorless system camera		Mirrorless system camera
		Fujifilm X mount lenses
24 MP – APS-C sensor		26 MP – APS-C sensor
4k/60p Video		4K/60p Video
ISO 100-32,000 (100 - 51,200)		ISO 160-12,800 (80 - 51,200)
Electronic viewfinder (2360k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
15 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
450 shots per battery charge		750 shots per battery charge
123 x 88 x 83 mm, 429 g		128 x 85 x 65 mm, 491 g

Check R10 price at
amazon.com
Check X-S20 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R10 and the Fujifilm X-S20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

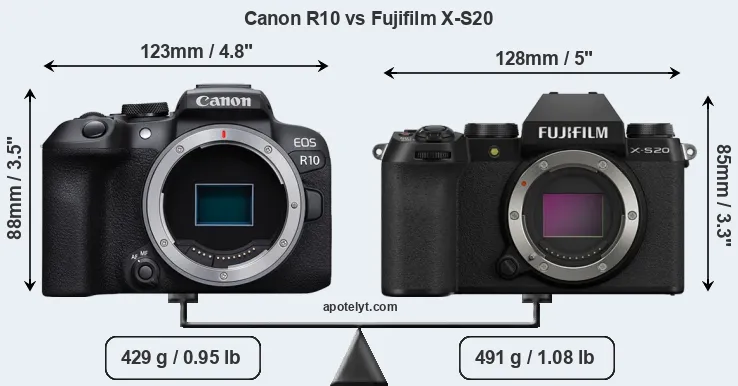

The physical size and weight of the Canon R10 and the Fujifilm X-S20 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R10 and the Fujifilm X-S20 are of equal size. However, the X-S20 is markedly heavier (14 percent) than the R10. In this context, it is worth noting that neither the R10 nor the X-S20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R10 gets 450 shots out of its Canon LP-E17 battery, while the X-S20 can take 750 images on a single charge of its Fujifilm NP-W235 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
2.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
3.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
4.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	US$ 849	ebay.com
5.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
6.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	US$ 599	ebay.com
7.		Canon R50	116 mm	86 mm	69 mm	375 g	230	n	Feb 2023	US$ 679	amazon.com
8.		Canon R100	116 mm	86 mm	69 mm	356 g	400	n	May 2023	US$ 479	amazon.com
9.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
10.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	US$ 599	amazon.com
11.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	US$ 449	amazon.com
12.		Canon T8i	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	US$ 749	ebay.com
13.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	US$ 2 499	amazon.com
14.		Fujifilm X-S10	126 mm	85 mm	65 mm	465 g	325	n	Oct 2020	US$ 999	amazon.com
15.		Fujifilm X-T3	133 mm	93 mm	59 mm	539 g	390	Y	Sep 2018	US$ 1 499	ebay.com
16.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
17.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	US$ 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The R10 was launched at a somewhat lower price (by 25 percent) than the X-S20, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-S20 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (R10) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 26MP, the X-S20 offers a higher resolution than the R10 (24MP), but the X-S20 nevertheless has marginally larger individual pixels (pixel pitch of 3.76μm versus 3.70μm for the R10) due to its larger sensor. Moreover, the X-S20 is a somewhat more recent model (by 1 year) than the R10, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-S20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS R10 has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Fujifilm X-S20 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the R10 is build around a CMOS sensor, while the X-S20 uses a BSI-CMOS imager. Like most digital cameras, the R10 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-S20 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
2.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
3.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
4.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
5.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
6.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
7.		Canon R50	APS-C	24.0	6000	4000	4K/30p	24.1	13.9	2168	84
8.		Canon R100	APS-C	24.0	6000	4000	4k/24p	24.1	13.9	2197	84
9.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
10.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
11.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
12.		Canon T8i	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
13.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
14.		Fujifilm X-S10	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2057	85
15.		Fujifilm X-T3	APS-C	26.0	6240	4160	4K/60p	24.0	13.4	1853	83
16.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
17.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4k/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The R10 and the X-S20 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Canon R10 and Fujifilm X-S20 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
2.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
3.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
4.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
5.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
6.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
7.		Canon R50	2360	n	3.0 / 1620	swivel	Y	1/4000s	12.0/s	Y	n
8.		Canon R100	2360	n	3.0 / 1040	fixed	n	1/4000s	6.5/s	Y	n
9.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon T8i	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
13.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
14.		Fujifilm X-S10	2360	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	Y
15.		Fujifilm X-T3	3690	n	3.0 / 1040	full-flex	Y	1/8000s	11.0/s	n	n
16.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
17.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the X-S20 and the R10 is in-body image stabilization (IBIS). The X-S20 reduces the risk of handshake-induced blur with all attached lenses, while the R10 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R10 and the Fujifilm X-S20 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R10 and the X-S20 write their files to SDXC cards. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R10 and Fujifilm X-S20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Canon R50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
8.		Canon R100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
11.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon T8i	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
13.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
14.		Fujifilm X-S10	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
15.		Fujifilm X-T3	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
16.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
17.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-

It is notable that the X-S20 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The R10 lacks such a headphone port.

Both the R10 and the X-S20 are recent models that are part of the current product line-up. The X-S20 replaced the earlier Fujifilm X-S10, while the R10 does not have a direct predecessor. Further information on the features and operation of the R10 and X-S20 can be found, respectively, in the Canon R10 Manual (free pdf) or the online Fujifilm X-S20 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon R10 and the Fujifilm X-S20? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS R10:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (15 vs 8 flaps/sec) to capture the decisive moment.
• Less heavy: Is lighter (by 62g or 13 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in May 2022).

Advantages of the Fujifilm X-S20:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.58x).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• Longer lasting: Gets more shots (750 versus 450) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• More modern: Was introduced somewhat (1 year) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the X-S20 emerges as the winner of the match-up (8 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R10 and the Fujifilm X-S20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R10 or the X-S20. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
2.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
3.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
4.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	US$ 849	ebay.com
5.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
6.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	US$ 599	ebay.com
7.		Canon R50	4/5	+ +	4.5/5	84/100	..	4.5/5	Feb 2023	US$ 679	amazon.com
8.		Canon R100	3/5	o	4.5/5	79/100	..	3.5/5	May 2023	US$ 479	amazon.com
9.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
10.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	US$ 599	amazon.com
11.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	US$ 449	amazon.com
12.		Canon T8i	4.5/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	US$ 749	ebay.com
13.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	US$ 2 499	amazon.com
14.		Fujifilm X-S10	5/5	..	4.5/5	86/100	4.5/5	4.5/5	Oct 2020	US$ 999	amazon.com
15.		Fujifilm X-T3	5/5	+ +	4.5/5	88/100	5/5	5/5	Sep 2018	US$ 1 499	ebay.com
16.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
17.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	US$ 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
